Š 2021 Harman. All rights reserved. SmartScale, NetLinx, Enova, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are
registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of
their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
Last Revised: 2021-06-24
1000364575 REV: A

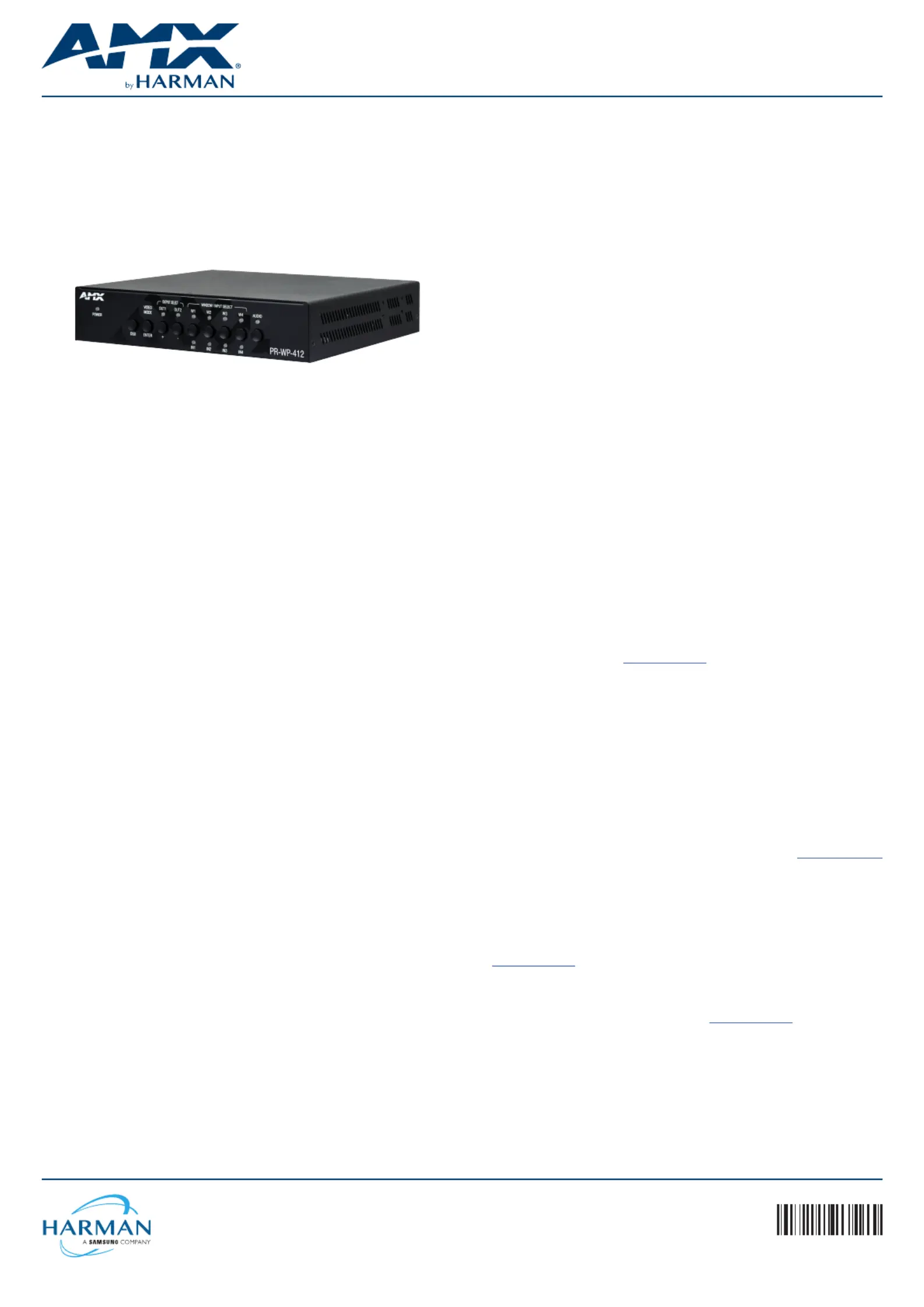

QUICK START GUIDE
PR-WP-412 Precis 4x1:2 4K60 Windowing Processor
Overview
This guide pertains to the PR-WP-412 Precis 4x1:2 4K60 Windowing
Processor. The purpose of this document is to illustrate how the device
is to be installed and set up in its simplest configuration by a trained
technician.
What’s in the box
The following items are included with the PR-WP-412:
• [1] 12V/3A DC Power Adapter
• [1] US Pins
• [1] EU Pins
• [1] UK Pins
• [1] AU Pins
• [3] 3-Pin Terminal Blocks
• [4] Rubber Feet
Power
Active power requirements:
• Voltage, DC: 12V/3A
• Power consumption (max): 22.6W
Environmental Requirements
The environmental requirements for the PR-WP-412 are as follows:
• Operating Temperature: 32˚F(0˚C)to104˚F(40˚C)
• Storage Temperature: -4°F (-20°C) to 140°F (60°C)
• Operating Humidity: 5% to 90% (RH (non-condensing)
• Storage Humidity: 5% to 90% (RH (non-condensing)
Installation
1. Attach the proper cables from HDMI video source (such as a PC,
Blu-ray player, game console, satellite/cable box, media server, etc.)
to HDMI Input 1 on the 4x1:2 HDMI windowing processor. Continue
for HDMI Inputs 2-4.
2. Attach the proper cables from the HDMI matrix switcher HDMI Output
ports to displays, projectors or other sink devices.
3. Ifrequired,connectanAVreceiver,amplierorotheraudiodeviceto
the audio output port on the PR-WP-412.
4. Power on PR-WP-412 using the correct DC power cable (supplied in
the box) that meets your location’s requirements.
Switching Operation
PR-WP-412 supports Matrix Switching, Picture-In-Picture (PiP), 3-Stack,
and Quad modes. Modes can be selected with the VIDEO MODE button on
the front panel, API commands, or via the on-board web interface.
Matrix Switching Mode:
In Matrix Switching mode, the PR-WP-412 operates as a 4x2 matrix
switcher. To make a switch when in Matrix Switching mode:
1. Press the appropriate OUTPUT SELECT button(s). The currently
selected output(s) and the routed input will be indicated by status
LEDs.
2. PressthedesiredINPUTSELECTbuttontonishswitching.
Windowing Processor Modes:
When in any of the Windowing Processor modes, the PR-WP-412 will
transmit the same signal on both outputs. PiP, 3-Stack, and Quad are
the preset windowing modes accessible using the front panel. Custom
window configurations can be created using API commands or the
on-board web interface. To route an input to a window of the selected
preset windowing mode:
1. Press the appropriate WINDOW SELECT button. The selected window
and routed input will be indicated by status LEDs.
2. Subsequent presses of the same WINDOW SELECT button will change
the input routed to that window.
Mounting Options (Rack Trays and Mounting Brackets)
The PR-WP-412 can be mounted using V Style Surface Mounting
Brackets, V Style Single Module Pole Mounting Kit, or the NMX-VRK V-Style
Rack Shelf. For details, see www.amx.com.
Identify the IP address of the PR-WP-412
Press the OSD button to enter the main menu, and then press the ENTER
button once to enter the “NETWORK STATUS” page. Finally, the current
IP address will be presented on the displays connected to the HDMI OUT
ports.
Additional Documentation
Additional documentation for this device is available at www.amx.com.
Refer to the
Instruction Manual - PR-WP-412
for additional details on
installing, upgrading, and controlling the PR-WP-412. You can also view
the Important Safety Instructions through the website.
See the Important Safety Instructions, available to view or download from
the www.amx.com.
Consultez les Instructions de sĂŠcuritĂŠ importantes, disponibles pour
consultation ou tĂŠlĂŠchargement sur le site www.amx.com.
