© 2021 Harman. All rights reserved. SmartScale, NetLinx, Enova, AMX, AV FOR AN IT WORLD, and HARMAN, and their respective logos are
registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of
their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
1000364570 REV: A
Last Revised: 2021-06-24

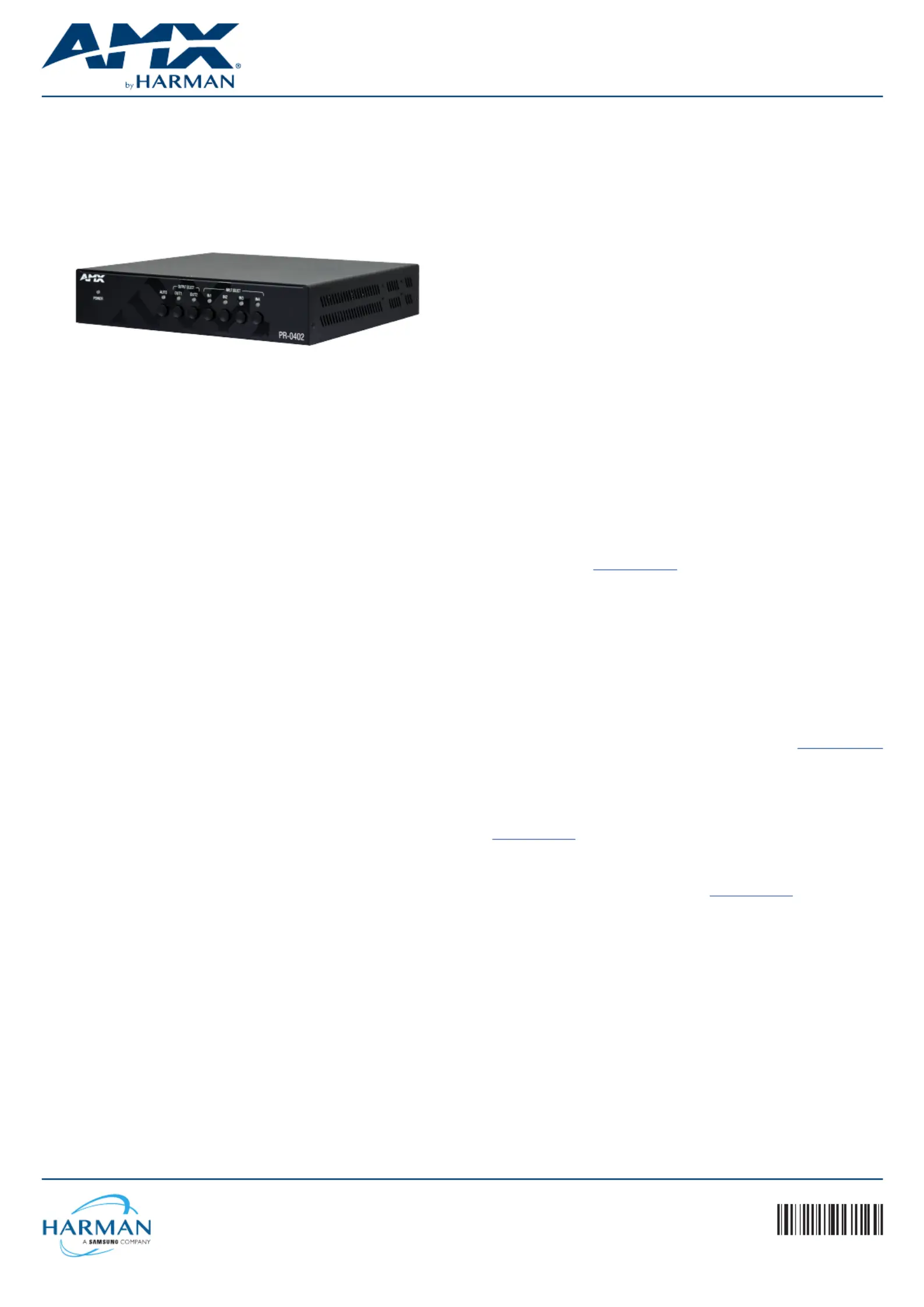

QUICK START GUIDE
PR-0402 Precis 4x2 4K60 HDMI Switcher
Overview
This guide pertains to the PR-0402 Precis 4x2 4K60 HDMI Switcher. The
purpose of this document is to illustrate how the device is to be installed
and set up in its simplest conguration by a trained technician.
What’s in the box
The following items are included with the PR-0402
[1] 12V/3A DC Power Adapter
[1] US Pins
[1] EU Pins
[1] UK Pins
[1] AU Pins
[3] 3-Pin Terminal Blocks
[4] Rubber Feet
Power
Active power requirements:
Voltage, DC: 12V/3A
Power consumption (max): 9.8W
Environmental Requirements
The environmental requirements for the PR-0402 are as follows:
Operating Temperature: 32˚F (0˚C) to 104˚F (40˚C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Operating Humidity: 5% to 90% (RH (non-condensing)
Storage Humidity: 5% to 90% (RH (non-condensing)
Installation
1. Attach the proper cables from HDMI video source (such as a PC,
Blu-ray player, game console, satellite/cable box, media server, etc.)
to HDMI Input 1 on the 4x2 HDMI matrix switcher. Continue for HDMI
Input 2-4.
2. Attach the proper cables from the HDMI matrix switcher HDMI
Outputports to displays, projectors or other sink devices.
3. If required, connect an AV receiver, amplifier or other audio device
tothe audio output port on the PR-0402.
4. Power on PR-0402 using the correct DC power cable (supplied in the
box) that meets your location’s requirements
Switching Operation
PR-0402 supports Auto switching and Manual control modes. Auto
switching can be enabled or disabled using the AUTO button on the front
panel, API Commands, or via the on-board web interface.
A. When Auto switching is enabled, the unit automatically switches
following the rules below:
1. If more than one input port has an active signal when the switcher
boots, the priority order is: HDMI1 => HDMI2 => HDMI3 =>
HDMI4
2. When a new active signal is connected to an input, that input will
be routed to both outputs.
3. If the currently routed input is removed, the previous most
recently selected input will be routed to both outputs.
B. Manual switching is allowed only when Auto switching is disabled. To
make a switch using manual mode:
1. Press the appropriate Output Select Button
2. Press the appropriate Input Select Button
Mounting Options (Rack Trays and Mounting Brackets)
The PR-0402 can be mounted using V Style Surface Mounting Brackets,
V Style Single Module Pole Mounting Kit, or the NMX-VRK V-Style Rack
Shelf. For details, see www.amx.com.
Identify the IP address of the PR-0402
Press the RESET ID button twice to show the OSD INFO, and then the
current IP address will be presented on the displays connected to the
HDMI OUT ports.
AMX Precis PR-Series Matrix Switcher Instruction Manual
Additional documentation for this device is available at www.amx.com.
Refer to the
Instruction Manual - Precis PR-Series Matrix Switchers
for
additional details on installing, upgrading, and controlling the device.
See the Important Safety Instructions, available to view or download from
the www.amx.com.
Consultez les Instructions de sécurité importantes, disponibles pour
consultation ou téléchargement sur le site www.amx.com.
