N-Touch Panel Builder Tutorial 1
SVSI N-Touch Panel Builder
Tutorial
The goal of this tutorial is to introduce the JavaScript interface of the N-Touch controller. Throughout the
tutorial, programming terminology is used, but little to no knowledge of JavaScript is assumed. Instead,
you are encouraged to copy/paste the examples and modify them to suit your needs.
NOTE: For links to more detailed information outside the scope of this tutorial, see the section Additional
Resources on page 7.
For this tutorial, we are going to build a control panel which allows the following control at the touch of a
button:
Switching multiple sources (a Media Player and a Laptop) to multiple displays (two TVs).
Turning a TV on and off using serial commands to enable and disable the video port.
Toggle a display’s source back and forth based on feedback.
NOTE: The system example used for this document is shown in FIG. 1 and is built using N2000 Encoders
and Decoders. However, the procedure given would be applicable whether the device is controlling an
N1000, N2000, or N3000 based system. When using N-Command, ports 80 and 3001 cannot be blocked
for the N-Command device’s IP addresses (in order for Panel Builder to work correctly).

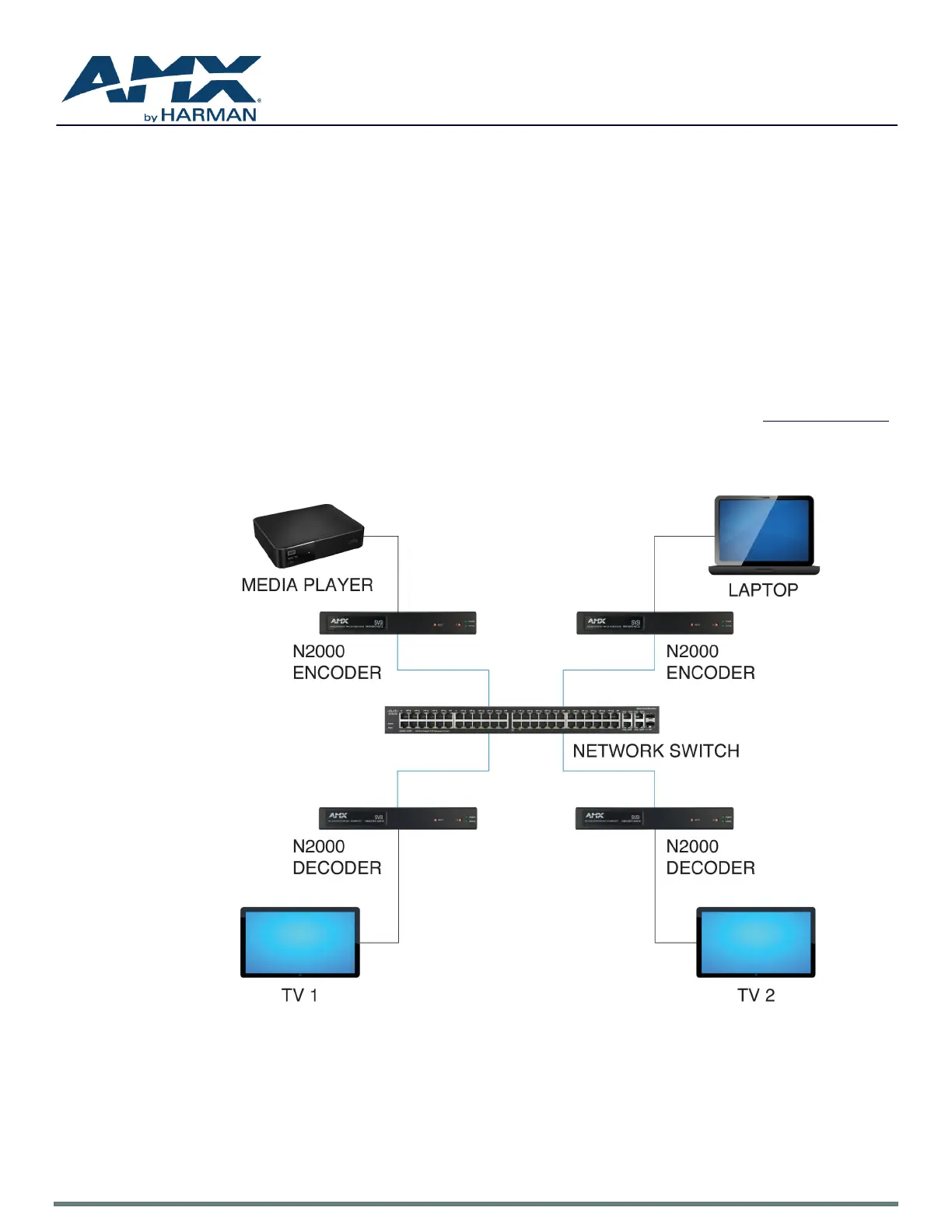

FIG. 1 Example Setup
N-Touch Panel Builder Tutorial 2
Step 1: Create a New Project
1. Launch Panel Builder. The Welcome screen appears.
FIG. 2 Creating a Project and Adding a Panel
5. The system launches the Project editor (as shown in FIG. 3).
FIG. 3 Project Editor
2. Click the New
button.
3. Enter a Panel
Name, Width, and
Height.
4. Click Add.
N-Touch Panel Builder Tutorial 3
6. For this tutorial, we begin by adding eight buttons. Drag and drop buttons from the left into the
project space as shown in FIG. 4. Click in the text field to rename your buttons.
FIG. 4 Adding Buttons
7. Continue dragging and naming buttons until you have the setup displayed in FIG. 5. Once this
tutorial is complete, the buttons will perform as described in FIG. 5’s callouts.
FIG. 5 Button Definitions
Step 2: Discover Encoder/Decoder IP Addresses
If you do not already know the IP addresses of your Encoders and Decoders, use N-Able to discover them.
NOTE: N-Able is SVSI’s free device management software. Follow these links to download:
- PC version - http://www.amx.com/products/N-ABLE-PC.asp
- Mac version - http://www.amx.com/products/N-ABLE-MAC.asp
For this tutorial, we are using two N2000 Decoders and two N2000 Encoders to connect to our displays
(i.e., Left and Right TVs) and our sources (i.e., Media Player and Laptop). The Decoder and Encoder IP
addresses are as follows:
Switch Media Player
output to Left TV.
Switch Media Player
output to Right TV.
Switch Laptop output
to Left TV.
Switch Laptop output
to Right TV.
Turn Left TV on.
Turn Left TV off.
Switch between Media Player
and Laptop output on Right TV.
Display/Source
Device Type
Connected to... Decoder/Encoder
IP Address
Left TV N2-DECODER-1 169.254.10.25
Right TV N2-DECODER-2 169.254.10.26
Media Player N2-ENCODER-1 169.254.10.27
Laptop N2-ENCODER-2 169.254.10.28
