QUICK START GUIDE
SVSI N2135A/N2235A Keyboard and Mouse Series
Overview
The NMX-ENC-N2135A Encoder and NMX-DEC-N2235A Decoder feature keyboard and
mouse extension over IP, input and output scaling, serial, balanced audio, HDMI video
connection, Power-over-Ethernet (PoE), and 1G SFP support for uncompressed
networked AV video. These devices are AES67 compatible, which enables high-
performance audio-over-IP streaming interoperability.
The N2135A Encoder converts video, audio, and control to IP packets for switching and
distribution over standard networks. The N2235A Decoder accepts the HD over IP
streams and converts them back to synchronized audio and video to allow any video
source to any display.
Basic Installation Guidelines
Establishing Connection
N2X35 devices are shipped with as their default IP mode. The IP address is DHCP
assigned automatically based on the network DHCP server. If no DHCP server is found,
the unit will use mode instead (with a default IP address of 169.254.xxx.xxx).Auto IP
Before using your N2X35 unit, it must be configured using the free N-Able device
management software. However, you will not be able to configure units until they are in
the same subnet as the host computer. The sample steps below show how the required
changes (to the host computer’s IP settings) are made in a Windows environment.
Steps for IP address configuration (for Windows 8):
1. From the Control Panel > Network and Internet Network and dialog box, select
Sharing Center.
2. Select .Change adapter settings
3. Select the wired interface connected to your AV network.
4. Click the button.Properties
5. Scroll down in the list to the Internet Protocol Version 4 (TCP/IPv4) option.
Highlight it and click the button.Properties
6. Enable the option, and enter the static IP addressUse the following IP address
provided to you by your network administrator.
NOTE: If the computer does not need Internet access, you can simply enter a unique
169.254.xxx.xxx IP address with a 255.255.0.0 Subnet mask. Please contact your
network administrator if you are unsure of how to configure the existing interface. If the
computer has a statically-assigned IP address, click on the Advanced button. Then click
Add to enter a unique 169.254.xxx.xxx address with a subnet of 255.255.0.0.
Steps for auto discovering devices on the network:
1. Use the host computer to download and install the latest version of N-Able:
PC version - http://www.amx.com/products/N-ABLE-PC.asp
Mac version - http://www.amx.com/products/N-ABLE-MAC.asp
2. Attach your N2X35 unit(s) to the layer-3 network switch.
3. Disable the wireless adapter on your computer (it must be hard-wired to the
switch).
4. Connect the host computer to the layer-3 network switch.
5. Open the N-Able application.
If all devices do not appear automatically, click the button on the Auto Discover
Unit Management tab. This issues a broadcast command that will discover all units
even if they are not in the same IP subnet.
Logging in Using N-Able Software
Once the host IP address is configured properly, you can view all discovered units using
the N-Able software. Access the N2X35 units from the following tabs:
• tab - is listed in the Unit Management N2000 Encoder/Decoder Type field.
• tab - N2X35 units are found on the sub-tab of this screen.Video Matrix N2000
Double-click the unit’s name (in one of the lists mentioned above) to view its control
page. If prompted, enter admin and password for the default username and password.
Once logged in, you can change the username and password (using the options on the
unit’s page). Settings
NOTE: If you would like for N-Able to support auto-login to your units, make sure N-Able’s
Device Auto-login settings match the unit’s username and password (by selecting N-Able
> Settings from the N-Able tool bar).
NOTE: N2X35 units force HTTPS connections, so your web browser may give you a
security warning. N-Able on Windows will ask you to download OpenSSL for Windows to
connect HTTPS.

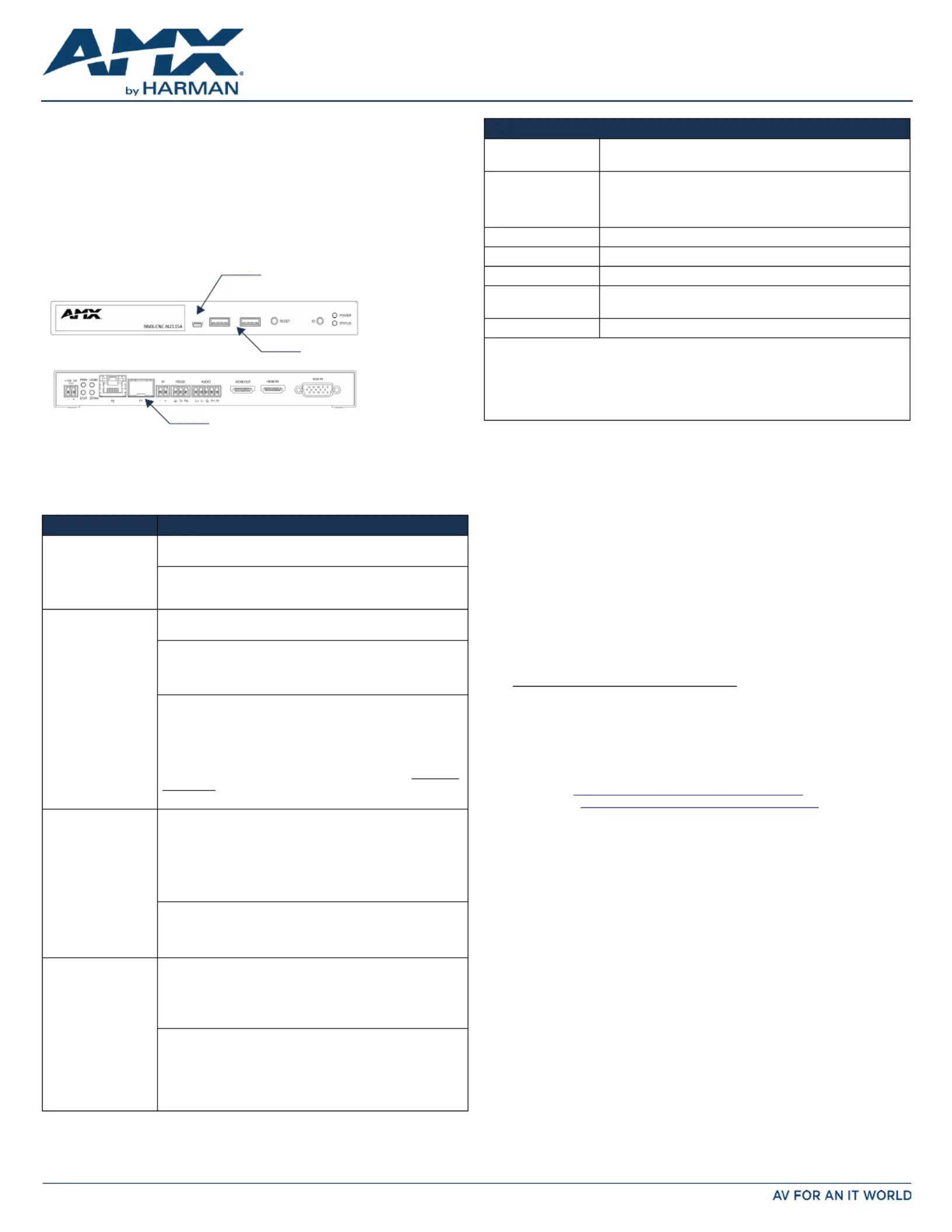

FIG. 1 N2X35A USB AND SFP PORTS
NOTE: The SFP port supports 1000BASE-X or 1000BASE-T connections only.
Connections Options
Power: PoE: Connect the unit’s P0 port to an active, PoE-enabled network
switch.
External power supply: If not using PoE for power, connect a 12V
regulated power supply (part number N9312) to the unit’s two-pin
terminal block plug connector labeled .+12V 2A
Network: PoE units: If using PoE to power the unit, you should already have
a network connection.
Externally powered units: If not using PoE, connect the P0 port to
the network using an Ethernet cable, or connect the P1 port to the
network with the appropriate cable (fiber transceiver or direct-
attach cable is required).
Daisy-chain configuration: Once network connection is
established to one unit, you can daisy chain additional units by
connecting Ethernet cables between devices using their P0 and/or
P1 ports. Keep in mind that the number of units supported in this
configuration is limited by bandwidth (total aggregate streams
must be less than 1 Gb/s).
NOTE: PoE power is only supplied to the unit connected directly to
the network. All other units in the daisy-chain must have an
external power supply.
Video: N2135A Encoders
• For video encoding of a digital source, connect the source to the
Encoder’s port using a video cable with an HDMI HDMI IN
connector (or adapter).
• For video encoding of an source, connect the source to analog
the Encoder’s port using a video cable with a VGA VGA IN
connector (or component adapter).
N2235A Decoders
• For video decoding, connect a digital display to the Decoder’s
HDMI OUT port using a video cable with an HDMI connector (or
adapter).
Audio: N2135A Encoders
• For audio encoding, connect a line level analog audio source to
the input terminal block plug connector, or Audio
• Use the embedded audio from the video source, or
• Enable to transmit an AES67 audio stream.AES67 Audio
N2235A Decoders
• For analog audio decoding, connect a line level analog audio
device to the output terminal block plug connector, orAudio
• Send embedded digital audio (embedded in the HDMI
connection) to a monitor’s speakers, or
• Enable to receive an AES67 audio stream.AES67 Audio
One USB Mini-B Port
Two USB Standard-A Ports
1G SFP port accepts compatible
(supported by Encoders)
fiber transceivers or direct attach
cables (fiber or copper cabling)
(supported by Decoders)
Product Specifications
Models Available: NMX-ENC-N2135A Encoders
NMX-DEC-N2235A Decoders
Power Requirements: Can be powered via a PoE switch or other equipment with a PoE:
PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).
External power supply: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC
power supply; Part number N9312 (sold separately).
Dimensions (HWD): 1.05” x 7.888” x 5.5” (2.67cm x 20.04cm x 14cm)
Weight: 1.55 lbs (0.7kg)
Certifications: FCC, CE, and NRTL
Environmental: Temperature: 32° to 104°F (0° to 40°C)
Humidity: 10% to 90% RH (non-condensing)
Mounting Options: Stand alone, surface mount, wall mount, or rack mount.*
NOTE: *Mounting wings (part number N9101) required for surface and wall mounting.
Rack shelf (part number N9102) or card cage (part number N9206) required for rack
mounting. Shelf accommodates two side-by-side N-Series Encoders and Decoders.
Card cage accommodates up to six N-Series Encoder and Decoder cards (mix and
match any series). Mounting accessories sold separately and are compatible with most
N-Series devices.
© 2017 Harman. All rights reserved. Modero, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
5095704-00 REV: A
Last Revised: 11/2017
Basic KVM Setup
The N2135A Encoders and N2235A Decoders are KVM-capable. By default, USB
connections are enabled and configured to follow video switching. Follow these steps
for basic KVM setup. To learn about some of the more advanced KVM capabilities, see
the section Advanced KVM Setup (with added security features).
1. On the N2135A Encoder, connect the USB Mini-B port (designated by a laptop
icon) to the computer to be controlled.
2. Connect the computer’s video output to the Encoder’s port. HDMI IN
3. On the N2235A Decoder, connect the to the display. HDMI OUT
4. Connect a USB keyboard and mouse to the Decoder’s USB Standard-A ports (they
can be plugged into either port).
NOTE: For wireless devices, simply plug the wireless signal receivers into these
ports. For keyboard and mouse combos (with a single connection) use the
keyboard port.
5. Using N-Able, click the Unit Management tab.
6. Click the button to discover your new devices (if you have not Auto Discover
already done so).
7. Once discovery is complete (and you see the new units listed in N-Able), click the
Video Matrix tab.
8. On the matrix, click the common cell for the desired Encoder/Decoder streaming
combination. See the screen shot below for an example.
9. Click the button to make the change to your matrix. The radio button turns Take
green to indicate the connection was successful.
Video/USB Switching Options
USB Follows Video: By default, units can be switched using N-Able without modifying
the configuration. When you switch video streams (using the matrix as shown above)
the USB functionality will follow the video.
Independent USB Switching: USB Matrix Use N-Able’s tab to switch USB control
(without affecting video).
Independent Video Switching: To switch video streams affecting USB control, without
first select from N-Able’s main menu. When the N-Able > Settings N-Able Settings
dialog box is displayed, disable the USB follows Video switching for KVM units. Now you
can use the to switch video streams only.Video Matrix
Advanced KVM Functionality: To have the ability to use KVM hotkeys for switching, KVM
Advanced Settings must be enabled on the individual unit (select KVM from the top of
the unit’s web interface). The next section discusses these settings in more detail.
Advanced KVM Setup (with added security features)
You can configure devices for more advanced KVM operation on the Encoder and
Decoder pages. To access these pages, double-click the unit’s name in the matrix KVM
and click at the top of the page (see below).KVM Settings
FIG. 3 SELECTING THE KVM PAGE
NOTE: Many of these options are easier to manage in N-Able’s KVM Wizard (especially in
large configurations). Select Tools > KVM Wizard from the N-Able main menu to access
the wizard.
The following table describes some of the more advanced functionality. It is important
to note that many of these options only appear on the page when is enabled KVM USB
as well as .KVM Advanced Settings
Warning! You must assign KVM passwords to your Encoders and Decoders (as well as
change the default login password from admin/password) in order for your system to
be secure.
Troubleshooting Guidelines
Please contact SVSI technical support at svsisupport@harman.com or 256.461.7143
(x9900) for assistance with any installation issues.
FIG. 2 CREATING STREAMING COMBINATIONS
Enabling this cell causes
Conference Room Decoder to listen
to . Conference Room Encoder
Click to apply changes. Take
Options Descriptions
Permission Levels Determines which Decoders can communicate with which
Encoders. A Decoder must have a permission level that is
equal to or greater than the Encoder in order for
communication to be successful.
KVM Encoders table Use the table (on the Decoder’s page) KVM Encoders KVM
to:
• Let the Decoder know the Encoder passwords it needs to
establish communication.
• Assign Encoder hotkeys.
• Add/remove Encoders from the Decoder’s list.
Passwords By default, KVM streams are encrypted with a common
password. You can change the password on the Settings
page of the Encoder. If you change Encoder passwords, you
will need to supply the new information to the Decoders to
allow communication to continue.
A Decoder only receives password information for the
Encoders on the network that have been associated with
that Decoder as mentioned previously.
Hotkeys To use hotkeys for easy switching, enable KVM Directory
Screen Enable on the Decoder’s KVM page. You can now
access the KVM Directory Screen at any time by pressing the
<Scr Lk> button twice on the keyboard connected to the
Decoder. This screen displays all Encoders associated with
that Decoder (and their corresponding hotkey).
Import and export KVM CSV
files
Multiple Encoders and Decoders can be configured from a
single CSV file (which is generated using the KVM Wizard in
N-Able). Once all changes are made, upload the file to each
unit using its page.Click the button, KVM Choose File
browse to the CSV file you exported from the wizard, and
click the button. Upload
Problem Possible Solution
Video is not
transmitting.
• Verify that the Encoder setting is turned on. TX Enable
(Encoders ship from the factory with their video output turned
off by default.)
Local Play graphic is
displayed.
• Verify Decoder is assigned to view a valid stream in the N-Able
matrix.
• Verify Decoder is currently in live play mode (black text on matrix
view).
• Verify network is properly configured and set up. If needed,
connect Encoder directly to Decoder to verify network issues.
Host Play graphic is
displayed.
• Verify Encoder is in live play mode (black text in matrix).
• Verify source is attached and is outputting a valid signal ( HDMI
LED on Encoder is on).
Unsupported
Resolution graphic is
displayed.
• Change source resolution to a valid resolution (try 720p60).
• Verify cabling is correct.
Copy Protected Content
screen is displayed.
• Contact technical support.
Black screen/no
graphic is displayed.
• Set Decoder to local play. If the local play graphic does not
appear, check the display input settings and cabling.
• If local play appears, set Decoder to live play and verify network
is configured properly.
No audio is detected. • If there is no audio on all Decoders, verify audio settings are
correct on Encoder.
• If there is no audio on a single Decoder, verify audio settings are
correct on Decoder.

Produktspezifikationen

Marke: AMX
Kategorie: Nicht kategorisiert
Modell: NMX-ENC-N2135A

Brauchst du Hilfe?

Wenn Sie Hilfe mit AMX NMX-ENC-N2135A benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten


Bedienungsanleitung Nicht kategorisiert AMX

AMX

AMX HPX-MSP-7-SL Bedienungsanleitung

6 September 2024
AMX

AMX HPX-MSP-10-SL Bedienungsanleitung

6 September 2024
AMX

AMX TPC-WIN8-TAB Bedienungsanleitung

5 September 2024
AMX

AMX NMX-DEC-N1222A Bedienungsanleitung

4 September 2024
AMX

AMX NMX-DEC-N2222A Bedienungsanleitung

4 September 2024
AMX

AMX NMX-DEC-N1233 Bedienungsanleitung

4 September 2024
AMX

AMX NMX-DEC-N2211 Bedienungsanleitung

4 September 2024
AMX

AMX NMX-ENC-N1134A Bedienungsanleitung

4 September 2024
AMX

AMX NMX-ENC-N1133 Bedienungsanleitung

4 September 2024
AMX

AMX NMX-ENC-N2315-WP Bedienungsanleitung

4 September 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung fĂĽr -Kategorien-

DAS Audio

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024
Ferplast

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024
AEG

AEG MECK52 Bedienungsanleitung

16 Oktober 2024
Makita

Makita UR012G Bedienungsanleitung

16 Oktober 2024
Stihl

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024
Ernesto

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024
IFM

IFM AC901S Bedienungsanleitung

16 Oktober 2024
Nedis

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024
AEG

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024
ART

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
