QUICK START GUIDE

MXD-1901-PAN 19.4" Modero X® Series G5 Panoramic Wall/Flush Mount Touch Panel

Overview

MXD-1901-PAN 19.4" Modero X Series® G5 Panoramic Wall Mount Touch Panels feature the

G5 Graphic Engine to provide fast and smooth animations and transitions, as well as the Quad

Core Processor. These panels feature a panoramic capacitive multi-touch screen, and are

hardware-ready for support of Near Field Communication™ (NFC) Technology.

The MXD-1901-PAN is available in Portrait and Landscape layouts:

Product Specif ications

MXD-1901-PAN Installation

• For more detailed installation instructions including important notes on thermal

concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels

MXD/T-1901-PAN & MXD/T-2001-PAN Instruction Manual (available to view/download

from www.amx.com).

• Detailed specifications drawings for the MXD-1901-PAN are available to download from

www.amx.com.

The MXD-1901-PAN may be installed directly into a solid surface environment, using either

solid surface screws or the included locking tabs for different mounting options. Once

installed, the MXD-1901-PAN is contained within a clear outer housing known as the Backbox.

The Backbox is removed to install it into a wall, or when using the optional Rough-In Box

accessory(FG039-15).

Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary

method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting

screws (not included).

Installing the MXD-1901-PAN Into a Wall

The MXD-1901-PAN comes with a clear plastic Backbox (FIG. 2) designed to attach the panel

to most standard wall materials. This Backbox has four locking tabs (2 on top, 2 on bottom) to

help lock the Backbox to the wall. These locking tabs are only extended AFTER the Backbox is

inserted into the wall.

• When installing the Backbox, make sure that the assembly is in the correct position and

in the correct place. Once the locking tabs are extended and locked into place, removing

the Backbox may be difficult without having access to the back of the wall or causing

damage to the wall.

• In order to ensure a stable installation of the MXD-1901-PAN, the thickness of the wall

material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches

(2.22cm). The mounting surface should also be smooth and flat. The Backbox also has

four slots for accepting the temporary mounting posts mounted on the back of the

device.

Installing the Backbox

Since the cutout for the Backbox is off-center from the edges of the touch panel, use the

included Installation Template (68-5968-02) to ensure proper placement. The template is

marked on one side with directions for both landscape and portrait installations to ensure that

the touch panel and Backbox are properly aligned.

WARNING: Using the Installation template to select the final placement of the Backbox is highly

recommended. The outside edges of the template are the same dimensions as the touch panel,

which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential

obstacles.

1. Prepare the area by removing any screws or nails from the drywall before beginning the

cutout process.

2. After ensuring proper placement, cut out the mounting surface for the Backbox, using

the (included) Installation Template as a guide.

CAUTION: Making sure that the actual cutout opening is slightly smaller than the provided

dimensions is highly recommended. This provides a margin of error if the opening needs to

be expanded. Too little wall material removed is always better than too much.

3. Thread the incoming cables from their terminal locations through the surface opening

(see FIG. 4 on reverse).

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

Portrait MXD-1901-PAN-P FG5968-42

Landscape MXD-1901-PAN-L FG5968-43

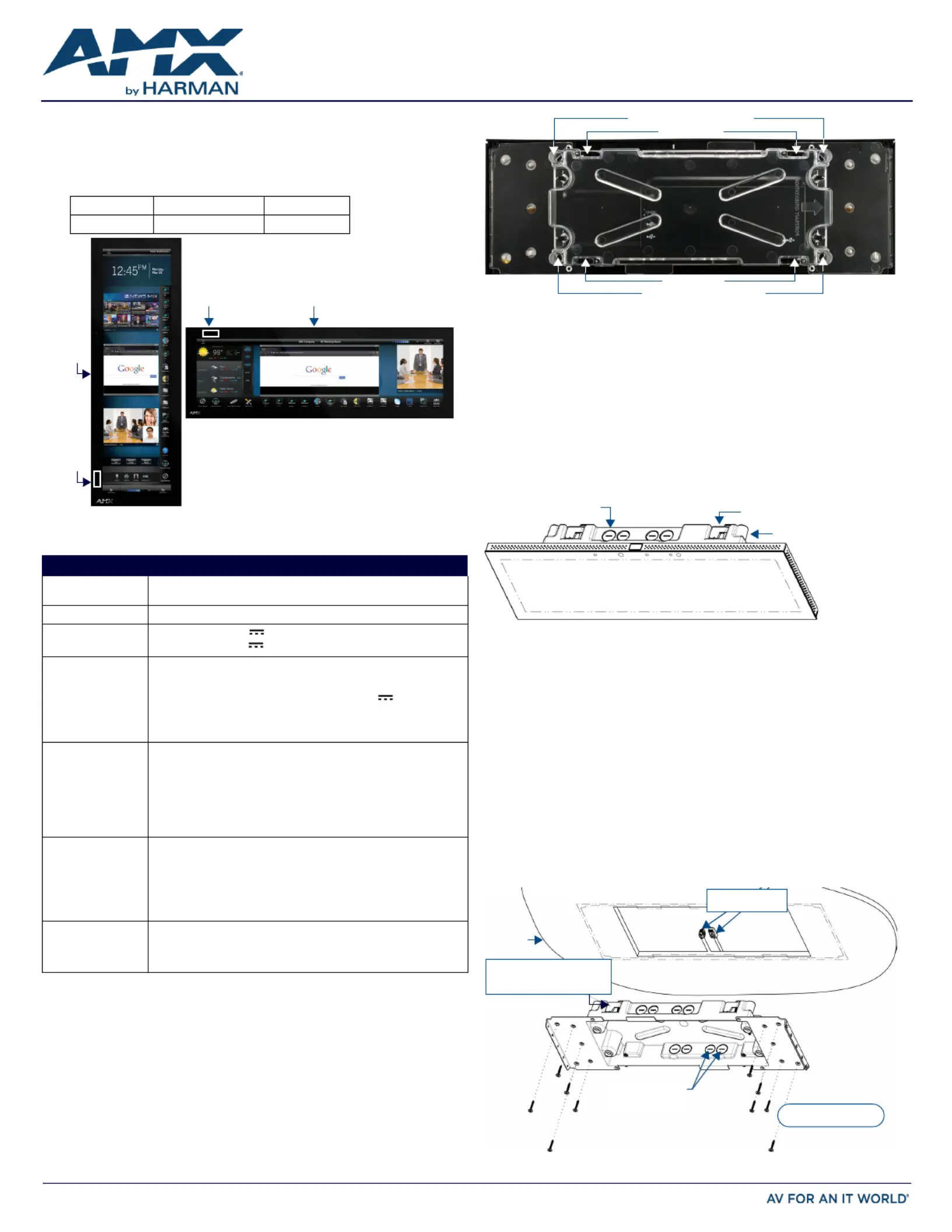

FIG. 1 MXD-1901-PAN-P/L (PORTRAIT AND LANDSCAPE)

MXD-1901-PAN SPECIF ICATIONS

Dimensions (HWD) • Landscape: 6 7/8" x 20 3/8" x 11/16" (175mm x 519mm x 19mm)

• Portrait: 20 3/8" x 6 7/8" x 11/16" (519mm x 175mm x 19mm)

Weight 6.9 lbs (3.13 Kg)

Power Consumption • Full-On: 35 W (13.5V , 2.6A)

• Standby: 7 W (13.5V , 0.52A)

External Power

Supply Required

Requires one of these AMX power sources (not included):

• PSR4.4 Power Supply, 4.5A, 3.5mm Phoenix with Retention Screws

(FG423-46)

• PSN4.4 Power Supply, 4.5A, 3.5mm Phoenix, 13.5V (discontinued)

(FG423-45)

• MXA-MPL Modero X Series Multi Preview Live (FG5968-10)

• MXA-MP Modero X Series Multi Preview (FG5968-20)

Certifications • FCC Part 15 Class B

• C-Tick CISPR 22 Class B

• CE EN 55022 Class B and EN 55024

• CB Scheme IEC 60950-1

• IC

• IEC/EN-60950

• UL 60950-1

• RoHS/WEEE compliant

Environmental • Temperature (Operating): 32° F to 104° F (0°C to 40°C)

• Temperature (Storage): 4° F to 140° F (-20°C to 60°C)

• Humidity (Operating): 20% to 85% RH

• Humidity (Storage): 5% to 85% RH

• Power ("Heat") Dissipation:

On: 119.4 BTU/hr

Standby: 23.9 BTU/hr

Included Accessories • Locking 2-pin Phoenix mate (41-0002-SA)

• MXA-USB-C, USB Port Cover Kit (FG5968-18)

• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)

• Installation Template 19.4” (68-5968-02)

Sleep ButtonNFC Sensor

Sleep

NFC

Button

Sensor

MXD-1901-PAN-P

MXD-1901-PAN-L

FIG. 2 MXD-1901-PAN BACKBOX

FIG. 3 MXD-1901-PAN (LANDSCAPE)

FIG. 4 MXD-1901-PAN BACKBOX INSTALLATION (LANDSCAPE)

Locking Tabs

Temporary Mounting Posts

Backbox

Backbox knockouts (X8) Locking tabs (X4)

Mounting screws

placement (optional)

Wall

8X Knock Outs

Remove For Cable

Routing As Needed

4X Installation Clamp

For Wall Thickness

.37 [12.01] to .98 [25.01]

Cables routed to

wall opening
