QUICK START GUIDE
MXA-RMK-20 Rack Mount Kit for 20.3" Modero X Series Landscape Touch Panel
Overview
The MXA-RMK-20 Modero X Series® Rack Mount Kit (FG5969-60) is an optional accessory for
the MXD-2000XL-PAN 20.3” Modero X Series Panoramic Wall/Flush Mount Touch Panel
(FIG. 1). The kit allows the touch panel to be mounted directly on an equipment rack, and
includes a rack mount frame, screws and washers.
Product Specif ications
Installation of the MXA-RMK-20
The MXA-RMK-20 offers a stable installation mount for the MXD-2000XL-PAN through the
panel’s Back Box.
NOTE: The MXA-RMK-20 Rack Mount Kit may only be used with the landscape mount of the
MXD-2000XL-PAN touch panel (FG5968-11). It cannot be used with the portrait mount of the
MXD-2000XL-PAN.
NOTE: All doors, covers, and other obstacles preventing installation of the Rack Mount Kit should
be removed before installation is attempted. Due to the size of the Modero X Series panel, it may
not be possible to close racks that contain a rack door, once installation is complete.
To install the MXA-RMK-20:
1. Secure the Rack Mount Panel to the rack with #10 screws. Make sure that the
installation flanges (FIG. 2 and FIG. 3) face away from the front of the rack. The thinner
flange of the Rack Mount Panel should be at the top (FIG. 1).
2. Insert the Back Box into the Rack Mount Panel, making sure that the Back Box is in the
correct orientation. The standups on the installation flanges will pass through the Back
Box and help anchor it in place.
3. Pass a washer through a #6 screw and insert it in a standup screw hole (FIG. 2). Repeat
this procedure at each corner of the Back Box.
WARNING: The maximum recommended torque to be used on the Back Box installation
screws is 5 IN-LB [56 N-CM]. Applying excessive torque while tightening the screws, such
as with powered screwdrivers, can strip out the screw holes or damage the plastic back
box.
4. With the Back Box anchored in the Rack Mount Panel (FIG. 4), you may now install the
MXD-2000XL-PAN into the Back Box.
NOTE: For more information on installing the MXD-2000XL-PAN into its back box, please refer to
the MXD/T-2000XL-PAN Operation Reference Guide, available from www.amx.com.

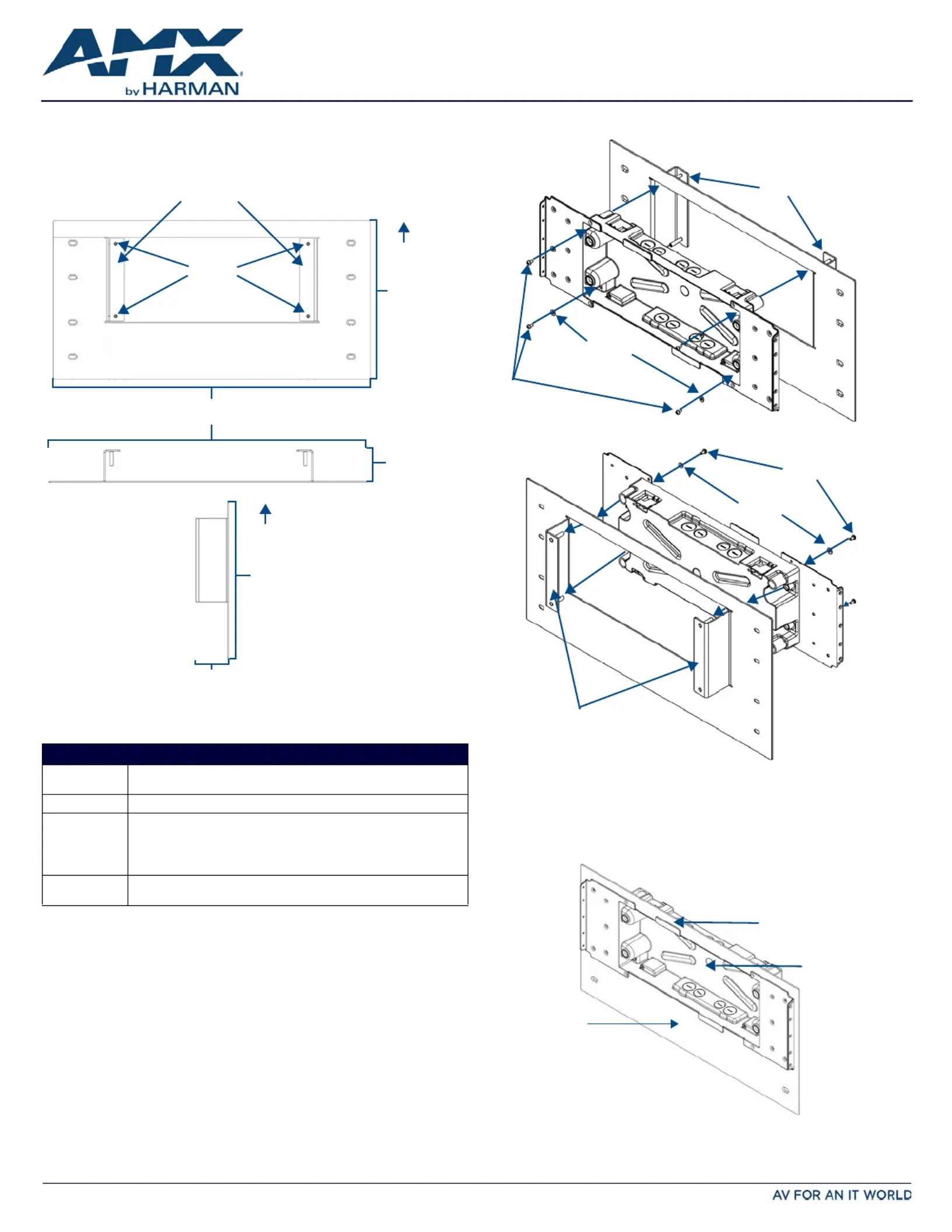

FIG. 1 MXA-RMK-20 MODERO X SERIES RACK MOUNT KIT
MXA-RMK-20 RACK MOUNT KIT (FG5969-60) SPECIF ICATIONS
Dimensions
(HWD):
10.47” x 21.00” x 2.09” (26.59 cm x 53.34 cm x 5.31 cm)
Weight: 4.30 lbs (1.95 Kg)
Included
Accessories:
• MXA-RMK-20 Installation Guide (93-5969-60)
• Rack Mount Panel, 20.3" Modero Wall Touch Panel (62-5968-46)
• Screws, #10-32 PFH 1.75" Long, Black (4) (80-5968-01)
• Screws, #6-32 x .375, PPH, Black (4) (80-0138)
• Washers, #6, Flat, 3/8 Diameter, .03 Thick, Stainless Steel (4) ( )80-0322-01
Other AMX
Equipment:
• MXD-2000XL-PAN 20.3” Modero X Series Panoramic Wall Touch Panel,
Landscape Mount (FG5968-11)
21.00” (53.34 cm)
10.47”
(26.59 cm)
2.09”
(5.31 cm)
Front View
Top View
Side View
10.47”
(26.59 cm)
2.09”
(5.31 cm)
Up
Installation
Flanges
Standups
Up
FIG. 2 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-20, FRONT VIEW
FIG. 3 INSTALLATION OF THE BACK BOX INTO THE MXA-RMK-20, REAR VIEW
FIG. 4 FINAL ASSEMBLY OF THE MXA-RMK-20 WITH BACK BOX
Installation
Flange
Screws
Washers
Installation
Flange
Screws
Washers
Rack Mount Panel
Back Box
Bottom Flange
© 2015 Harman. All rights reserved. Modero X and Modero X Series, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their
respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-5969-60 REV: B
Last Revised: 11/12/2015
A Note About Wall and Rack Installation
Some products are installed in areas of differing temperature and cooling methodologies.
These include products installed in walls, racks, cabinets, etc. Those areas may have different
temperatures and/or cooling approaches that must be taken into consideration to maintain
the product within the specified operating temperature.
FIG. 5 shows an AMX device installed in a wall with a filled volume (such as with insulation or
concrete), as well as with a closed volume (such as between studs in an otherwise finished
wall). The diagram shows how heat generated by the device or other devices may have no way
to escape, and may build up to levels that may affect device operation.
In FIG. 6, the diagram displays an AMX device in a typical rack mounting, with full air
circulation around the front and back of the device. In this case, the main concern is with heat
building up between components, possibly to levels that may affect device operation.
Installation Recommendations
During any installation, a lack of ventilation may produce conditions that may adversely affect
the device’s operation. In these circumstances, special care must be made to make sure that
temperatures within enclosed areas do not exceed the device’s maximum rated temperature.
FIG. 5 HEAT CONVECTION IN FILLED OR CLOSED VOLUME, LIMITED OR NO CONVECTION
FIG. 6 HEAT CONVECTION IN RACK-MOUNTED DEVICES
