QUICK START GUIDE
MXA-FMK-43 Modero X Series® Flush Mount Kit
Overview
The MXA-FMK-43 Flush Mount Kit (FG5968-72) mounts the MXD-430 Modero X 4.3”
Wall Mount Touch Panel flush with the wall. Once installed, simply press lightly on the
touch panel and the spring-loaded mechanism extracts the panel just slightly for
access to the side buttons and enhanced speaker exposure.
This document describes a standard wall installation of the MXA-FMK-43 Flush Mount
Kit. For details on Installation Options for solid wall placement, refer to the MXA-FMK-
43 Solid Wall and Rough-In Box Installation Quick Start Guide.
Installation of the Flush Mount Kit
The MXA-FMK-43 Flush Mount Kit (“FMK”) is designed to attach the panel to most
standard wall and solid surface materials. The FMK has two locking tabs (one on each
side) to help lock the FMK to the wall.
• These locking tabs are only extended AFTER the Flush Mount Kit is inserted into
the wall.
• Using the locking tabs is highly recommended for standard mounting surfaces
such as walls.
WARNING: When installing the Flush Mount Kit, make sure that the assembly is in the
correct position and in the correct place. Once the locking tabs are extended and
locked into place, removing the Flush Mount Kit may be diff icult without having
access to the back of the wall or causing damage to the wall.
Note: In order to guarantee a stable installation of the MXA-FMK-43, the thickness of the
wall material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The surface should also be smooth and flat.
1. After ensuring proper placement, cut out the mounting surface, using the MXA-
FMK-43 Cutout Template (68-5968-08) as a guide (FIG. 1).
CAUTION: The cutout dimensions shown will allow the unit to pass through without any
dragging or interference. The outer (dotted) lines show the perimeter of the mounting
flange. If any part of the cutout extends up to or beyond that perimeter, the cut edge will
be visible after installation, or the unit could fall through the opening.
A larger cutout reduces the available surface to support the unit when mounted, so the
cut should be as close to the indicated dimensions as possible. If the cutout is too small,
forcing the unit into place could result in mechanical binding, faulty operation, or damage
to the product. Always check for a proper fit before f inal installation.
2. Remove the knockout at the bottom right of the FMK, and thread the incoming
wiring through the knockout hole (FIG. 2).
.
3. Thread the incoming Ethernet wiring through the surface opening and through
the knockout.
4. Push the FMK flat into the mounting surface and secure with the locking tabs
(FIG. 3).
5. In order to prevent damage to the touch panel, make sure that any screws used
are flush with the FMK, and the FMK goes freely into the opening.
WARNING: The maximum recommended torque to screw in the locking tabs on the
plastic Flush Mount Kit is 5 IN-LB [56 N-CM]. Applying excessive torque while
tightening the tab screws, such as with powered screwdrivers, can strip out the
locking tabs or damage the plastic.
6. Insert each connector into its corresponding port on the back of the touch panel.
For more information, please refer to the Modero X Series G4 Touch Panels
Instruction Manual.
7. Test the incoming wiring by attaching the panel connections to their terminal
locations and applying power. Verify that the panel is receiving power and
functioning properly to prevent repetition of the installation.
Note: Do not disconnect the connectors from the touch panel. The unit must be
installed with the attached connectors before being inserted into the drywall.
PRODUCT SPECIF ICATIONS
Dimensions (HWD): 5.68” x 4.21” x 3.25” (14.43 cm x 10.69 cm x 8.25 cm)
Weight: 0.55 lbs (0.25 kg)
Included Accessories: • MXA-FMK-43 Cutout Template
• MXA-FMK-43 Drilling Template
• Mounting Screws (2) - #8-32 X 1.25", PPH, Black
• Spacers (2)
• Push-on Retainers (2) - #8, Nylon
Other AMX Equipment: • CB-MXP-43-F Flush Mount Rough-In Box/Cover Plate
(FG5968-82)

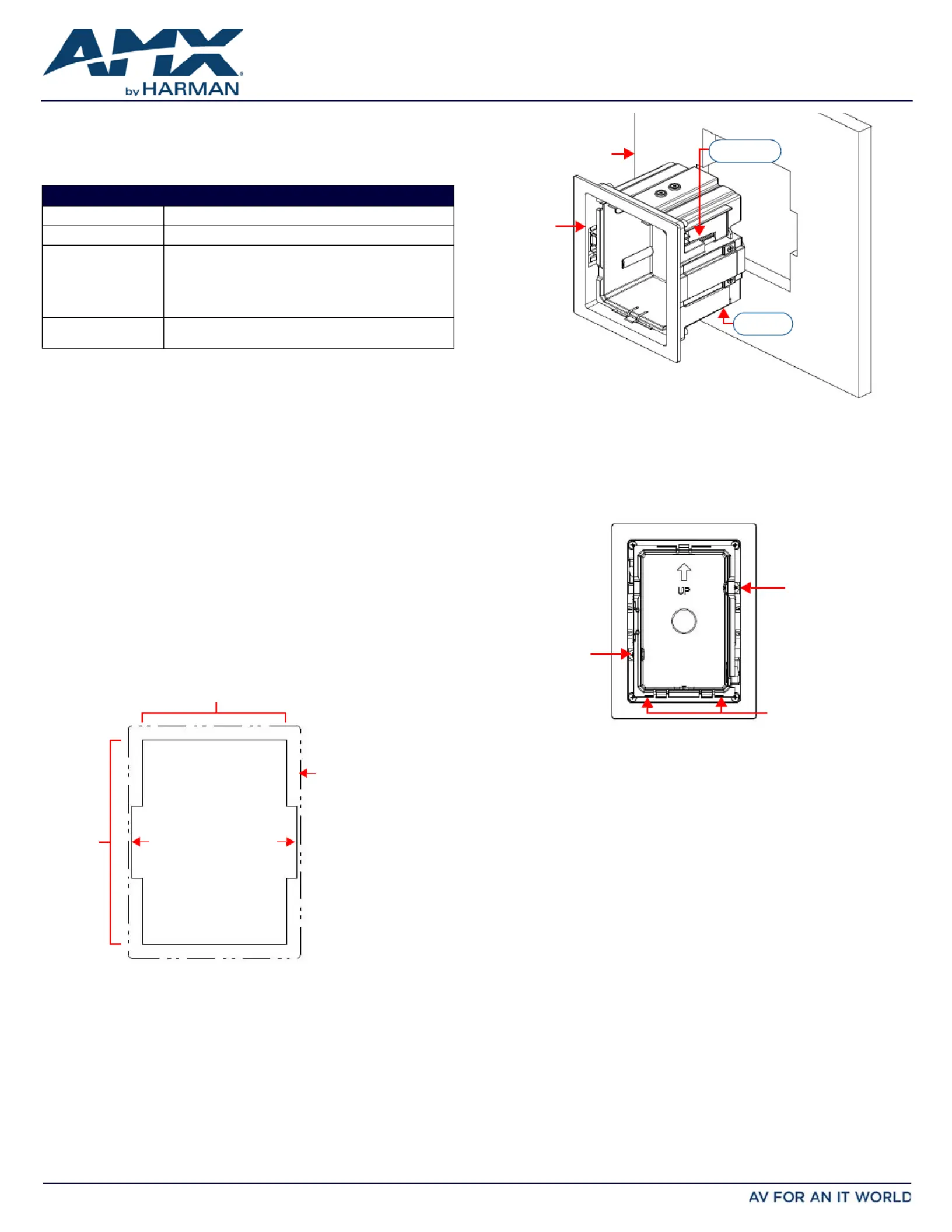

FIG. 1 MXA-FMK-43 CU TOUT TEMPLATE
5.00”
(12.69 cm)
3.52” (8.95 cm)
Perimeter of Flush
Note: Cut additional tabs
Mount Kit flange
on each side to allow room
for locking tabs.
FIG. 2 INSERTING THE MXA-FMK-43 INTO THE WALL SURFACE
FIG. 3 LOCKING TAB LOCATION ON THE MXA-FMK-43
Wall Surface
MXA-FMK-43
Locking Tab
Knockout
Locking Tab Screw
Locking Tab Screw
Use a screwdriver
or other flat tool
to hold the lower
edge of the back
box above the
case while snapping
down the touch panel.
© 2016 Harman. All rights reserved. Modero, Modero X and Modero X Series, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos
are registered trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered
trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-5968-72 REV: D
Last Revised: 3/10/2016
8. Snap the panel onto the FMK snaps (FIG. 4) by pressing gently but firmly and
evenly on the defined surface areas of the glass until the panel snaps “click” to
lock it down..
Using the MXA-FMK-43
Once the touch panel is installed in the MXA-FMK-43, the panel may be extended from
the wall for enhanced speaker and microphone exposure and to access the panel’s
Sleep/Setup button. To extend the panel from the Flush Mount Kit, press gently on both
sides of the panel’s surface until you hear or feel a “click”. Release the panel to extend
it.
To return the touch panel to its flush position, press again gently on both sides of the
panel’s surface, on the black border on the edge of the panel, until you hear or feel a
“click”. When you release the panel’s surface, the panel will remain in its flush position.
Removing the Touch Panel From the MXA-FMK-43
The touch panel may only be removed from the MXA-FMK-43 when the touch panel is
extended from the wall. For more information on uninstallation of the touch panel in
question, please refer to the Modero X Series G4 Touch Panels Instruction Manual.
A Note About Wall and Rack Installation
Some products are installed in areas of differing temperature and cooling
methodologies. These include products installed in walls, racks, cabinets, etc. Those
areas may have different temperatures and/or cooling approaches that must be taken
into consideration t o maintain the product within the specified operating temperature.
FIG. 5 shows an AMX device installed in a wall with a filled volume (such as with
insulation or concrete), as well as with a closed volume (such as between studs in
an otherwise finished wall). The diagram shows how heat generated by the device
or other devices may have no way to escape, and may build up to levels that may
affect device operation.
In FIG. 6, the diagram displays an AMX device in a typical rack mounting, with full
air circulation around the front and back of the device. In this case, the main
concern is with heat building up between components, possibly to levels that may
affect device operation.
Installation Recommendations
During any installation, a lack of ventilation may produce conditions that may adversely
affect the device’s operation. In these circumstances, special care must be made to
make sure that temperatures within enclosed areas do not exceed the device’s
maximum rated temperature.
Additional Documentation
Refer to the MXA-FMK-43 product page at www.amx.com for detailed pictorial, template
and mounting specifications drawings.
For details on solid wall placement options for the MXA-FMK-43, refer to the MXA-FMK-
43 Solid Wall and Rough-In Box Installation Quick Start Guide.
FIG. 4 INSERTING THE MXA-FMK-43 INTO THE WALL SURFACE
Top Snap
Bottom Snaps
Press Here to
Panel snaps at the top and bottom simultaneously
Snap onto FMK
FIG. 5 Heat convection in filled or closed volume, limited or no convection
FIG. 6 Heat convection in rack-mounted devices
