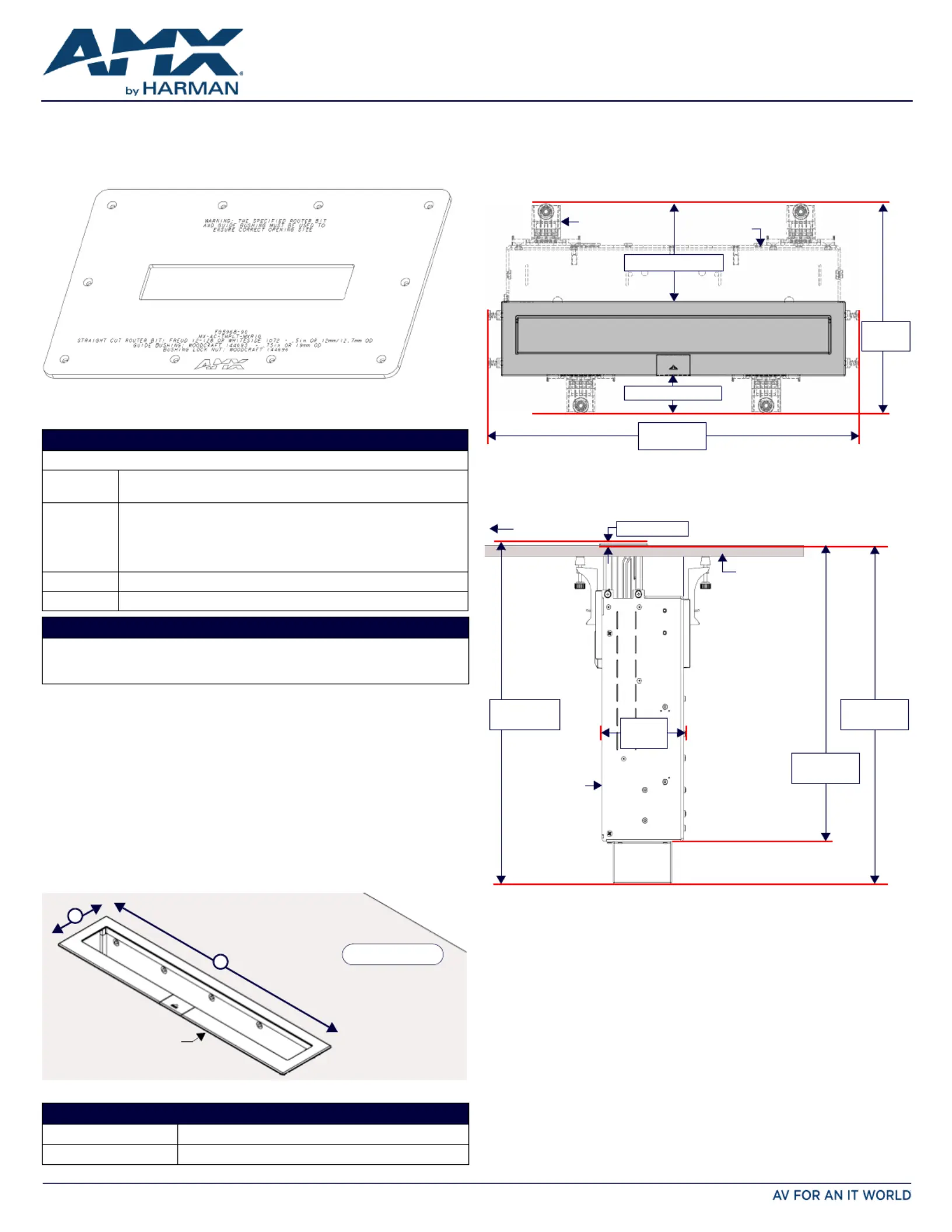

QUICK START GUIDE
MX-AC-TMPLT-MXR10 Installation Router Guide for MXR-1001 Retractable Touch Panel
Overview
The MX-AC-TMPLT-MXR10 HydraPort ® Installation Router Guide for MXR-1001
(FG5968-90) provides an easy and accurate method of creating a hole in the
installation surface for the MXR-1001 10.1" Modero X ® Series G5 Retractable Touch
Panel (FIG. 1):
Use the MX-AC-TMPLT-MXR10 along with the required accessories to create the hole in
the mounting surface to install the MXR-1001.
CAUTION: Only a professional, AMX-qualified installer should perform the installation of
AMX Retractable Touch Panels. Installation must conform to all local codes. These
products may not be installed by the end-user.
The installation of AMX Retractable Touch Panels requires specific woodworking skills.
This installation should be performed by an experienced person, comfortable with these
types of woodworking operations. Improper installation may result in damage to the
mounting surface. Refer to the MXR-1001 Installation Guide for details instructions on
mounting the MXR-1001.
Selecting a Suitable Location for the MXR-1001
Care must be taken to ensure that the MXR-1001 does not interfere with the normal
use of the work space. For example, on a table or work surface, ensure that the system
does not interfere with the user's legs when they are seated at the table.
Above-Surface Dimensions
FIG. 2 indicates the above-surface dimensions of the MXR-1001, including the bezel:
Below-Surface Dimensions of the MXR-1001
When locating the position of the cutout, it is important to understand the area
required beneath the mounting surface by the MXR-1001 assembly when installed. Be
sure to allow sufficient room for the aluminum chassis as well as the mounting clamps.
FIG. 3 provides a top view of an installed MXR-1001, to indicate the area required below
the mounting surface for the chassis and mounting clamps:
Note: Be sure to allow suff icient room (at least a few inches) to access the two screws
that attach each side of the MXR-1001 bezel to the chassis.
FIG. 4 indicates the below-surface depth requirements for the MXR-1001 (side view):
MXR-1001 requires a mounting surface thickness between 0.5” (13 mm) to
2” (51 mm).
The MXR-1001 will have a total depth of 15.366" (390.248 mm).
FIG. 1 MX-AC-TMPLT-MXR10 ROUTER GUIDE
MX-AC-TMPLT-MXR10 SPECIF ICATIONS
Dimensions:
Outside
Dimensions:
Horizontal: 18.897” (480.0 mm)
Vertical: 11.614” (295.0 mm)
Cutout
Dimensions:
Horizontal: 10.951” (278.16 mm)
Vertical: 2.233” (56.74 mm)
Refer to the Hole Cutout Dimensions for the Mounting Surface section on
page 2 for the size of the actual hole cut out in the mounting surface,
resulting from using the Router Guide and required accessories:
Thickness: 0.25” (6.35 mm)
Weight:4.96 lbs (2.25 kg)
REQUIRED ACCESSORIES (NOT INCLUDED)
Straight-Cut Router bit: Freud 12-128 or Whiteside 1072 (0.5” or 12mm / 12.7mm OD)
Guide Bushing: Woodcraft 144693 (.75” or 19 mm OD)
Bushing Lock Nut (Woodcraft 144696)
FIG. 2 ABOVE-SURFACE DIMENSIONS OF MXR-1001
DIMENSIONS OF MXR-1001
Length of “A”: 2.405” (61.09 mm)
Length of “B”: 11.142” (283.00 mm)
MXR-1001 (Bezel)
A
BMounting Surface
Height above table =
0.12” (3 mm)
FIG. 3 MXR-1001: TOP VIEW, INDICATING AREA REQUIRED BELOW THE MOUNTING SURFACE
FIG. 4 DIMENSIONS OF THE MXR-1001 (SIDE VIEW, BELOW THE MOUNTING SURFACE)
Mounting
Clamps (x4) MXR-1001
chassis
Bezel with pu shbutton and door
(above table)
12.039”
(305.79mm)
6.781”
(172.23mm)
1.219” (30.96mm)
3.157” (80.18mm)
0.12” (3 mm)
Mounting Surface
15.246”
(387.25 mm)
13.315”
(338.20 mm)
front
15.366”
(390.25 mm) 4.150”
(105.41 mm)
MXR-1001
chassis
© 2016 Harman. All rights reserved. Modero, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-5968-90 REV: A
Last Revised: 9/21/2016
Hole Cutout Dimensions for the Mounting Surface
Refer to FIG. 5 and the following table for the dimensions of the actual hole cut out in
the mounting surface, resulting from using the Router Guide and required accessories:
Preparing the HydraPort Installation Router Guide
1. Cut two 1/2-inch x 4-inch strips of soft, f inished wood. The wood strips should be
long enough to span the distance from the installation location to the edges of the
mounting surface.
2. Use four or more short lock nut screws to secure the router guide to the wood
strips (FIG. 6):
CAUTION: To avoid damaging the mounting surface, do not allow the screws to protrude
through the bottom of the wood strips.
Preparing the Mounting Surface
1. Mark the desired mounting location on the mounting surface.
2. Place the router guide/wood strip assembly on the mounting surface, and center
the assembly on the mounting location.
3. Position a sheet of soft wood beneath the mounting surface to “sandwich” the
mounting surface with soft wood. This will protect both sides of the mounting
surface during installation (FIG. 7):
Note: For additional protection of the mounting surface, place a layer of soft, thick
cloth between the wood strips and the surface.
4. Once positioned, secure the router guide/wood strip assembly to the mounting
surface and under-surface wood with C-clamps.
Cutting the Hole In the Mounting Surface
CAUTION: Wear safety glasses when operating the router. Failure to comply may result in
eye injury.
Use the specified guide bushing and router bit (not included):
Guide Bushing: Woodcraft 144693 (.75” or 19 mm OD)
Router Bit: Straight-Cut Router bit: Freud 12-128 or Whiteside 1072
(0.5” or 12mm / 12.7mm OD)
1. Carefully measure the mounting surface to locate the desired position of the
MXR-1001.
2. Use the appropriate Installation Router Guide to mark the edges of the cutout.
3. Carefully cut the opening in the table surface with the router.
Note that very little clearance exists between the MXR-1001 and the hole cutout
in the mounting surface.
Take care to align the cutout carefully with the edges or other appropriate
features in the table or mounting surface.
If the cutout is misaligned, the installed unit will be misaligned.
Take care to ensure that the top surface of the mounting surface is not damaged
beyond the width of the trim bezel as the cutout is made.
Use an appropriate drill and drill bit to make a starting hole within the boundary
of the cutout. Use an appropriate saw, such as a jigsaw to finish the cutout.
Make sure cutting tool used is appropriate for the material to be cut and will not
tear or chip the top surface.
Note that the process of making the cutout will create substantial dust and
prepare the environment appropriately.
4. File the four corners of the routing area square after routing.
Additional Documentation
For additional instructions and detailed installation drawings for the MXR-1001,
refer to the MXR-1001 Installation Guide (available at www.amx.com).
Detailed specifications drawings for the HPX-AC-TMPLT router guides are
available to download from www.amx.com.
FIG. 5 HOLE CUTOUT DIMENSIONS FOR THE MOUNTING SURFACE
HOLE CUTOUT DIMENSIONS FOR THE MOUNTING SURFACE
Length of “C”: 1.984" (50.39 mm
Length of “D”: 10.701" (271.81mm)
FIG. 6 SECURING THE ROUTER GUIDE
C
D
MXR-1001
Mounting Surface
1/2” x 4” wood strips
Wood strips
should span
the width of
the mounting
surface
Use a minimum of four short screws to
secure the Router Guide to the wood strips
Routing area
FIG. 7 POSITION THE ROUTER GUIDE AND PROTECTIVE SOFT WOOD STRIPS FOR INSTALLATION
Wood strips secured to
the Router Guide with
at least four screws
Mounting
surface
Sandwich the mounting surface between soft wood for protection
soft wood
(under the
mounting
surface)
