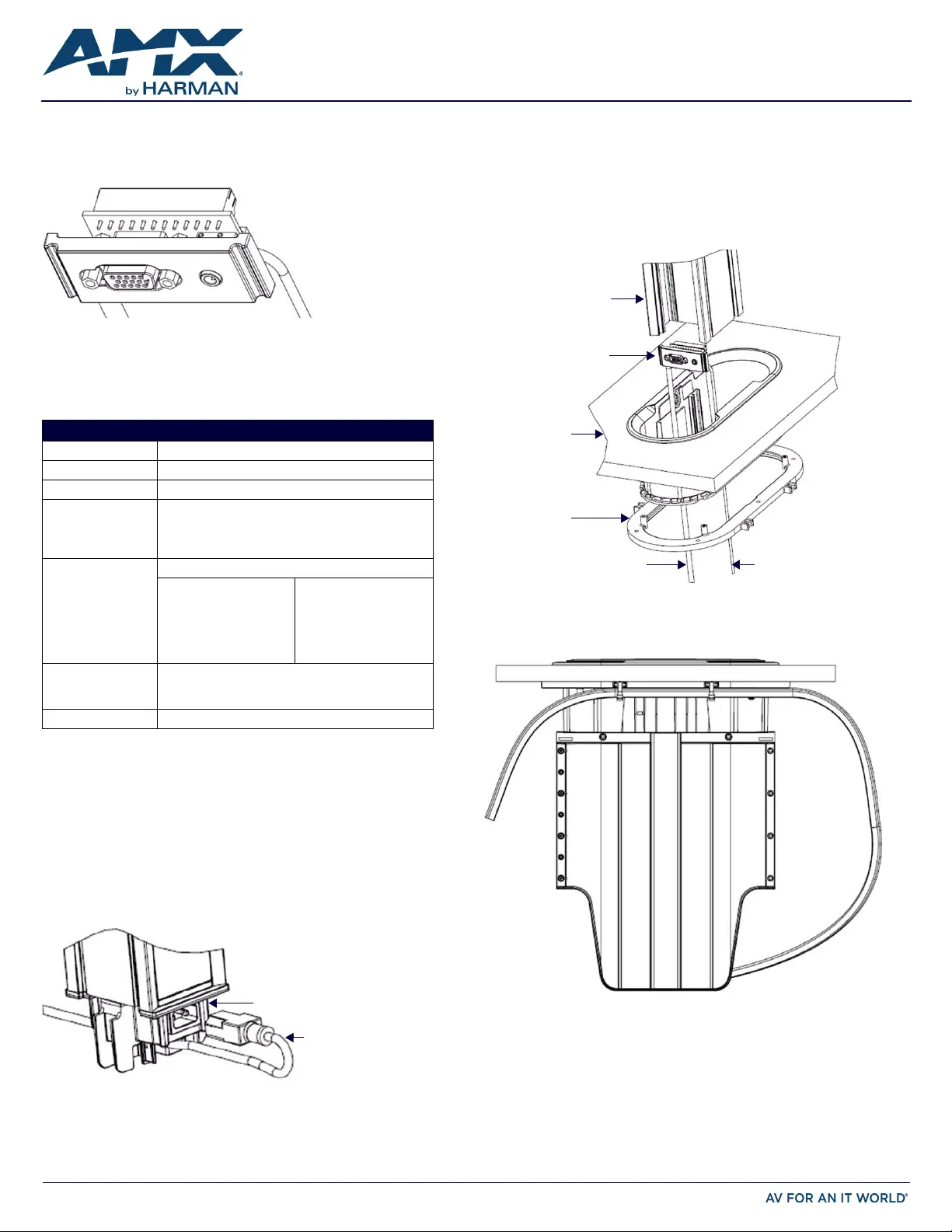

QUICK START GUIDE
HPX-AV100-RGB+A Hydraport RGB AV Module
Overview
The HPX-AV100-RGB+A Hydraport Composite AV Module (FG552-11) is designed to be
used in conjunction with the HPX-1600 Hydraport Base Assembly. See specifications
for module requirements. For more information on the HPX-1600, refer to
www.amx.com.
The HPX-AV100-RGB+A provides user-accessible RGB (VGA HD-15) Video and Stereo
connections on the face of the Hydraport system. The HPX-AV100-RGB+A provides
connection from the user's source equipment to a remote client such as projector,
monitor, display or stereo sound system.
Product Specif ications
Installation
Important! Only a professional, AMX-qualif ied installer should perform this installation.
Installation must conform to all local codes. This product may not be installed by the
end-user.
Tools Required
• Wire cutting pliers
• Wire strippers
• Small flat blade screw driver
• Phillips Screw Driver (to access Hydraport Base Assembly)
CAUTION! Ensure that the AC Power cord is disconnected from IEC C-14 power inlet
connector on the Hydraport Base Assembly prior to disassembly of the Hydraport Base
assembly or installation of the HPX-AV100-RGB+A Module (see FIG. 2).
Step 1 - Backside Termination
Before installing the module into the Hydraport Base Assembly, the backside
terminations of the module must be completed. This backside termination requires
connecting three coaxial cables (or equivalent) to the 6 position phoenix terminal block
located on the back of the module.
Note that for terminations for which the far end of the cable is not accessible either
because the cable has been run under carpet, in a conduit or structure, or is otherwise
fixed, the cable must be placed through the retaining ring (note the orientation of the
retaining ring) then through the mounting surface from bottom to top, then to the
module - before the module is placed into the base assembly (FIG. 3).
Step 2 - Provide a Service Loop
Ensure there is sufficient cable length to provide a service loop for the cable after the
module is installed into the Hydraport Base Assembly (FIG. 4).
Note that the Hydraport Base Assembly travels up and down approximately 228.6 mm
(9”) during operation.
The service loop must accommodate this motion and provide for securing the cable to
the Hydraport Base Assembly for strain relief.
For more detailed information, please refer to the HPX-1600-XX Hydraport Base
Assembly Instruction Manual.
FIG. 1 HPX-AV100-RGB+A COMPOSITE AV MODULE
HPX-AV100-RGB+A SPECIF ICATIONS
Dimensions (HWD) 25mm x 52mm x 25mm (0.98” x 2.05” x 0.98”)
Weight: 31 g (1.09 oz.)
Enclosure: Matt black finished face plate (Polycarbonate plastic).
Front Connections: HD-15 RGB (VGA) style connections for:
• RGB Video (VGA)
• Left Audio
• Right Audio
Rear Connections: 12 Position Phoenix terminal block with connections for:
• Left Audio Signal +
• Right Audio Signal +
• Audio Ground -
• Horizontal Sync +
• Vertical Sync +
• Sync Ground -
• Red Video Signal +
• Red Video Ground -
• Green Video Signal +
• Green Video Ground -
• Blue Video Signal +
• Blue Video Ground -
Compatibility: • HPX-1600 Hydraport Base Assembly
• D-Sub HD-15 RGBHV (VGA) Video Source
• 3.5mm Jack style Stereo Audio Source
Included Accessories: Installation Guide
FIG. 2 HPX-1600 - POWER INLET CORD REMOVED
AC Power Cord
Power Inlet Connector
on HPX-1600
FIG. 3 FIXED CABLE PASSING THROUGH RING, TABLE AND INTO THE HPX-1600 CHASSIS
FIG. 4 SECURED SERVICE LOOP
Module
Fixed cables pass-through
Retaining Ring, Surface
to Module
Fixed cables pass-through
Retaining Ring, Surface
to Module
Retaining Ring
Mounting Surface
HPX-1600 Chassis
© 2015 Harman. All rights reserved. Hydraport, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective
companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-0552-11 REV: C
Last Revised: 8/05/2015
Step 3 - Prepare and Connect Wiring
1. If using a VGA cable, remove approximately 35mm (1.35 in) of the outer jacket of
the cable.
• Remove approximately 25mm (1 in) of the outer jacket of each coaxial cable.
• Remove approximately 4mm (.18 in) of the core wire insulation.
• If the shielding of the coaxial cable is braided wire, twist the shield wires for each
coaxial cable to a smaller diameter sufficient to fit within the phoenix terminal
block.
• If the shielding of the coaxial cable is foil with a drain wire, separate the drain wire
for installation into the Phoenix terminal block.
2. Insert the shielding conductor and the signal wire for each signal (Red, Green,
Blue, Horizontal Sync, Vertical Sync, Left Audio, Right Audio) into the
corresponding terminal.
3. Secure each connection using the terminal screw, according to the schematic
provided in FIG. 5:
Step 4 - Secure the Cable To the Module
Using two small provided tie wraps, secure the cable(s) to the circuit card on the
backside of the module, such that the cable exits to the side of the module (FIG. 6).
Step 5 - Insert the Module Into the HPX-1600 Chassis
Insert the module into the main chassis of the HPX-1600 Base Assembly.
Note the position of module interlock tab: this tab should face towards the bottom of
the HPX-1600 Base assembly when installed in its mounted position (FIG. 7).
Step 6 - Install the Bottom Cover On the HPX-1600
Note: Install any remaining modules into the Hydraport Base Assembly before installing
the Bottom Cover on the HPX-1600.
1. Install the bottom cover (including the Power Inlet Assembly) onto the bottom of
the main frame of the Hydraport Base Assembly.
The cables from the HPX-AV100-RGB+A Composite AV Module as well as all other
modules (except AC Power Outlets) will exit the bottom of the Hydraport Base
Assembly through one of four square passages on either side of the
bottom cover.
2. After the bottom cover is secured using four screws, secure the cables to the
corresponding tab near each opening using a small cable tie (FIG. 8).
FIG. 5 HPX-AV100-RGB+A RGB AV MODULE - WIRING SCHEMATIC
FIG. 6 CABLES SECURED TO THE MODULE
B - Blue Video Signal (VGA pin 3)
BG - Blue Video Return (VGA pin 8)
G - Green Video Signal (VGA pin 2)
GG - Green Video Return (VGA pin 7)
R - Red Video Signal (VGA pin 1)
RG - Red Video Return (VGA pin 6)
HS - Horizontal Video Signal (VGA pin 13)
SG - Sync Ground (VGA pins 5 and 10)
VS - Vertical Sync Signal (VGA pin 14)
AR - Right Audio Signal +
AG - Audio Ground -
LR - Left Audio Signal + 12345
67
8910
1112131415
AL AG AR VS SG HS RG R GG G BG B
Tie
Cables exiting to the sides of the Module
RGB AV Module
(rear view)
Wraps
FIG. 7 INSERTING THE RGB AV MODULE INTO THE HPX-1600 CHASSIS
FIG. 8 BOTTOM COVER - INSTALLED WITH CABLES EXITING AND SECURED
HPX-1600
Base Assembly
(bottom)
Module Interlock Tab
RGB AV Module
HPX-1600 Chassis
Aluminum Frame (bottom)
Wire Tie
Wire Tie
Bottom Cover
(secured with 4
mounting screws)
Cable
Cable
