Overview

The HPX-600/900/1200 family of HydraPort Connection Ports (FG560-xx-

cc) are built to accommodate the diverse connection needs of conference

and meeting room visitors.

The HPX-600/900/1200 is designed to be mounted into a horizontal

surface such as a conference room table or lectern in order to provide

connectivity for power, networking, Audio/Video and control.

Specific connectivity is accomplished by populating the HPX Base

Assembly with various modules.

AMX offers 6 versions of the HPX-600/900/1200 Hydraport Base

Assemblies with a variety of compatible modules:

ATTENTION: Only a professional, AMX-qualified installer should

perform this installation. Installation must conform to all local codes.

This product may not be installed by the end-user.

Product Specifications

Compatible HPX Modules and Panels

HPX-600/900/1200 Hydraport Base Assemblies are compatible with the

following HPX Modules and Panels:

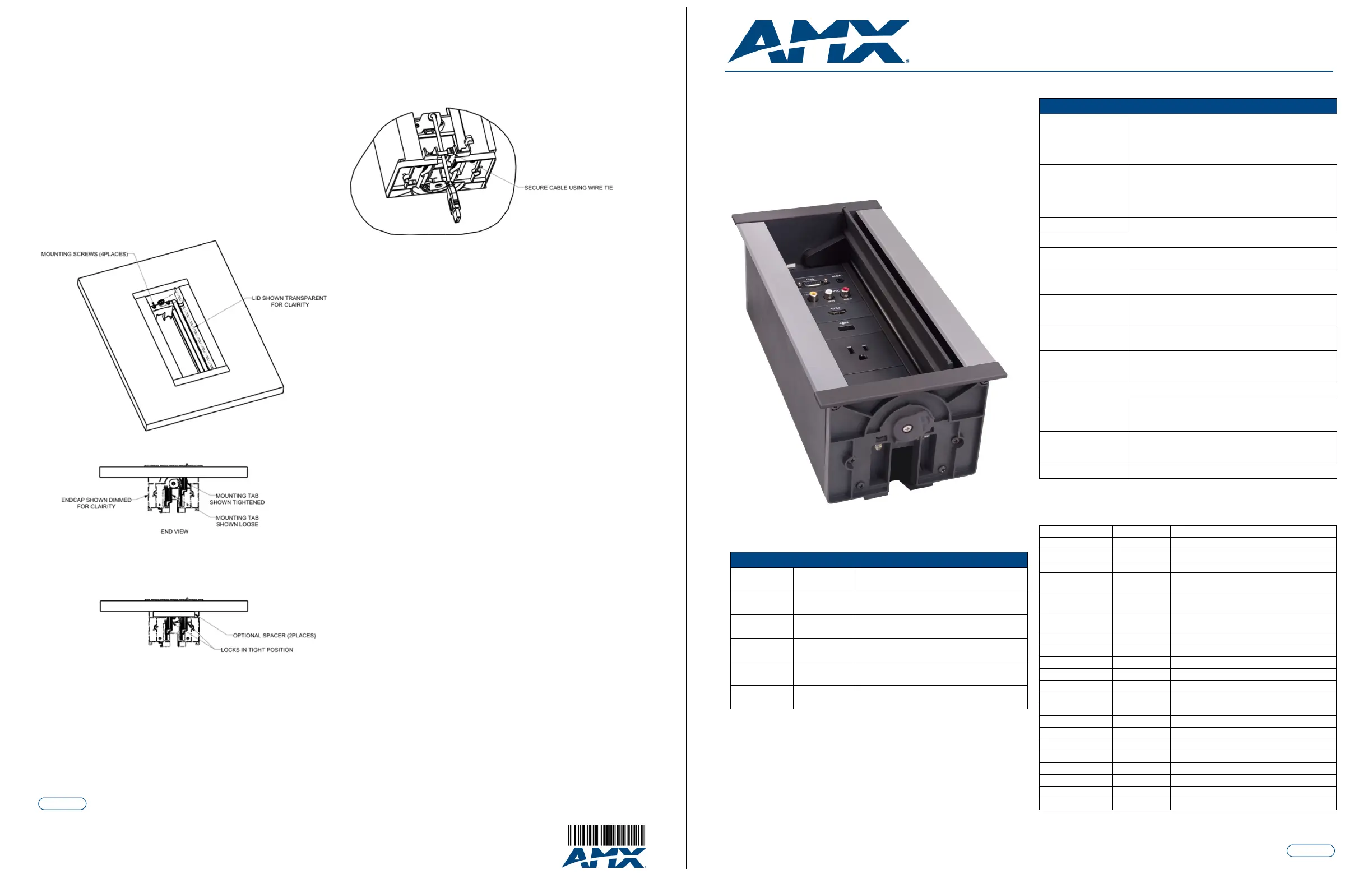

FIG. 1 HPX-600/900/1200 Hydraport Base Assembly

HPX-600/900/1200 Hydraport Base Assemblies

HPX-600-BL FG560-01-BL Hydraport Base Assembly, 6M Capacity,

Black Trim

HPX-600-SL FG560-01-SL Hydraport Base Assembly, 6M Capacity,

Silver Trim

HPX-900-BL FG560-02-BL Hydraport Base Assembly, 9M Capacity,

Black Trim

HPX-900-SL FG560-02-SL Hydraport Base Assembly, 9M Capacity,

Silver Trim

HPX-1200-BL FG560-03-BL Hydraport Base Assembly, 12M Capacity,

Black Trim

HPX-1200-SL FG560-03-SL Hydraport Base Assembly, 12M Capacity,

Silver Trim

HPX-600/900/1200 Specifications

Number of Modules

Supported:

Module sizes are provided in "HydraPort units".

Modules range in size from 1/2 to 4 1/2 HydraPort units

• HPX-600 - six (6) single-space modules

• HPX-900 - nine (9) single-space modules

• HPX-1200 - twelve (12) single-space modules

Enclosure • Black anodized metal frame with matte black plastic end

caps (HPX-600/900/1200-BL - FG560-xx-BL).

• Clear anodized metal frame with matte black plastic end

caps (HPX-600/900/1200-SL - FG560-xx-SL).

• Matte black module face plates on all I/O modules.

Optional Accessories: Compatible HPX Modules and Panels (see below)

Dimensions (HWD):

Max above mounting

surface:

• 0.31" (7mm) with lid open

• 0.13" (3mm) with lid closed

Max below mounting

surface:

6.94" (175 mm)

Mounting surface

footprint:

• HPX-600 - 8.19" x 5.44" (208mm x 138mm)

• HPX-900 - 11.16" x 5.44" (283mm x 138mm)

• HPX-1200 - 14.09" x 5.44" (358mm x 138mm)

Min. mounting

surface thickness:

• Min: 0.75" (19mm)

• Max: 2.0" (51 mm)

Table Cutout

Dimensions:

• HPX-600 - 7.64" x 4.84" (194mm x 123mm)

• HPX-900 - 10.59" x 4.84" (269mm x 123mm)

• HPX-1200 - 13.54" x 4.84" (344mm x 123mm)

Weight:

Base Assembly only: • HPX-600 - 1.8lbs (0.82Kg)

• HPX-900 - 2.4lbs (1.1Kg)

• HPX-1200 - 2.8lbs (1.3Kg)

Typical Installation: • HPX-600 = 2.6lbs (1.2Kg)

• HPX-900 = 3.3lbs (1.5Kg)

• HPX-1200 = 4lbs (1.8Kg)

Certifications: UL 962A

HPX-AV101-HDMI FG552-24 Single HDMI Module with Integrated Cable

HPX-AV101-DVI Single DVI Module with Integrated Cable

HPX-AV101-DVI+A FG552-22 DVI with Stereo Module with Integrated Cables

HPX-AV101-RGB+A FG552-21 RGB with Stereo Module with Integrated Cables

HPX-C5400-CS+A FG552-50-BL-K Composite with Stereo UPX Cat5 Kit with HPX

Carrier Module

HPX-C5400-VGA+A FG552-51-BL-K RGBHV with Stereo UPX Cat5 Kit with HPX

Carrier Module

HPX-C5400-CN+A FG552-52-BL-K Component with Stereo UPX Cat5 Kit with HPX

Carrier Module

HPX-N100-RJ45 FG553-01 Single RJ-45 Module

HPX-N102-RJ45 FG553-02 Dual RJ-45 Module

HPX-N100-USB FG553-11 Single USB Module

HPX-CPT200-W FG562-41 HydraPort Cable Pass-Thru Module

HPX-U200-MOD FG554-81 Modero Connection Module

HPX-P200-PC-US FG561-01 Power Outlet (US) Module

HPX-P250-PC-UK FG561-11 Power Outlet (UK) Module

HPX-P200-PC-EU FG561-21 Power Outlet (EU) Module

HPX-P200-PC-AU FG561-31 Power Outlet (AU) Module with Cord

HPX-P250-PC-IN FG561-41 Power Outlet (IN) Module

HPX-B050 FG558-01 1/2 M Blank Panel

HPX-B100 FG558-02 1 M Blank Panel

HPX-B200 FG558-03 2 M Blank Panel

HPX-B050-L FG558-11 1/2 M Custom Label Panel

HPX-B100-L FG558-12 1 M Custom Label Panel

5) Install the System Into The Mounting Surface

1. Install the unit into the cutout in the mounting surface.

• Make sure that all cables from the backside terminations pass through

the cutout.

• For terminations for which the far end of the cable is not accessible

(either because the cable has been run under carpet, in a conduit or

structure, or is otherwise fixed), the cable must be placed through the

cutout in the table prior to installation, as indicated in FIG. 5.

2. Open the door and rotate the four mounting screws located inside and

at each end of the HPX base assembly in order to rotate the retaining

tabs out under the mounting surface.

Note: Make sure that the retaining tabs are down and folded out of the

way prior to installing the unit in the mounting surface.

3. Continue to tighten the mounting screws until the mounting tabs

contact the backside of the mounting surface to retain the HPX

Assembly (FIG. 6).

Note: For surfaces less than ¾" (19mm) thick, use the supplied plastic

spacers by fixing them to each end of the cutout using the supplied double

sided tape (FIG. 7).

6) Install the System Into the Mounting Surface

1. Terminate the backside connections as required for each cable exiting

the HPX system.

2. Secure these cables and the power cable to either of the end caps

using the supplied wire ties (FIG. 8).

3. Secure the cables in at least one additional location after they have

been secured to the system so as to prevent undue stress on the

system if the cables are inadvertently kicked, snagged or pulled.

Note: The socket-outlet (Connection to Mains Power branch circuit) shall

be installed near the equipment and shall be easily accessible.

Additional Documentation

For more detailed installation instructions with additional drawings, please

refer to the HPX-600/900/1200 Installation Guide, available to view or

download from www.amx.com.

FIG. 6 Mounting Screws & Mounting Tabs

FIG. 7 Optional spacer and mounting tabs deployed

FIG. 8 Bottom view with cables exiting and secured

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

4/12

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-0560-01 REV: B

Installation Guide

HPX-600/900/1200 6, 9 and 12 Module Connection Ports

page 1 of 4

page 4 of 4

Installation of the HPX Base Assembly

The following sections describe the preparation, installation and setup of

the HPX-600/900/1200 Hydraport Base Assembly. A typical installation will

include several various HPX modules (see Compatible HPX Modules and

Panels above).

Each HPX module has specific instructions for terminating their

connections. Refer to each HPX Module’s Installation Guide during the

installation of the Hydraport system.

Note: Read these instructions in their entirety before beginning the

installation. The installation requires specific steps to be performed

in specific order.

CAUTION: This installation requires specific woodworking skills. This

installation should be performed by an experienced person,

comfortable with these types of woodworking operations. Improper

installation may result in damage to the mounting surface. AMX is not

responsible for damage caused by improper installation.

1) Select a Suitable Location for the HPX Base Assembly

The following figures indicate the space requirements for installing the HPX

Base Assembly:

FIG. 2 indicates the dimensions above the table:

FIG. 3 indicates the dimensions above the table:

• The Hydraport system requires a mounting surface from 0.5” (13mm)

to 2” (51mm) thick.

• The Hydraport system requires at least 6 15/16" (175 mm) below the

mounting surface.

Note: Care should also be taken to ensure that the Hydraport system does

not interfere with the normal use of the work space. For example, on a table

or work surface, ensure that the system does not interfere with the user's

legs when they are seated at the table.

2) Cut the Hole In the Mounting Surface

FIG. 4 provides the Hole cutout dimensions for the HPX Base Assembly:

1. Carefully measure the tabletop or other mounting surface to locate the

desired position of the HPX Base Assembly.

2. Use the cutout template supplied with the HPX Base Assembly to

mark the edges of the cutout.

FIG. 2 Dimensions of the HPX Base Assembly (above the table)

Model Length of “B”

HPX-1200 (Holds up to 12 HPX Modules) 14.09” (358 mm)

HPX-900 (Holds up to 9 HPX Modules) 11.14” (283 mm)

HPX-600 (Holds up to 6 HPX Modules) 8.19” (208 mm)

See table below for the

length of “B” for each

HPX model

FIG. 3 Dimensions of the HPX Base Assembly (below the table)

FIG. 4 HPX Base Assembly - Hole cutout dimensions

Model Length of “A”

HPX-1200 (Holds up to 12 HPX Modules) 13.54 (344 mm)

HPX-900 (Holds up to 9 HPX Modules) 10.59 (269 mm)

HPX-600 (Holds up to 6 HPX Modules) 7.64 (194 mm)

See table below for the

length of “A” for each

HPX model

Note that very little clearance exists between the HPX Base Assembly and

the hole cutout in the mounting surface.

• Take care to align the cutout carefully with the edges or other

appropriate features in the table or mounting surface.

• If the cutout is misaligned, the installed unit will be misaligned.

• Take care to ensure that the top surface of the mounting surface is not

damaged beyond the width of the trim bezel as the cutout is made.

• Use an appropriate drill and drill bit to make a starting hole within the

boundary of the cutout. Use an appropriate saw, such as a jigsaw to

finish the cutout.

• Make sure cutting tool used is appropriate for the material to be cut

and will not tear or chip the top surface.

• Note that the process of making the cutout will create substantial dust

and prepare the environment appropriately.

3) Prepare the Terminations

Some modules that are included in the final system require some type of

backside termination.

Note: Refer to the installation guide for each module to determine the

required backside termination.

• The backside termination for each module can and should be

completed before the module is installed into HPX Base Assembly.

• For terminations for which the far end of the cable is not accessible

(either because the cable has been run under carpet, in a conduit or

structure, or is otherwise fixed), the cable must be placed through the

cutout in the table prior to installation, as indicated in FIG. 5.

4) Insert the HPX Modules

Note the orientation of each HPX Module - a small tab exists on one side of

the faceplate of each module. Ensure all tabs are facing the same direction

(see FIG. 5).

1. Remove one end cap of the HPX Base Assembly by removing the six

sheet metal screws and one pivot screw and pivot pawl assembly.

2. Slide the pre-terminate modules one at a time into the HPX Base

Assembly.

3. Rout the cables from each module out the bottom of the HPX Base

Assembly.

4. Use cable ties and one or more of the sliding clips to secure the

cables as needed to the HPX Base Assembly.

5. Reinstall the end cap of the HPX Base Assembly by installing the six

sheet metal screws and one pivot screw and pivot pawl assembly.

Note: Do not over-tighten the pivot pawl screw (i.e., do not use a high-

powered drill to tighten this screw).

FIG. 5 Inserting the Modules into the Assembly

Interlocking tab

Cables

HPX Base Assembly

Mounting Surface

End Cap

page 3 of 4

page 2 of 4

Produktspezifikationen

Marke:	AMX
Kategorie:	Nicht kategorisiert
Modell:	HPX-600

Brauchst du Hilfe?

Wenn Sie Hilfe mit AMX HPX-600 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert AMX

AMX HPX-MSP-7-SL Bedienungsanleitung

6 September 2024

AMX HPX-MSP-10-SL Bedienungsanleitung

6 September 2024

AMX TPC-WIN8-TAB Bedienungsanleitung

5 September 2024

AMX NMX-DEC-N1222A Bedienungsanleitung

4 September 2024

AMX NMX-DEC-N2222A Bedienungsanleitung

4 September 2024

AMX NMX-DEC-N1233 Bedienungsanleitung

4 September 2024

AMX NMX-DEC-N2211 Bedienungsanleitung

4 September 2024

AMX NMX-ENC-N1134A Bedienungsanleitung

4 September 2024

AMX NMX-ENC-N1133 Bedienungsanleitung

4 September 2024

AMX NMX-ENC-N2315-WP Bedienungsanleitung

4 September 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
