Installation Guide

NI-700 NetLinx Integrated Controller

The NI-700 (FG2105-70) is geared to meet the specific control and automation needs of a single

room environment, in which both price and functionality are the driving requirements. The NI-700 is

configured to control a limited number of video players, projectors, lights, thermostats, and other

electronic equipment.

ATTENTION!

Verify you are using the latest version of NetLinx Studio (available for download from

www.amx.com).

Port Assignment and Functionality

Ethernet Ports used by the NI Controller

Note: While the NI-700 is capable of receiving 8 and 9 bit characters, it cannot receive 7 bit, 1 stop

bit data from a serial device (ex: 9600,N,7,1).

RACK MOUNT SAFETY INSTRUCTIONS

• If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the

rack environment may be greater than room ambient. Therefore, consideration should be

given to installing the equipment in an environment compatible with the maximum ambient

temperature 50°C.

• Installation of the equipment in a rack should be such that the amount of air flow required for

safe operation of the equipment is not compromised.

• Mounting of the equipment in the rack should be such that a hazardous condition is not

achieved due to uneven mechanical loading.

• Consideration should be given to the connection of the equipment to the supply circuit and the

effect that overloading of the circuits might have on over current protection and supply wiring.

• Reliable earthing of rack-mounted equipment should be maintained. Particular attention

should be given to supply connections other than direct connections to the branch circuit (e.g.

use of power strips).

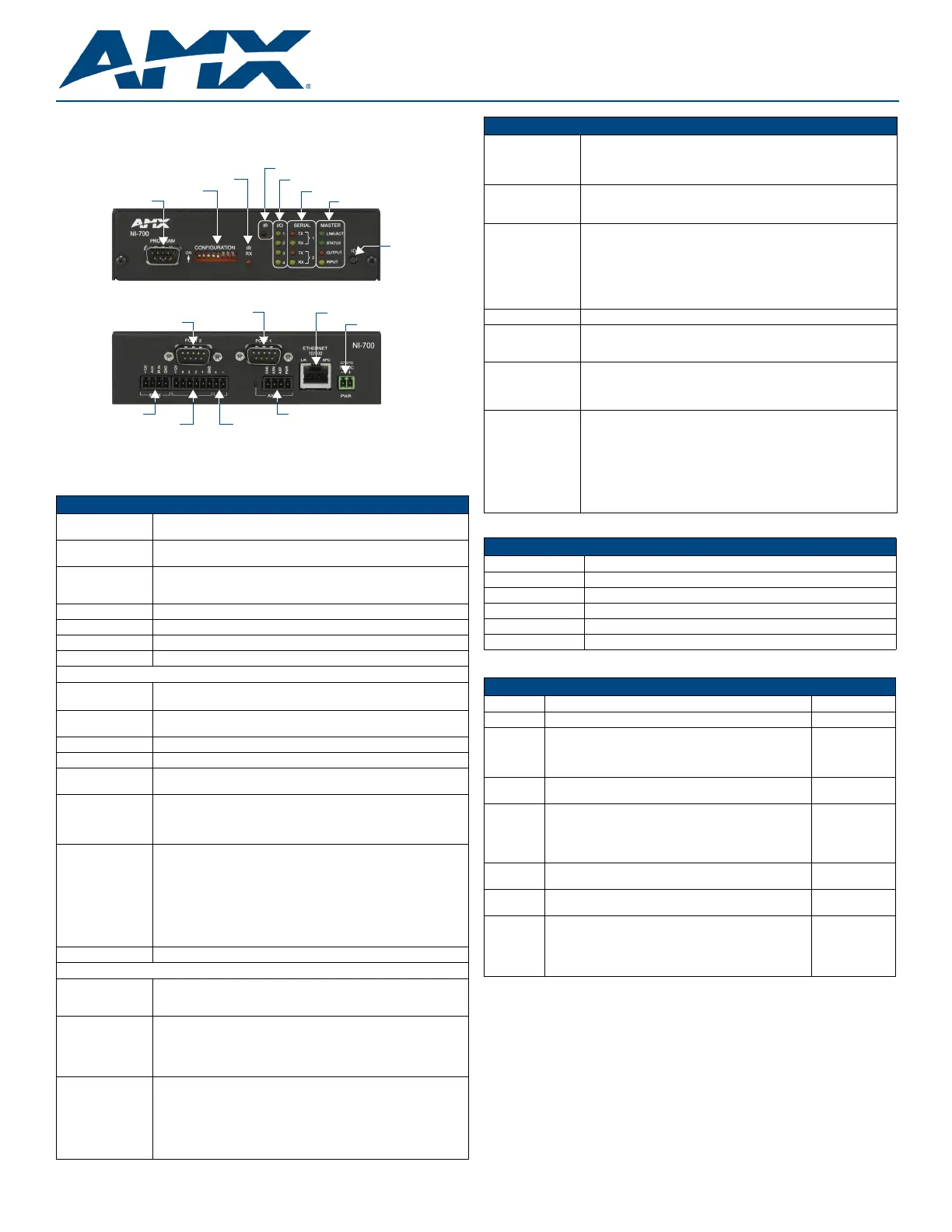

FIG. 1 NI-700

NI-700 Specifications

Dimensions (HWD): • 1 9/16" x 5 9/16" x 5 1/8" (4.01 cm x 14.10 cm x 13.00 cm)

• RU: 1

Power Requirement: • 280 mA @ 12 VDC

• Power requirements are usage dependant

Memory: • 64 MB SDRAM (not upgradeable)

• 32 MB Flash chip (not upgradeable)

• 512 Kb of Non-volatile SRAM

Microprocessor: • 304 MIPS

Weight: • 1.30 lbs (0.59 kg)

Enclosure: • Metal with black matte finish

Certifications: • FCC Part 15 Class B, CE, and IEC 60950

Front Panel Components

PROGRAM Port: RS-232 DB9 connector (male) can be connected to a DB9 port on a PC.

This port can be used with both Serial and NetLinx commands.

CONFIGURATION

DIP Switch:

8-position DIP switch sets the communication parameters for the Program

port.

IR RX LED (red): Lights when IR data is being received via the rear IR RX port.

IR LED (red): Lights during the transmission of IR or Serial data via the rear IR port.

I/O LEDs (yellow): Light when the rear I/O channels 1 - 4 are active. LED indicator for each

I/O port reflects the state of that particular port.

SERIAL LEDs

(red and yellow):

Light when the rear DB9 Ports (1 & 2) transmit or receive RS-232, 422, or

485 data.

Note: These LEDs do not reflect changes in either the RTS or CTS when

hardware handshaking is used.

MASTER LEDs • LINK/ACT (green): Lights when the Ethernet cable is connected and an

active link is established. This LED also blinks when receiving Ethernet

data packets.

• Status (green): Lights when the Controller is programmed and

communicating properly.

• Output (red): Lights when the Controller transmits data, sets channels

On and Off, sends data strings, etc.

• Input (yellow): Lights when the Controller receives data from button

pushes, strings, commands, channel levels, etc.

ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.

Rear Panel Components

PORT 1 /2: Two RS-232/422/485 control ports use DB9 (male) connectors with XON/

XOFF (transmit On/transmit Off), CTS/RTS (clear to send/ready to send),

and 300 - 115,200 baud.

IR RX (Port 5): 4-pin 3.5 mm port connects up to 8 IRX-SM+ swivel mount or IRX-DM+

Decora mount IR receivers.

Note: The IR RX port functions using AMX IR codes (38 KHz and 455

KHz) and works ONLY with AMX IR Receivers such as the IRX-DM+ and

IRX-SM+.

I/O (Port 4): 4-channel digital I/O port for contact closure with each input being capable

of voltage sensing. Input format is software selectable with interactive

power sensing for IR ports.

Note: The I/Os are not dry closure; they are electronic switches that float

at 5V when Off. Therefore, they should not be expected to work in

situations that require true dry contact (or dry closure). The I/Os do work

with AMX PC1, PC2, UPC20 and UPC20+.

PROGRAM port (DB9)

CONFIGURATION DIP Switch

IR RX LED

MASTER Status LEDs

SERIAL Status LEDs

I/O Status LEDs

IR Status LED

ID Pushbutton

PORT 1 (RS-232/422/485)

PORT 2 (RS-232/422/485) ETHERNET 10/100 Port (RJ45)

12VDC Power connector

IR RX connector

I/O connectors IR connectors

AxLink connector / LED

(front)

(rear)

NI-700 Specifications (Cont.)

IR (Port 3): 4-pin 3.5 mm mini-Phoenix IR/Serial port supports high-frequency

carriers of up to 1.142 MHz with the output in 3 formats: IR, Serial, Data.

Note: IR ports support data mode (at limited baud rates and wiring

distances).

AxLink Port/LED: 4-pin 3.5 mm mini-Phoenix (male) connector provides data and power to

external control devices.

Green AxLink LED indicates the status of the port.

ETHERNET

10/100 Port:

RJ-45 port for 10/100 Mbps communication. LEDs show communication

activity, connection status, speeds, and mode information:

•SPD (speed) - Yellow LED lights On when the connection speed is 100

Mbps and turns Off when the speed is 10 Mbps.

•L/A (link/activity) - Green LED lights On when the Ethernet cables are

connected and terminated correctly, and blinks when receiving Ethernet

data packets.

12VDC PWR: Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.

Operating

Environment:

• Operating Temperature: 0° C (32° F) to 50° C (122° F)

• Operating Humidity: 20% - 85% RH

• Heat Dissipation (Typical): 11.5 BTU/hr

Included

Accessories:

• 2-pin 3.5 mm mini-Phoenix female PWR connector (41-5025)

• 4-pin 3.5 mm mini-Phoenix female connector (41-5047)

• 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063)

• CC-NIRC IR Emitter

Other AMX

Equipment:

• AC-RK Accessory Rack Kit (FG515)

• CC-NIRC IR cables (FG10-000-11)

• CC-NSER IR/Serial cables (FG10-007-10)

• IRX-PP38 Plasma Proof IR Sensor (FG460)

• IRX-DM+ IR Sensor (FG458-10 and FG458-11)

• IRX-SM+ IR Sensor (FG455-01)

• PMB Pole Mount Bracket (FG531)

• STS, Serial To Screw Terminal (FG959)

• Surface Mount Bracket Accessory (FG525)

NI-700 Port Assignments

Port ICSP Port #

Serial Port #1 1

Serial Port #2 2

IR/Serial Port 3

I/O Port 4

IR RX Port 5

Ethernet Port Usage

Port type Description Standard Port #

FTP The on-board Master has a built-in FTP server. 21/20 (TCP)

SSH The SSH port functions using the same interface as Telnet but

over a secure shell where it uses SSL as a mechanism to

configure and diagnose a NetLinx system.

Note: SSH version 2 (only) is supported.

22 (TCP)

Telnet The NetLinx Telnet server provides a mechanism to configure

and diagnose a NetLinx system.

23 (TCP)

HTTP The Master has a built-in web server that complies with the

HTTP 1.0 specification and supports all of the required

features of HTTP v1.1. This port is used for unsecure HTTP

Internet communication between the web browser’s UI and the

target Master.

80 (TCP)

HTTPS/SSL This port is used by a web browser to securely communicate

between the web server UI and the target Master.

443 (TCP)

ICSP Peer-to-peer protocol used for both Master-to-Master and

Master-to-device communications.

1319 (UDP/TCP)

integration!

Solutions

This feature on the Master uses, by default, port 10500 for the

XML based communication protocol.

This port is connected to by the client web browser’s JVM

when integration! Solutions control pages are retrieved from

the on-board Master’s web server.

10500 (TCP)

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).

1/12

AMX reserves the right to alter specifications without notice at any time.

3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com

93-2105-70 REV: D

Installing into an Equipment Rack

Use the optional AC-RK Accessory Rack Kit ( ) to mount the Controller into a standard 19" FG515

equipment rack.

1. Discharge the static electricity from your body by touching a grounded object.

2. Align the front of the NI-700 through any of the three rectangular openings on the AC-RK.

3. Use the included mounting screws to secure the unit’s faceplate to the AC-RK.

4. Thread the cables through the opening in the equipment rack. Allow for enough slack in the

cables to accommodate for movement during the installation process.

5. Reconnect all cables to their appropriate source/terminal locations. Verify that the terminal

end of the power cable is not connected to the a power supply before plugging in the 2-pin

power connector.

6. Align the ends of the AC-RK with the screw openings along the sides of the equipment rack.

7. Secure the AC-RK to the rack by using the four #10-32 screws (80-0186) and four #10

washers (80-0342) supplied in the kit.

8. Apply power to the unit to complete the installation process.

Connections and Wiring

Preparing Captive Wires

You will need a wire stripper and flat-blade screwdriver to prepare and connect the captive wires.

Note: Never pre-tin wires for compression-type connections.

1. Strip 0.25 inch (6.35 mm) of insulation off all wires.

2. Insert each wire into the appropriate opening on the connector (according to the wiring dia-

grams and connector types described in this section).

3. Tighten the screws to secure the wire in the connector. Do not tighten the screws excessively

doing so may strip the threads and damage the connector.

Wiring a Power Connection

To use the 2-pin 3.5 mm mini-Phoenix connector with a 12 VDC-compliant power supply, the

incoming PWR and GND cables from the external source must be connected to their corresponding

locations on connector (FIG. 2).

1. Insert the PWR and GND wires on the terminal end of the 2-pin 3.5 mm mini-Phoenix cable.

Match the wiring locations of the +/- on both the power supply and the terminal

connector.

2. Tighten the clamp to secure the two wires.

3. Verify the connection of the 2-pin 3.5 mm mini-Phoenix to the external 12 VDC-compliant

power supply.

PORT 1/2 (DB9) Connectors

FIG. 3 shows the pinout and wiring specification information for the rear RS-232/422/485 (DB9)

Device Ports (PORT 1 /2). These ports support most standard RS-232 communication protocols for

data transmission (Ports 1 & 2).

WARNING: When wiring the 422/485 connections, do NOT use pre-made 9-wire cable or connect

the wire in the cable to any connection that will not be used by the DB9 serial port. Only use wiring

that connects the needed pins.

Ethernet 10/100 Base-T Connector

A standard CAT5 Ethernet cable provides 10/100 network connectivity between the Integrated

Controller and the network (FIG. 4).

Note: On NetLinx Masters (such as those aboard the NI-700), from within the Telnet or Terminal

applications; you can send the SET ETHERNET MODE command to assign the speed of your

Ethernet connection.

Sample NI-700 command:

SET ETHERNET MODE AUTO

The NI-700 only allows you to set the Ethernet mode to AUTO negotiate the Ethernet connection

speed. Using any of the other connection modes (10 Half/Full or 100 Half/Full) results in an error

message.

Program Port Baud Rate Settings

The Configuration DIP switch is located on the front panel. Use this DIP switch to set the baud rate

for the Program Port, according to the settings shown in the following table. Make sure the baud rate

you set matches the baud rate on your PC's NetLinx COM Settings before programming the unit.

By default, the baud rate is set to 38,400 (bps).

Note: DIP switch 1 activates/deactivates the Program Run Disable Mode. DIP Switches 2,3, and 4

must remain OFF at all times.

Setting the Configuration (Program Port) DIP Switch

1. Disconnect the power supply from the rear 2-pin PWR (green) connector.

2. Set DIP switch positions according to the information listed in the previous Baud Rate

Settings table.

3. Reapply power to the unit.

Preparing the NI-700 for Serial Communication

1. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc >

NetLinx Studio 2 > NetLinx Studio 2).

2. Select Settings > Master Communication Settings, from the Main menu, to open the

Master Communication Settings dialog box.

3. Click the Communications Settings button to open the Communications Settings dialog.

4. Click the NetLinx Master radio button (from the Platform Selection section) to indicate you

are working with a NetLinx Master.

5. Click the Serial radio button (from the Transport Connection Option section) to indicate you

are connecting to the Master via a COM port.

6. Click the Edit Settings button (on the Communications Settings dialog) to open the Serial

Settings dialog and set the COM port parameters (used to communicate to the NetLinx

Master).

7. Click the OK button three times to return to the main application.

8. Right-click the entry in the Online Tree tab and select Refresh System.

9. Assign a System Value by using Diagnostics > Device Addressing from the Main menu.

10. Enable the Change System selection by clicking on it and then enter the current and new

System values.

11. Click the Change Device/System Number button and when finished click Done.

12. Select Tools > Reboot the Master Controller to access the Reboot the Master dialog, then

click Reboot to restart the Master and incorporate any changes.

13. Once the dialog replies with "Reboot of system complete", click Done and then click the

OnLine Tree tab in the Workspace window to view the devices on the System.The default

System value is one.

14. Right-click on the Empty Device Tree/System entry and select Refresh System to re-

populate the list.

Configuring the NI-700 for Ethernet Communication

Before continuing, complete the COM port steps above.

1. Connect an Ethernet cable to the unit’s rear Ethernet connector.

2. Select Diagnostics > Network Address from the Main menu and enter the System, Device

(0 for a Master), and Host Name information.

3. To configure the Address:

• Use a DHCP Address by selecting the Use DHCP radio button, then click the GET IP button

(to obtain a DHCP Address from the DHCP Server), click the SET IP Information button (to

retain the new address), and then finish the process by clicking the Reboot Master > OK

buttons.

• Use a Static IP Address by selecting the Specify IP Address radio button, enter the IP

parameters into the available fields, then click the SET IP Information button (to retain the

pre-reserved IP Address to the Master), and then click the Reboot Master > OK buttons to

finish the process.

4. Repeat steps 1 - 5 from the previous section but rather than selecting the Serial option,

choose TCP/IP and edit the settings to match the IP Address you are using (whether Static or

IP).

5. Click on the Authentication Required radio box (if the Master is secured) and press the

User Name and Password button to enter a valid username and password being used by

the secured Master.

6. Click the OK button three times to return to the main application.

Additional Documentation

Additional Documentation for the NI-700 is available at www.amx.com:

• Refer to the NI-700/900 Hardware Reference Guide for additional details on Installation,

Upgrading, and Wiring the NI-700.

• Refer to the NI Series NetLinx Integrated Controllers WebConsole & Programming Guide for

detailed configuration instructions.

FIG. 2 2-pin mini-Phoenix connector wiring diagram (direct power)

FIG. 3 RS-232/422/485 DB9 (male) connector pinouts

FIG. 4 Layout of Ethernet LEDs

PWR +

GND -

To the Integrated Controller

Power Supply

Male

DB9 Serial Port pinouts (male connector)

Pin 2: RX signal

Pin 3: TX signal

Pin 5: GND

Pin 7: RTS

Pin 8: CTS

RS-232

Pin 1: RX -

Pin 4: TX +

Pin 5: GND

Pin 6: RX +

Pin 9: TX -

RS-422

Pin 1: A (strap to 9)

Pin 4: B (strap to 6)

Pin 5: GND

Pin 6: B (strap to 4)

Pin 9: A (strap to 1)

RS-485

10/100

ETHERNET

SPDL/A

SPD - Speed LED lights (yellow) when

and turns Off when the speed

is 10 Mbps.

the connection speed is 100 Mbps

L/A - Link/Activity LED lights

(green) when the Ethernet

cables are connected and

terminated correctly.

Baud Rate Settings

Baud Rate Position 5 Position 6 Position 7 Position 8

9600 bps OFF ON OFF ON

38,400 bps (default) OFF ON ON ON

57,600 bps ON OFF OFF OFF

115,200 bps ON ON ON ON

Produktspezifikationen

Marke:	AMX
Kategorie:	Regler
Modell:	FG2105-70

Brauchst du Hilfe?

Wenn Sie Hilfe mit AMX FG2105-70 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Regler AMX

AMX SC-N8001 Bedienungsanleitung

31 August 2024

AMX SC-N8012 Bedienungsanleitung

31 August 2024

AMX MU-1300 Bedienungsanleitung

28 August 2024

AMX MU-1000 Bedienungsanleitung

28 August 2024

AMX NXF-MINI Bedienungsanleitung

27 August 2024

AMX NetLinx NX-1200 Bedienungsanleitung

27 August 2024

AMX NXA-WAPZD1100 Bedienungsanleitung

27 August 2024

AMX AXB-232++ Bedienungsanleitung

27 August 2024

AMX AXB-DMX512 Bedienungsanleitung

27 August 2024

AMX Mio Modero R-2 Bedienungsanleitung

27 August 2024

Bedienungsanleitung Regler

Neueste Bedienungsanleitung für -Kategorien-

PCE Instruments PCE-RE100P Bedienungsanleitung

16 Oktober 2024

PCE Instruments PCE-RE21R Bedienungsanleitung

16 Oktober 2024

Thrustmaster T3PA Add-On Gaming Pedal Set Bedienungsanleitung

6 Oktober 2024

Hori Battle Pad Bedienungsanleitung

5 Oktober 2024

Saitek PS2700 Bedienungsanleitung

4 Oktober 2024

Razer Wolverine V3 Pro Bedienungsanleitung

3 Oktober 2024

Axor Citterio E 36771001 Bedienungsanleitung

1 Oktober 2024

Hori Force Feedback Truck Control System Bedienungsanleitung

1 Oktober 2024

Balam Rush Kontrol Glow G595 Bedienungsanleitung

30 September 2024

Razer Panthera Bedienungsanleitung

27 September 2024
