Installation Guide
NI-2100 NetLinx Integrated Controller
The NI-2100/ICS is ideal for control and automation of medium-sized rooms and multi-room
applications. The NI-2100 has 64MB of onboard RAM and is Device Discovery enabled to
simplify programming by standardizing device and function definitions, default touch panel
button assignments, and control and feedback methods.
ATTENTION!
Verify you are using the latest NI firmware for the on-board Master. Verify you are using the
latest version of NetLinx Studio (available for download from www.amx.com).
Specifications

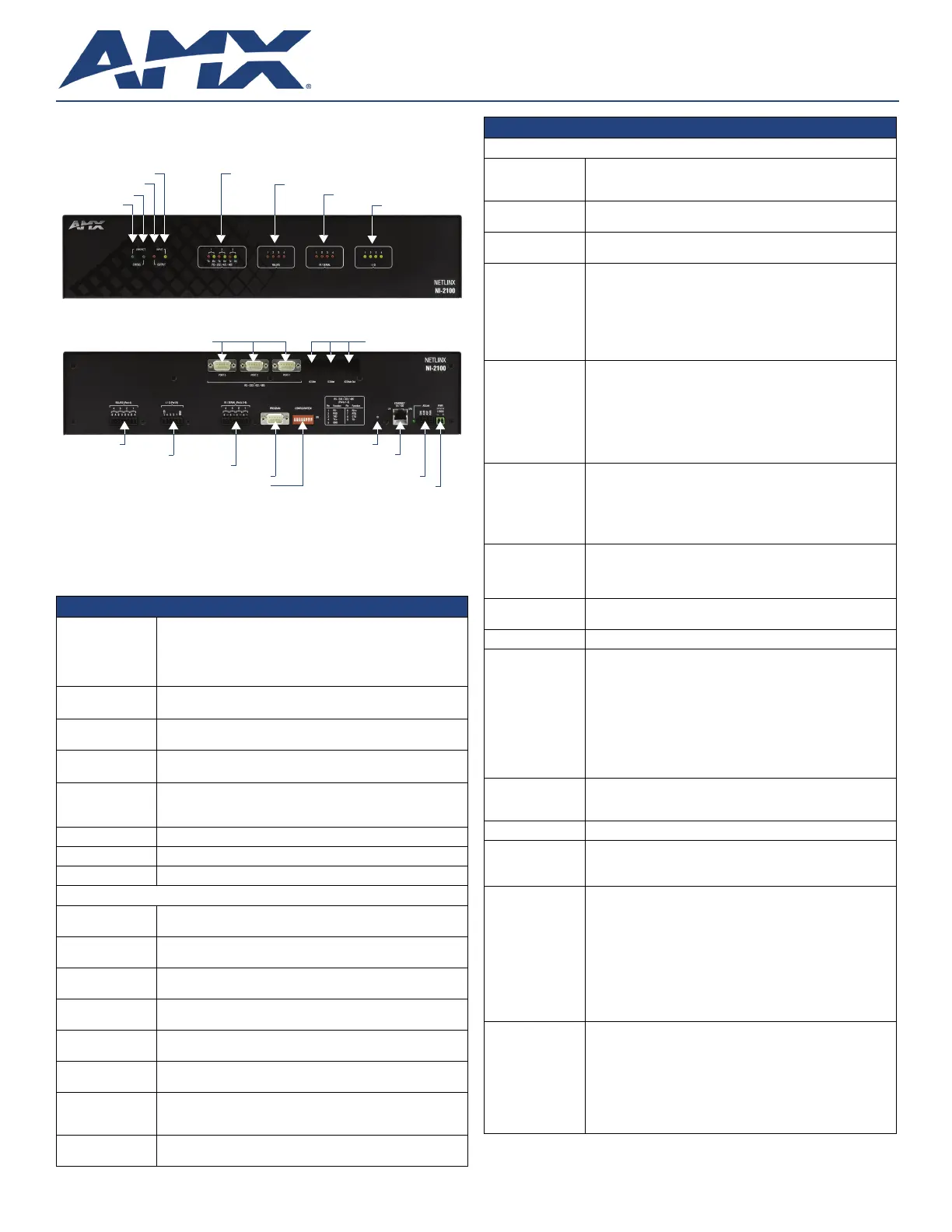

FIG. 1 NI-2100
NI-2100 Specifications
Models Available: • NI-2100 Controller (FG2105-04)
The NI-2100 can be upgraded to provide one ICSHub and two
ICSNet ports by installing the optional ICSNet daughter card
(FG2105-10 - see Other AMX Equipment)
• NI-2100/ICS Controller with ICSNet (FG2105-14)
Dimensions
(HWD):
• 3 1/2" x 17" x 3 1/2" (8.8 cm x 43.2 cm x 8.8 cm)
• RU: 2
Power
Requirement:
700 mA @ 12 VDC
Memory: • 64 MB SDRAM
• 1 MB Non-volatile (NV) SRAM
Compact Flash: 2GB or greater (upgradeable to 4GB - see Other AMX Equipment).
Note: AMX may increase Flash size at any time in response to
market availability.
Weight: 4.50 lbs (2.04 kg)
Enclosure: Metal with black matte finish
Certifications: FCC Part 15 Class B, CE, and IEC 60950
Front Panel LEDs:
LINK/ACT
(green):
Blinks when the Ethernet cables are connected and terminated
correctly. Also blinks when receiving Ethernet data packets.
Status (green): Blinks to indicate that the system is programmed and
communicating properly.
Output (red): Blinks when the Controller transmits data, sets channels On and
Off, sends data strings, etc.
Input (yellow): Blinks when the Controller receives data from button pushes,
strings, commands, channel levels, etc.
RS-232/422/485
(red / yellow):
3 sets of LEDs light to indicate that DB9 Ports 1 - 3 are transmitting
or receiving RS-232, 422, or 485 data (red = TX, yellow = RX).
Relay (red): 4 LEDs light to indicate the relay channels 1 - 4 are active (closed).
These LEDs reflect the state of the relay on Port 4.
IR/Serial (red): 4 LEDs light to indicate the IR/Serial channels 1 - 4 are transmitting
control data on Ports 5 - 8. LED indicator for each IR port remains lit
for the length of time that IR/Serial data is being generated.
I/O (yellow): Lights when the I/O channels 1 - 4 are active. The LED for each I/O
port reflects the state of that particular port.
LINK/ACT LED
STATUS LED
INPUT LED
OUTPUT LED RS-232/422/485 Status LEDs
RELAY Status LEDs
IR/SERIAL Status LEDs
I/O Status LEDs
front
rear RS-232/422/485 (Ports 1-3)
ICSNet/ICSHub Ports
(provided by optional
ICSNet daughter card)
Relays (Port 4)
I/O (Port 9)
IR/Serial (Ports 5-8)
PROGRAM Port
CONFIGURATION DIP Switch
ID Pushbutton
ETHERNET
10/100 Port
AxLink Port
12 VDC PWR Connector
NI-2100 Specifications (Cont.)
Rear Panel Components:
RS-232/422/485
(Ports 1 - 3):
3 RS-232/422/485 control ports using DB9 (male) connectors with
XON/XOFF (transmit on/transmit off), CTS/RTS (clear to send/
ready to send), and 300-115,200 baud.
ICSNet: 2 RJ-45 connectors for ICSNet interface (provided by optional
ICSNet daughter card).
ICSHub Out: RJ-45 connector provides data to a Hub connected to the Controller
(provided by optional ICSNet daughter card).
Relay (Port 4): • 4-channel single-pole single-throw relay ports
• Each relay is independently controlled.
• Supports up to 4 independent external relay devices
• Channel range = 1-4
• Each relay can switch up to 24 VDC or 28 VAC @ 1 A
• 8-pin 3.5 mm mini-Phoenix (female) connector provides relay
termination
Digital I/O
(Port 9):
4-channel binary I/O port for contact closure with each input being
capable of voltage sensing. Input format is software selectable with
interactive power sensing for IR ports.
Note: The I/Os on this card are not dry closure; they are electronic
switches that float at 5V when Off. Therefore, they should not be
expected to work in situations that require true dry contact (or dry
closure). The I/Os do work with AMX PC1, PC2, UPC20 and
UPC20+.
IR/Serial
(Ports 5 - 8):
4 IR/Serial control ports support high-frequency carriers of up to
1.142 MHz with each output being capable of two electrical formats:
IR or Serial.
• 4 IR/Serial data signals can be generated simultaneously.
• IR ports support data mode (at limited baud rates and wiring
distances).
Program Port: RS-232 DB9 connector (male) can be connected to a DB9 port on a
PC. This connector can be used with serial and NetLinx program-
ming commands, as well as other DB9 capable devices, to both
upload/download information from the NetLinx Studio program.
Configuration DIP
Switch:
Sets the communication parameters for the Program port (see Baud
Rate Settings).
ID Pushbutton: Sets the NetLinx ID (Device only) assignment for the device.
Ethernet Port: RJ-45 connector provides TCP/IP communication. This is an Auto
MDI/MDI-X enabled port, which allows you to use either straight-
through or crossover Ethernet cables.
The Ethernet Port LEDs show communication activity, connection
status, speeds, and mode information:
•SPD (speed) - Yellow LED lights On when the connection speed
is 100 Mbps and turns Off when the speed is 10 Mbps.
•L/A (link/activity) - Green LED lights On when the Ethernet cables
are connected and terminated correctly, and blinks when
receiving Ethernet data packets.
AxLink Port: 4-pin 3.5 mm mini-Phoenix (male) connector that provides data and
power to external control devices. Green AXlink LED indicates the
state of the AXlink port.
Power Port: 2-pin 3.5 mm mini-Phoenix (male) connector.
Operating
Environment:
• Operating Temperature: 0° C (32° F) to 50° C (122° F)
• Operating Humidity: 20% to 85% RH
• Heat Dissipation (Typical): 28.7 BTU/hr
Included
Accessories:
• 2-pin 3.5 mm mini-Phoenix (female) PWR connector (41-5025)
• 4-pin 3.5 mm mini-Phoenix (female) AXlink connector (41-5047)
• 6-pin 3.5 mm mini-Phoenix female I/O connector (41-5063)
• 8-pin 3.5 mm mini-Phoenix female Relay connector (41-5083)
• Installation Kit (KA2105-01):
8-pin Relay Common Strip
4 rack mount screws
4 washers
• 2 CC-NIRC NetLinx IR Emitter Cables (FG10-000-11)
• 2 removable rack ears (62-2105-07)
Other AMX
Equipment:
• 2-pin 3.5 mm mini-Phoenix male connector (41-5026)
• CC-COM Programming Port Cable (FG10-727)
• CC-NSER IR/Serial cable (FG10-007-10)
• ICSNet daughter card (FG2105-10)
• NCK, NetLinx Connector Kit (FG2902)
• STS, Serial To Screw Terminal (FG959)
• Upgrade Compact Flash (factory programmed with firmware):
NXA-CF2NI4G, 4 GB Flash Upgrade (FG2116-07)
For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
9/10
©2010 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com
93-2105-14 REV: H
Connections and Wiring
Wiring a Power Connection
Use a 12 VDC-compliant power supply to provide power to the Controller via the rear 2-pin
3.5 mm mini-Phoenix connector. The incoming PWR and GND cable from the PSN power
supply must be connected to their corresponding locations within the PWR connector.
• This unit should only have one source of incoming power.
• Using more than one source of power to the Controller can result in damage to the
internal components and a possible burn out.
• Apply power to the unit only after installation is complete.
RS-232/422/485 Wiring Connector Information
FIG. 2 shows the pinout and wiring specification information for the RS-232/422/485 (DB9)
Device Ports. These ports support most standard serial mouse control devices and RS-232
communication protocols for PC data transmission.
The NI-2100 uses Ports 1 - 3.
WARNING: NOT When wiring the 422/485 connections, do use pre-made 9-wire cable or
connect the wire in the cable to any connection that will not be used by the DB9 serial port.
Only use wiring that connects the needed pins.
Ethernet 10/100 Base-T Connector
The RJ-45 Ethernet connector provides 10/100 network connectivity between the panel and
the NetLinx Master (FIG. 3).
Use a standard CAT5 Ethernet cable to provide communication between the Integrated
Controller and external NetLinx devices.
Baud Rate Settings (Program Port DIP Switch)
The Program Port DIP switch is located on the rear of the device. Use this DIP switch to set
the baud rate for the Program Port, according to the settings shown in the following table.
Make sure the baud rate you set matches the baud rate on your PC's NetLinx COM Settings
before programming the unit.
Note: DIP switch 1 activates/deactivates the Program Run Disable Mode. DIP Switches 2,3,
and 4 must remain OFF at all times.
Ethernet Ports Used by the NI-2100
Preparing the NI-2100 for Serial Communication
To establish serial communication with the Controller via the PROGRAM (DB9) port:
1. Use a Serial DB9 cable (i.e. CC-COM Programming Port Cable - not included) to con-
nect the Controller’s Program port to a DB9 port on a PC.
2. Launch NetLinx Studio 2.x (default location is Start > Programs > AMX Control Disc
> NetLinx Studio 2 > NetLinx Studio 2).
3. Select Settings > Master Communication Settings, from the menu bar, to open the
Master Communication Settings dialog box.
4. Click the Communications Settings button to open the Communications Settings
dialog.
5. Click the NetLinx Master radio button (from the Platform Selection section) to indicate
you are working with a NetLinx Master.
6. Click the Serial radio button (from the Transport Connection Option section) to indicate
you are connecting to the Master via a COM port.
7. Click the Edit Settings button (on the Communications Settings dialog) to open the
Serial Settings dialog and set the COM port parameters (used to communicate to the
NetLinx Master).
8. Click OK to close all dialogs and return to the main application.
9. Right-click the Online Tree Refresh System: tab entry and select the Controller
should appear in the Device Tree. If not, verify that the Serial cable is connected
properly, and that the Baud Rate settings on the Controller (set via the Program Port
DIP Switch) match the settings in NetLinx Studio.
Once Serial communication has been established, use NetLinx Studio to configure the
Controller for Ethernet Communication, as described below.
Configuring the NI-2100 for Ethernet Communication
Before continuing, complete the COM port steps above.
1. Use an Ethernet cable to connect the Controller to the LAN to which the PC running
NetLinx Studio is connected.
Note: The NI-x100 Controllers feature an Auto MDI/MDI-X Ethernet port. This provides
the option of using either a standard (straight through), or a crossover Ethernet cable
to communicate with a PC - both cable types will work.
2. Select Diagnostics > Network Address from the menu bar and enter the System,
Device (0 for a Master), and Host Name information.
3. To configure the Address:
• Use a DHCP Address by selecting the Use DHCP radio button, then click the GET IP
button (to obtain a DHCP Address from the DHCP Server), click the SET IP
Information button ( ), and then finish the process by clicking to retain the new address
the Reboot Master > OK buttons.
• Use a Static IP Address by selecting the radio button, enter the IP Specify IP Address
parameters into the available fields, then click the SET IP Information button (to retain
the pre-reserved IP Address to the Master), and then click the Reboot Master > OK
buttons to finish the process.
4. Repeat steps 1 - 5 from the previous section, but rather than selecting the Serial
option, choose TCP/IP and edit the settings to match the IP Address you are using
(Static or IP).
5. Click on the d) and press Authentication Required radio box (if the Master is secure
the User Name and Password button to enter a valid username and password being
used by the secured Master.
6. Click the OK to close all dialogs and return to the main application.
Onboard WebConsole
NetLinx Masters have a built-in WebConsole that allows you to make various configuration
settings via a web browser on any PC that has access to the Master.
The WebConsole consists of a series of web pages that are collectively called the "Master
Configuration Manager". Refer to the NI Series NetLinx Integrated Controllers WebConsole
& Programming Guide for details on the WebConsole.
Accessing the WebConsole
From any PC that has access to the LAN that the target Master resides on:
1. Open a web browser and type the IP Address of the target Master in the Address Bar.
2. Press Enter to access WebConsole for that Master. The initial view is the WebControl
page.
Additional Documentation
Additional Documentation for the N1-2100 is available at www.amx.com:
• Refer to the NXI-x100 Series Hardware Reference Guide for additional details on
Installation, Upgrading, and Wiring the NI-2100.
• Refer to the NI Series NetLinx Integrated Controllers WebConsole & Programming
Guide for detailed configuration instructions.
FIG. 2 RS-232/422/485 DB9 (male) connector pinouts
FIG. 3 Layout of Ethernet LEDs
Baud Rate Settings
Baud Rate Position 5 Position 6 Position 7 Position 8
• 9600 bps OFF ON OFF ON
• 38,400 bps (default) OFF ON ON ON
• 57,600 bps ON OFF OFF OFF
• 115,200 bps ON ON ON ON
Ethernet Ports Used
Port type Port # Type
• FTP 21/20 TCP
• SSH (only SSH v2 is supported) 22 TCP
• Telnet 23 TCP
• HTTP 80 TCP
• HTTPS/SSL 443 TCP
• ICSP 1319 UDP/TCP
• integration! Solutions 10500 TCP
5
4
3
2
1
9
8
7
6
Male
DB9 Serial Port pinouts (male connector)
Pin 2: RX signal
Pin 3: TX signal
PIN 5: GND
Pin 7: RTS
Pin 8: CTS
RS-232
Pin 1: RX -
Pin 4: TX +
PIN 5: GND
Pin 6: RX +
Pin 9: TX -
RS-422
Pin 1: A (strap to 9)
Pin 4: B (strap to 6)
PIN 5: GND
Pin 6: B (strap to 4)
Pin 9: A (strap to 1)
RS-485
SPD - Speed LED lights (yellow)
100 Mbps and turns Off when the
speed is 10 Mbps.
when the connection speed is
L/A - Link/Activity LED lights
(green) when the Ethernet
cables are connected and
terminated correctly.
Produktspezifikationen
| Marke: | AMX |
| Kategorie: | Regler |
| Modell: | FG2105-04 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit AMX FG2105-04 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Regler AMX
31 August 2024
31 August 2024
28 August 2024
28 August 2024
27 August 2024
27 August 2024
27 August 2024
27 August 2024
27 August 2024
27 August 2024
Bedienungsanleitung Regler
- Regler Samsung
- Regler Asus
- Regler Belkin
- Regler Gembird
- Regler Genius
- Regler Hama
- Regler HP
- Regler HyperX
- Regler Logitech
- Regler Microsoft
- Regler Nacon
- Regler Nedis
- Regler Niceboy
- Regler Saitek
- Regler Sony
- Regler SteelSeries
- Regler Sweex
- Regler T'nB
- Regler Targus
- Regler Trust
- Regler Bosch
- Regler Canon
- Regler Velleman
- Regler Hori
- Regler König
- Regler Thomson
- Regler Kenwood
- Regler Schneider
- Regler Pyle
- Regler Mitsubishi
- Regler Bose
- Regler Denon
- Regler Pioneer
- Regler JBL
- Regler One For All
- Regler Vivanco
- Regler BeamZ
- Regler Akai
- Regler Tascam
- Regler Zoom
- Regler Perel
- Regler Aruba
- Regler Lindy
- Regler Thrustmaster
- Regler TOA
- Regler MSI
- Regler Tripp Lite
- Regler Marshall
- Regler Razer
- Regler Honeywell
- Regler Marshall Electronics
- Regler SBS
- Regler DJI
- Regler Parrot
- Regler Reely
- Regler Zebra
- Regler Broan
- Regler Adj
- Regler Supermicro
- Regler Genesis
- Regler Thermaltake
- Regler Behringer
- Regler Mackie
- Regler Numark
- Regler Eurolite
- Regler Monoprice
- Regler Monacor
- Regler Huawei
- Regler JUNG
- Regler Hunter
- Regler Esperanza
- Regler Lumens
- Regler Korg
- Regler DataVideo
- Regler Manfrotto
- Regler Tracer
- Regler Cisco
- Regler Boss
- Regler Synology
- Regler Saramonic
- Regler Kramer
- Regler Irritrol
- Regler Jumbo
- Regler Vaddio
- Regler RCA
- Regler Datalogic
- Regler HQ Power
- Regler Nintendo
- Regler Kicker
- Regler Speed-Link
- Regler DBX
- Regler Draper
- Regler Hikvision
- Regler Radial Engineering
- Regler Rain Bird
- Regler Sven
- Regler PreSonus
- Regler ART
- Regler Senal
- Regler PDP
- Regler IK Multimedia
- Regler Krom
- Regler ASTRO Gaming
- Regler Gamesir
- Regler Fusion
- Regler GeoVision
- Regler Gossen Metrawatt
- Regler Icon
- Regler IHome
- Regler Media-tech
- Regler Naxa
- Regler PCE Instruments
- Regler Robitronic
- Regler Schaudt
- Regler SecurityMan
- Regler Steca
- Regler Universal Remote Control
- Regler Vizio
- Regler Siig
- Regler Intel
- Regler Zephyr
- Regler RGBlink
- Regler StarTech.com
- Regler Konix
- Regler Monster
- Regler Niles
- Regler Gefen
- Regler Polsen
- Regler Inovonics
- Regler Atlantis Land
- Regler Atlas Sound
- Regler Magnus
- Regler LSI
- Regler ATen
- Regler Morningstar
- Regler KanexPro
- Regler Lab Gruppen
- Regler SPL
- Regler SmartAVI
- Regler Natec
- Regler EtiamPro
- Regler Chauvet
- Regler Premier Mounts
- Regler Juniper
- Regler Phoenix Contact
- Regler Music Hall
- Regler Audac
- Regler OSD Audio
- Regler BZBGear
- Regler DreamGEAR
- Regler Crestron
- Regler GOgroove
- Regler PowerA
- Regler Atlona
- Regler LYYT
- Regler Elite Screens
- Regler Bigben Interactive
- Regler Rolls
- Regler Sonifex
- Regler Leviton
- Regler Apricorn
- Regler 8BitDo
- Regler Alfatron
- Regler Highpoint
- Regler Steelplay
- Regler AViPAS
- Regler Auray
- Regler Vakoss
- Regler Areca
- Regler Savio
- Regler Heritage Audio
- Regler Tru Components
- Regler Ltech
- Regler CTA Digital
- Regler Canyon
- Regler MuxLab
- Regler Kanlux
- Regler EXSYS
- Regler Venom
- Regler Amer
- Regler ALC
- Regler LumenRadio
- Regler Moza
- Regler Axor
- Regler Valcom
- Regler AirTurn
- Regler Dangerous Music
- Regler Clarity
- Regler Softube
- Regler RiotPWR
- Regler IPEGA
- Regler Dadson
- Regler Blizzard Lighting
- Regler Heath Zenith
- Regler Re.corder
- Regler Mitzu
- Regler CoolerMaster
- Regler Dragonshock
- Regler MOGA
- Regler HuddleCamHD
- Regler PTZ Optics
- Regler Balam Rush
Neueste Bedienungsanleitung für -Kategorien-
16 Oktober 2024
16 Oktober 2024
5 Oktober 2024
4 Oktober 2024
3 Oktober 2024
1 Oktober 2024
Hori Force Feedback Truck Control System Bedienungsanleitung
1 Oktober 2024
30 September 2024
27 September 2024
