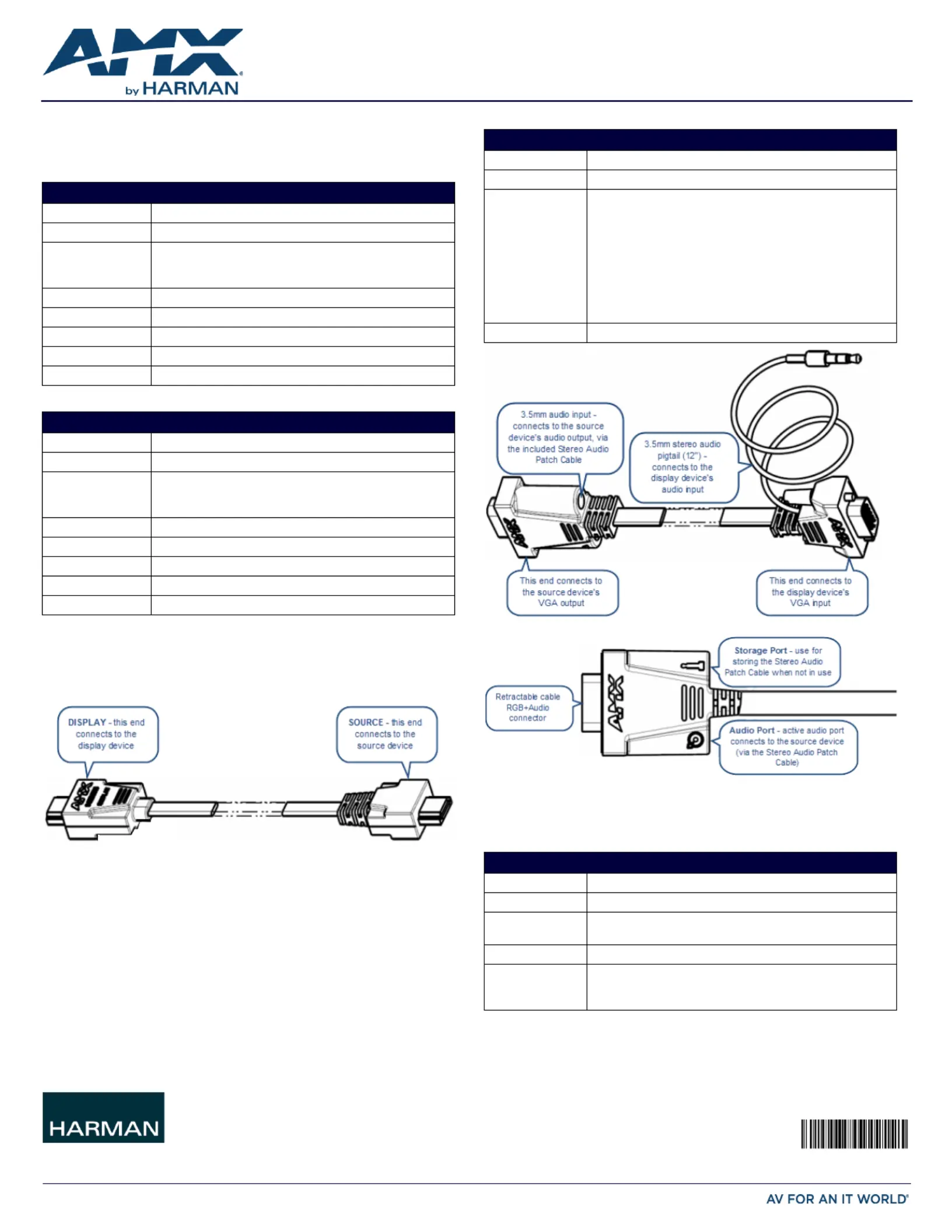

QUICK START GUIDE
CBL-x-FL-16 Flat Cables
© 2015 Harman. All rights reserved. Hydraport, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered trademarks of
HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their respective
companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
Last Revised: 8/05/2015
93-1281-01 REV: B
Overview
Flat cables provide several benefits including weight reduction, space efficiency,
flexibility and strength. The following Flat Cables are available to purchase from AMX:
CBL-HDMI-FL-16: HDMI Flat Cable
CBL-DP-FL-16: DisplayPort Flat Cable
Directional Cables
The CBL-HDMI-FL-16 and CBL-DP-FL-16 cables are directional (FIG. 1):
The connector labeled SOURCE must be connected to the source device (example: Blu-
ray player) and the other connector labeled DISPLAY connects to the display device
(example: HDTV monitor).
Directional Cables: Notes
• Use of an extension cable on either end of the CBL-HDMI-FL-16 and CBL-DP-FL-
16 cables should be avoided, or performance issues may result.
• Connecting the cable backwards, with the connector labeled "DISPLAY" into the
video source, will not damage the equipment. However when incorrectly installed,
the cable will not transmit a signal.
CBL-RGB+A-FL-16: RGB-Audio Flat Cable
Use the separate 3.5mm Stereo Audio Patch Cable (included) to connect to the audio
output on the Source Device.
CBL-ETH-FL-16: Ethernet Flat Cable
Additional Documentation
Refer to the Products > Architectural Connectivity catalog page on www.amx.com
(Dealer Site) for additional product documentation.
CBL-HDMI-FL-16 CABLE SPECIF ICATIONS
FG#: FG10-2180-16
Cable Length 16.4 ft (5m)
Connectors: • SOURCE: HDMI (male) - connects to the source device.
• DISPLAY: HDMI (male) - connects to the display device.
• Molded Strain Relief
Data Rate: 10.2 Gbps
Signal Support: 1920Ă—1080P @ 120Hz
Color: 48 Bits (16 bits per color)
Supported Features: Deep Color, 3D, HEC, ARC
Plating: 24K Gold
CBL-DP-FL-16 CABLE SPECIF ICATIONS
FG#: FG10-2181-16
Cable Length 16.4 ft (5m)
Connectors: • SOURCE: DisplayPort (male) - connects to the source device.
• DISPLAY: HDMI (male) - connects to the display device.
• Molded Strain Relief
Data Rate: 10.2 Gbps
Signal Support: 1920Ă—1080P @ 120 Hz
Color: 48 Bits (16 bits per color)
Supported Features: Deep Color, 3D
Plating: 24K Gold
FIG. 1 DIRECTIONAL FLAT CABLE
CBL-RGB+A-FL-16 CABLE SPECIFICATIONS
FG#: FG10-2183-16
Cable Length 16.4 ft (5m)
Connectors: • SOURCE: 15-pin HD VGA (male), with two 3.5mm ports (female):
The port labeled with the Speaker icon connects to the source
device, via the separate (included) Stereo Audio Patch Cable.
The port labeled with the Plug icon is inactive - use this port to
store the Stereo Audio Patch Cable when not in use.
See FIG. 2 for details.
• DISPLAY: 15-pin HD VGA (male), with a 3.5mm Stereo pigtail
(male) - connects to the display device.
The pigtail is 12” (30.5cm) long.
• Molded Strain Relief
Included: 3.5mm Stereo Audio Patch Cable (18” / 45.7cm)
FIG. 2 RGB + AUDIO FLAT CABLE AND SOU RCE CONNECTOR DETAILS
CBL-ETH-FL-16 CABLE SPECIFICATIONS
FG#: FG10-2182-16
Cable Length 16.4 ft (5m)
Connectors: • RJ45 (male, both ends)
• Molded Strain Relief
Category: CAT 5e
Wiring: • 26 AWG
• 4 twisted pairs
• Single-core
