QUICK START GUIDE
CB-MSA-10 Rough-In Box and Cover Plate for 10.1" Wall Mount
Modero S Series Touch Panels & AMX RoomBook Scheduling Panels
Overview
The CB-MSA-10 Rough-In Box (FG2265-08) is an optional accessory for MSD-1001
(Modero S Series) 10.1” Landscape Wall Mount Touch Panels and RMBK-1001 10.1”
AMX RoomBook Scheduling Panels. It allows the panel to be mounted directly to the
studs/pre-wall.
The back of the 10.1” Wall Mount Touch Panel is contained within a plastic outer
housing or back box, and the back box attaches to the Rough-In Box. The Rough-In Box
kit includes a wall box, cover, and mounting screws.
WARNING: In order to guarantee a stable installation of the touch panel, the distance
between the CB-MSA-10 and the outer wall surface must be a minimum of .50 inches
(1.27cm) and a maximum of .1.50 inches (3.81cm).
Refer to the 95-2265-08 diagram for detailed installation dimensions.
Specif ications
Pre-Wall Installation of the CB-MSA-10 Rough-In Box
1. Remove the rough-in box cover (B in FIG. 1) before installation of the rough-in box
(a). note: the cover must be removed before drywall installation. The cover may be
reinstalled after drywall installation using 4-40 screws (not included).
NOTE: The mounting tabs on the front of the rough-in box (A) are intended to allow
additional anchoring of the rough-in box to its wall, but these can be removed if
necessary.
2. Fasten the CB-MSA-10 rough-in box to the stud through the holes on the Stud
Mounting tabs, using either nails or screws (not provided). Additional framing or
blocking may be desired for a more robust mounting.
3. Remove the appropriate wiring knockouts from the rough-in box to accommodate
the cables being threaded through to the Touch Panel.
4. Thread the incoming Ethernet and USB wiring through the knockouts. Using the
left wiring knockouts for USB connector cables and the right wiring knockouts for
the LAN/PoE In cable is very highly recommended with this installation. Leave
enough slack in the wiring to accommodate installation of the docking station.
5. Install the drywall/sheetrock before inserting the back box for the CB-MSA-10.
6. Cut out the opening for the Wall Mount Touch Panel back box where the wall has
been placed over the Rough-In Box. Cutting out the surface slightly smaller than
what is outlined in the installation drawings, so that you can make any necessary
cutout adjustments, is very highly recommended.
NOTE: The front cover of the CB-MSA-10 (B in FIG. 1) should be installed after the
appropriate wiring is pulled to the Rough-In Box. The cover should then be removed
prior to the installation of the touch panel back box and discarded.
Do not discard the cover screws.
7. Remove the matching knockouts on the touch panel’s Back Box. Install the touch
panel’s Back Box into the opening, allowing the stand-ups for the cover screws to
pass through the back of the Back Box. Secure the Back Box to the Rough-In Box
with the cover screws, pass the touch panel’s wiring through the Back Box
knockouts, and install the touch panel.

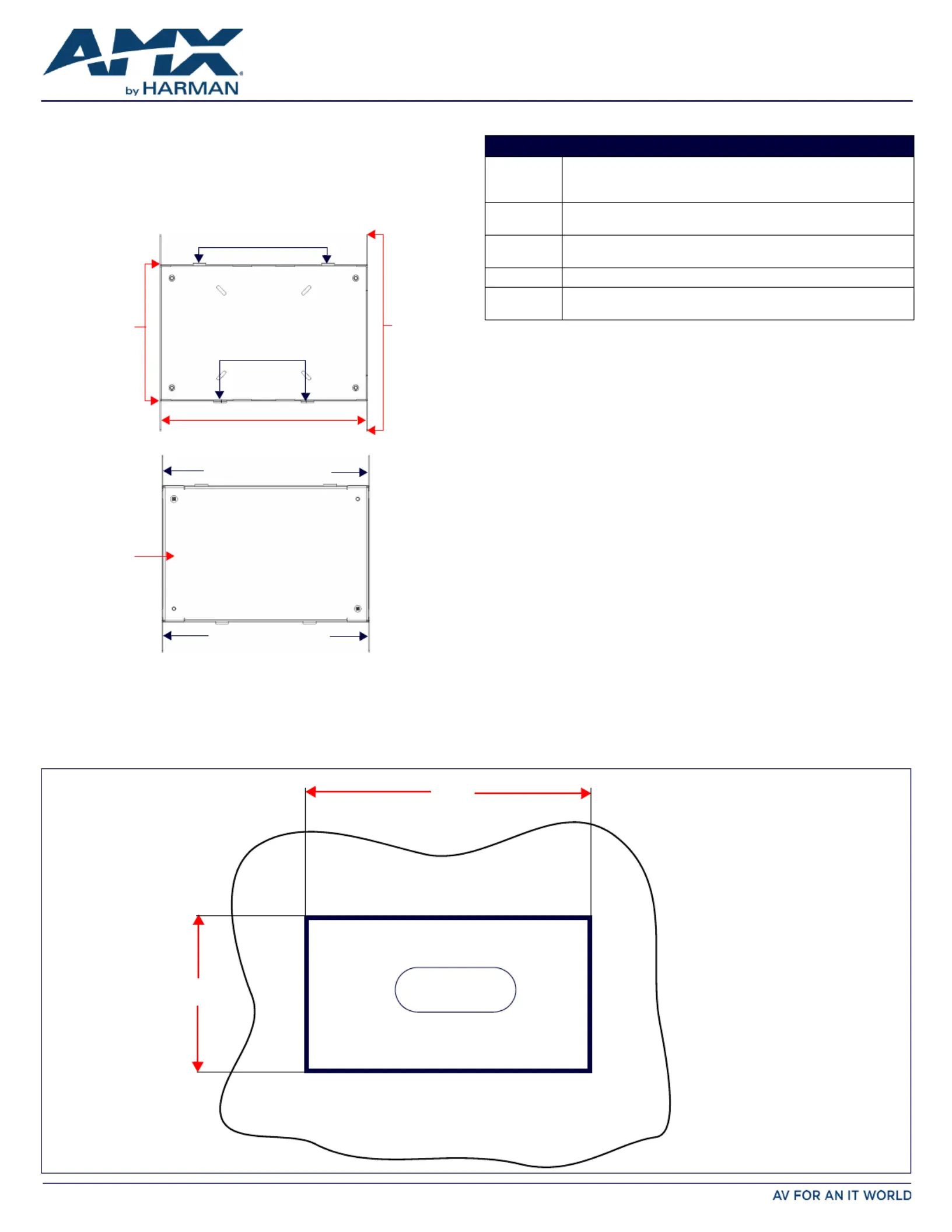

FIG. 1 CB-MSA-10 ROU GH-IN BOX - WITH FRONT COVER
9.02”
(22.90 cm)
9.53”
(24.20 cm)
6.26”
(15.90 cm)
Mounting Tabs
Stud Mounting Tabs
Stud Mounting Tabs
Cover
A
B
Rough-In Box
Rough-In Box
With Cover
Without Cover
Mounting Tabs
CB-MSA-10 SPECIFICATIONS
Touch Panel
Compatibility
• MSD-1001-L2 Modero S Series 10.1” Wall Mount (FG2265-31)
• MSD-1001-L Modero S Series 10.1” Wall Mount (FG2265-01)
• RMBK-1001 10.1” AMX RoomBook Scheduling Touch Panel (FG2265-40)
Dimensions
(HWD)
• Rough-In Box: 9.0" x 9 .53" x 2.20" (22.90cm x 24.20cm x 5.60cm)
• Cover Plate: 6.26" x 9.53" x .18" (15.90cm x 24.20cm x .46cm)
Weight • With cover: 1.95 lbs (0.88 kg)
• Without cover: 1.30 lbs (0.59 kg)
Certifications • UL Listed
Included
Accessories:
• Cover Plate for Rough-in Box (FG039-20)
• Mounting Screws (8), #8-32 X 2.00 (80-5967-03)
Recommended
Wall Cutout
for the CB-MSA-10
6.15”
(15.62 cm)
9.40”
(23.88 cm)
© 2016 Harman. All rights reserved. Modero, Modero S Series, AMX, AV FOR AN IT WORLD, HARMAN, and their respective logos are registered
trademarks of HARMAN. Oracle, Java and any other company or brand name referenced may be trademarks/registered trademarks of their
respective companies.
AMX does not assume responsibility for errors or omissions. AMX also reserves the right to alter specifications without prior notice at any time.
The AMX Warranty and Return Policy and related documents can be viewed/downloaded at www.amx.com.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 AMX.com | 800.222.0193 | 469.624.8000 | +1.469.624.7400 | fax 469.624.7153
AMX (UK) LTD, AMX by HARMAN - Unit C, Auster Road, Clifton Moor, York, YO30 4GD United Kingdom • +44 1904-343-100 • www.amx.com/eu/
93-2265-08 REV: C
Last Revised: 3/09/2016
Cover
CB-MSA-10
Rough-In Box (without cover)
Knock-outs
Front
Cover screws
2.20”
(5.60 cm)
9.53”
(24.20 cm)
2.20”
(5.60 cm)
6.26”
(15.90 cm)
2.20”
(5.60 cm)
6.26”
(15.90 cm)
2.20”
(5.60 cm)
9.53”
(24.20 cm)
Front
Rough-In Box
Cover Installation
CB-MSA-10
Rough-In Box (with cover)
