Seite 1/8

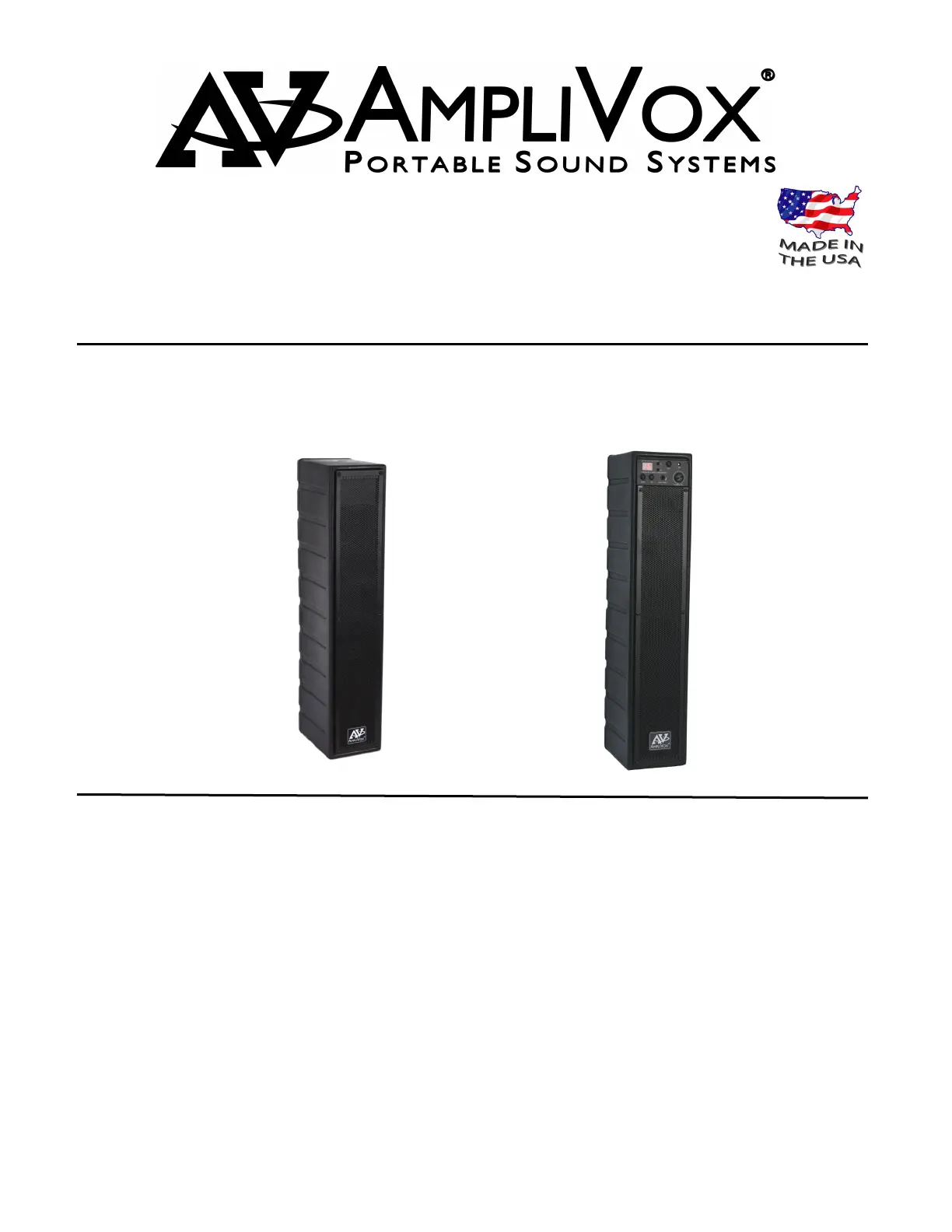

User Guide
S1234 / SS1234 / SW1234
Line Array Speakers
Thank you for choosing the S1234 / SS1234 / SW1234
Line Array Speaker from AmpliVox Portable Sound Sys-
tems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of audio visual AmpliVox
products, including portable PA systems, and lecterns.
AmpliVox 650 Anthony Trail Suite D, Northbrook, IL 60062 Phone: (800)267-• • 5486 • Fax: (800)267-5489 www.ampli.com
TABLE OF CONTENTS
SPECIFICATIONS ………………….......................................3
MICROPHONES…………......................................................3
SPEAKER BRACKET………………….................................. 3
FEATURE LAYOUT…………………... ................................. 4
FEATURES………... ............................................................ 5
WIRELESS MICROPHONE SET UP.................................... 5-
WIRELESS HANDHELD MICROPHONE.............................. 6
TROUBLESHOOTING......................................................... ..7
WARRANTY………………………………………………………8
S1234 Passive Speaker
SS1234 Amplified Speaker
SW1234 Amplified Speaker with
16 Channel UHF Wireless Microphone
2
IMPORTANT SAFETY INSTRUCTIONS
Before using this product, read the instruction manual for important safety information. Please retain this manual for
future reference and warranty information.
Troubleshooting & Servicing
Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at-
tempt to modify the device in anyway. Doing so could invalidate your warranty.
Cleaning
When cleaning the device, please use a soft, dry cloth. Never use benzene, paint thinner, or other chemicals on the -
device.
Location
Place the device in stable location, so it will not fall causing damage to the device or bodily harm.
Intended use
The product may only be used with the original parts intended for it. The intended use includes adherence to the speci-
fied installation instructions. The manufacturer accepts no liability for damage arising due to improper use.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
IMPORTANT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
The unit’s circuitry may cause interference to nearby radios. To prevent interference, either switch the unit off or move
away from the affected radio.
NOTE: This equipment complies within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
ï‚· Increase the separation between the equipment and receiver.
ï‚· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ï‚· Consult the dealer or an experienced radio / TV technician for help.
NOTE: Shielded cables may be required to be used with this unit to en sure compliance with the Class B FCC limits.-
3
SPECIFICATIONS
Enclosure: Sealed Type / Rotational Molded
Rated Power Output 50 W Dynamic
AC Power - 110 220 Auto sensing, 50/60 Hz,
Wireless Range Up to 300 Feet
UHF Wireless Frequency 584 - 608 MHz
Frequency Response: 100Hz to 12Khz
Sensitivity 96dB
Line output: Buffered, 600 ohm, 1/4in.jack (pre fader)
Phantom Power Input Powers Electret condenser microphones
Sensitivity for rated output:
- Balanced Microphone 58 dBV (1.25 mVrms)
-Balanced Line 15 dBV (175 mVrms)
- Unbalanced Line 20 dBV (100 mVrms)
Unbalanced input: - - Hi Z, Neutrik combo 1/4in.
Balanced Input: - Lo Z, Neutrik combo XLR
Weight: 4.5 lbs.
Dimensions (HWD ): 17 in. H x 3.4 in. W x 5.0 in. D
Warranty 6 years Electronics; 1 year on
Remote, Microphones, Cassette
Player, CD Player, Digital Player
and Rechargeable Batteries.
ï‚· Take care in selecting volume level, and speaker placement so that acoustic feedback (howling and screeching) will
be avoided.
ï‚· Please note the pickup patterns of the handheld microphone selected: Omnidirectional microphones pick up sound
equally from all directions and are prone to feedback if not used carefully. Unidirectional microphones are more re-
sistant to feedback, but pick up sound sources best that are directly in front of the microphone.
ï‚· Also, microphones that are farther from the sound source, such as , require more acoustic gain and thus lavaliers
are also more prone to feedback than close source microphones such as or microphones that -handheld headset
are used close to the mouth.
Mounting Speaker Bracket
ï‚· Slots have been provided on mounting bracket that will
accommodate 10 24 machine screws or wood screws -
(not provided).
ï‚· Make sure that mounting surface will hold weight of
speaker.
Mounting Speaker to Bracket
ï‚· Locate the two speaker mounting knobs and washers.
ï‚· Insert one washer over stud of knob and screw part way
into the insert on the side of speaker. Repeat for other
side.
ï‚· Take speaker and align these two knobs with the slots in
the bracket.
ï‚· Position washer so that it is in between the bracket and -
bottom of knob.
ï‚· Slide into slot, position, and tighten both knobs.
SPEAKER BRACKET
MICROPHONES
