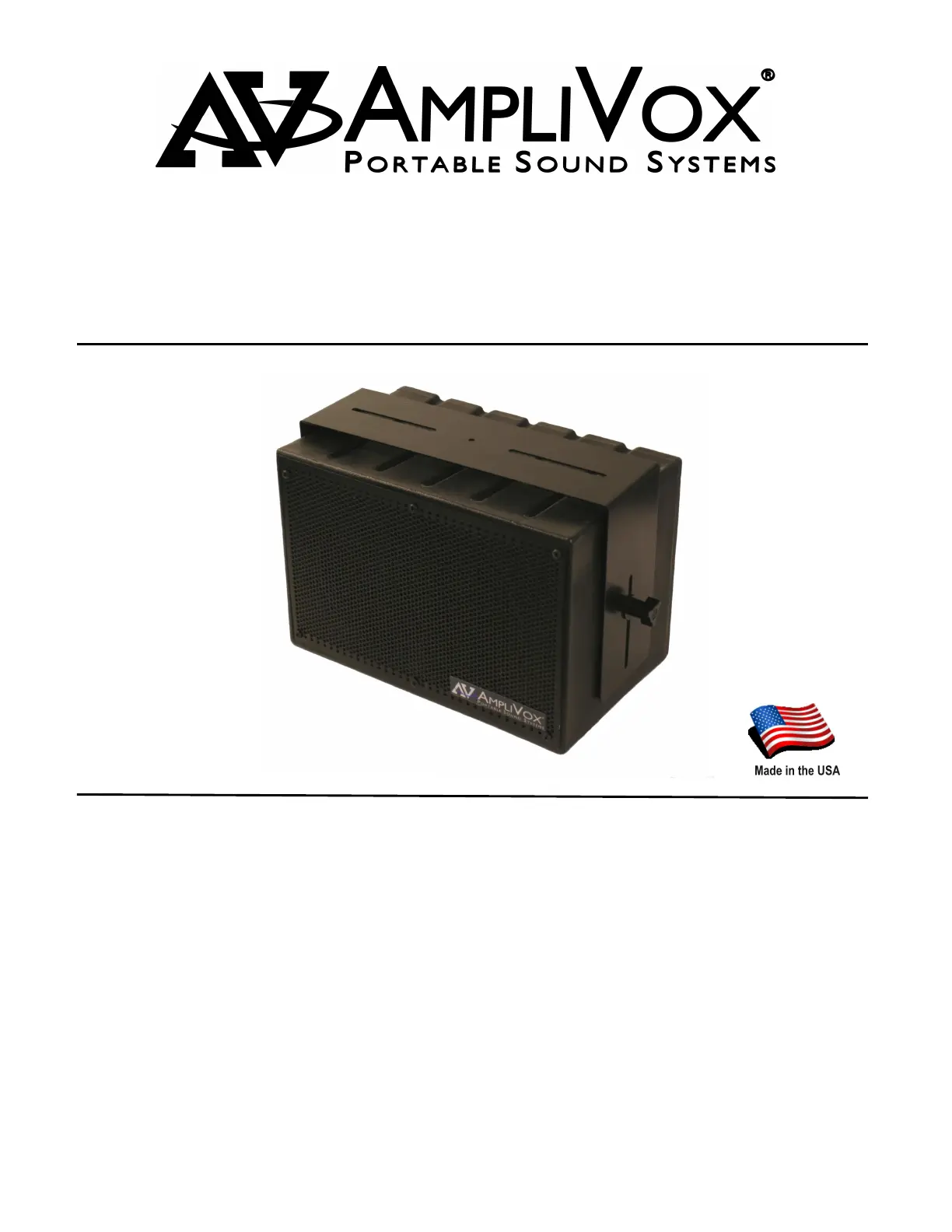

User Guide
S1230 / SS1230 / SW1230
Mity Box Passive / Amplified / Wireless Speaker
Thank you for choosing the S1230 / SS1230 / SW1230 Mity
Box Speaker from AmpliVox Portable Sound Systems.
We are excited in introducing this truly unique system. Our
system combines flexibility with functionality. Please refer to
this user guide as you enjoy the unique capabilities of an-
other quality product from AmpliVox Portable Sound Sys-
tems.
We encourage you to visit our website www.ampli.com to
register your product for its warranty coverage, sign up to
receive our newsletter, download our catalog, and learn
more about the complete line of AmpliVox audio visual prod-
ucts, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 Phone: (800)267-5486 • • Fax: (800)267-5489 www.ampli.com
TABLE OF CONTENTS
SPECIFICATIONS ......................................2 …………………
TROUBLESHOOTING..........................................................3
SPEAKER BRACKET ................................. 3 …………………
FEATURE LAYOUT ... ................................ 4 …………………
FEATURES ... ........................................................... 5 ………
WIRELESS MICROPHONE SET-UP................................... 5
WIRELESS HANDHELD MICROPHONE............................. 6
WARRANTY ... . 7………………………………………… ………
2
IMPORTANT SAFETY INSTRUCTIONS
Before using this product, read the instruction manual for important safety information. Please retain this manual for
future reference and warranty information.
Troubleshooting & Servicing
Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at-
tempt to modify the device in anyway. Doing so could invalidate your warranty.
Cleaning
When cleaning the device, please use a soft, dry cloth. Never use benzene, paint-thinner, or other chemicals on the
device.
Location
Place the device in stable location, so it will not fall causing damage to the device or bodily harm.
Intended use
The product may only be used with the original parts intended for it. The intended use includes adherence to the speci-
fied installation instructions. The manufacturer accepts no liability for damage arising due to improper use.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user s authority to operate the equipment. ’
IMPORTANT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, includ-
ing interference that may cause undesired operation.
The unit s circuitry may cause interference to nearby radios. To prevent interference, either switch the unit off or move ’
away from the affected radio.
NOTE: This equipment complies within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
· Consult the dealer or an experienced radio / TV technician for help.
NOTE: Shielded cables may be required to be used with this unit to en-sure compliance with the Class B FCC limits.
SPECIFICATIONS
Enclosure: Sealed Type / Rotational Molded
Rated Power Output: 50 W Dynamic
Speaker Type: 4 ohm, 6 x 8 inch, full range, cone type
AC Power: 110-220 Auto sensing, 50/60 Hz
Wireless Range: Up to 300 Feet
UHF Wireless Frequency: 584 - 608 MHz
Frequency Response: 50Hz to 20Khz
Weight: 4.5 lbs.
Dimensions (HWD ): 10 .5 in. H x 7 in. W x 6.5 in. D
3
Mounting Speaker Bracket
· Slots have been provided on mounting bracket that will
accommodate 10-24 machine screws or wood screws
(not provided).
· Make sure that mounting surface will hold weight of
speaker.
Mounting Speaker to Bracket
· Locate the two speaker mounting knobs and washers.
· Insert one washer over stud of knob and screw part way
into the insert on the side of speaker. Repeat for other
side.
· Take speaker and align these two knobs with the slots in
the bracket.
· Position washer so that it is in-between the bracket and
bottom of knob.
· Slide into slot, position, and tighten both knobs.
SPEAKER BRACKET
UNIT WILL NOT TURN ON
· Is unit plugged in?
`
SOUND IS DISTORTED
· Turn down main volume
· Turn down input source since the output of some devices may be too high
SOUND IS MUFFLED
· Bass too high
FEEDBACK: ALOUD SQUEALING, SHRILL OR HOWLING SOUND THAT IS SELF GENERATED
· Feedback occurs when a microphone is too close to the speaker or the microphone volume is too high, or the microphone is
pointed towards the speaker. It is also caused by sound reflecting off hard surfaces.
· Reduce or eliminate Feedback by
- Pointing the microphone in a different direction
- Keeping the microphone BEHIND the speakers
- Turn down the volume levels
POWER IS ON, BUT NO SOUND
· Check volume levels
· If using wireless, be sure receiver(s) and/or transmitter battery is installed and/or is on
WIRELESS MICROPHONE SIGNAL IS WEAK
· If microphone has batteries, check batteries
· Check cables/connectors
WIRELESS MIC DOES NOT WORK
· Check transmitter battery is alkaline and ensure transmitter is on.
· Does green signal LED light when transmitter is turned on? “ ”
· Are the transmitter and receiver on the same channel? (1-16)
WIRELESS MIC CUTS IN AND OUT
· Is unit visible (line of sight) from user? If not, move unit into view when using wireless microphone.
· Does the green signal LED go out when signal drops out? Check battery in transmitter. “ ”
TROUBLESHOOTING GUIDE
NEED HELP? Call 800-267-5486
