User Instructions
12/16
Caution: Fog Machines may set oîĄ Smoke Alarms!

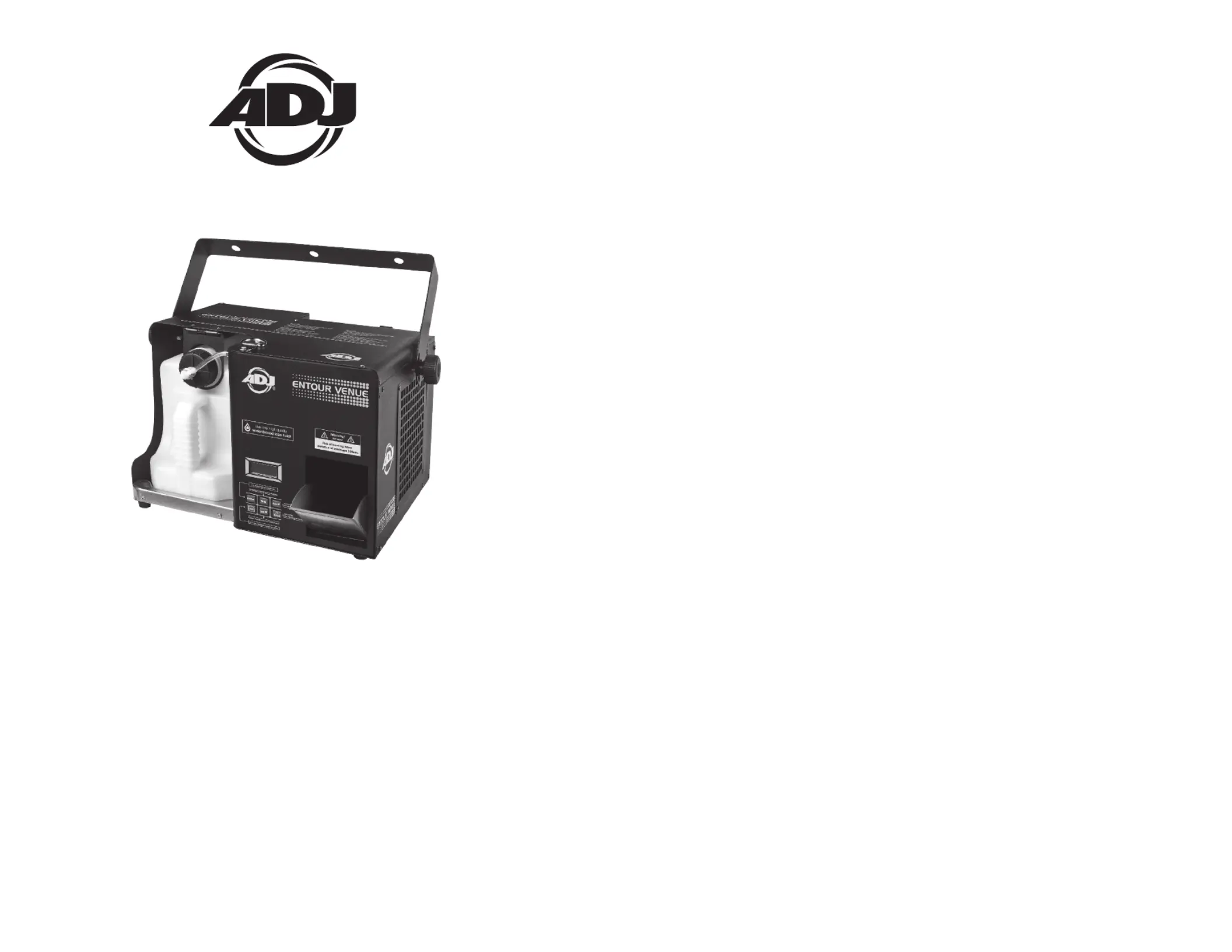

ENTOUR VENUE
Š2016 ADJ Products, LLC all rights reserved. Information,
speciîcations, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aîĄliated companies hereby dis-
claim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indi-
rect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsuîĄcient and negligent assembly,
installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn oîĄ all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
⢠Be sure to save the packing carton in the unlikely event the unit
may have to be returned for service
⢠Do not spill water or other liquids into or on to your fazer. Be
sure that all the fog î
uid is kept inside the î
uid reservoir
⢠Be sure that the local power outlet match that or the required
voltage for your fog machine
⢠Do not remove the top cover under any conditions. There are no
user serviceable parts inside
⢠Disconnect the unitâs main power when left unused for long peri-
ods of time
⢠Never connect this unit to a dimmer pack
⢠Do not attempt to operate this unit, if it becomes damaged in anyway
⢠Never operate this unit when itâs cover is removed
⢠To reduce the risk of electrical shock or îre, do not expose this
unit rain or moisture
⢠Do not attempt to operate this unit if the power cord has been fray-
ed or broken. Do not attempt to remove or break oîĄ the ground
prong from the electrical cord. This prong is used to reduce the
risk of electrical shock and îre in case of an internal short
⢠Disconnect from main power before making any type of connection
⢠Never block the ventilation holes. Always be sure to mount this
unit in an area that will allow proper ventilation. Allow about 6â
(15cm) between this device and a wall
⢠This unit is intended for indoor use only, use of this product out-
doors voids all warranties
⢠Always mount this unit in a safe and stable matter
⢠Please route your power cord out of the way of foot traîĄc. Power
cords should be routed so they are not likely to be walked on,
pinched by items placed upon or against them
⢠The unit should only be serviced by qualified service personnel
when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The appliance does not appear to operate normally or
exhibits a marked change in performance.
Entour Venue Safety Precautions
ADJ Products, LLC - www.adj.com - Entour Venue Instruction Manual Page 3
Introduction: Congratulations, you have just purchased one of the
most reliable fog machines on the market today! The Entour Venue faze
machine have been designed to perform reliably for years when the
guidelines in this booklet are followed. Please read and understand the
instructions in this manual carefully and thoroughly before attempting
to operate this unit. These instructions contain important information
regarding safety during use and maintenance.
Customer Support: ADJ Products, LLC provides a toll free customer
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. For service related issue please contact ADJ Products,
LLC. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Paciîc Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or îre, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
Do not discard the shipping cartoon in the trash. Please recycle when
ever possible.
SAFETY ISSUES:
NEVER POINT OR AIM A FOG MACHINE TOWARDS PEOPLE OR
THEIR CLOTHING. THIS UNIT EMITS HOT VAPOR AND SHOULD
BE USED WITH THE SAME CARE THAT YOU WOULD OBSERVE
WHEN USING AN ELECTRIC KETTLE OR IRON.
Entour Venue Introduction
Please Note: Speciîcations and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.
ADJ Products, LLC - www.adj.com - Entour Venue Instruction Manual Page 2
ADJ Products, LLC - www.adj.com - Entour Venue Instruction Manual Page 4 ADJ Products, LLC - www.adj.com - Entour Venue Instruction Manual Page 5
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your ADJ Entour
Venue. The ADJ Entour Venue is available in a 120v and 240v version.
Because line voltage may vary from venue to venue, you should be
sure your unit voltage matches the wall outlet voltage before attempt-
ing to operate you îxture.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA âINâ and DATA âOUTâ XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
âOUTâ terminal).
DMX Linking: DMX is a language allowing all makes and models of
diîĄerent manufactures to be linked together and operate from a single
controller, as long as all îxtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The Entour Venue can be controlled via DMX-512 protocol. The Entour
Venue has 3 DMX channel modes, 1 channel, 2 channel, and 4 chan-
nel. The DMX address is set on the back panel. Your unit and your DMX
controller require a standard 3-pin XLR connector
for data input and data output (Figure 1). We recom-
mend Accu-Cable DMX cables. If you are making
your own cables, be sure to use standard 110-120
Ohm shielded cable (This cable may be purchased
at almost all pro lighting stores). Your cables should
be made with a male and female XLR connector on
either end of the cable. Also remember that DMX
cable must be daisy chained and cannot be split.
Figure 1
Notice: Be sure to follow îgures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cableâs shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLRâs outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OîT
3-PIN XLR
Figure 2
Figure 3
1 Ground 1 Ground
XLR Male Socket XLR Pin Conîguration
3 Hot
2 Cold 2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
1
2
3
Termination educes signalr errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
îxtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Do Not Use
Do Not Use
Pin 3
Pin 2
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
Entour Venue DMX Information Entour Venue DMX Information
Produktspezifikationen
| Marke: | American DJ |
| Kategorie: | Effektmaschine |
| Modell: | Entour Venue |
Brauchst du Hilfe?
Wenn Sie Hilfe mit American DJ Entour Venue benĂśtigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Effektmaschine American DJ
5 September 2024
6 August 2024
6 August 2024
2 August 2024
30 Juli 2024
29 Juli 2024
25 Juli 2024
25 Juli 2024
24 Juli 2024
24 Juli 2024
Bedienungsanleitung Effektmaschine
- Effektmaschine NGS
- Effektmaschine Velleman
- Effektmaschine KĂśnig
- Effektmaschine Pyle
- Effektmaschine Antari
- Effektmaschine BeamZ
- Effektmaschine Stairville
- Effektmaschine Karma
- Effektmaschine Adj
- Effektmaschine Behringer
- Effektmaschine Eurolite
- Effektmaschine Showtec
- Effektmaschine Monoprice
- Effektmaschine Lexicon
- Effektmaschine Monacor
- Effektmaschine HQ
- Effektmaschine Viking
- Effektmaschine Elation
- Effektmaschine Cameo
- Effektmaschine HQ Power
- Effektmaschine Qtx
- Effektmaschine Midas
- Effektmaschine Black Lion Audio
- Effektmaschine Martin
- Effektmaschine Steren
- Effektmaschine TCM FX
- Effektmaschine Fun Generation
- Effektmaschine Futurelight
- Effektmaschine IMG Stage Line
- Effektmaschine TC Electronic
- Effektmaschine Lab Gruppen
- Effektmaschine Hazebase
- Effektmaschine Doepfer
- Effektmaschine Chauvet
- Effektmaschine Valueline
- Effektmaschine Laserworld
- Effektmaschine Klark Teknik
- Effektmaschine Eliminator Lighting
- Effektmaschine BoomTone DJ
- Effektmaschine Sagitter
- Effektmaschine Drawmer
- Effektmaschine DJPower
- Effektmaschine The Confetti Maker
- Effektmaschine Blizzard
- Effektmaschine ColorKey
- Effektmaschine Lotronic
- Effektmaschine Valcom
- Effektmaschine Evo-Lite
- Effektmaschine IGS Audio
- Effektmaschine Magmatic
- Effektmaschine Technical Pro
- Effektmaschine Rosco
- Effektmaschine Showven
Neueste Bedienungsanleitung fĂźr -Kategorien-
10 Oktober 2024
8 Oktober 2024
6 Oktober 2024
2 Oktober 2024
2 Oktober 2024
2 Oktober 2024
30 September 2024
30 September 2024
28 September 2024
25 September 2024
