NetWayXTX - 1 -
Overview:
Altronix NetWayXT and NetWayXTX (IEEE 802.3af (15W) compliant) (IEEE 802.3af (15W) and IEEE
802.3at (30W) compliant) repeater modules interface with NetWay midspans to extend data (video) for
an additional 100m. A maximum range of 600m for NetWayXT and even longer for NetWayXTX is
possible using multiple repeaters, based on camera/device port power requirement.
Features:
Rev. 042409
Installation Guide
NetWayXT/NetWayXTX
Repeater
Installation Instructions:
NetWayXT/NetWayXTX is not intended to be connected to outside plant leads.
1. Mount NetWayXT/NetWayXTX in desired location utilizing the mounting hole (Fig. 1a, pg. 1,
Fig. 2a, pg. 2). Use a proper fastener and/or wall anchor when securing NetWayXT to the wall.
2. Connect structured cable from port marked [OUT] on NetWay1/NetWay8/NetWay8M/NetWay16
or NetWay16M to port marked [IN] on the NetWayXT/NetWayXTX (Fig. 1b, pg. 1, Fig. 2b, pg. 2).
3. Connect structured cable from port marked [OUT] on NetWayXT/NetWayXTX to the PoE camera/
device or next NetWayXT/NetWayXTX repeater (Fig. 1b, pg. 1, Fig. 2b, pg. 2, Figs. 3-4, pg. 2 ).
4. Port status LEDs will illuminate on NetWayXT indicating the port is operational
.(Fig. 1b, pg. 1, refer to Port LED definitions on pg. 1)
5. Power LED will illuminate indicating 12VDC output (Fig. 1b, pg. 1).
Port LED definitions for NetWayXT repeater:
Status Green LED Yellow LED
OFF Indicates it is connected as 10Base-T or no link. Indicates no link.
ON Indicates it is connected as 100Base-TX. Indicates a link.
Blinking Indicates activity.---------------------------

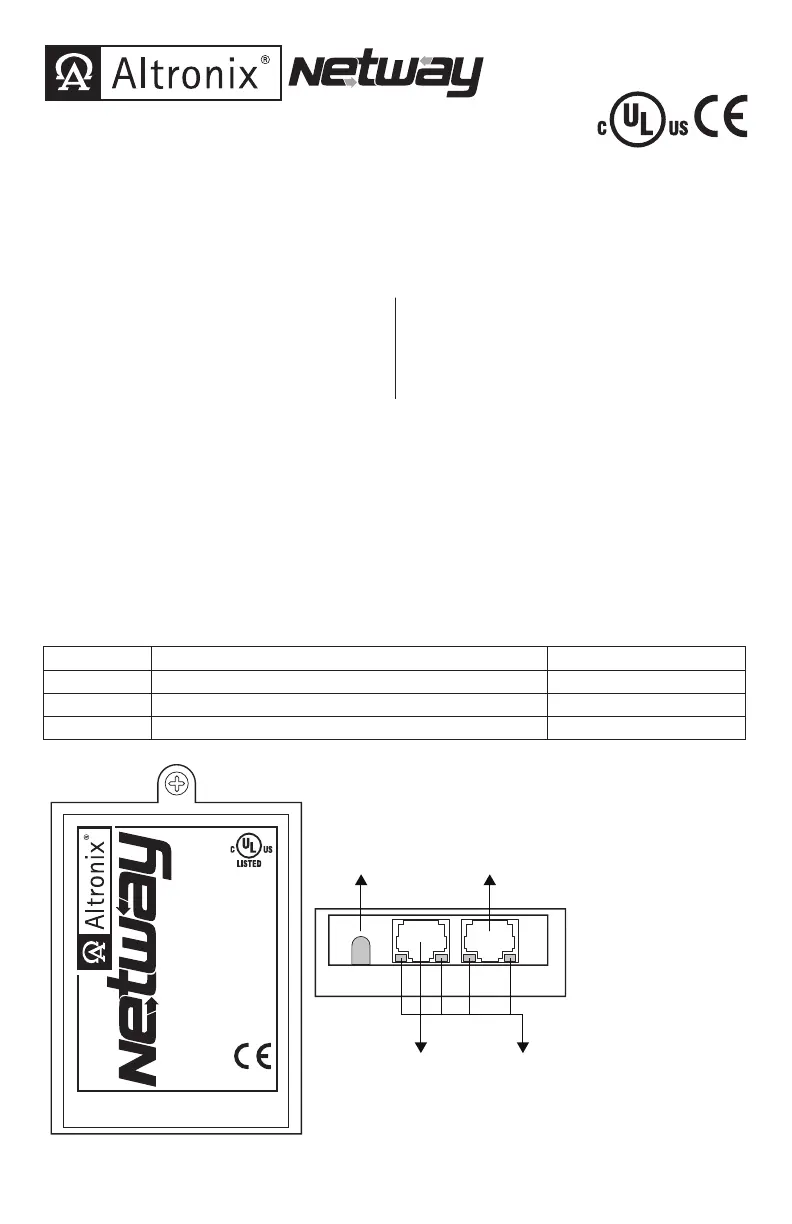

NetWayXT
Fig. 1 Fig. 1a
Fig. 1a
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• Repeater module extends range 100m each.
• Port status LEDs.
• Compact insulated housing.
• Plug-and-play installation.
• Auto detection and protection of legacy non-
PoE cameras.
• No external power required.
• Compatible with NetWay1/NetWay8/
NetWay8M/NetWay16 and NetWay16M.
NetwayXT
Repeater
IN
OUTPower
Power
LED
Structured Cable from
NetWay1,
NetWay8, NetWay8M,
NetWay16, NetWay16M
or last NetWayXT
Structured
Cable to
PoE Camera/
Device or
next NetWayXT
Port Status
LEDs
www.altronix.com
I.T.E. 43KC
- 2 - NetWayXTX
Port LED definitions for NetWayXTX repeater:
Status PoE/PoE+ Output LED PoE/PoE+ Input LED Yellow LED
OFF No PoE/PoE+ Output No PoE/PoE+ Input Indicates no link.
ON Normal PoE/PoE+ Output PoE/PoE+ Input Indicates a link.
Blinking ------- ------- Indicates activity.
NetWayXTX
Fig. 2 Fig. 2a
Fig. 2b
Typical Applications:
Fig. 3 - NetWayXT connected to NetWay1 Single Port Midspan Injector.
Fig. 4 - NetWayXTX connected to NetWay1X Single Port Midspan Injector.
PoE/PoE+
Output
LED
Structured Cable from
NetWay1(X),
NetWay8, NetWay8M,
NetWay16, NetWay16M
or last NetWayXTX
Structured
Cable to
PoE/PoE+
Camera/Device or
next NetWayXTX
Port Status
LEDs
PoE/PoE+
Input
LED
NetwayXTX
Repeater
www.altronix.com
INOUT
I.T.E 43KC.
PoE/PoE+
Output
PoE/PoE+
Input
Video Monitor
NVR/Network Server
Network Switch
NetwayXT
Repeater
www.altronix.com
24VAC/
24VDC
input
Netway1
Single Por t
Injector
(Mids pa n) Port
Status
www.alt nix.co mro
PoE Camera
CAT5e 100m
CAT5e 100m
NetWay1 NetWayXT
Port
shutdown
input
I.T.E. 43KC
I.T.E. 43KC
Video Monitor
NVR/Network Server
Network Switch
PoE/PoE+
Camera
CAT5e 100m
CAT5e 100m
NetWayXTX
Port
shutdown
input
24 C/24VDCVA
or 56VDC
Input
NetWay1X
NetwayXTX
Repeater
www.altro nix.co m
INOUT
I.T.E. 43KC
PoE/PoE+
Output
PoE/PoE+
Input
24VAC/V DC
Input Power
ShutdownIN OUT
Ne t Way1X
Sin gle Port Injector (Midsp an)
In pu t : 24VAC/VDC, 1.5A
Ou t p ut : I EEE 802.3at (30W) and
)IEEE 802.3af (15.4W
compli ant.
www.altronix.com
I.T.E 43KC. Z 109
NetWayXTX - 3 -
Typical Applications (cont’d):
Fig. 5 - NetWayXT/ NetWayXTX connected to
NetWay8, NetWay8M, NetWay16 or NetWay16M Midspan.
Fig. 6 - Connecting several NetWayXTs/NetWayXTXs on a single port.
Video Monitor
NVR/Network ServerNetwork Switch
CAT5e
100m
CAT5e
100m
PoE Camera
CAT5e
100m
CAT5e
100m
PoE Camera
NetWayXT/XTX
NetWayXT/XTX
NetWayXT/XTX NetWayXT/XTX
CAT5e
100m
CAT5e 100m
CAT5e
100m
PoE Camera
NetWay
Midspan
CAT5e
100m
CAT5e
100m
CAT5e
100m
CAT5e
100m
CAT5e
100m
CAT5e
100m
NetWayXT
1
NetWayXT or
PoE Camera
(6W or less)
2
NetWayXT or
PoE Camera
(4W or less)
3
NetWayXT or
PoE Camera
( 3W or less)<
4
NetWayXT or
PoE Camera
( 1.5W or less)<
5
PoE
Camera
(Requires local
power)
NetWayXTX or
PoE+ Camera
(21W or less)
NetWayXTX or
PoE+ Camera
(19W or less)
NetWayXTX or
PoE+ Camera
(<18W or less)
NetWayXTX or
PoE+ Camera
(<16W or less)
... Continue
until power
drops to 3W
NetWayXTX
