Seite 1/12

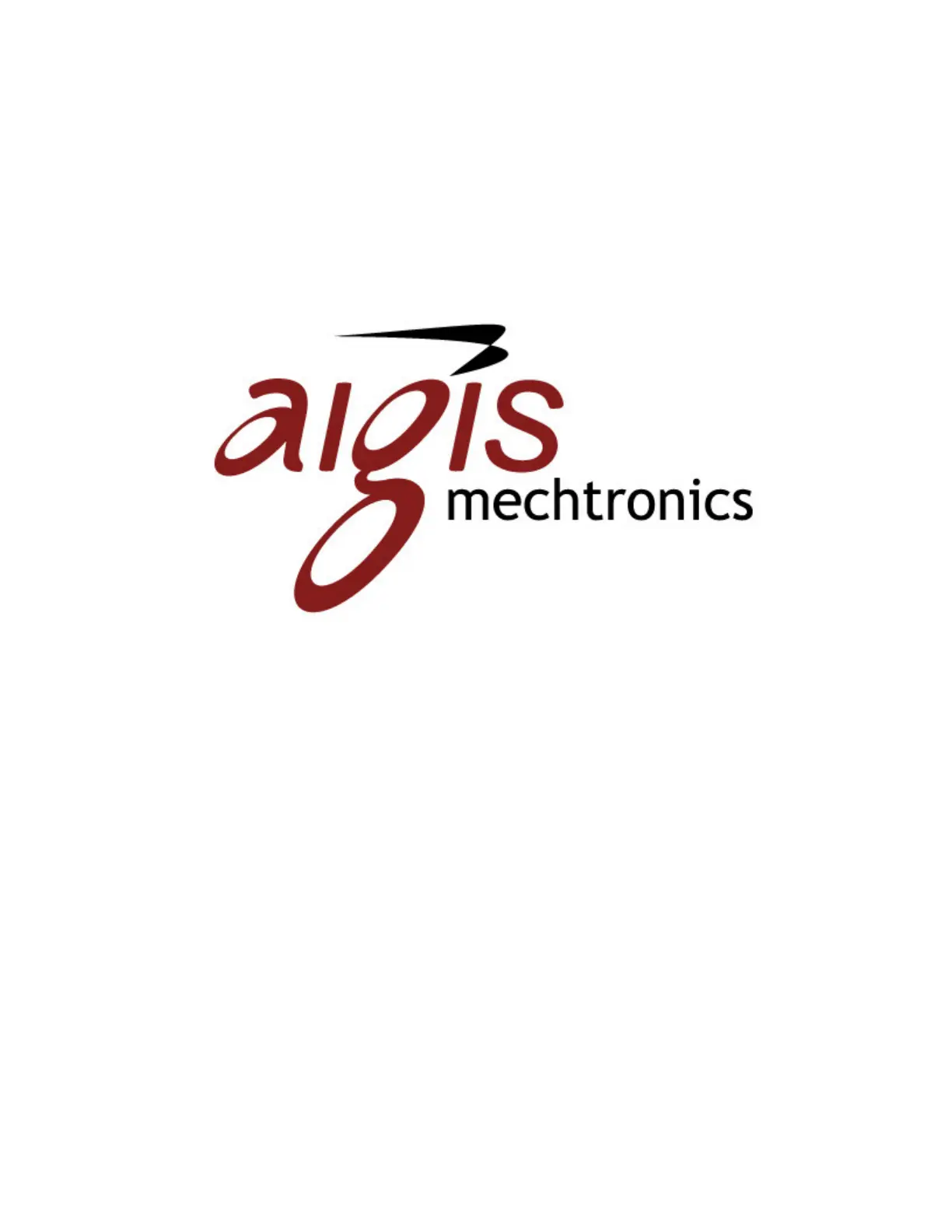

Page 1

PTZA6 Series Pan

Tilt

Zoom

Domes

Installation Manual

Aigis Mechtronics, Inc.

1124 Louise Road, Winston-Salem, NC 27282

Ph (336)785-7740 Fax (336)785-7744

www.aigismech.com

Page 2

Table of Contents

1. Important Safeguards................................................... 3

1.1. Warnings............................................................. 3

1.2. Environmental Specifications............................... 3

1.3. Lightning-Proof Requirements............................. 3

1.4. Lightning and Surge Proofing............................... 4

1.5. Water Proofing.................................................... 4

2. Installation ................................................................... 4

2.1. Before You Start.................................................. 4

2.2. Materials Required.............................................. 4

3. Bracket Installation....................................................... 4

3.1. Overview............................................................. 4

3.2. Bracket Installation.............................................. 5

3.2.1. Wall Bracket Installation ................................. 5

3.2.2. Pendant Bracket Installation ........................... 5

3.2.3. Corner Bracket Installation.............................. 6

3.2.4. Pole Bracket Installation ................................. 7

3.3. Wiring and Installing the Dome Cover.................. 8

3.4. Pan/Tilt Module Installation ................................ 9

4. Recess Mount Installation........................................... 10

4.1. Ceiling Hole Preparation.................................... 10

4.2. PTZ Module Installation..................................... 12

4.3. Trim Ring and Dome Bubble Attachment........... 12

IMPORTANT SAFEGUARDS

1. Read Instructions - All the safety and operating instructions should be read before

the unit is operated.

2. Retain Instructions - The safety and operating instructions should be retained for

future reference.

3. Heed Warnings - All warnings on the unit and in the operating instructions should be

adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments - Do not use attachments not recommended by the product

manufacturer as they may cause hazards.

7. Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount.

The unit may fall, causing serious injury to a person and serious damage to the unit.

Use only with a stand, tripod, bracket, or mount recommended by the manufacturer

or sold with the product. Any mounting of the unit should follow the manufacturer's

instructions and should use a mounting accessory recommended by the

manufacturer.

An appliance and cart combination should be moved with care. Quick stops,

excessive force, and uneven surfaces may cause the appliance and cart

combination to overturn.

8. Ventilation - Openings in the enclosure, if any, are provided for ventilation, to ensure

reliable operation of the unit, and to protect it from overheating. These openings

must not be blocked or covered. This unit

should not be placed in a built-in installation unless proper ventilation is provided or the

manufacturer's instructions have been adhered to.

9. Power Sources - This unit should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supply you

plan to use, consult your appliance dealer or local power company. For units

intended to operate from battery power or other sources, refer to the operating

instructions.

10. Grounding or Polarization - This unit may be equipped with a polarized alternating-

current line plug (a plug having one blade wider than the other). This plug will fit into

the power outlet only one way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If the plug should still fail to fit,

contact your electrician to replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug. Alternatively, this unit may be equipped with a 3-wire

grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into

a grounding-type power outlet. This is a safety feature. If you are unable to insert the

plug into the outlet, contact your electrician to replace your obsolete outlet. Do not

defeat the safety purpose of the grounding-type plug.

11. Power Cord Protection - Power supply cords should be routed so that they are not

likely to be walked on or pinched by items placed upon or against them, paying

particular attention to cords and plugs, convenience receptacles, and the point

where they exit from the appliance.

12. Power Lines - An outdoor system should not be located in the vicinity of overhead

power lines or other electric light or power circuits or where it can fall into such

power lines or circuits. When installing an outdoor system, extreme care should be

taken to keep from touching such power lines or circuits as contact with them might

be fatal. U.S.A. models only - refer to the National Electrical Code Article 820

regarding installation of CATV systems.

13. Overloading - Do not overload outlets and extension cords as this can result in a fire

or electric shock.

14. Object and Liquid Entry - Never push objects of any kind into this unit through

openings, as they may touch dangerous voltage points or short out parts that could

result in a fire or electric shock. Never spill liquid of any kind on the unit.

15. Servicing - Do not attempt to service this unit yourself as opening or removing covers

may expose you to dangerous voltage or other hazards. Refer all servicing to

qualified service personnel.

16. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to

qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled or objects have fallen into the unit.

c. If the unit has been exposed to rain or water.

d. If the unit does not operate normally by following the operating instructions. Adjust

only those controls that are covered by the operating instructions, as an improper

adjustment of other controls may result in damage and will often require extensive

work by a qualified technician to restore the unit to its normal operation.

e. If the unit has been dropped or the cabinet has been damaged.

f. When the unit exhibits a distinct change in performance--this indicates a need for

service.

17. Replacement Parts - When replacement parts are required, be sure the service

technician has used replacement parts specified by the manufacturer or have the

same characteristics as the original part. Unauthorized substitutions may result in fire,

electric shock, or other hazards.

18. Safety Check - Upon completion of any service or repairs to this unit, ask the service

technician to perform safety checks to determine that the unit is in proper operating

condition.

19. Coax Grounding - If an outside cable system is connected to the unit, be sure the

cable system is grounded. U.S.A. models only--Section 810 of the National Electrical

Code, ANSI/NFPA No.70-1981, provides information with respect to proper grounding

of the mount and supporting structure, grounding of the coax to a discharge unit,

size of grounding conductors, location of discharge unit,connection to grounding

electrodes, and requirements for the grounding electrode.

20. Lightning - For added protection of this unit during a lightning storm, or when it is left

unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the cable system. This will prevent damage to the unit due to lightning

and power line surges.

CAUTION: TO REDUCE THE RISK OF ELECTRICAL

SHOCK, DO NOT OPEN COVERS. NO USER

SERVICEABLE PARTS ARE INSIDE. REFER SERVICE

TO QUALIFIED SERVICE PERSONNEL.

Page 3

1. Important Safeguards

1.1. Warnings

• Read this manual fully before attempting installation.

• Do not install this product near flammable or explosive

materials.

• Installation must be performed by qualified service

personnel in accordance with the national and local safety

codes.

• Ensure any lift equipment used employs proper safety

features.

• Cut off power to the unit before servicing.

• Do not exceed 30VAC on 24 volt models. Operation

above 30VAC violates low voltage operation (Class 2)

specifications. Normal operation is 24VAC.

• Be careful not to drop the camera module or camera

housing during installation.

• Do not install this dome in any environment exceeding

the environmental conditions described below.

1.2. Environmental Specifications

Indoor Domes:

Operating Temperature:

-10° ~ +50° C

(+14° ~ 122° F)

Humidity:

Non-condensing

< 95% R.H.

Air Pressure

0.86 ~ 1.06 bar

Power Supply (included)

24VAC, 50/60 Hz

1.0 Amps

Outdoor Domes:

Operating Temperature

-40° ~ +60° C

(-40° ~ +140° F)

Humidity:

Non-condensing

< 95% R.H.

Air Pressure

0.86 ~ 1.06 bar

Power Supply (included)

24VAC, 50/60 Hz

2.5 Amps

1.3. Lightning-Proof Requirements

Refer to Figure 1 throughout this section.

• Maintain a minimum of 50 meter (164 feet) distance from

any high voltage cables or equipment.

• Run outdoor rated cable under building eaves if possible.

• Run cabling to the site in buried, sealed steel tubes

(conduit). In areas exposed to the elements, shield the

cables with steel conduit. Connect the conduit to ground

at a single point; connect the ground to a Bus.

• In strong thunderstorm or high faradic zones (such as high

voltage transformer substations), extra strong lightning

proof equipment and a lightning rod must be employed.

• Take the building lightning proof requirements into

account to design the lightning proof and grounding

system of outdoor equipment and cable. Ensure that the

system is in accordance with national and industrial

standards.

• The system must be grounded with equal potentials. The

earth ground connection must satisfy the anti-

interference and electrical safety requirements and must

not short circuit eith the high voltage electricity net.

When the system is grounded separately, the resistance

of the ground conductor should be <4Ω and the cross-

sectional area of the ground conductor should be

<25mm2.

Power cable lightning conductor

Communication/Data cable lightning conductor

Video cable lightening conductor

45°

The dome must be installed

within the angle of 45 degree

under the lightening rod.

Ground wire resistance

shold be less than 4

Ω

Sealed Steel Tube

(conduit)

Figure 1

–

Typical Outdoor Installation

Produktspezifikationen

Marke:	Aigis
Kategorie:	Überwachungskamera
Modell:	PTZA6-2W30H

Brauchst du Hilfe?

Wenn Sie Hilfe mit Aigis PTZA6-2W30H benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Überwachungskamera Aigis

Aigis PTZA6-1R23H Bedienungsanleitung

21 August 2024

Aigis PTZA6-1R30H Bedienungsanleitung

20 August 2024

Aigis MLA2CH211 Bedienungsanleitung

20 August 2024

Aigis CAM468DN-212 Bedienungsanleitung

20 August 2024

Aigis D3PWD211 Bedienungsanleitung

19 August 2024

Aigis CAM468CH Bedienungsanleitung

19 August 2024

Aigis MLTL2DN49IR Bedienungsanleitung

19 August 2024

Aigis D5WD211W-W Bedienungsanleitung

19 August 2024

Aigis CAM468CH-212 Bedienungsanleitung

19 August 2024

Aigis CAM468DN Bedienungsanleitung

19 August 2024

Bedienungsanleitung Überwachungskamera

Neueste Bedienungsanleitung für -Kategorien-

Trebs CCD-401C Bedienungsanleitung

15 Oktober 2024

D-Link DCS-7510 Bedienungsanleitung

15 Oktober 2024

Foscam FI9900EP Bedienungsanleitung

14 Oktober 2024

Alecto DVC-215IP Bedienungsanleitung

14 Oktober 2024

Hikvision DS-2CD2326G2-IU Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2TD2166-15/V1 Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2DE7A245IX-AE/S1 Bedienungsanleitung

13 Oktober 2024

Hikvision DS-2CD7A26G0-IZ(H)SY Bedienungsanleitung

11 Oktober 2024

Hikvision DS-2CE79DF8T-AZE Bedienungsanleitung

11 Oktober 2024

Hikvision DS-2XM6726G0-I(D)(S)(M)(/ND) Bedienungsanleitung

11 Oktober 2024
