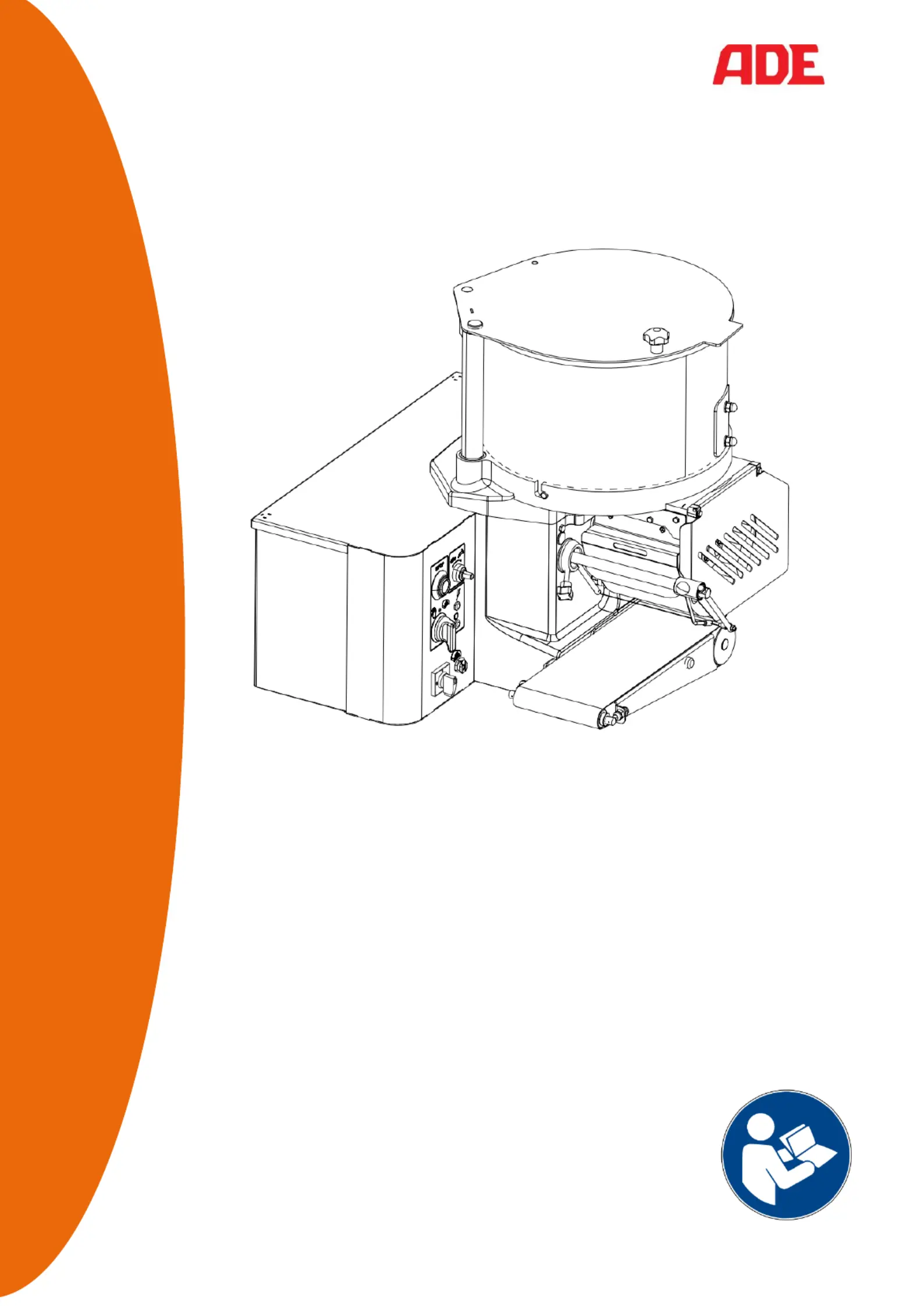

INSTRUCTION MANUAL
Burger forming machine
Bully2000-230
Bully2000- -Rev002- - 240618 UM en
1 Bully2000- -Rev002- -240618 UM en
TABLE OF CONTENTS
1. FOREWORD ......................................................................................................................... 2
1.1 Introduction ............................................................................................................................ 2
1.2 Intended Use ......................................................................................................................... 2
1.3 Residual risks ........................................................................................................................ 3
2. OVERVIEW OF THE MACHINE ............................................................................................ 3
3. INSTALLATION AND COMMISSIONING .............................................................................. 5
3.1 Scope of delivery ................................................................................................................... 5
3.2 Unpacking ............................................................................................................................. 6
3.3 Setting up the machine .......................................................................................................... 6
3.4 Assembly of the conveyor belt ............................................................................................... 7
3.5 Mounting the wiper ................................................................................................................ 7
3.6 Inserting the squeegee .......................................................................................................... 7
3.7 Connection of the foot switch ................................................................................................. 8
3.8 Connection to the power supply ............................................................................................. 8
3.9 Electrical fuses 8 ......................................................................................................................
3.10 Safety precautions ................................................................................................................. 8
3.11 Acceptance test ..................................................................................................................... 9
4. USING THE BURGER FORMING MACHINE ...................................................................... 10
4.1 Turn on the machine ............................................................................................................ 10
4.2 Turn o the machine ............................................................................................................ 10
4.3 Secure the machine against unauthorized switching on ....................................................... 10
4.4 Start manual operation ........................................................................................................ 10
4.5 Stopping manual operation .................................................................................................. 10
4.6 Start operation using a foot switch ....................................................................................... 10
4.7 Regulate speed ................................................................................................................... 10
4.8 Filling product and production .............................................................................................. 11
5. LOAD RELEASE PAPER .................................................................................................... 12
6. ADJUST PRODUCT THICKNESS AND WEIGHT ............................................................... 13
7. CLEANING AND MAINTENANCE ....................................................................................... 15
8. TRAINING ........................................................................................................................... 18
9. DISPOSAL .......................................................................................................................... 18
10. GUARANTEE ...................................................................................................................... 18
11. TECHNICAL DATA .............................................................................................................. 19
12. DECLARATION OF CONFORMITY .................................................................................... 20
13. WIRING DIAGRAMS ........................................................................................................... 21
Bully2000- -Rev002- - 2 240618 UM en
1. FOREWORD
This symbol means: “Observe the instructions for use”. Read the instructions for use
carefully and follow the instructions contained therein. Keep the instructions for use
for future reference.
This manual was written in accordance with the Machinery Directive in its current version.
The manufacturer wants to inform the customer about the basic operating principles, maintenance
requirements and safety devices of the machine in a clear and easy- -understand form in order to to
ensure a long service life and trouble-free operation of the machine.
The burger forming machine is subject to continuous improvements, which, however, does not aect
the instructions and information provided in this manual.
Before using the burger forming machine, you must read this manual carefully.
If this manual becomes too worn over time or is lost, a copy should be requested from the
manufacturer immediately.
The majority of accidents and injuries when using the machine are due to inadequate knowledge of
its functions and safety devices. Before starting to work with the machine, you should therefore read
the instructions and information contained here carefully.
1.1 Introduction
The burger forming machines are designed according to applicable safety standards. For this reason,
you will find the “CE” mark on each of our burger forming machines, which certifies compliance with
the above requirements.
1.2 Intended Use
This burger forming machine is used to form burger patties (or, when used together with the ball
former, to form meat, sh or vegetable ball patties). The grinded food is pressed through a squeegee
into a rotating forming drum. Afterwards, the burger patty can be automatically covered with a release
paper1. Then the patties or the burger patty blanks are pressed out of the mould and fall onto the
conveyor belt. The conveyor belt transports the burger patty / ball blanks away from the drum.
The machine is equipped with a 130 mm diameter patty mould. The product thickness can be
continuously adjusted (only when the machine is at a standstill) up to a thickness of 32 mm. Up to
1300 patties or 2600 ball blanks can (theoretically) be formed per hour.
Use the burger forming machine only for the purpose for which it was designed.
Frozen foods must not be processed with the burger forming machine.
Failure to observe the safety instructions can seriously damage the machine and
possibly void any existing warranty claims.
The machine may only be used in its original condition and with original parts. Dismantling the
protective devices is not permitted. In the event of damage to protective devices, the machine must
be taken out of operation immediately and ADE must be informed for the purpose of renewal or
replacement delivery.
1 Separating paper dispenser is optional and is not part of the standard equipment of the machine
