© 2010 American Honda Motor Co., Inc. - All Rights Reserved. BII 4 (10 ) 1 of 4

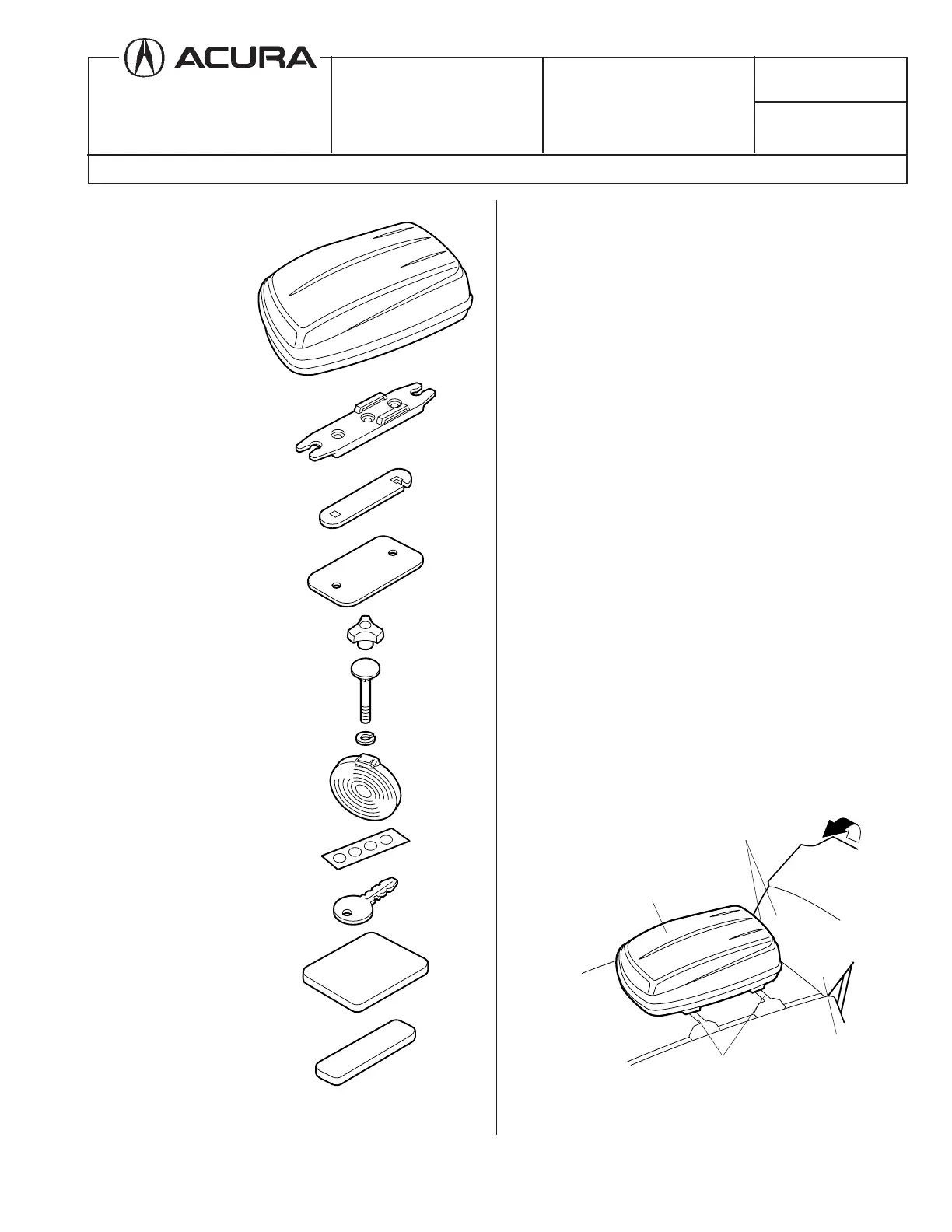

PARTS LIST
Roof box
4 Brackets A
4 Brackets B
4 Plates
8 Knobs
8 Bolts
8 Washers
2 Straps
Seal
2 Keys
4 Large pads
4 Small pads
SUPPLIES REQUIRED
Isopropyl alcohol
Shop towel
INSTALLATION
NOTE:
• Be careful not to damage the roof and other
finished surfaces of the body when installing the
roof box.
• An Acura roof rack, sold separately, is required to
install the roof box.
• The maximum load capacity for roof racks vary
from model to model. Check the vehicle owner's
manual, the roof rack installation instructions, or
the load label on the rack for the roof rack load
capacity.
• The maximum load capacity for the roof box is
110 lb (50 kg); approximate roof box weight is
29 lb (13 kg).
• Do not allow the combined weight of the roof box
and cargo to exceed the carrying capacity of the
roof rack.
1. With the help of an assistant, carefully place the
box on the crossbars. Open the tailgate to make
sure that the box is not interfering with the
tailgate.
2802030M
ROOF BOX
Check that the box
is not interfering
with the tailgate.
TAILGATE
CROSSBARS
Put this information in the glove box with the vehicle owner's manual.
Accessory Application Publications No.
Issue Date
NOV 2010
2011 TSX
SPORT WAGON
ROOF BOX
P/N 08L20-TA1-200
INSTALLATION
INSTRUCTIONS
BII 45149
115149
2 of 4 BII 45149 (1011) © 2010 American Honda Motor Co., Inc. - All Rights Reserved.
4. Using isopropyl alcohol on a shop towel, clean
four brackets B where the small pads will attach.
Remove the adhesive backings from the small
pads, and attach them to the brackets B.
5. Using isopropyl alcohol on a shop towel, clean the
four plates where the large pads will attach.
Remove the adhesive backings from the large
pads, and attach them to the plates.
SMALL PAD
ATTACHING
SURFACE
SMALL PAD ADHESIVE
BACKING
BRACKET B
LARGE
PAD ADHESIVE
BACKING
PLATE
LARGE
PAD-ATTACHING
SURFACE
2. Open the roof box, and align the holes in the plate
with the mounting location at the forward crossbar.
The plate is located at the front of the base of the
roof box.
3. Attach an adhesive seal over each of the four
unused mounting holes (two on each side) at the
rear of the base of the box. The seals will help
prevent water from entering the roof box. Then,
remove the roof box from the crossbars.
2711040M

ROOF BOX
ADHESIVE
SEAL
PLATE
(Align the holes in the
plate with the mounting
location by sliding the
plate as required.)
Flat side
faces
forward.
© 2010 American Honda Motor Co., Inc. - All Rights Reserved. BII 4 (10 ) 3 of 4
2802040M

2711051M

6. Under the roof box, insert a bolt through bracket B,
through the plate, and into the predrilled hole in the
bottom of the roof box. Install bracket B and the
plate with the pads facing each other.
7. Fit bracket A over the threads of the bolt where it
extends through the roof box. Install a washer over
the threads, and loosely install a knob. Install a
second bolt the same way.
• Install each bracket A so that the right and left
eyelet holes are positioned across from each
other.
• Install bracket B with the cutout facing the
outside.
ROOF BOX
BOLTS
BOLTS CUTOUT
(Face
toward the
outside.)
CUTOUT
(Face toward
the outside.)
BRACKET B
BRACKET B
PLATE
KNOB
WASHER
8 STRAP
EYELETS
(Position the
eyelets
directly across
from each
other.)
KNOB
WASHER
BRACKET A
BRACKET A
PLATE
8. With the help of an assistant, carefully place the
box back on the crossbars. Be aware of the
hardware hanging from the bottom of the box.
9. Arrange each plate to fit between the box and the
crossbar. Swing the slotted end of bracket B
around the bolt, and tighten the knobs. Fasten the
box this way at all four mounting points.
• If necessary, adjust the distance between the
crossbars to match the pattern of the predrilled
holes in the roof box. The bar spread required
is 800 mm (31 in) for all racks.
• The roof box should be centered on the
crossbars and parallel to the direction of travel
with its flat side facing the front.
ROOF BOX
ROOF BOX
CROSSBAR
BRACKET B
CROSSBAR
8 STRAP
EYELETS
(Position the
eyelets
directly
across from
each other.)
115149
