Seite 1/15
DIMENSION GUIDE 1 of 15
WHIRLPOOLÂź ELECTRIC FREE STANDING RANGES
PRODUCT: WFES3330R*, YWFES3330R*
IMPORTANT: Dimensional specications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Owner’s Manual before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
WFES3330R*, YWFES3330R*
Legend Description in cm
A* Overall Height 465⁄8118.42
B Overall Width 297⁄875.88
C Overall Depth Including Handle 277⁄870.80
D Cooktop Height 36 91.48
E Door Height 225⁄16 56.70
F Drawer Height 105⁄16 26.23
W11623518A
*IMPORTANT: Minimum height dimensions are at the lowest point of the height adjustment range. When the leveling legs are fully
extended, all heights have 11⁄2" (3.8 cm) of added height.
C
B
A*
D
F
E
FRONT VIEW
DIMENSION GUIDE
2 of 15
IMPORTANT: Dimensional specications are provided for planning purposes only.
Do not make any cutouts based on this information. Refer to the Owner’s Manual before
selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
WHIRLPOOLÂź ELECTRIC FREE STANDING RANGES
PRODUCT: WFES3330R*, YWFES3330R*
WFES3330R*, YWFES3330R*
Legend Description in cm
G Depth Without Handle 253⁄864.51
H 46Depth With Door Fully Open 7⁄16 117.92
I Door Top Height 341⁄886.67
J Handle Top Height 3315⁄16 86.16
K Drawer Height 113⁄16 28.47
G
H
TOP VIEW
IJ
K
SIDE VIEW
DIMENSION GUIDE 3 of 15
Location Requirements
IMPORTANT: .Observe all governing codes and ordinances
To eliminate the risk of burns or re by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
It is the installer’s responsibility to comply with installation
clearances specied on the model/serial/rating plate. The
model/serial/rating plate is located on the frame behind a top
corner of the door or either side of the drawer.
The range should be located for convenient use in the
kitchen.
Recessed installations must provide complete enclosure of
the sides and rear of the range.
All openings in the wall or oor where range is to be installed
must be sealed.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.

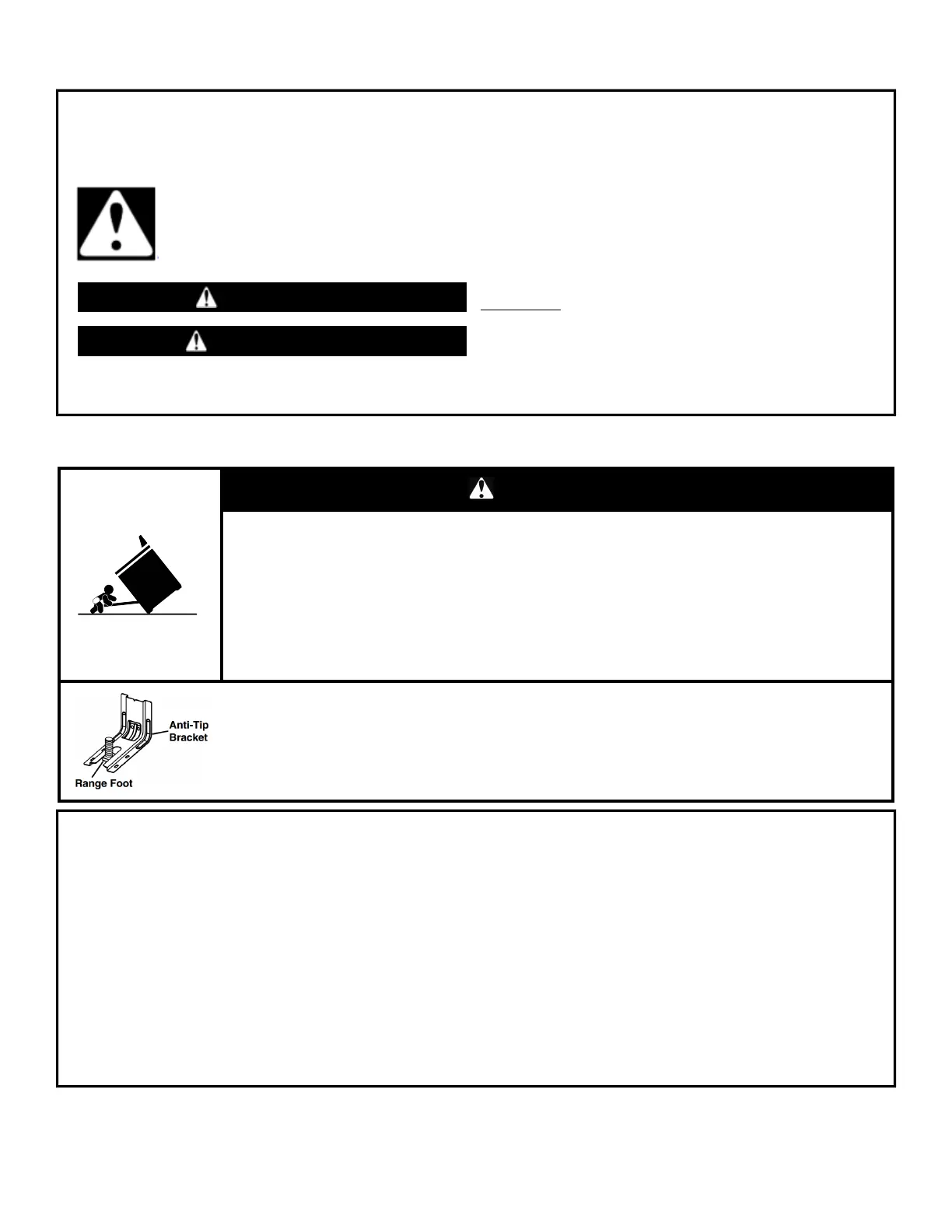

The anti-tip bracket must be installed. To install the anti-tip
bracket shipped with the range, see the “Install Anti-Tip
Bracket” section in the Owner’s Manual.
Grounded electrical supply is required. See the appropriate
“Electrical Requirements” section.
Contact a qualied oor covering installer to check that the
oor covering can withstand at least 200°F (93°C).
Use an insulated pad or 1/4" (0.64 cm) plywood under range
if installing range over carpeting.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194°F (90°C).
Mobile Home - Additional Installation Requirements
The installation of this range must conform to the Manufactured
Home Construction and Safety Standard, Title 24 CFR,
Part 3280 (formerly the Federal Standard for Mobile Home
Construction and Safety, Title 24, HUD Part 280). When such
standard is not applicable, use the Standard for Manufactured
Home Installations, ANSI A225.1/NFPA 501A or with local
codes.
In Canada, the installation of this range must conform with the
current standards CAN/CSA-Z240.1-latest edition, or with local
codes.
Mobile home installations require:
When this range is installed in a mobile home, it must be
secured according to the instructions in this document.
Four-wire power supply cord or cable must be used in a
mobile home installation. The appliance wiring will need to
be revised. See “Electrical Connection - U.S.A. Only” section
in the Owner’s Manual.
Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64.0 cm)
countertop depth, 24" (61.0 cm) base cabinet depth and
36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood
combination above the range, follow the range hood or
microwave hood combination installation instructions for
dimensional clearances above the cooktop surface.
A freestanding range may be installed next to combustible walls
with zero clearance.
A. For minimum clearance to top of cooktop, see NOTE*
B. 30" (76.2 cm) minimum opening width
C. 13" (33.0 cm) maximum upper cabinet depth
D. 30" (76.2 cm) minimum opening width
E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet,
7" (17.8 cm) maximum from oor.
F. Cabinet door or hinges should not extend into the cutout.
*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal
cabinet is covered by not less than 1/4" (0.64 cm) ame
retardant millboard covered with not less than No. 28 MSG
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)
aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the
cooking platform and the bottom of an uncovered wood or
metal cabinet.
C
B
A
D
E
F
