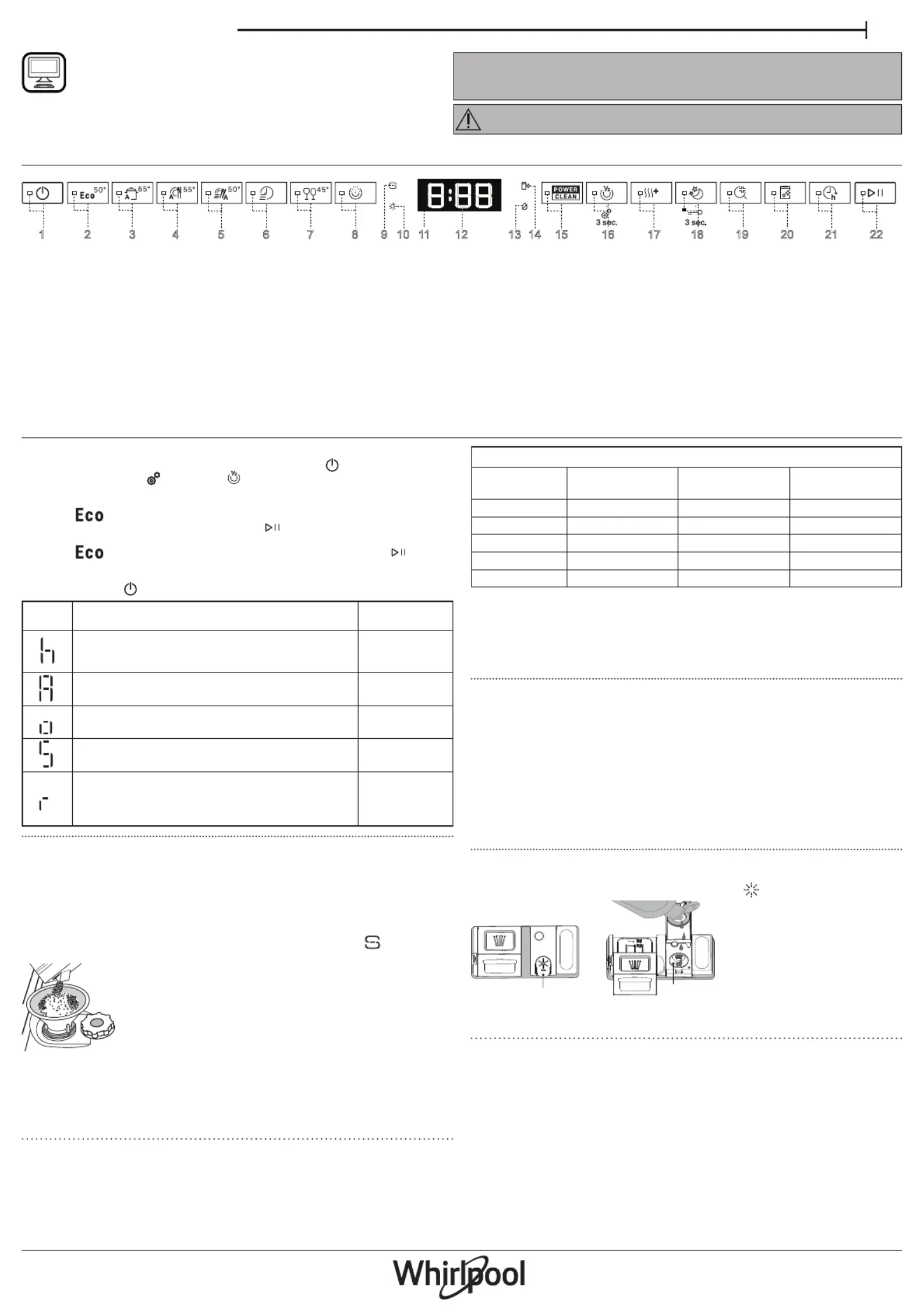

ENDaily Reference Guide

1. ON-OFF/Reset button with indicator light

2. Eco program button with indicator light

3. Auto Intensive program button with indicator light

4. Auto Mixed program button with indicator light

5. Auto Fast program button with indicator light

6. Rapid program button with indicator light

7. Crystals program button with indicator light

8. Prewash program button with indicator light

9. Salt reservoir empty indicator light

10. Rinse Aid reservoir empty indicator light

11. Display

FIRST TIME USE

SETTING MENU

1. Switch on the appliance by pressing the button.ON-OFF

2. Hold the Settings (Half Load ) button for 3 seconds until you hear

a beep.

3. After one second the rst available setting (letter „ ”) will be displayed.h

4. Press button to scroll through the list of available settings (see

table below), then press START/Pause to view and change the value

of the currently selected setting.

5. Press to change the value, then press START/Pause to save

the new value.

6. To change another setting, repeat points 2 and 5.

7. Press or wait 30 seconds to exit the menu.ON-OFF

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

The salt reservoir is located in the lower part of the dishwasher (under the

lower rack on the left side).

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

• Salt must be lled when the SALT REFILL indicator light on the con-

trol panel is lit.1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Position the funnel and ll the salt reservoir (see gure)

right up to its edge (approximately 0,5 kg); it is not un-

usual for a little water to leak out.

3. Only the rst time you do this: ll the salt reservoir

with water.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly so that no detergent can get into

the container during the wash program (this could damage the water

softener beyond repair).

Run a program every time as soon as you completed relling the salt

reservoir to avoid corrosion.

Setting the water hardness

To allow the water softener to work in a perfect way, it is essential that

the water hardness setting is based on the actual water hardness in your

house. This information can be obtained from your local water supplier.

The factory setting is “ ”. See „WATER HARDNESS TABLE” 3.

To change, follow instructions in section “SETTING MENU”.

LETTER SETTING VALUES

(Default - )in bold

Water Hardness Level

(see “SETTING THE WATER HARDNESS”

and “WATER HARDNESS TABLE”) 1 | 2 | | 4 | 53

Rinse Aid Level

(see “ADJUSTING THE DOSAGE OF RINSE AID”) 0 | 1 | 2 | 3 | 4 | 5

NaturalDry (see “OPTIONS AND FUNCTIONS”)

“1” = On, “0” = O 1 | 0

Sound

“1” = On, “0” = O 1 | 0

Factory Settings

Press START/Pause to restore to the factory

default all the values of the settings included in

the settings menu.

Only use salt that has been specically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator

light switches o.

If the salt container is not lled, the water softener and the heating

element may be damaged as a result of limescale accumulation.

Use of salt is recommended with any type of dishwasher detergent.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently pre-

venting scale buildup on the heater, contributing also to better cleaning ef-

ciency. This system regenerates itself with salt, therefore it is required

to rell the salt container when empty. The frequency of regeneration

depends on the water hardness level setting - regeneration takes place

once per Eco cycles with the water hardness level set to 4-6 3. The regen-

eration process occurs at the beginning of the cycle with additional fresh

water.

• Single regeneration consumes: ~3L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser should be A

lled when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by

pressing and pulling up the

tab on the lid.

2. Pour in the rinse aid (max.110

ml), making sure it does not

overow from the dispenser.

If this happens, clean the spill

immediately with a dry cloth.

3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

Adjusting the dosage of rinse aid

If you are not completely satised with the drying results, you can adjust

the quantity of rinse aid used.

To change, follow instructions in the section “SETTING MENU”.

If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW

RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of levels can be set according to the dishwasher model. 6

• If you see bluish streaks on the dishes, set a low number (0-3).

• If there are drops of water or limescale marks on the dishes, set

a mid-range number (4-5).

12. Program number remaining time and indicator

13. Closed water tap indicator light

14. DESCALE indicator light

15. Power Clean® option button with indicator light

16. Half Load option button with indicator light/ - 3 sec. pressSettings

17. Extra Dry option button with indicator light

18. Silent option Key lock button with indicator light/ - 3 sec. press

19. Sani Rinse option button with indicator light

20. Self-Clean program button with indicator light

21. Delay option button with indicator light

22. START/Pause button with indicator light

Water Hardness Table

Level °dH

German degrees

°fH

French degrees

°Clark

English degrees

1 (soft) 0 - 6 0 - 10 0 - 7

2 (medium) 7 - 11 11 - 20 8 - 14

3 (average) 12 - 16 21 - 29 15 - 20

4 (hard) 17 - 34 30 - 60 21 - 42

5 (very hard) 35 - 50 61 - 90 43 - 62

Before using the appliance carefully read

Safety and Installation Instructions. More information about your

product available on website: whirlpool.com.au

After installation, please remember to remove all transport

protection parts from the dishwasher.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

CONTROL PANEL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery

and

empty the glasses. You do not need to rinse beforehand under running

water.

Arrange the crockery so that it is held in place rmly and does not tip over;

and arrange the containers with the openings facing downwards and the

concave/convex parts placed obliquely, thus allowing the water to reach

every surface and ow freely.

Warning: lids, handles, trays and frying pans should not prevent the

sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because

in this sector the water sprays are stronger and allow a higher washing

performance.

After loading the appliance, make sure that the sprayer arms can rotate

freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.

• Delicately decorated glasses, artistic handicrafts and antique crockery.

Their decorations are not resistant.

• Parts in synthetic material which do not withstand high temperatures.

• Copper and tin crockery.

• Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change

and fade during the washing process. Some types of glass (e.g. crystal

objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as

dishwasher safe.

• Use a delicate detergent suitable for crockery

• Collect glasses and cutlery from the dishwasher as soon as the wash

cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufactur-

er’s instructions, washing tableware in a dishwasher usually con-

sumes less energy and water than hand dishwashing.

• In order to maximize dishwasher eciency, it is recommended to

initiate the wash cycle once the dishwasher is fully loaded. Loading

the household dishwasher up to the capacity indicated by the manu-

facturer will contribute to energy and water savings. Information on the

correct loading of tableware can be found in the Loading chapter.

In case of partial loading, it is recommended to use a dedicated wash op-

tions if available (Half load/ Zone Wash/ Multizone), lling up only select-

ed racks. Incorrect loading or overloading of the dishwasher may increase

resources usage (such as water, energy and time, as well as increase noise

level), reducing cleaning and drying performance.

• Manual pre-rinsing of tableware items leads to increased water and

energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwash-

er please run a high-temperature program at least once a month. Use

a teaspoon of detergent and run it without loading to clean your appli-

ance.

RESISTANCE TO FROST

If the appliance is placed in surroundings exposed to the risk of frost, it

must be drained completely. Turn o the water tap, remove the inlet and

outlet hoses, and let all the water drain away. Make sure that the water

softener is full of dissolved regeneration salt in the salt container, to

protect the appliance from temperatures of up to -20°C.

If the appliance was stored in frost conditions the appliance must remain at

an ambient temperature of min. 5°C for before the rst run.at least 24 hours

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that

the tap is open.

2. SWITCH ON THE DISHWASHER

Press the button.ON/OFF

3. LOAD THE RACKS (see LOADING THE RACKS).

4. FILL THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of

crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing

the PROGRAM button.

Select the desired options . (see OPTIONS AND FUNCTIONS)

Not all options are compatible with all programs.

6. START

Start the wash cycle by closing the door and pressing START/Pause

button (led is lit). When the program starts you hear a single beep.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by sound and the display

shows . Switch o the appliance by pressing the button END ON/OFF

and opening the door.

Wait for a few minutes before removing the crockery - to avoid burns.

Unload the racks, beginning with the lower one.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it

has only just begun. the machine: press and hold the button RESET ON/OFF

for more than 3. sec., and the machine will switch o. The dashboard will

show “0:01”. Wait until drain cycle ends (around 1 minute).

Switch the machine back on using the button and select the ON/OFF

new wash cycle and any desired options. Start the cycle by pressing

the START/Pause button.

ADDING EXTRA CROCKERY

Without switching o the machine, open the door rst slightly to avoid wa-

ter splashing out (START/Pause led starts blinking) (Caution!: Hot steam!)

and place the crockery inside the dishwasher. Close the door and press the

START/Pause button, the cycle will resume from the point at which it was

interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the

cycle stops. Close the door and ONLY IF YOU PRESS START/Pause the

button the cycle will resume from the point at which it was interrupted.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce

the detergent into the dry dispenser D only. Place the amount of

detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the

mentioned earlier information to add the proper

quantity. Inside the dispenser there are indicaD, -

tions to help the detergent dosing.

2. Remove detergent residues from the edges of the

dispenser and close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling

it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time accord-

ing to the program.

Usage of detergent not designed for dishwashers may cause

malfunction or damage to the appliance.

ENDaily Reference Guide

The Eco 50° wash cycle adheres to the regulation standard AS/NZS 2007. Although it has a longer duration than other wash cycles it uses less energy and is less

harmful to the environment.

Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) The duration of the program shown on the display or in the booklet is an estimate calculated on standard conditions. The actual time may vary

depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load

balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

WARNING: Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and

keep children away from the dishwasher when the door is open. Check that the detergent receptacle is empty after completion of the wash cycle.

PROGRAMS TABLE

Program

Programs description

Drying

phase

NaturalDry

Available

options *)

Duration

of wash

program

(h: min)**)

Water

con-

sumption

(litres/cycle)

Energy

con-

sumption

(kWh/cycle)

Eco - Environmentally - friendly wash cycle with low energy con-50°

sumption level. Standard cycle suitable to wash normally soiled load.

3:40 11.15 0.62

Auto Intensive - 65° Automatic program

for heavily soiled crockery, especially for pots

and saucepans (not be used for delicate item)

Senses the level of

soiling on the dishes

and adjusts the

program accor-

dingly. When the

sensor is detecting

the soil level an

animation appears

in the display and

the cycle duration is

updated.

2:25 - 3:10 15.5 - 24.5 1.30 - 1.70

Auto Mixed - 55° Automatic program for

mixed soiled dishes with dried food residues. 1:20 - 3:00 7.5 - 19.5 0.75 - 1.20

Auto Fast - 50° Automatic program for

everyday mixed soiled crockery. Ensures

optimal cleaning and drying performance in

a shorter time. 1:00 - 1:50 0.70 - 1.107.5 - 15.5

Rapid - 45° Program to be used for lightly -soiled dishes with not

dried food residues. Does not include the drying phase. Recom-

mend throw detergent on the bottom of dishwasher. - 0:30 - 0:40 0.55 - 0.6510.0 - 12.0

Crystals - 45° Used to refresh crockery planned to be washed

later. No detergent is to be used with this program. 1:40 - 1:50 12.5 - 16.5 0.95 - 1.20

Prewash - Use to refresh crockery planned to be washed later. No

detergent is to be used with this program. - 0:12 4.5 0.10

Self-Clean - 65° Program to be used to perform maintenance of

the dishwasher, to be carried out only when the dishwasher is EMPTY

using specic detergents designed for dishwasher maintenance.

-- 1:15 11.0 1.10

DESCALE – Alarm - Limescale accumulation was detected on internal

components of the appliance. Check if the Water Hardness Setting is

at the correct value and is present in the salt container salt (see FIRST TIME

USE), then (WPro brand is recommended) with use a descaling product

Self-Clean program. After a successful descaling, the icon will stop being

displayed.

If the actions above are not performed, product performance will deteriorate.

DESCALE warning will start blinking and « » alarm will appear on the dES

display. If still no action is taken, the appliance will only allow a certain

number of cycles to be started (indicated during « » alarm display) dES

and then will be BLOCKED to prevent component damage, with only

the Self-Clean program available. Performing a full descaling will unblock

the product. In the case of extremely high amounts of limescale, descaling

may have to be performed twice to be ecient.

DELAY - The start of the program may be delayed for a period of

time between 0:30 and 24 hours.

1. Select the program and any desired options. Press the DELAY button

(repeatedly) to delay the start of the program. Adjustable from 0:30 to 24

hours. Once the 24 hours setting is reached, press the DELAY another time

to deactivate the DELAY function.

2. Close the door and press the START/Pause button. The timer will begin

counting down.

3. Once this time has elapsed, the indicator light switches o and the program

begins automatically.

The DELAY function cannot be set once a program has been started.

WATER TAP CLOSED – Alarm - Flashes, when there is no inlet water or

water tap is closed.

NaturalDry - It is a convection drying system which automatically opens

the door during/after the drying phase to ensure exceptional drying

performance every day. The door opens at a temperature that is safe to

your kitchen furniture, thus door will not be opened when the option of

SANI RINSE is on.

As additional steam protection, specially designed protection foil is added

together with the dishwasher.

To see how to mount protection foil please refer to the INSTALLATION GUIDE.

This feature is active by default, but it is possible to deactivate it in

the “SETTINGS MENU”.

SENSING - When the sensor is detecting the soil level an

animation appears in the display (around 20 min.) and the cycle

duration is updated. is for the level of soiling on the SENSING

dishes and it is present for all cycles (excepting Eco) adjusting the program

accordingly.

KEYLOCK - A long press (for 3 seconds) of SILENT button, will activate

the KEYLOCK function. The KEYLOCK function will block the control panel

except for the ON/OFF button. To deactivate the KEYLOCK, long press again.

POWER CLEAN® - Thanks to the additional power jets this option

provides a more intensive and powerful wash in the lower rack, in the

specific area. This option is recommended for washing pots and casseroles

(Please refer to the Power Clean loading section). ®

EXTRA DRY - The higher temperature during the final rinse and the

extended drying phase allows for improved drying. The EXTRA DRY

option results in the lengthening of the wash cycle.

HALF LOAD - If there are not many dishes to be washed, HALF LOAD is

used to save water, electricity or time depending on the selected program.

Remember to reduce the amount of detergent.

OPTIONS AND FUNCTIONS

OPTIONS can be selected/ deselected, after choosing the program, directly by pressing the corresponding button (if available - the indicator lights up)
