INSTRUCTIONS FOR USE

DIAGRAM OF THE APPLIANCE (Fig. 1)

A. Handle.

B. Safety lock (if provided).

C. Gasket.

D. Separator (if provided).

E. Defrost water drain plug.

F. Control panel.

G. Side motor cooling grille.

DIAGRAM OF THE CONTROL PANEL (Fig. 2)

1. Temperature adjustment thermostat.

2. Red light (if provided): indicates that the temperature

inside the product is not low enough.

3. Green LED (if provided): when lit, indicates that the

appliance is running.

4. : Yellow/orange illuminated button (if provided)

activates/deactivates the fast freeze function.

When lit, it indicates that the fast freeze function is active.

The exact conguration of the control panel may vary

according to the model.

INSTALLATION

• Unpack the appliance.

• Remove the 4 spacers inserted between the door

and the appliance. (Fig 3)

• Make sure the defrost water drain plug (if provided) is

correctly positioned (E).

• For optimum appliance operation and to avoid damage

when the door is opened, leave a space of at least 7 cm

from the rear wall and 7 cm at the sides. (Fig. 4)

• Fit the accessories (if provided).

• Clean the inside of the appliance before using it.

SWITCHING ON THE APPLIANCE

• The appliance is factory set for optimum operation at a

temperature of -18°C.

• Plug in the appliance.

• The green LED lights up (if provided).

• Also the red LED (if provided) will switch on because

the temperature inside the appliance is not yet

suciently low for food storage. The red LED will

normally switch o within the rst six hours after the

appliance is switched on.

• After connecting the appliance to the mains supply

and when the optimal temperature has been reached,

ensure that the fast freeze button is not pressed (the

yellow LED, if provided, is o).

• Place food inside the product only when the red LED

(if provided) has switched o.

Note: As the seal is tight, the appliance lid cannot be

reopened immediately after closing. Wait a few minutes

before re-opening the lid of the appliance.

• This appliance features “skin condenser”

technology: the condensing unit is integrated

into the walls of the freezer. For this reason the

side and front walls of the product may become

hot while the product is running. This is entirely

normal and also reduces the risk of condensation

forming in particularly critical environmental

conditions (see paragraph “Troubleshooting

guide”).

TEMPERATURE ADJUSTMENT

Use the thermostat to select the ideal storage temperature.

To adjust the internal temperature, proceed as follows:

• Turn the thermostat knob to 1 for a storage temperature

that is less cold.

• Turn the thermostat knob to 6 / for a colder storage

temperature.

• For partial loads, or when the load indicator is below

the “e” symbol inside the appliance (if present), it is

advisable to move the thermostat to the lower position

(on “e”, if present on the thermostat scale)

FREEZING FOOD

Preparation of fresh food for freezing

• Before freezing, wrap and seal fresh food in: aluminium

foil, cling lm, air and water-tight plastic bags,

polyethylene containers with lids, provided they are

suitable for freezing foods.

• Food must be fresh, mature and of prime quality in order

to obtain high quality frozen food.

• Fresh vegetables and fruit should preferably be frozen

as soon as they are picked to maintain the full original

nutritional value, consistency, colour and avour.

• Always leave hot food to cool before placing in the

appliance.

Freezing fresh food

• Place foods to be frozen in direct contact with the walls

of appliance (Fig. 5):

A) - foods to be frozen,

B) - foods already frozen.

• Avoid placing foods to be frozen in direct contact with

food already frozen.

• For best and fastest freezing, foods should be split into

small portions; this will also be useful when the frozen

items are to be used.

1. At least 24 hours before storing fresh food in the

appliance, press the fast freeze button (4). For

appliances without this button, turn the thermostat to .

2. Place the food to be frozen and keep the lid of the

appliance closed for 24 hours. At the end of this period,

switch o the fast freeze button (if provided).

FOOD STORAGE

Refer to the table on the appliance.

Classication of frozen foods

Load and classify the frozen foods; it is advisable

to indicate the storage date on the packs, to ensure

consumption before the expiry dates listed in months in

Fig. 6 for each type of food.

Advice for storing frozen food

When buying frozen food, make sure that:

• The packaging is intact (food in damaged containers

may have deteriorated). If a package is swollen or has

damp patches, the product may not have been stored

in optimum conditions and therefore undergone partial

defrosting.

• When shopping, leave frozen food purchases until last

and carry them in a thermally insulated bag.

• On arriving home, immediately place the frozen food in

the appliance.

• Avoid or minimise temperature variations. Observe the

expiry date on the packaging.

• Always follow the storage instructions on frozen food

packages.

Note:

• Eat fully or partially defrosted foods immediately.

Do not refreeze unless the food is cooked after it

has thawed. Once cooked, the food can be refrozen.

• In case of a prolonged power failure: Do not open

the appliance door, except to place ice packs (if

provided) over the frozen foods on the right and left

side of the appliance. This will slow down the rise

in temperature.

APPLIANCE DEFROSTING

The appliance should be defrosted when the thickness of

ice on the walls reaches 5-6 mm.

• Disconnect the appliance from the power supply.

• Remove food from the appliance and put it in a very

cool place or a thermally insulated bag.

• Leave the appliance door open.

• Remove the internal defrost water drain plug

(depending on model) (Fig. 8).

• Remove the external defrost water drain plug

(depending on model) and reposition it as shown in

g. 8.

• Use the separator (depending on model) inside the

product as a recipient for any remaining water, (D) as

shown in g. 8. If there is no separator, use a shallow

container.

• Defrosting can be sped up by using a spatula to detach

the frost from the appliance walls.

• Remove the frost from the bottom of the appliance.

• In order to avoid permanent damage to the

appliance interior, do not use pointed or sharp

metal instruments to remove the ice.

• Do not use abrasive products or heat up the

interior articially.

• Dry the inside of the appliance thoroughly.

• Ret the plug after defrosting.

HANGING THE LID LIGHT BULB (if provided)

• Disconnect the appliance from the mains power supply.

• Remove the diuser by following the sequence of steps

shown in the gure.

• Unscrew the light bulb and replace it with an identical

bulb of the same wattage and voltage.

• Ret the diuser and plug in the appliance.

TROUBLESHOOTING GUIDE

1. The red LED (if provided) remains alight.

• Is there a power failure?

• Is defrosting in progress?

• Is the appliance lid properly closed?

• Is the appliance positioned near a heat source?

• Is the thermostat setting correct?

• Are the ventilation grille and condenser clean?

2. The appliance is too noisy.

• Is the appliance perfectly horizontal?

• Is the appliance in contact with other furniture or objects

that may cause vibrations?

• Has the packaging been removed from under the

appliance?

Note: gurgling noises from the refrigerating circuit after the

compressor cuts out are perfectly normal.

3. The green LED (if provided) is o and the

appliance is not working.

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the electric cable intact?

4. The green LED (if provided) is o and the

appliance is working.

• The green LED is not working. Contact the After Sales

Service for a replacement.

5. The compressor runs continuously.

• Have hot foods been put in the appliance?

• Has the appliance lid been left open for a long time?

• Is the appliance positioned in a very warm room or near

heat sources?

• Is the thermostat setting correct?

• Has the fast freeze function (depending on model) been

pressed by mistake?

6. Too much ice on the upper edge.

• Are the defrost water drainage plugs correctly

positioned?

• Is the appliance lid properly closed?

• Is the appliance lid seal damaged or deformed? (See

chapter “Installation”)

• Have the 4 protection pieces been removed? (See

chapter “Installation”)

7. Condensation forms on the external walls of the

appliance

• It is normal for condensation to form under certain

atmospheric conditions (humidity above 85%) or if the

appliance is located in a damp or poorly ventilated

room.

The performance of the appliance is in no way aected.

8. The layer of ice on the internal walls of the

appliance is not uniform.

• This phenomenon is quite normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself.

2. Switch the appliance on again to see if the problem

has been solved. If it has not, disconnect the appliance

from the power supply and wait for about an hour before

switching on again.

3. If the problem persists after this course of action, contact

After-Sales Service.

Specify:

• the nature of the fault,

• the model,

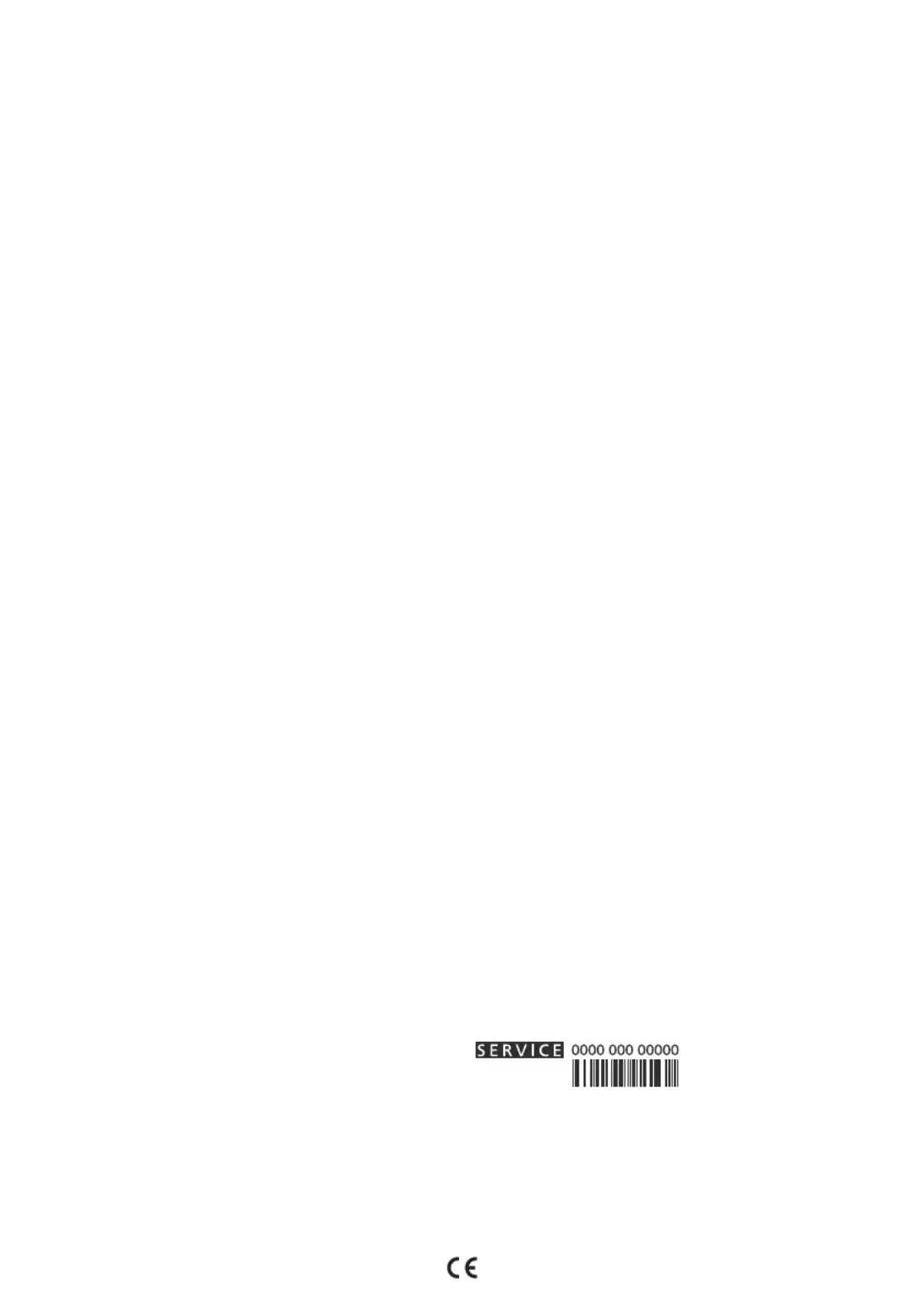

• the service number (the number after the word SERVICE

on the rating plate on the rear of the appliance),

• your full address,

• your telephone number and area code.

ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY

Warning – this appliance must be earthed.

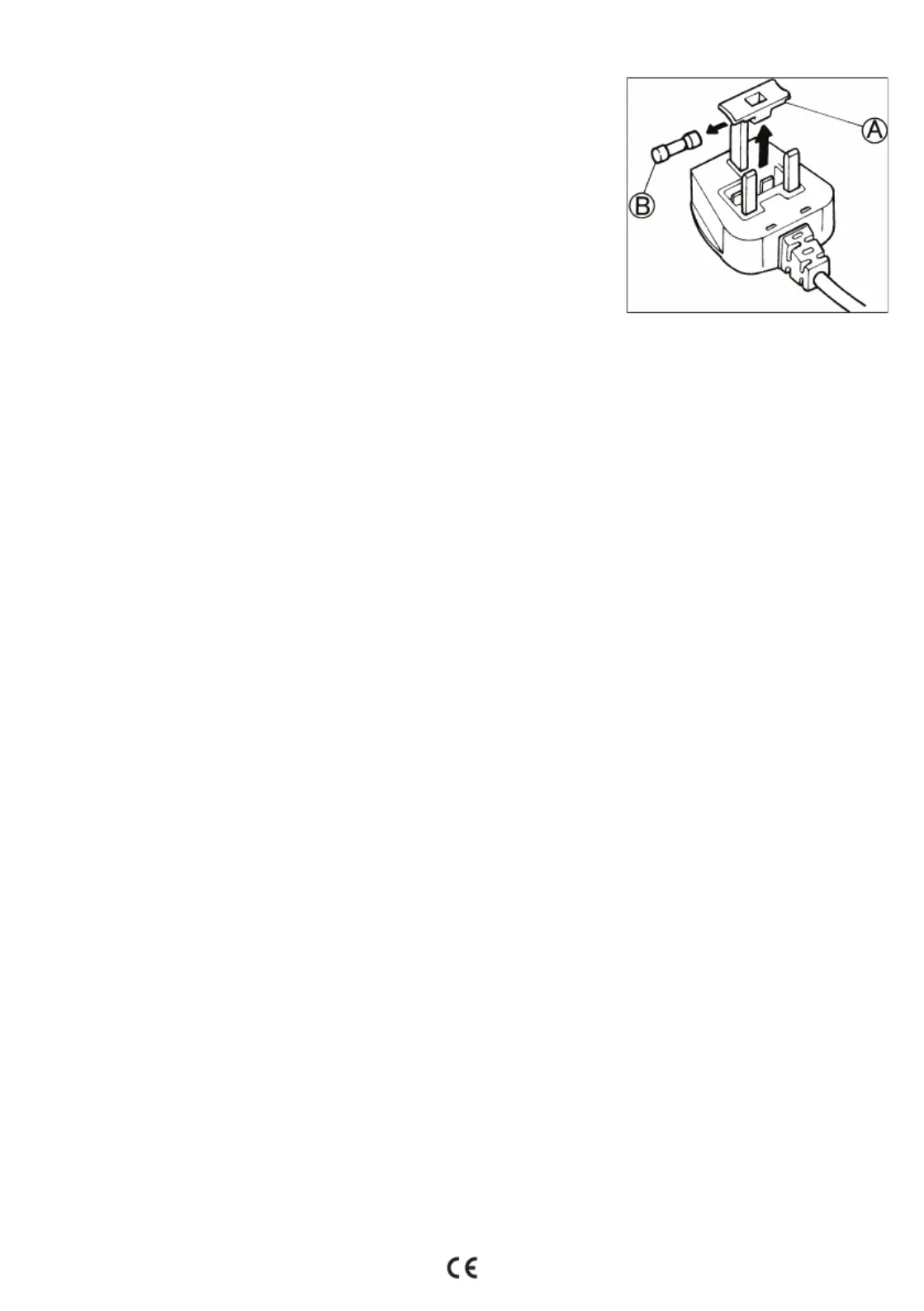

Fuse replacement

If the mains lead of this appliance is tted with a BS 1363A 13amp fused plug, to change

a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as

follows:

1. Remove the fuse cover ( ) and fuse (A B).

2. Fit replacement 13A fuse into fuse cover.

3. Ret both into plug.

Important:

The fuse cover must be retted when changing a fuse and if the fuse cover is lost the

plug must not be used until a correct replacement is tted.

Correct replacement are identied by the colour insert or the colour embossed in words

on the base of the plug.

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin,

side earth type.

Socket outlet / plug (valid for both countries)

If the tted plug is not suitable for your socket outlet, please contact After-sales Service for further instruction.

Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualied technician in compliance

with the manufactures instructions and current standard safety regulations.

Produktspezifikationen

Marke:	Whirlpool
Kategorie:	Gefrierschrank
Modell:	CF 340 T

Brauchst du Hilfe?

Wenn Sie Hilfe mit Whirlpool CF 340 T benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Gefrierschrank Whirlpool

Whirlpool UW8 F2C XB UK Bedienungsanleitung

13 Oktober 2024

Whirlpool ET16JMXSW02 Bedienungsanleitung

7 Oktober 2024

Whirlpool ET16JMXDW02 Bedienungsanleitung

2 Oktober 2024

Whirlpool ARG 10072 A++ Bedienungsanleitung

29 September 2024

Whirlpool ET16JMYSM00 Bedienungsanleitung

28 September 2024

Whirlpool AFB 9002 Bedienungsanleitung

25 September 2024

Whirlpool AFB 435 Bedienungsanleitung

22 September 2024

Whirlpool WH3202 Bedienungsanleitung

22 September 2024

Whirlpool ET16JMXRWR1 Bedienungsanleitung

16 September 2024

Whirlpool AFG 635 APP Bedienungsanleitung

16 September 2024

Bedienungsanleitung Gefrierschrank

Neueste Bedienungsanleitung für -Kategorien-

Freggia LUF246W Bedienungsanleitung

16 Oktober 2024

Freggia LUF193X Bedienungsanleitung

16 Oktober 2024

Freggia LUF193W Bedienungsanleitung

16 Oktober 2024

Freggia LUF246X Bedienungsanleitung

16 Oktober 2024

Freggia LC21 Bedienungsanleitung

16 Oktober 2024

Royal Catering RCFZ-459-1 Bedienungsanleitung

15 Oktober 2024

Hisense HRCF501 Bedienungsanleitung

15 Oktober 2024

Royal Catering RCGK-BC96 Bedienungsanleitung

15 Oktober 2024

Royal Catering RCFZ-W88L Bedienungsanleitung

15 Oktober 2024

Royal Catering RCGK-BC30 Bedienungsanleitung

15 Oktober 2024
