INSTALLATION INSTRUCTIONS
30" (76 CM) FREESTANDING ELECTRIC RANGES
Table of Contents
RANGE SAFETY ............................................................................. 2
INSTALLATION REQUIREMENTS................................................ 3
Tools and Parts............................................................................3
Location Requirements................................................................3
Electrical Requirements...............................................................5
INSTALLATION INSTRUCTIONS.................................................. 6
Unpack Range .............................................................................6
Install Anti-Tip Bracket.................................................................6
Electrical Connection ...................................................................8
Verify Anti-Tip Bracket Is Installed and Engaged......................11
Level Range ...............................................................................11
Storage Drawer ..........................................................................11
Oven Door ..................................................................................11
Complete Installation .................................................................12
Moving the Range......................................................................12
IMPORTANT:
Save for local electrical inspector's use.
W10394782B
2
RANGE SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING

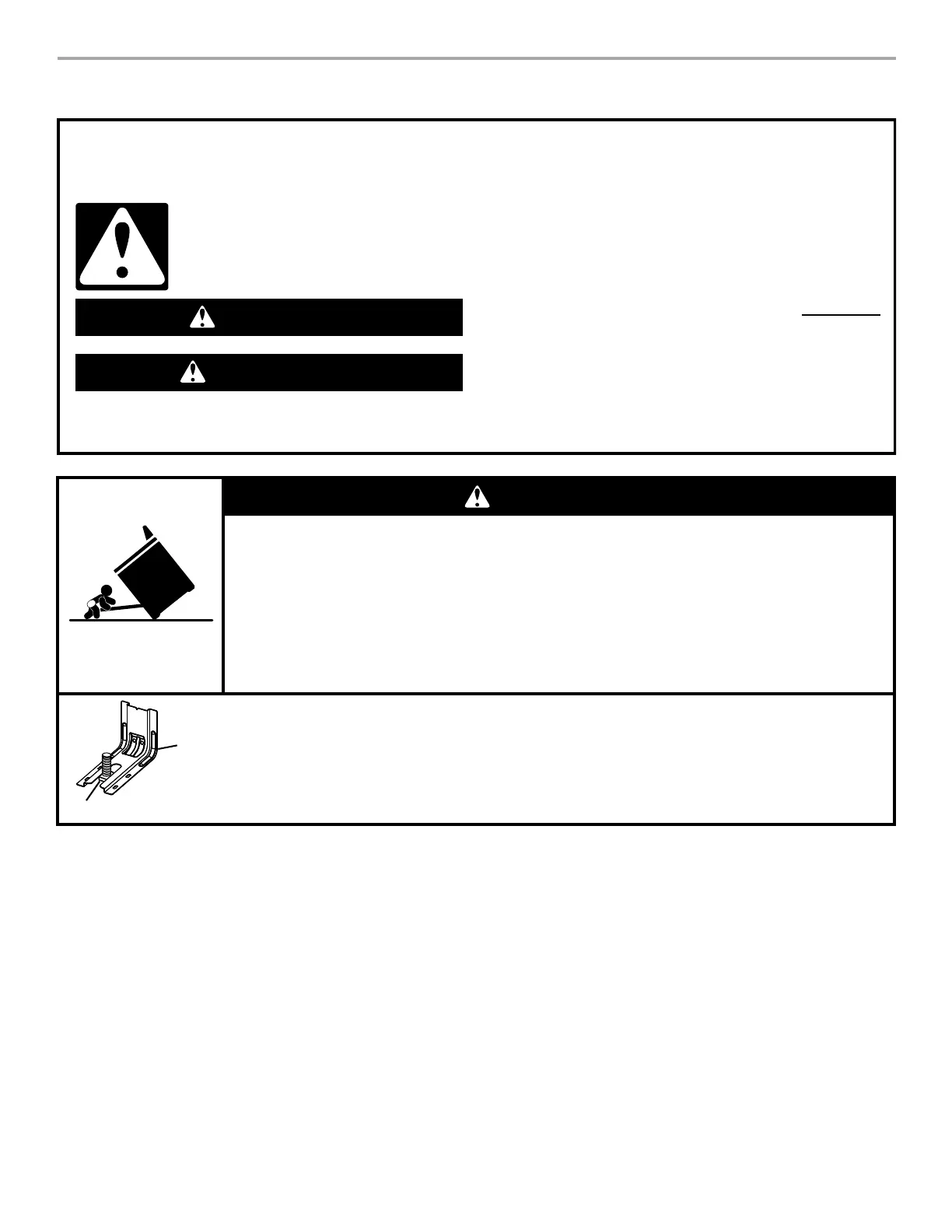

Tip Over Hazard
A child or adult can tip the range and be killed.
Install anti-tip bracket to floor or wall per installation instructions.
Slide range back so rear range foot is engaged in the slot of the anti-tip bracket.
Re-engage anti-tip bracket if range is moved.
Do not operate range without anti-tip bracket installed and engaged.
Failure to follow these instructions can result in death or serious burns to children and adults.
Anti-Tip
Bracket
To verify the anti-tip bracket is installed and engaged:
•Slide range forward.
•Look for the anti-tip bracket securely attached to floor or wall.
•Slide range back so rear range foot is under anti-tip bracket.
•See installation instructions for details.
Range Foot
WARNING
3
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
Parts supplied
Check that all parts are included.
■3 - 10-32 hex nuts (attached to terminal block)
■3 - Terminal lugs
■Anti-tip bracket must be securely mounted to floor or wall.
Thickness of flooring may require longer screws to anchor
bracket to floor.
Parts needed
If using a power supply cord kit:
■A UL listed power supply cord kit marked for use with ranges.
The cord should be rated at 250 volts minimum, 40 amps or
50 amps that is marked for use with nominal 1³⁄₈" (3.5 cm)
diameter connection opening and must end in ring terminals
or open-end spade terminals with upturned ends.
■A UL listed strain relief.
Check local codes. Check existing electrical supply. See the
appropriate “Electrical Requirements” section.
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
■It is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the frame behind a top
corner of the door or either side of the drawer.
■To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
■Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
■The anti-tip bracket must be installed. To install the anti-tip
bracket shipped with the range, see “Install Anti-Tip Bracket”
section.
■Grounded electrical supply is required. See the appropriate
“Electrical Requirements” section.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194° (90°C).
■Tape measure
■Flat-blade screwdriver
■Phillips screwdriver
■Level
■Hammer
■Hand or electric drill
■Wrench or pliers
■Marker or pencil
■Masking tape
■¼" drive ratchet
■¼" nut driver
■³⁄₈" and ⁵⁄₁₆" nut driver
■¹⁄₈" (3.2 mm) drill bit (for
wood floors)
■Tin snips or large wire
cutters (for cutting ground
strap if necessary)
A. Anti-tip bracket
B. #12 x 1
⁵⁄₈
" screws (2)
A
B
