Seite 1/4
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401848A0 00 2209
4652.2812ES
Telecamera Dome AHD Day&Night, risoluzione 5 Mpx, sensore da 1/2,5'' filtro IR
meccanico, obiettivo varifocale 2,8-12 mm, sensibilità 0 lux IR in ON, grado di pro-
tezione IP66, illuminatore IR con portata fino a 30 m, Smart-IR, commutazione
AHD-CVBS. Alimentazione 12 Vdc 400 mA, completa di staffa con passaggio di
cavi protetto. Peso 550 g.

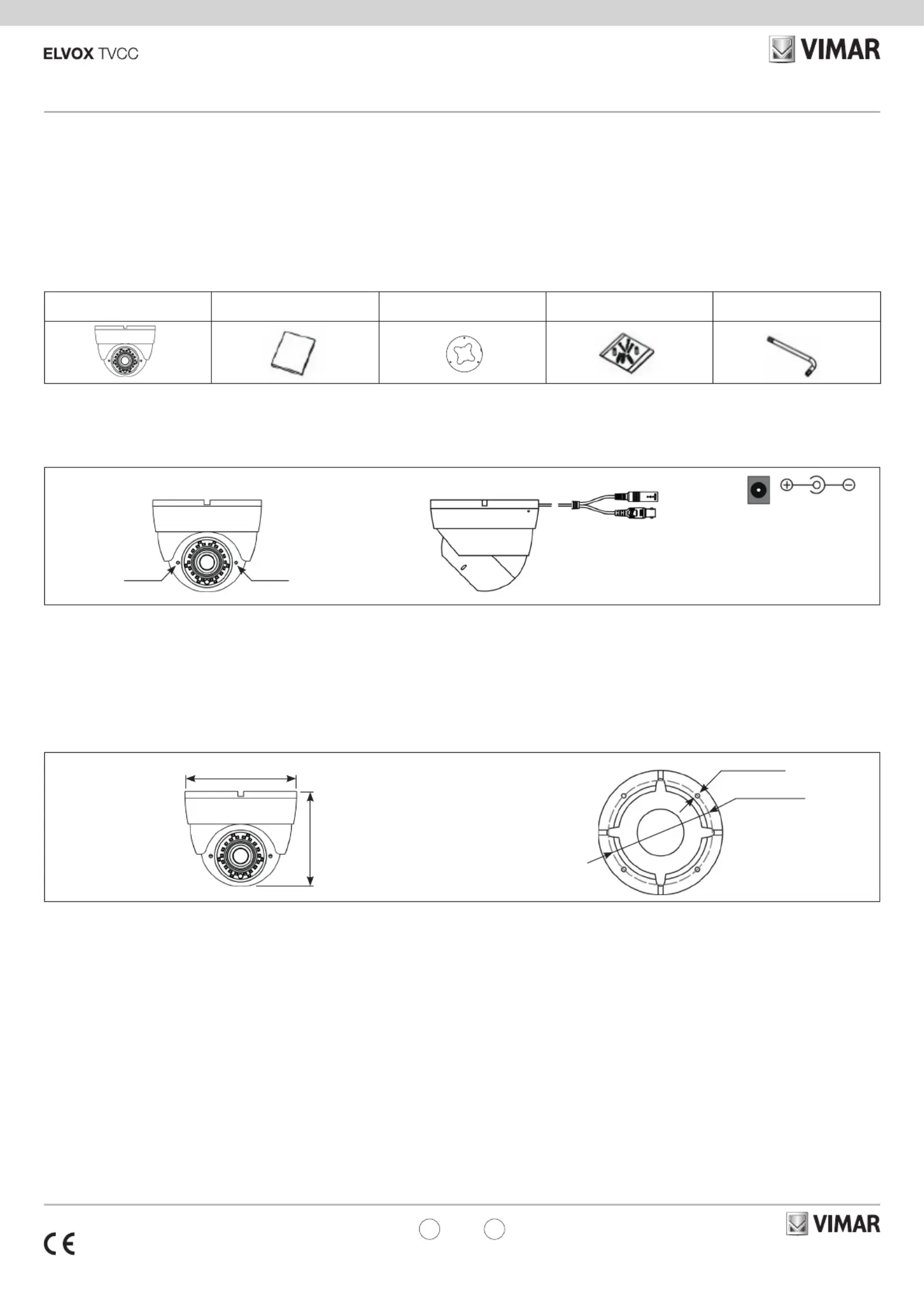

Contenuto della confezione
Una volta ricevuto il dispositivo, controllare gli accessori indicati di seguito. Le illu-
strazioni sotto riportate hanno solo funzione di riferimento. Far riferimento all'appa-
recchiatura in dotazione.
Connessioni
Di seguito sono riportate le principali connessioni della telecamera.
ENIT
Installazione
Prima di iniziare, assicurarsi che la parete o il sotto siano sucientemente solidi
per sopportare tre volte il peso della telecamera. Installare e utilizzare la telecamera
in ambiente asciutto. La procedura di montaggio è la seguente:
1) Praticare i fori per le viti e per il cavo sulla parete utilizzando la dima di foratura.
2) Passare i cavi e collegare il cavo di alimentazione e il cavo video.
3) Fissare la base di montaggio della telecamera alla parete con le viti, come
descritto di seguito.
Installation
Before start, please make sure that the wall or ceiling is strong enough to withstand
3 times the weight of the camera. Please install and use the camera in the dry
environment. The mounting steps are as follows:
1)
Drill the screw holes and the cable hole on the wall according to the drill template
.
2) Route the cables and connect the power cable and video cable.
3) Secure the mounting base with camera to the wall with screws as shown below.
Telecamera
Camera
Istruzioni per l’uso
Quick and start guide
Dima di foratura
Drill template
Viti
Screws & spiles
Chiave a brugola
Allen key
Connections
Here below the main connections of the camera.
AHD Day & Night Dome Camera, 5 Mpx resolution, sensor 1/2.5'', mechanical IR
filter, 2.8-12 mm varifocal lens, sensitivity 0 Lux with IR ON, IP66 protection degree,
IR illuminator with range up to 30 m, Smart-IR, AHD-CVBS switching. Power supply
12 Vdc 400 mA, complete with bracket with protected cable passage. Weight 550 g.
Package content
After you receive your device, please check the following accessories. The pictures
here are for reference only.
• Controllo da DVR su cavo coassiale:
- Richiamare il menu PTZ del DVR.
- Utilizzare il pulsante Enter dal menu OSD per entrare nel menu della telecame-
ra.
• DVR coaxial control:
- Recall the PTZ menu of DVR.
- Use Enter from OSD menu to enter in th camera menu.
Ø 120 mm
100 mm
Ø 100 mm
4 x Ø 4,5 mm
Fuoco/Focus Zoom
VIDEO OUT
DC 12 V IN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401848A0 00 2209
4652.2812ES
ENIT
VIDEO SETTING
SATURATE
2DNR
FLIP
5
SATURATE
VIDEO SETTING
VIDEO SETTING
APPLY&REBOOT
APPLY&REBOOT
CVBS
PAL/NTSC
1080P25\1080P30\4MP15\4MP25\4MP30
2DNR
5MP12.5\5MP20
1 - 10
1 - 10
OFF\ON
OFF\ON
1 - 10
1 - 10
OFF\ON MIRROR
PAL
CVBS
5MP20
D-WDR
MIRROR
D-WDR
FLIP
RETURN
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
49401848A0 00 2209
4652.2812ES
ENIT
Speciche / Specications
4652.2812ES
Sensore / Sensor 1/2,5” CMOS
Pixel immagine / Pixel image 2592 (H) x 1944 (V)
Sensibilità / Sensitivity 0 lux (24 IR led ON)
Obiettivo / Lens 2,8-12 mm Obiettivo varifocale / Varifocal lens
Angolo di visione / Vision degree 94 ° - 35 °
Formato video / Video format PAL / NTSC
Rapporto S/N / S/N Ratio ≥ 42 dB
Uscita Video / Video output AHD / CVBS
Funzioni / Fucntions 2DNR, Smart-IR, BLC, D-WDR, AGC
Giorno/Notte / Day&Night AUTO / COLOR / B&W / EXT
Range IR 30 m
Grado / Degree IP IP66
Temperatura di stoccaggio / Storage temperature -30 °C ~ +60 °C
Temperatura di esercizio / Operate Temperature -30 °C ~ +60 °C (IR OFF)
Alimentazione / Power supply 12 Vdc ±10% - 400 mA (max)
Dimensioni / Dimensions Ø 120 x 100 mm
Peso / Weight 550 g
