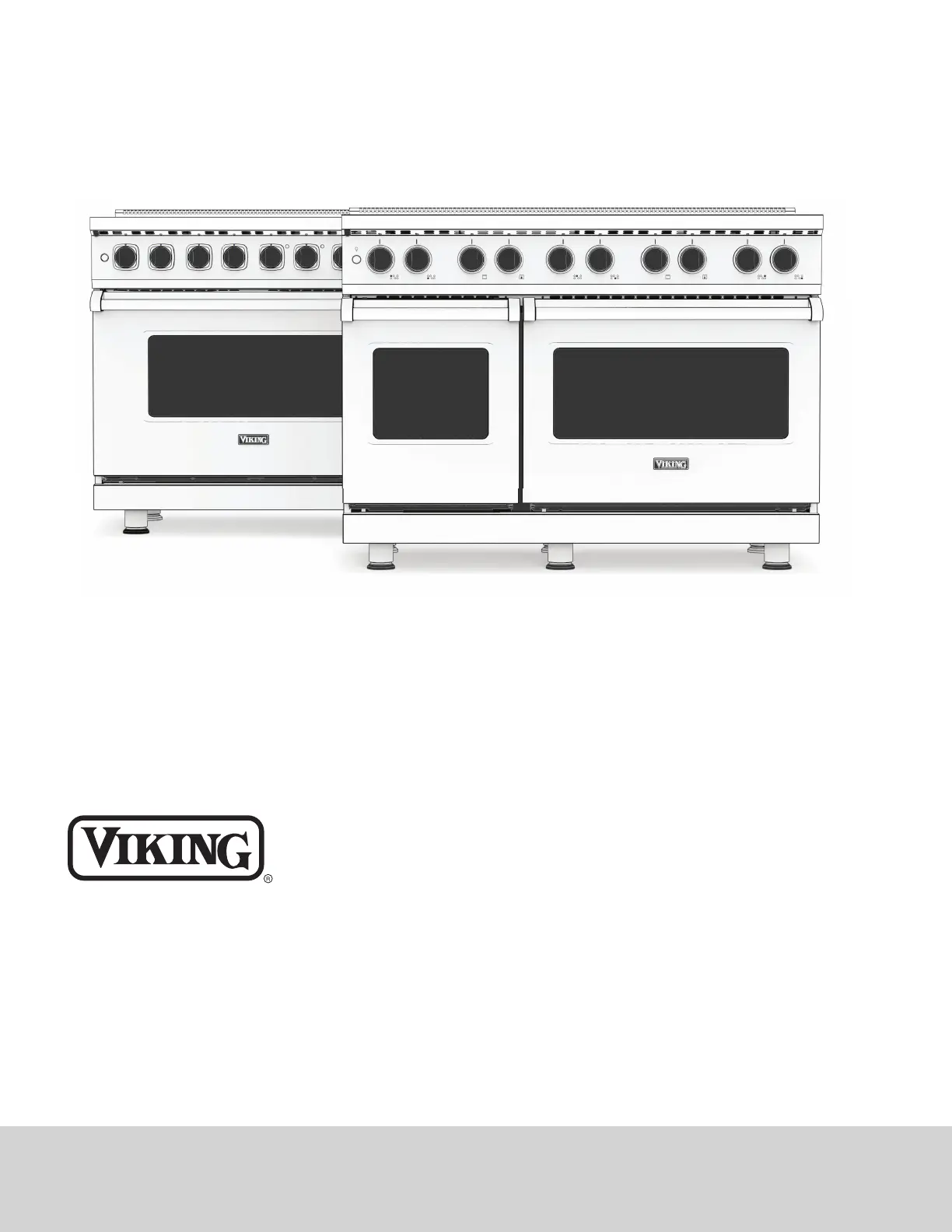

Installation
GUIDE
Range / Rangetop
Rear Island Trim / Backguard / High Shelf Accessories
Range Curb Base Fronts
2
Rear Trim Accessories
MODELS BACKGUARD HIGH SHELF CURB BASE
VGIC5301
VGCC530
C/VDSC530
C/VESC530
C/VISC530
VGRT530
C/VER530
C/VIR530
P30BG8SS B304H24SS P30CBF4SS
N/A
VGCC536
C/VDSC536
VGIC5361
VGRT536
P36BG8SS B36HS24SS P36CBF4SS
N/A
VGCC548
C/VDSC548
VGRT548
P48BG8SS B48HS24SS P48CBF4SS
N/A
VGCC560
C/VDSC560
P60BG8SS B60HS24SS P60CBF4SS
VGR530
C/VDR530
VGIC5302
VRT530
BG8530SS HS24530SS P30CBF4SS
VGR536
C/VDR536
VGIC5362
VRT536
BG8536SS HS24536SS P36CBF4SS
VGR548
C/VDR548
VRT546
BG8548SS HS24548SS P48CBF4SS
VGR560
C/VDR560
BG8560SS HS24560SS P60CBF4SS
C/RVER3301 RD30BG6SS N/A P30CBF4SS
RVGR3301
RVGR3302
RVGR3303
RVDR3301
RVDR3302
RD301BG6SS N/A P30CBF4SS
3
Rear Trim Accessories
All rear trim devices are installed in the same basic way.
ATTACHING REAR TRIM (Illustration I)
Grasp the trim on each end and carefully place in the channels (B) located at each rear corner of the product. Align the screw holes
(A) at each end of the trim device with the holes (A) in each rear channel of the product. Secure with the 4 enclosed screws.
A
BB
B
A
B
A
X
RANGETOP
REAR VIEW
RANGE
REAR VIEW
ATTACHING SHELF ON HIGH -SHELF (Illustration 2)
HIGH SHELF
Place the top rolled edge (X) over the front lip of the high-shelf back trim and secure with the 4 enclosed screws, two at each end.
CAUTION: Do not place heavy pans and pots on the High Shelf or light ammables liquids.
WARNING
To reduce the risk of re or injury to persons,
check to make sure all packaging has been
removed from the outside and inside parts
of the rear trim device before installing.
MAKE SURE ALL CORRUGATED MATERIAL IS
REMOVED FROM INSIDE THE HIGH SHELF.
