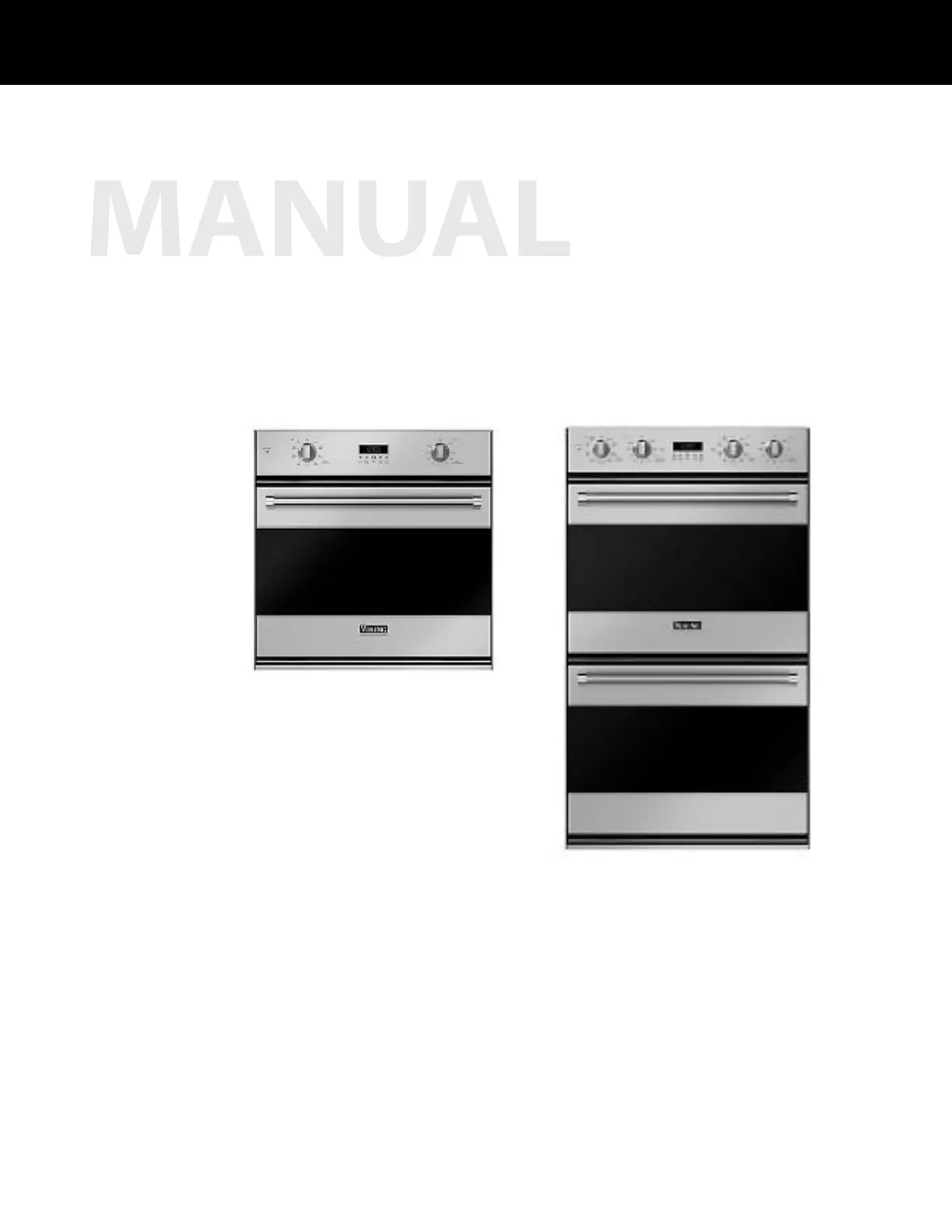

Installation
GUIDE
3 Series
Built-In Electric 30”
Single and Double Ovens
RVSOE330 / RVDOE330
2
Table of Contents
Warnings & Important Safety Information ..............................................................................................................................................................2
Dimensions .........................................................................................................................................................................................................................4
Speci cations ..................................................................................................................................................................................................................... 5
Cutout Dimensions .......................................................................................................................................................................................................... 6
Electrical Requirements .................................................................................................................................................................................................7
General Information ........................................................................................................................................................................................................ 8
Installation ..........................................................................................................................................................................................................................9
Final Preparation .............................................................................................................................................................................................................11
Performance Checklist..................................................................................................................................................................................................12
Service & Registration ...................................................................................................................................................................................................13
IMPORTANT - Please Read and Follow
• Before beginning installation, read these instructions thoroughly
and carefully.
• DO NOT remove permanently a xed labels, warnings or plates
from the product as this may void the warranty.
• DO NOT install two or more wall ovens single or double side-by-
side or stacked on top of one another.
• Observe all local and national codes, requirements and ordinances.
• Installation must conform with local codes or in the absence of
codes, the National Electrical Code, ANSI/NFPA-70 – latest edition,
or Canadian Electrical Code, CSA C22.1-1982 and C22.2 No. 01982
– latest edition, National Fuel Gas Code ANSIZ223.1/NFPA-54 –
latest edition and all local codes and ordinances.
• IN MASSACHUSETTS: This appliance must be installed by a
Massachusetts licensed plumber or electrician.
• IN CANADA: Installation must be in accordance with the current
CSA C22.1 Canadian Electrical Codes Part 1 and/or local codes.
• Installers should leave these instructions with the consumer who
should retain them for the local inspector’s use and for future •
edition and all local codes and ordinances.
Site Preparation: It is recommended that a thorough site inspection be conducted PRIOR to unpacking and moving
this appliance.
Your safety and the safety of others is very important.
We have provided many important safety messages in
this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that can kill or
hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word “DANGER,” “WARNING” or
“CAUTION.” These words mean:
Hazards or unsafe practices which WILL result in
severe personal injury or death
Hazards or unsafe practices which COULD result in
severe personal injury or death
Hazards or unsafe practices which COULD result in
minor personal injury or property damage.
All safety messages will identify the hazard, tell you
how to reduce the chance of injury, and tell you what
can happen if the instructions are not followed
DANGER
Note: Wiring diagram is located on top of oven or in control panel.
WARNING
CAUTION
3
IMPORTANT - Please Read and Follow
DO NOT use the handle or oven door to lift the oven.
Remove door before installation to ensure that it is not used
to lift the unit. See installation section for door removal.
The misuse of the oven door(s) (e.g. stepping, sitting, or
leaning on them) can result in hazards or injuries and
damage to the product.
ELECTRICAL GROUNDING INSTRUCTIONS
This oven must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA-70 – latest edition.
This appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
the use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do
not play with the appliance.
Frame grounded by a 4-conductor cable assembly. See
installation section.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE. SUCH USE MAY RESULT IN FIRE, ELECTRICAL
SHOCK OR OTHER PERSONAL INJURY.
This appliance should not be used for space heating. This
information is based on safety considerations.
The use of cabinets for storage above the oven may
result in potential  re or burn hazard.
The oven is heavy—use extreme care when handling.
To prevent possible damage to cabinets and cabinet
nishes, use only materials and  nishes that will not
discolor or delaminate and will withstand temperatures
up to 194°F (90°C). Heat and moisture resistant adhesive
must be used if the product is to be installed in
laminated cabinetry. Check with your builder or cabinet
supplier to make sure that the materials meet these
requirements.
WARNING
To reduce the risk of  re, electric shock, or injury to persons,
installation work and electrical wiring must be done by
quali ed people in accordance with all applicable codes
and standards, including  re-rated conditions.
CAUTION
WARNING
WARNING
WARNING WARNING
WARNING
WARNING
CAUTION
WARNING
