Vexus MEG040 Bedienungsanleitung

Vexus Mikrofon MEG040

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Vexus MEG040 (12 Seiten) in der Kategorie Mikrofon. Dieser Bedienungsanleitung war für 41 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Download PDF
Seite 1/12

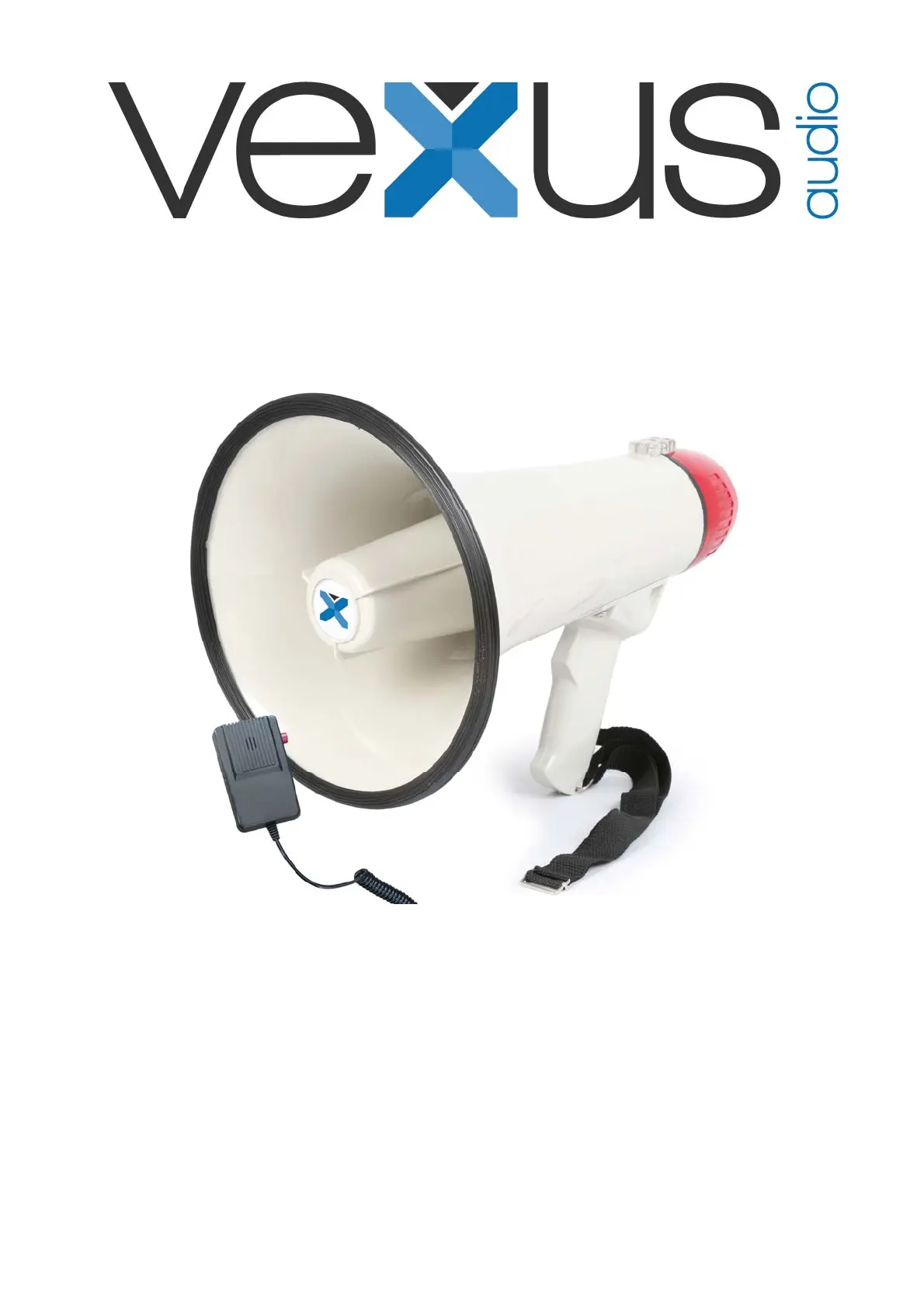

MEG040 40W Record, Sirene and Microphone
Ref. nr.: 952.007
INSTRUCTION MANUAL
GEBRUIKSAANWIJZING
GEBRAUCHSANLEITUNG
MANUAL DE INSTRUCCIONES
NOTICE D’UTILISATION
V1.0
2
ENGLISH
Thank purchasing this Vexus megaphone, please read this instruction manual carefully before use to know
how to operate it properly and effectively. If the device was damaged in transit, don’t use it and contact your
dealer.
Warning:
ï‚· Do not place in direct sunlight or in a high temperature environment for a long period of time.
ï‚· Avoid exposure to rain, water or heavy humidity.
ï‚· When cleaning the megaphone body only use a neutral detergent. Never use thinner or benzene.
ï‚· Never point the megaphone directly at persons or animals. To avoid damaging of the ears, ensure
sufficient distance to other persons and ensure a reasonable volume adjustment!
ï‚· Keep the device away from children and unauthorized users.
ï‚· If not in use for a long period of time, remove the batteries and store them separately to prevent leaking
batteries and damaging the circuits inside the megaphone.
ï‚· Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the
dealer will not accept responsibility for any defect or problem.
ï‚· Unauthorized conversion and/or modification of the product is inadmissible because of safety and
approval reasons (CE).
ï‚· Do not leave packaging material unattended. Plastic foils or bags etc. might become a dangerous toy for
children!
Possible damage by leaking batteries Leaking batteries can cause permanent damage to
the device. Take batteries out of the device if it is not going to be used for a longer period.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask
your local authorities or your dealer about the way to proceed. The specifications are typical. The
actual values can slightly change from one unit to the other. Specifications can be changed without
prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit.
This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by
inappropriate use or disrespect of the warnings contained in this manual. Vexus cannot be held responsible for personal
injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in
whatever form.
3
HOW TO USE
1. ON / OFF Button
2. Talk button
3. Volume
4. Battery compartment unlock: Press to
unlock the battery compartment.
5. Built in microphone
6. Play Music
7. Record
8. Handle: Handle for easy use. When not
in use, the handle can be folded.
9. External microphone input.
OPERATIONAL INSTRUCTIONS
1. Installing the batteries: Press the battery unlock button to open the top cover.
Put 6 pcs size D-batteries properly (+/- terminals must match) into the battery
compartment and close the top cover and the latch.
2. Position the horn opening towards the audience and speak through the
microphone. Bring the microphone close to your lips and speak normally.
3. Adjust the volume level to optimum without causing howling. Please note that
the closer the sound source is to the microphone the better the amplification
is.
4. Switch the alarm switch to the alarm position, it will generate a continuous
alarm.
5. If the megaphone is activated and the volume of the speaker is weak, the batteries might be empty.
Follow step 1 to replace the batteries.
BASIC TROUBLESHOOTING
ï‚· If the megaphone does not work, remove the batteries to check if the +/- terminals match correctly.
ï‚· If the terminal match correctly, place back the batteries and press them down into the battery
compartment firmly, make sure the batteries are in contact properly
TECHNICAL SPECIFICATION
Power max. : 40Watt
Range : outdoor up to 700-1000m
Battery : 6pcs Type D-Battery
Battery lifetime : permanent use up to 5 hours
Dimensions : Ø190mm, Length 330mm
Weight (without battery) : 1.3Kg
The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.

Produktspezifikationen

Marke: Vexus
Kategorie: Mikrofon
Modell: MEG040
