TECHNICAL ASSISTANCE
When trouble is reported, verify there are no broken connections to the unit.
Assistance in troubleshooting is available from the factory. When calling, you should
have a VOM and a lineman's test set available and be calling from the job site. Call
(540) 563- - -2000 for Technical Support or call (540) 767 1555 for Valcom 24 hour Faxback
System or visit our website at http://www.valcom.com.
Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your
company name, address, phone number, contact person and the nature of the problem.
Send the unit to: Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
VALCOM LIMITED WARRANTY
Valcom, Inc. warrants its products to be free from defects in materials and
workmanship under conditions of normal use and service for a period of one year
from the date of shipment. The obligation under this warranty shall be limited to the
replacement, repair or refund of any such defective device within the warranty
period, provided that:
1. inspection by Valcom, Inc. indicates the validity of the claim;
2. the defect is not the result of damage, misuse or negligence after the original
shipment;
3. the product has not been altered in any way or repaired by others and that
factory sealed units are unopened (a service charge plus parts and labor
will be applied to units defaced or physically damaged);
4. freight charges for the return of products to Valcom are prepaid;
5. all units ‘out of warranty’ are subject to a service charge. The service
charge will cover minor repairs (major repairs will be subject to additional
charges for parts and labor).
This warranty is in lieu of and excludes all other warranties, expressed or
implied, and in no event shall Valcom, Inc. be liable for any anticipated
profits, consequential damages, loss of time or other losses incurred by
the buyer in connection with the purchase, operation or use of the product.
This warranty specifically excludes damage incurred in shipment. In the event a
product is received in damaged condition, the carrier should be notified immediately.
Claims for such damage should be filed with the carrier involved in accordance with
the F.O.B. point.
Headquarters: In Canada
Valcom, Inc. CMX Corporation
5614 Hollins Road 35 Van Kirk Drive #11 and 12
Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5
Phone: (540) 563-2000 Phone: (905) 456-1072
FAX: (540) 362-9800 FAX: (905) 456-2269

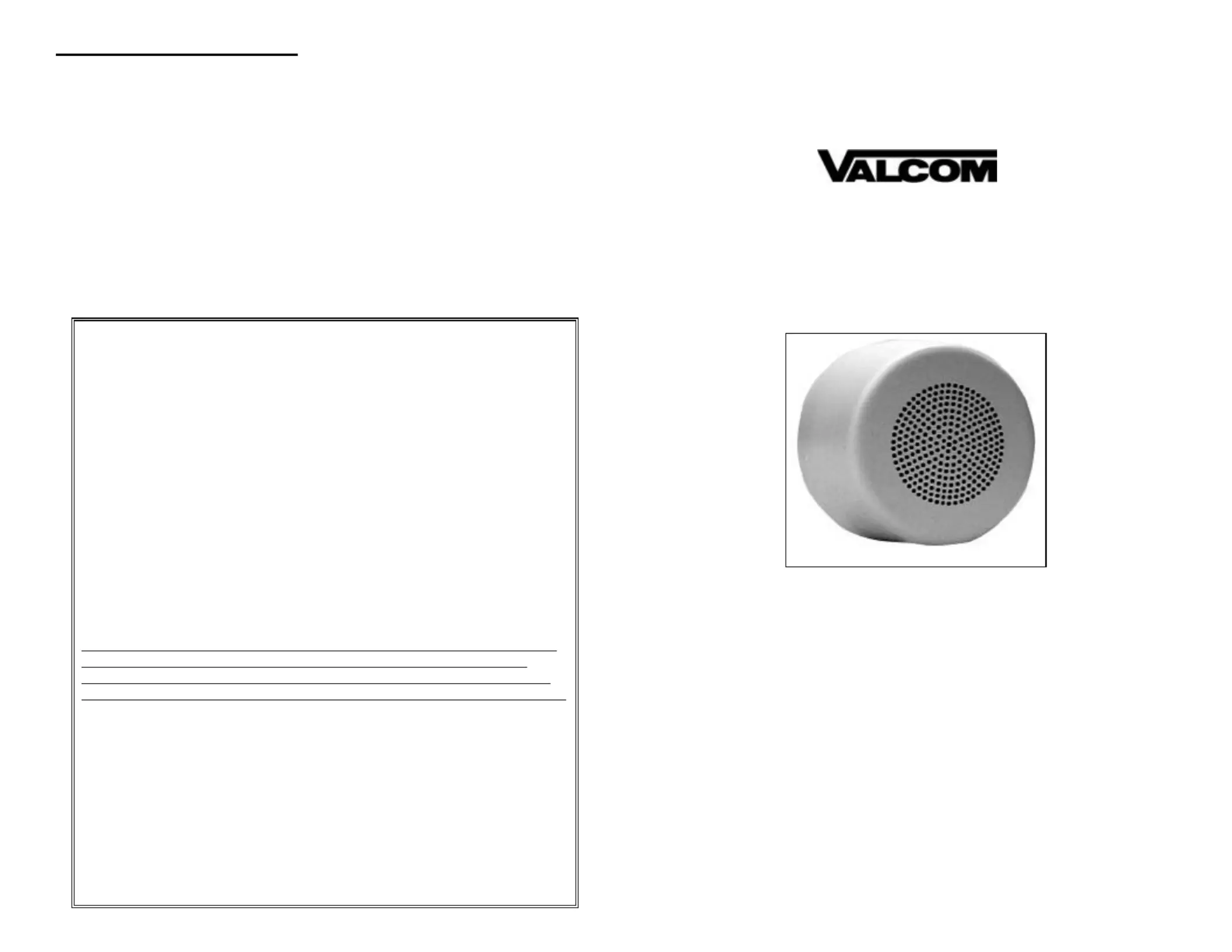

INSTALLATION INSTRUCTIONS FOR
SURFACE MOUNT
VANDAL RESISTANT SPEAKER
V-9010
Issue 4 947910
VALCOM VANDAL RESISTANT SPEAKER
The Valcom Surface Mount Vandal Resistant Speaker, V-9010, was designed to be
used in harsh environments. The speaker assembly features a steel housing, a built-in
amplifier and an interior security screen with tamper resistant screws.
The steel housing is constructed of 18-gauge steel finis hed with a baked on powder
coat urethane finish. The screen is made of 24-gauge steel to prevent sharp object
from penetrating the speakers.
SPECIFICATIONS
Amplifier Speaker
Power Rating: 1 Watt Voice Coil
Impedance:
45 Ohms
Operating Voltage: -24VDC Diameter: 5.10"
Current
Consumption:
50mA Magnet Weight: 10 oz.
Magnet Material: Ceramic
Speaker/Amplifier
Frequency
Response:
350Hz to 6.5kHz
Output Power: 1 Watt
SPL: 94dB at 1 Watt, 1 Meter

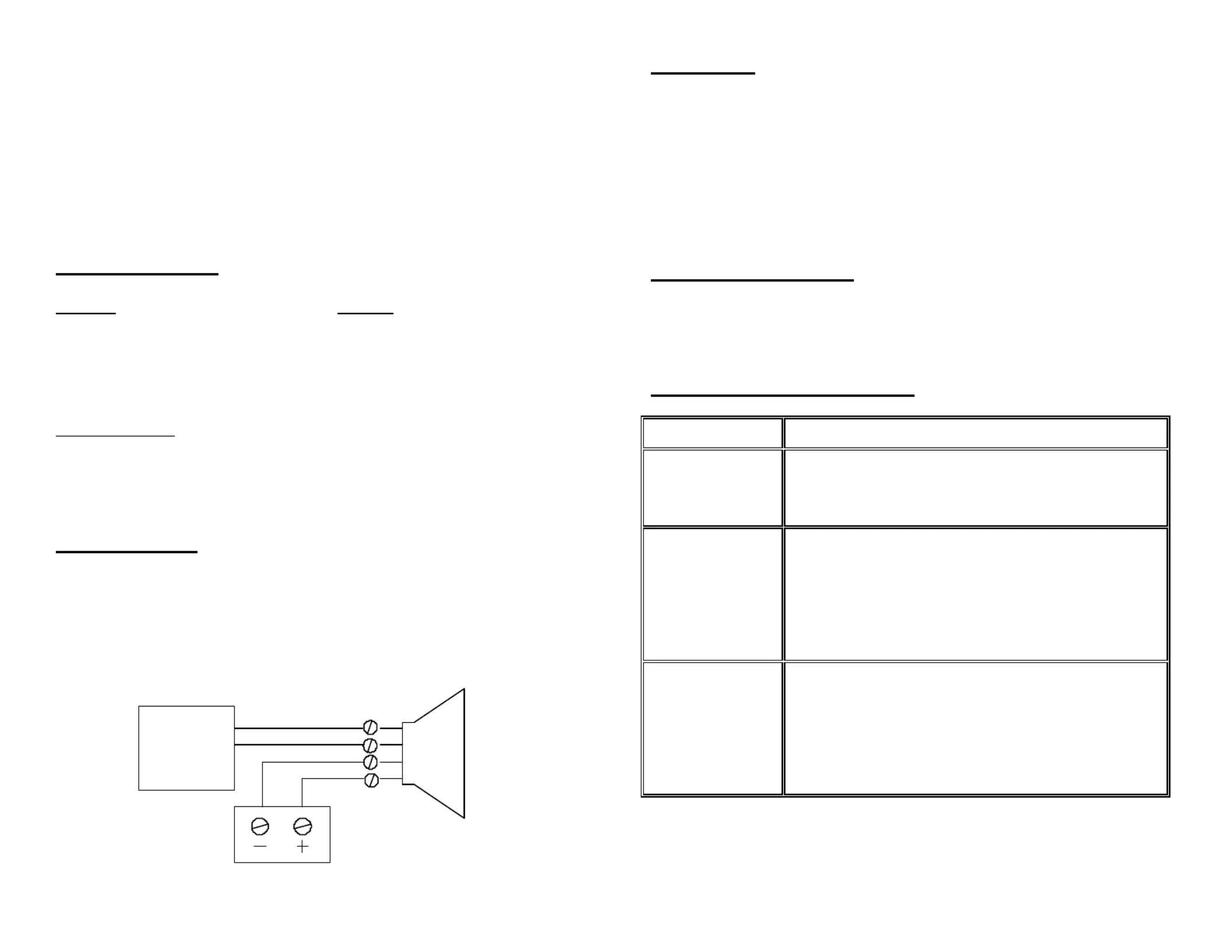

CONNECTIONS
NOTE: The V-9010 may be used to expand a constant voltage (25/70/100 Volt)
paging system without placing an additional load on the amplifier by adding a
V-1095, 70V Paging Expander. A power supply will also be required.
MOUNTING
After making connections to the speaker, secure the enclosure assembly to the base
with four #10 stainless steel hex button head machine screws using a standard 1/8
inch hex driver.
The base of the V- - -9010 will mount to a standard 4 inch square or octagon shaped
electrical box or may be fastened to a wall or ceiling using screws as large as 1/4 inch.
Surface wiring or conduit is routed through one of four standard knockouts.
DIMENSIONS/WEIGHT
• 8.50" Dia. x 5.10" D (21.59cm Dia. x 12.95cm D)
• 4.8 lbs. (2.18 kg)
TROUBLESHOOTING CHART
SYMPTOM ACTION
1. No audio from
speaker
1a. Check that volume control is turned up (clockwise).
1b. Using a lineman's test set, check for the proper audio
level on the Tip and Ring leads and also at the
source.
2. Low volume
from speaker
2a. Check that volume control is turned up.
2b. Check voltage at the speaker assembly when in use,
-18 to -24VDC required.
2c. Using a lineman's test set, check for proper audio
level on Tip and Ring leads. It is possible that some
low level audio will be heard with only one side of Tip
and Ring connected.
3. Loud squeal
(feedback)
3a. Turn down (counter-clockwise) volume of the
speaker.
3b. Increase the distance between the telephone and the
speaker.
3c. Install a noise canceling handset on the telephone in
severe problem areas.
3d. Install a V-9962, Digital Feedback Eliminator.
(Tip)
(Ring)
(-24VDC)
(GND)
One-Way
Amplified
Speaker
Page
Out
Valcom Page
Control
Valcom -24VDC
Power Supply
