Issue 2

947190

PagePac

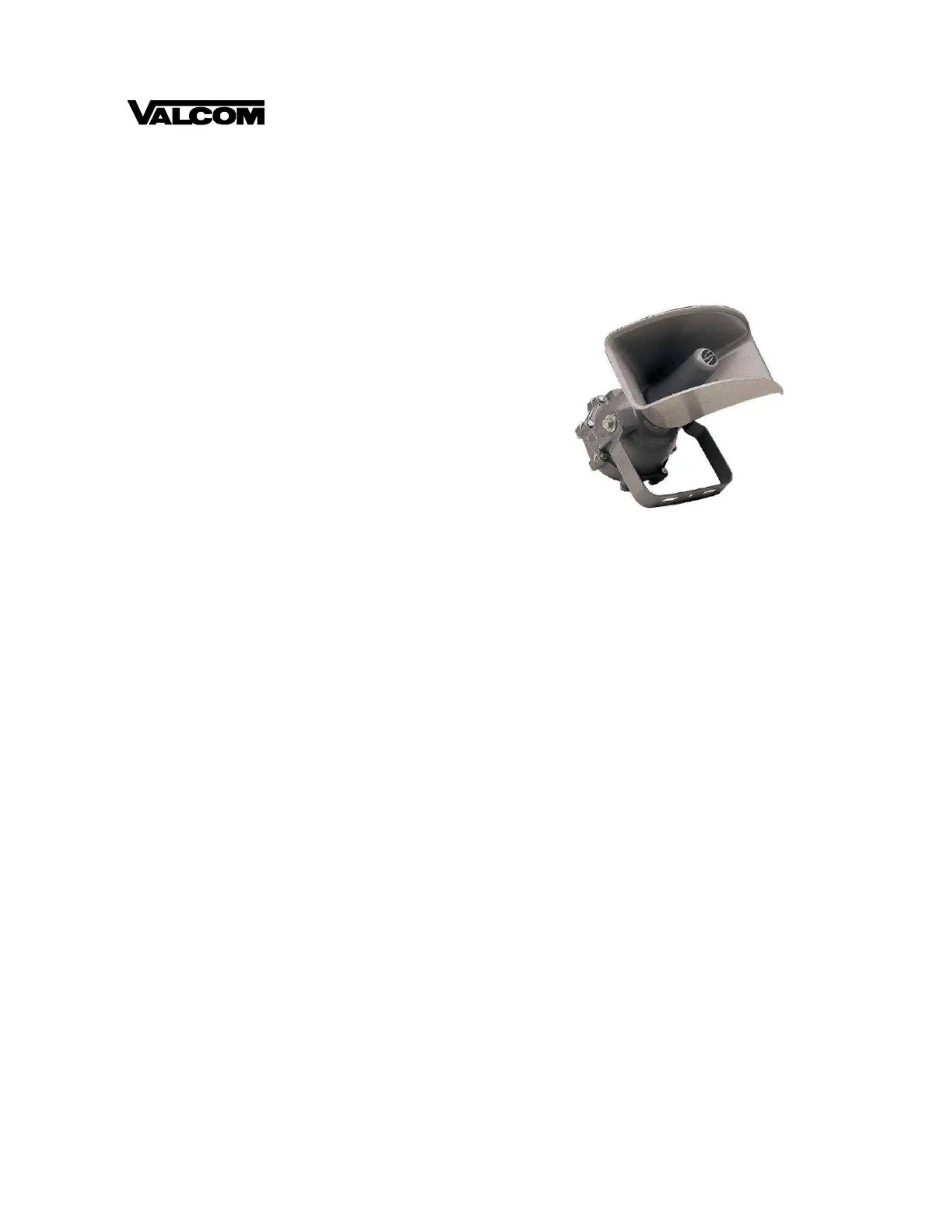

40 WATT EXPLOSION PROOF HORN

V-5331215A

INTRODUCTION

Explosion Proof Horn Speakers are constructed so

that all electrical components are sealed from the

atmosphere and may be used in areas where

ﬂammable substances are present. The explosion

proof speakers require some assembly before

installation (See Figure 1).

Explosion proof speakers are mounted, using the

U-shaped mounting bracket (Attached to each

speaker). These brackets are intended primarily for

mounting on ﬂat surfaces, and each bracket has three

holes which may be used for installing mounting

hardware. Speaker position in the vertical axis may be

adjusted by loosening the bolts that secure the

bracket to the speaker body (See Figure 1).

SPECIFICATIONS

Features

• UL/CSA Listed

• Heavy Duty Construction

• Omni-Directional Mounting Bracket

• 5 Tap Settings (2.5W, 5W, 10W, 20W, 40W)

Nominal Speciﬁcations

• Dispersion: Wide Angle

• Input: 70.7V Line

• Output: 101dB - 113dB

Dimensions/Weight

• 16.50” Diameter x 21.50” D

(41.91cm x 54.61cm)

• 27 lbs. (12.2 kg)

Environment

• Temperature: -4 to +131°F (-20 to +55°C)

• Humidity: 0 to 95%

INSTALLATION

Mounting

Separate the horn and the base of the speaker by

holding the base of the speaker tightly and turning the

horn counterclockwise (See Figure 1, View 1).

Separate the two halves of the speaker base by

removing the eight bolts (See Figure 1, View 2).

Make the conduit entry into the speaker as required

by local ordinances for the class and type of speaker

used (See Figure 1, View 3).

On the speaker cable, separate the inner wires for a

distance of 3 or 4 inches by stripping away insulation

from the main cable. If using shielded cable, the inner

wire without insulation is the shield wire. Strip

approximately 1/2 inch of insulation from the end of

each of the smaller insulated wires.

Note: The cable must enter the speaker through a

conduit that has been installed according to local

ordinances for the class and type of speaker used.

Connect the wires on terminals 1 and 2. If shielded

cable is used, either splice the shield wire to provide a

continuous shield to the next speaker or clip the

shield wire at the point where it emerges from the

main cable, as appropriate. The shield wire should not

be terminated on the speaker.

POWER ADJUSTMENTS

If necessary, remove the power tap selection wire

(White wire) and reattach it to the desired power tap.

The numbers on the terminal strip indicate the output

in Watts for a 70Volt paging system (On a 25Volt

paging system, the output will be approximately 1/8 of

that indicated (See Table 1). Reassemble the two

halves of the speaker case by reinstalling the eight

bolts.

CONNECT TO DESIRED POWER TAP

FROM AMPLIFIER

40W 20W 10W 5W 2.5W

3 2 1

Each explosion proof speaker has a 1/2-inch conduit

access into the sealed case. Conduit entry into the

speaker must be made in accordance with local codes

for the Class and Group of speaker being used.

See Connection Procedures.

CONNECTION TO AMPLIFIER

Exercise special care in removing back cover of

explosion proof driver enclosure (Part 1) to avoid

damaging machined surfaces. Prior to reassembly,

make certain that joining surfaces of enclosure are

free of dirt. Tighten all cover bolts completely. To

provide the speciﬁed protection in hazardous

locations, please note that no compound of any type

is to be applied on machined ﬂange.

TABLE 1. 40Watt Explosion Proof

Impedance 70V Power 25V Power

Tap Setting Ohms Watts Watts

1 2.50 0.330 2K

2 1K 5.00 0.650

3 500 10.0 1.30

4 250 20.0 2.60

5 125 40.0 4.80

TECHNICAL ASSISTANCE

When calling, have a VOM and a telephone test set

available and call from the job site.

Call (540) 563-2000 and press 1 for PagePac

Technical Support or visit our websites at

http://www.pagepac.com and .

www.valcom.com

Should repairs be necessary, attach a tag to the unit

clearly stating company name, address, phone

number, contact person and the nature of the

problem. Send the unit to:

Valcom, Inc.

PagePac® Repair Dept.

5614 Hollins Road

Roanoke, VA 24019- 5056

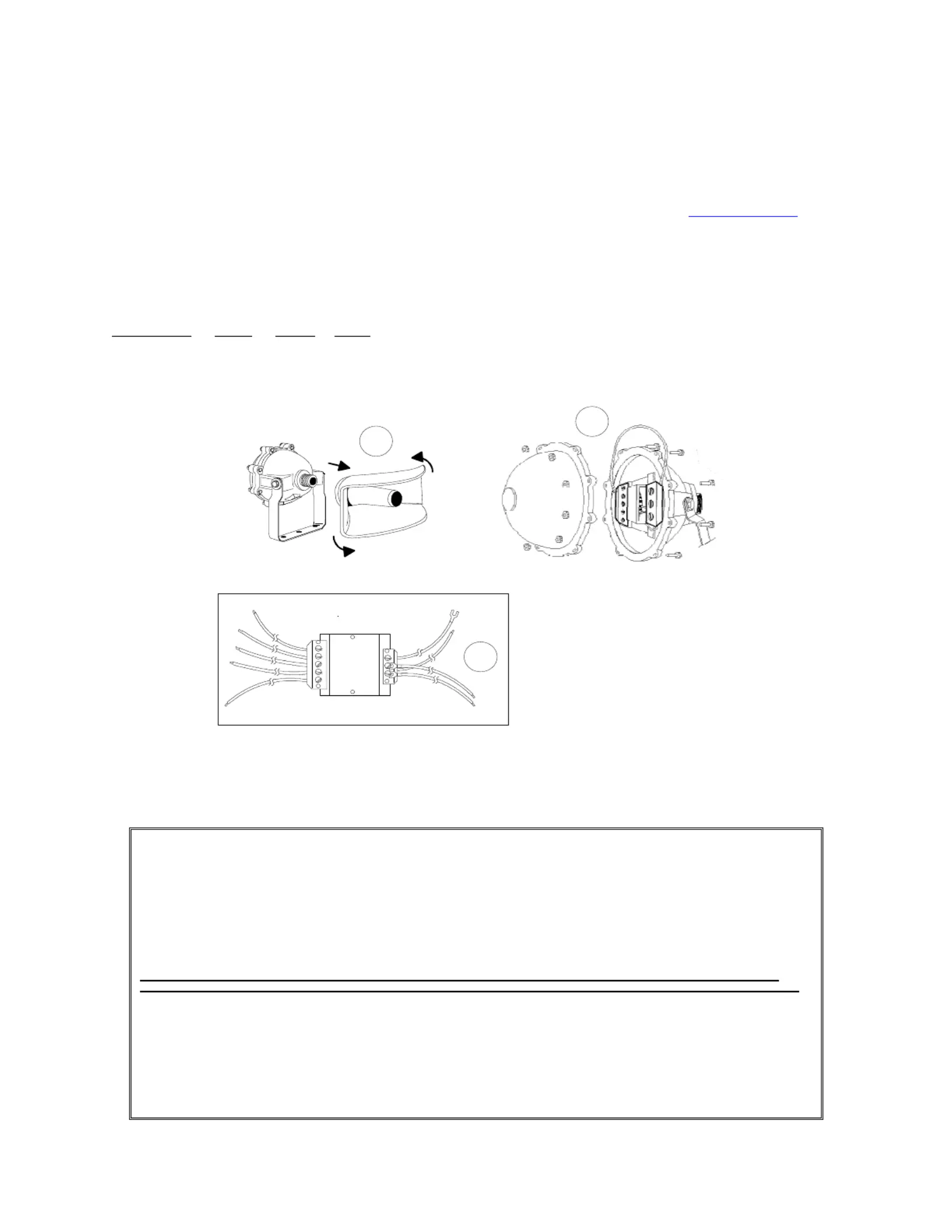

FIGURE 1

VALCOM LIMITED WARRANTY

Valcom, Inc. warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from

the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty

period, provided that:

1. inspection by Valcom, Inc. indicates the validity of the claim;

2. the defect is not the result of damage, misuse, or negligence after the original shipment;

3. the product has not been altered in any way or repaired by others and that factory sealed units are unopened (a service charge plus parts and labor

will be applied to units defaced or physically damaged);

4. freight charges for the return of products to Valcom are prepaid;

5. all units ‘out of warranty’ are subject to a service charge. The service charge will cover minor repairs (major repairs will be subject to additional

charges for parts and labor).

This warranty is in lieu of and excludes all other warranties, expressed or implied and in no event shall Valcom, Inc. be liable for any anticipated

proﬁts, consequential damages, loss of time or other losses incurred by the buyer in connection with the purchase, operation, or use of the product.

This warranty speciﬁcally excludes damage incurred in shipment. In the event a product is received in damaged condition, the carrier should be notiﬁed

immediately. Claims for such damage should be ﬁled with the carrier involved in accordance with the F.O.B. point.

Headquarters: In Canada

Valcom, Inc. CMX Corporation

5614 Hollins Road 35 Van Kirk Drive #11 and 12

Roanoke, VA 24019-5056 Brampton, Ontario L7A 1A5

Phone: (540) 563-2000 Phone: (905) 456-1072

FAX: (540) 362- FAX: (905) 456- 9800 2269
