Issue 4
947165
1
by
PagePac®
P-TEC VOICE PAGING SPEAKERS
V-5330100 (VOICE COIL)
V-5330200 (70 VOLT)
INTRODUCTION
P-TEC Voice Paging Speakers are suitable for
voice paging as well as background music. The
V-5330200 is a 70 Volt model with adjustable taps
and volume control. The V-5330100 is a voice coil
(45 Ohm) 3.4 Volt model with volume control.
P-TEC speakers consist of a 3.6 inch cone speaker
mounted in a unique surface-mount baffle. The
baffle is designed for mounting on acoustic tile,
such as those normally found in suspended-
ceilings; and can be mounted without cutting large
holes in the tile. The mounting pins can be
removed for mounting in a hard ceiling. The
speaker housing has screw holes for securing
speaker without mounting pins. Although the
P-TEC speakers are designed especially for
standard suspended ceilings, they can be used on
many types of ceiling materials.
DIMENSIONS/WEIGHT
• 8.00” Dia x 2.50” H (20.32cm x 6.35cm)
Voice Coil 0.75 lbs. (0.34 kg)
70 Volt 1.25 lbs. (0.57 kg)
INSTALLATION
Selecting the Power-Tap Wire (70V)
Note: For the V-5330100 Speakers (Voice Coil),
begin at Suspended Ceiling Installation.
1. Remove the Quick-Connect connector from the
accessory pack.
2. Select the desired power-tap wire:
Yellow = 1/4W
Red = 1/2W
Green = 1W
White = 2W
Blue = 4W
Note: Refer to spacing chart (Figure 6) for
recommended speaker spacing.

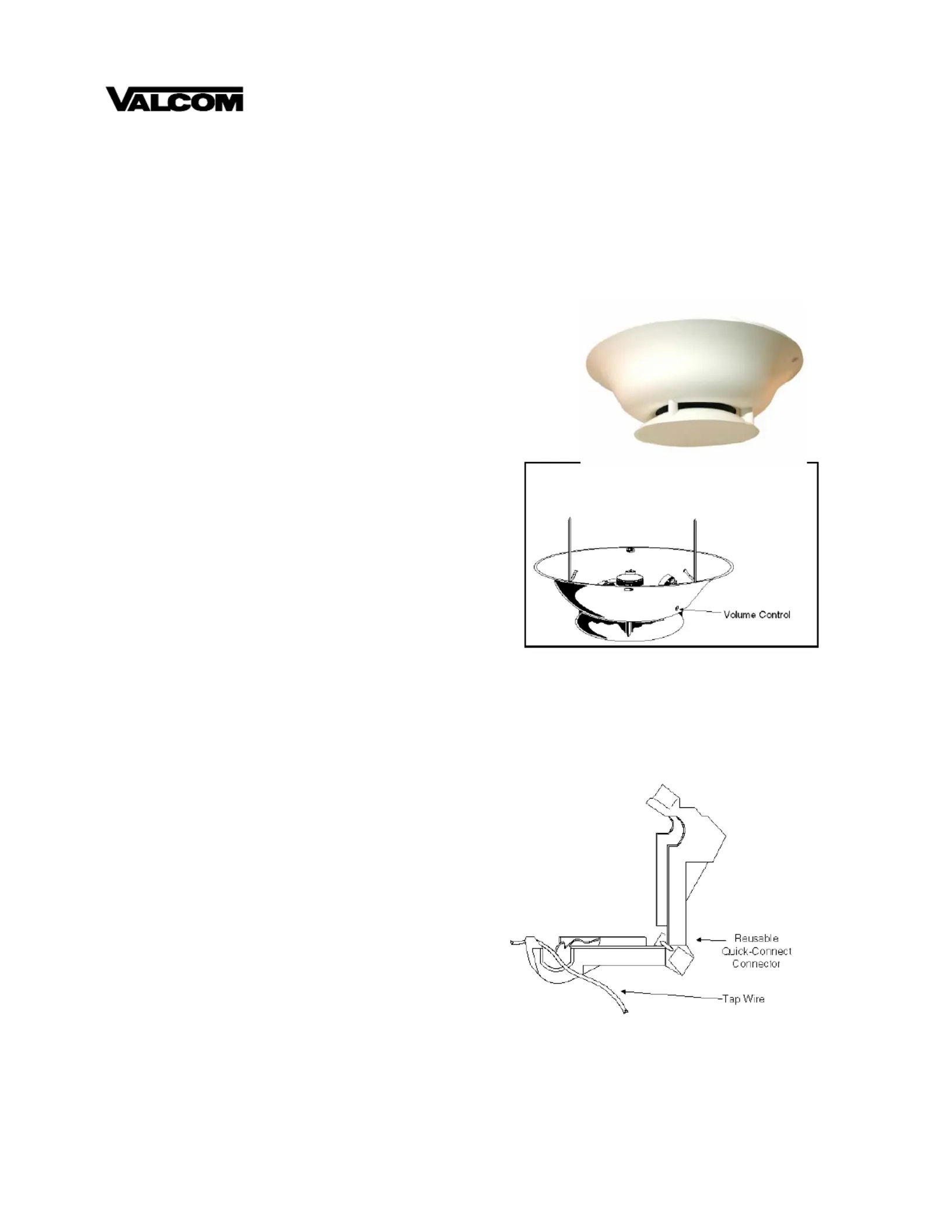

Figure 1. P-TEC Paging Speaker (70V shown)
3. Install the Quick-Connect connector on the
wire. Use pliers to close the connector over the
wire. The connector can be removed by prying
it open with a screwdriver, and can be reused
several times (See Figure 2).
Figure 2. Attaching the Reuseable Quick
Connect Connector (V-5330200 only)
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/valcom/v-5330100/html/bg2.png)
2
4. Connect the power-tap wire to the gold (+)
terminal (See Figure 3).
5. Arrange the unused power-tap wires neatly
inside the speaker housing and tape them to the
inside of the housing.
Figure 3. Connecting the Tap Wire
(V-5330200 Only)
Suspended Ceiling
Note: Wrap wires around strain relief posts so
speaker wires will not pull free.
1. Lift the adjacent ceiling tile and slide it out of the
way.
2. Install the speaker by inserting the mounting pins
through the ceiling tile, and hold the speaker in
place.
3. Place the wire and washers, and speaker
mounting clips over mounting pins (So pins slide
through clips).
Figure 4. P-TEC Installation
Note: Washers provide isolation from the pins if
the back of the tile is covered with metal
foil.
4. If necessary, adjust paging volume after instal-
lation. The volume control is located on the side
of the speaker. Use a small screwdriver to turn
the control.
5. Install the volume control cover found in the
accessory pack.
Note: When using a PagePac® Amplicenter,
music volume should be adjusted at the
paging amplifier or music source. Adjust
paging before adjusting background music.
Maintain Speaker Phasing
When using multiple speakers in a single run, keep
speakers in phase by connecting the speaker wires
to the same spike on each speaker (Either wire can
connect on either spike, as long as the pattern is
followed on each speaker). The gold spike is the
plus (+) terminal (See Figure 5).
Figure 5. Maintaining Speaker Phasing
Handling Shielded Speaker Cable
V-5330200 Only
If you are using shielded speaker cable, splice the
shield wire at the speaker location so a continuous
shield is maintained. When connecting a single
speaker or the last speaker on the run, clip the
shield wire where it emerges from the outer
insulation on the speaker cable.
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone test
set available and call from the job site. Call
(540) 563-2000 and press 1 for PagePac
Technical Support,or visit our websites at
http://www.pagepac.com and www.valcom.com .
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address, phone
number, contact person and the nature of the
problem. Send the unit to:
Valcom, Inc.
PagePac® Repair Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/valcom/v-5330100/html/bg3.png)
3
NOISE
LEVEL
IN dB
55 dB
56 dB
57 dB
58 dB
59 dB
60 dB
61 dB
62 dB
63 dB
64 dB
65 dB
66 dB
67 dB
68 dB
69 dB
70 dB
71 dB
72 dB
73 dB
74 dB
75 dB
76 dB
77 dB
26
24
22
20
16
15
14
12
10
8
SPL-76
.25 WATT
SPL-78
.50 WATT
SPL-80
1.0 WATT
P-TEC SPEAKER PROJECTION DISTANCE
SOUND PRESSURE LEVELS AND WATTAGE SETTINGS FOR 70 VOLT SPK
SPL-83
2.0 WATT
24
22
20
16
15
14
12
10
8
24
22
20
16
15
14
12
10
8
24
22
20
16
15
14
12
10
8
24
22
20
16
15
14
12
10
8
MINIMUM
MOUNTING
HEIGHT
15 FT
10 FT
8 FT
P-TEC SPEAKERS ARE INTENDED FOR USE IN STANDARD 8 FOOT DROPPED CEILING TILE.
CEILING HEIGHTS OF MORE THAN 8 FEET OR HIGHER, NOISE LEVELS MAY REQUIRE LESS
THAN THE STANDARD 25 FOOT SPACING OR HIGHER TAP SETTINGS.
SPL-86
4.0 WATT
