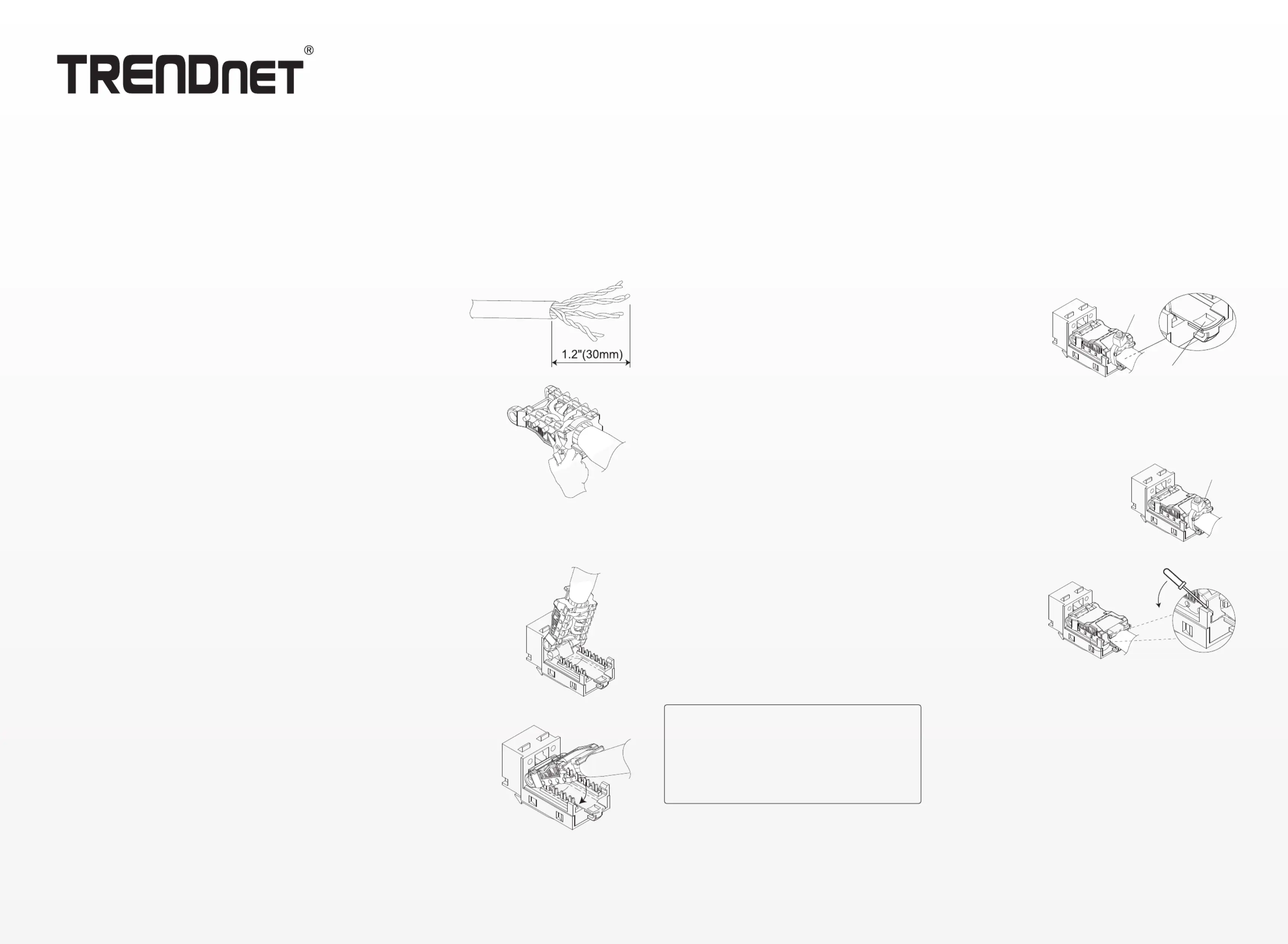

TC-K25C6/TC-K50C6
Cat6 Keystone Jack
Quick Installation Guide
T568B Pinout
1. White Orange
2. Orange
3. White Green
6. Blue
4. White Blue
5. Green
7. White Brown
8. Brown
5. Feed the included cable tie through the
cable fixture hole and tighten to secure
the termination cap and keystone jack
together.
1. Strip approximately 30mm (1.2 in.) of
jacket from the twisted pair cable.
Unloading the cable
1. Cut the cable tie.
2. Using a flathead screwdriver, gently
pry each side of the termination cap
until released.
4. Press the termination cap down until
flush with the keystone jack. Ensure each
wire is firmly anchored in each slot.
3. Clip the termination cap onto the
keystone jack hinge.
2. Insert the cable into the termination cap
and fan out all four twisted pairs. Using the
T568A or T568B color labeling, position
each wire appropriately into the color
labeled slots. Cut excess wires.
Cable Fixture Hole
Cable Tie
Cable Tie
Cut off cable tie
