Seite 1/24

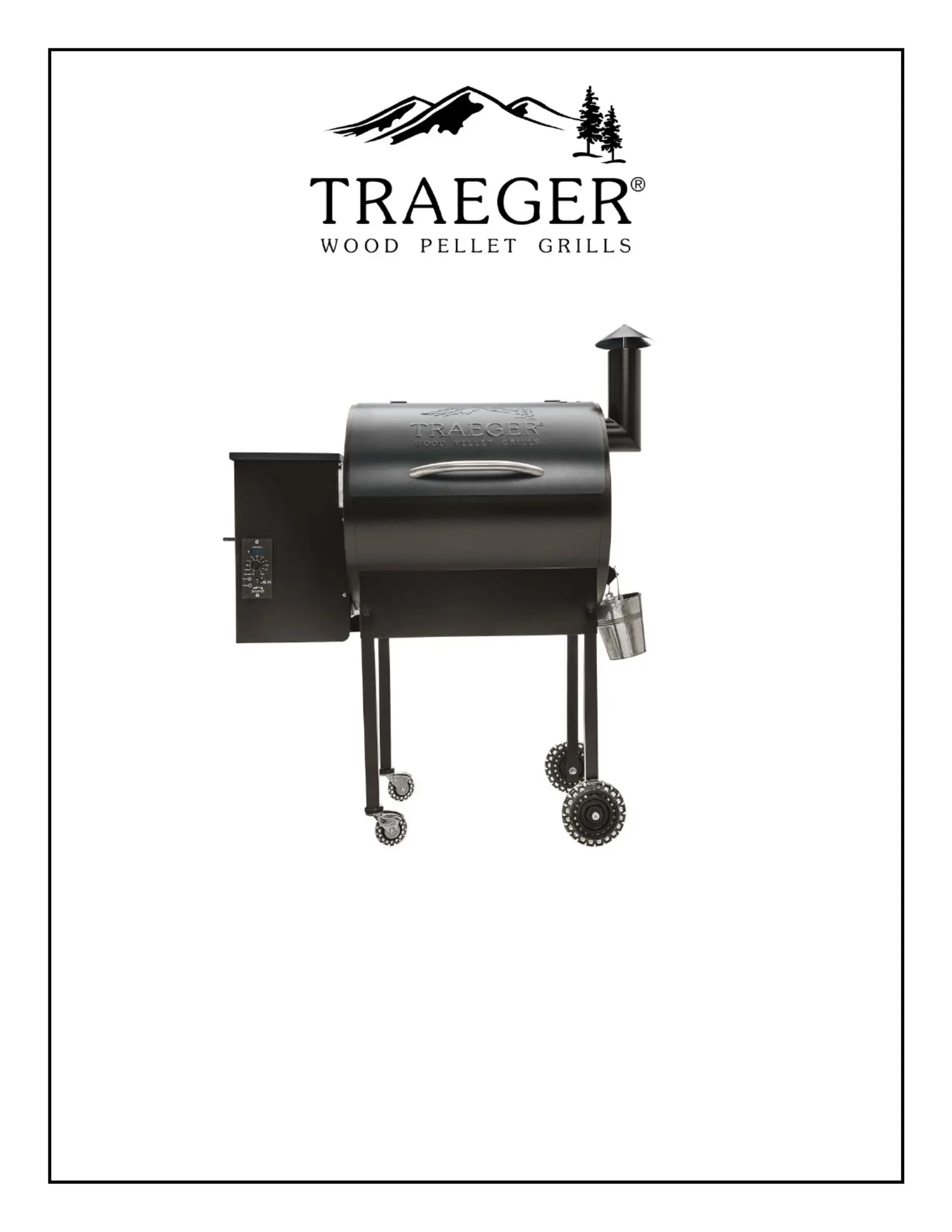

OWNER’S MANUAL
BBQ07E.02
RESIDENTIAL PELLET GRILL
FOR OUTDOOR USE ONLY!
“TASTE THE DIFFERENCE”
Please read this entire manual before assembly, installation of your Traeger Pellet Grill.
Failure to follow these instructions could result in property damage, bodily injury or even
death. Contact your local building or re ocial about restrictions and installation
inspection requirements in your area.
SAVE THESE INSTRUCTIONS
A MAJOR CAUSE OF FIRES IS FAILURE TO
MAINTAIN REQUIRED CLEARENCES (AIR
SPACES) TO COMBUSTIBLES MATERIALS. IT IS
OF UTMOST IMPORTANCE THAT THIS PRODUCT
BE INSTALLED ONLY IN ACCORDANCE WITH
THESE INSTRUCTIONS.
DANGER! Hazardous voltage is present which can shock, burn or cause death. Disconnect the power
cord before servicing the Grill unless otherwise noted in the Owner’s Manual .
DANGER! Never use or store flammable liquids near the Grill.
DANGER! Never use gasoline or lighter fluid to manually light your Grill. Use ONLY Alcohol Gel for this
procedure AND according to the instructions in the Owner’s Manual.
WARNING! When operating this Grill, maintain a ance of 12” from the Grill to combustibles.MINIMUM dist
WARNING! When operating this Grill under overhead combustibles a MINIMUM .of 40 inches is required
WARNING! ONLY Assemble and operate this Grill per the instructions in this Owner’s Manual.
WARNING! This Grill is intended for OUTDOOR USE ONLY.
WARNING! Never use heating fuel pellets in the Grill, due to potential hazardous contaminants and
additives that may be present.
WARNING! ONLYUse TRAEGER BRAND BBQ WOOD PELLETS, which are specifically made to work
in our Grills. Traeger wood pellets are rated for 8500 BTU per LBS with an ash content of 2%.
CAUTION! Always store wood pellets in a dry location, away from heat producing appliances and other -
fuel containers.
CAUTION! Keep the Grill See the in this Owner’s Manual clean – cleaning Instructions .
CAUTION! Do not use accessories not specified for use with this Grill.
INTRODUCTION
Congratulations on your purchase of this Traeger Wood Pellet Grill, Model BBQ07E.02.
With proper set-up, operation and maintenance, the Grill will provide you with delicious food
and years of cooking enjoyment.
NOTE: NUMBERS FOLLOWING PART NAMES REFER TO THE COMPONENT
D . IAGRAM FOUND NEAR THE END OF THIS MANUAL
When you un-box the Grill, remove all parts from the box and inside the Grill. Remove
any remaining packaging material from inside the Grill as well. Make sure you have, and
can identify all of the following parts:
Qty Item Description Component Diagram Reference Number
(1) ----------------------------------- ------ Grill Frame Assembly - 2
(1) Hopper / Burner Assembly-------------------- ---------------- 20
(2) Caster Leg - Assemblies----------------------------- ------ ---- 99
(2) ---------------- ----------------- ---- Wheel Leg Assemblies - -- 104
(1 - - -- 1 ) Porcelain Grill ------------------------------------ ------------ 47
(1) Grease Drain Pan------------------------------ ----------------- 141
(1) -------------------------------------------------- ----- Heat Baffle - 140
(1) Flue Pipe-------------------------------------------------- -------- 113
(1) Chimney Cap Assembly------------------------ --------------- 1 19
(1) Chrome Door Handle----------------------- ----------------- --- 143
(1) Grease Bucket------ ----------------------------- --------------- - - 112
(1) Hardware Kit-------------------------------------- -- ------------ -- NA
You will need to complete the assembly which includes:
1) Mounting the Caster Leg Wheel Assemblies (99) and the Leg Assemblies (104) to the
Grill.
2) Attaching the Chrome Door Handle (143) to the Door (80).
3) Attaching the Flue Pipe (113) to the Grill Frame Assembly (2).
4) Mounting the Chimney Cap Assembly (119).
5) Positioning the Heat Baffle (140) over the Hopper assembly (20).
6 ) Positioning the Grease Drain Pan (141) over the Heat Baffle (140).
7) Positioning the Porcelain Grill (147) on the Grill Supports.
8) Hanging the Grease Bucket (112).
TOOLS ARE SUPPLIED FOR ASSEMBLY
(2) Open end wrenches (I)
(1) Hex key (Allen Wrench) H
Follow these step-by-step instructions and you’ll be cookin in no time!g
Record your date of purchase here:_____________________________________________
Record your serial number here:_____________________________________________
