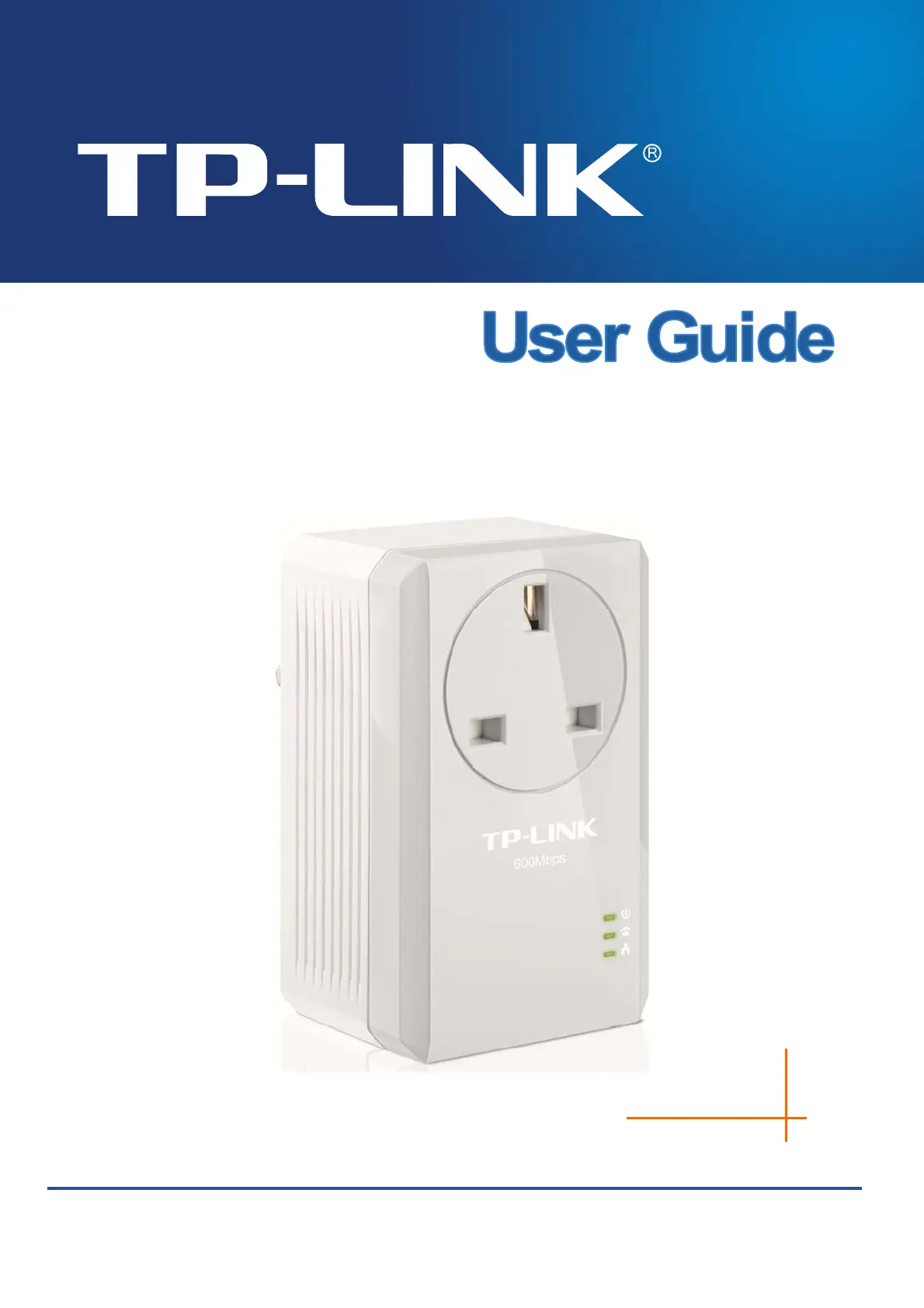

Seite 1/15
TL-PA4010P
AV600 Passthrough Powerline Adapter
REV1.0.0
1910011652
CONTENTS
Chapter 1 Introduction ................................................................................. 1
1.1 System Requirement ................................................................................ 1
1.2 Important Safety Instructions .................................................................... 1
1.3 Conventions.............................................................................................. 2
1.4 LED Indicator ............................................................................................ 2
1.5 Physical Interface ..................................................................................... 3
Chapter 2 Connecting Mechanism.............................................................. 5
2.1 Introduction............................................................................................... 5
2.2 Connection Instruction .............................................................................. 5
2.3 Hardware Connection – Computer ........................................................... 6
2.4 Hardware Connection – Internet............................................................... 6
Chapter 3 Advanced Feature: How to Use the Pair Button....................... 8
3.1 Pair (Secure with 128 bits-AES) ............................................................... 8
3.2 Set Up a Secure Powerline Network ........................................................ 8
3.3 Reset ........................................................................................................ 8
Appendix: Troubleshooting ....................................................................... 10
TL-PA4010P AV600 Passthrough Powerline Adapter
1
Chapter 1 Introduction
This device is an AV600 Passthrough Powerline Adapter which transforms your house’s existing
electrical wiring into a ubiquitous networking infrastructure. Simply plug this AV600 Passthrough
Powerline Adapter into an ordinary AC power outlet which will easily extend your Cable/xDSL
broadband connection or existing Ethernet (LAN) network to any other electrical outlet on the same
electrical circuit of a house without the need of any new cabling.
This Powerline Adapter supports up to 600Mbps data rate over the existing household power circuit.
With data rates of 600Mbps, full multimedia application can easily be supported throughout the whole
house in addition to Internet access. This Powerline Adapter uses the existing power lines installed in a
home as a path to transmit digital data, voice, audio and video between devices.
To ensure data communication’s security and multimedia applications, this Powerline Adapter support
built-in 128-bit AES encryption.
The new Powerline Adapter TL-PA4010P from TP-LINK provides extra convenience and better
performance for your home network with its integrated electrical socket and mains filer. The common
problem of wasting an electrical out devices or multiple sockets can let is solved and additional terminal
be connected to the adapter just like to a normal wall socket. What’s more, the data transmission in the
network can be significantly improved by the integrated mains filter.With minimum setup, you can install
and use this Powerline Adapter within minutes. The adapter adds two useful functions.
1． Existing connection with a new unassociated device added via the Pair Button.
2． Reset to default setting via the tpPLC Utility or the Pair Button.
Note:
TP-LINK tpPLC Utility is provided to manage powerline devices. For detailed instructions, please refer to
the tpPLC Utility’s User Guide.
1.1 System Requirement
a) At least two AC (100–240V~, 50/60Hz) power outlets with standard home power wiring
b) A computer with the following:
Operating System with TCP/IP installed
Pentium III compatible processor and above
Ethernet LAN card installed with TCP/IP protocol
64 MB RAM or more
50 MB of free disk space (Minimum)
1.2 Important Safety Instructions
1. Do not open this product or attempt to service it; it may expose you to dangerous high voltage or
other risks.
2. Do not operate this product near water.
3. Do not place or operate this product near a radiator or a heat register.
4. Do not expose this product to dampness, dust or corrosive liquids.
5. Do not connect this product or disconnect it from a wall socket during a lightning or a thunderstorm
