COD. 04037AUSTK – 26.11.2010

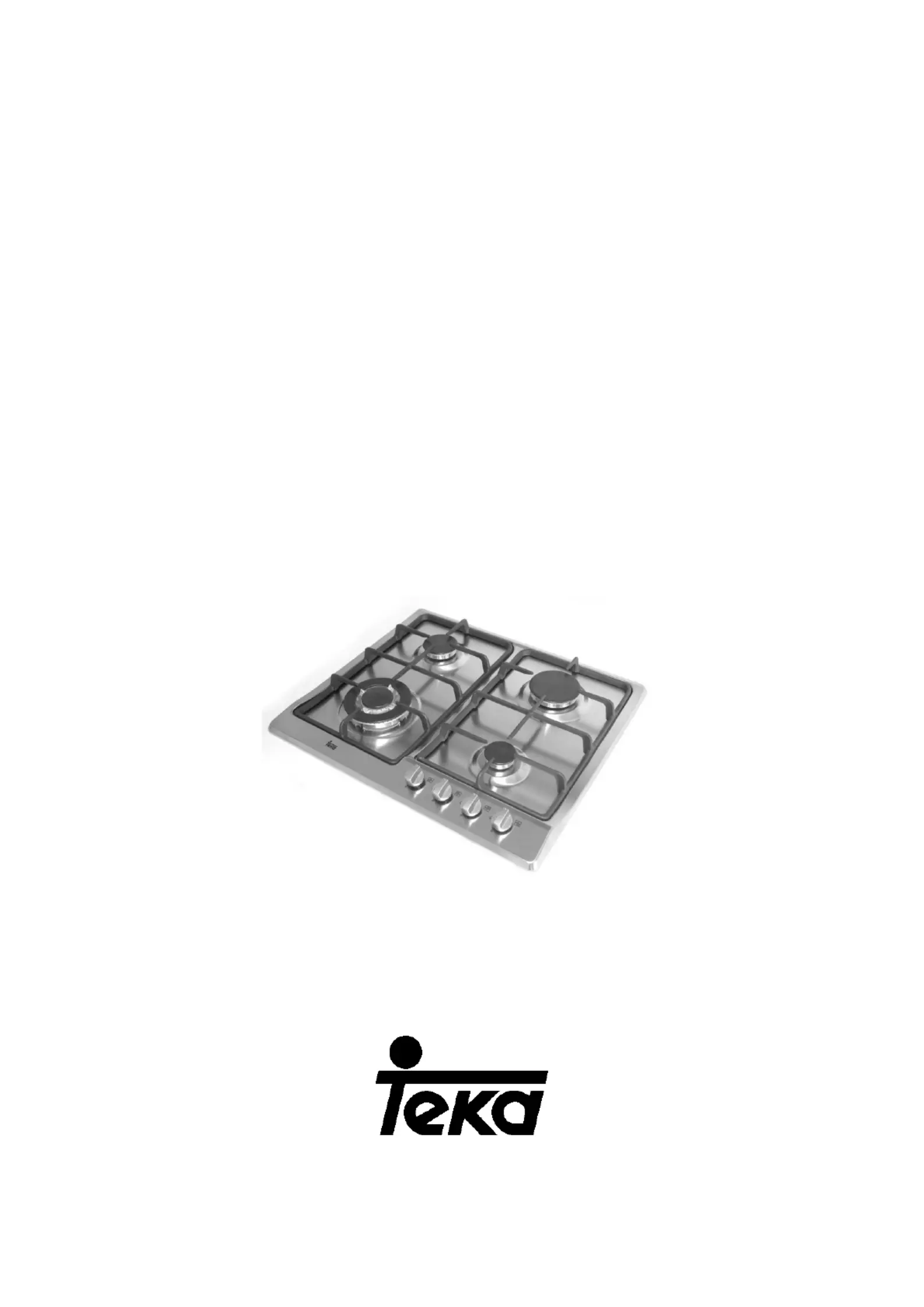

Instructions for the installation
and advice for the maintenance
EH/60 4G AI AL TR CI
Instructions Manual
EH/60 4G AI AL TR CI
2
NG U - LPG
1 Ultra rapid gas burner of 15.0 MJ 11.9 MJ
2 Rapid gas burner of 12.0 MJ 10.8 MJ
3 Semirapid gas burner of 7.0 MJ 6.3 MJ
4 Auxiliary gas burner of 4.0 MJ 3.6 MJ
6 Enamelled steel pan support 2F right
7 Enamelled steel pan support 2F left
8 Burner n° 1 control knob
9 Burner n° 2 control knob
11 Burner n° 3 control knob
12 Burner n° 4 control knob
Attention: this appliance has been manufactured for domestic use only. Do not modify this
appliance.
DESCRIPTION OF THE HOT PLATES
MODEL: EH/60 4G AI AL TR CI
CODE: 40225007
3
1) BURNERS
A diagram is screen-printed above each knob on the
front panel. This diagram indicates to which burner
the knob in question corresponds. After having
opened the gas mains or gas bottle tap, light the
burners as described below:
- manual ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
place a lighted match near the burner.
- Electrical ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress and release the ignition button “E”.
- Automatic electrical ignition
Push and turn the knob corresponding to the
required burner in an anticlockwise direction until it
reaches the full on position (large flame fig. 1), then
depress the knob.
- Lighting burners equipped with flame failure
device
The knobs of burners equipped with flame failure
device must be turned in an anticlockwise direction
until they reach the full on position (large flame
fig. 1) and come to a stop. Now depress the knob in
question and repeat the previously ind icated
operations.
Keep the knob depressed for about 10 seconds
once the burner has ignited.
Note: you are advised not to try and light a
burner if the flame divider (Burner Cap) is not
correctly placed.
HOW TO USE THE BURNERS
Bear in mind the following indications in order to
achieve maximum efficiency with the least possible
gas consumption:
- use adequate pans for each burner (consult the
following table and fig. 2).
- When the pan comes to the boil, set the knob to the
reduced rate position (small flame fig. 1).
- Always place a lid on the pans.
- Use only pan with a flat bottom and in thick metal.
Burners Power ratings Pan Ø in cm
NG U - LPG
Ultra rapid 15.0 MJ 11.9 MJ 22 Ă· 24
Rapid 12.0 MJ 10.8 MJ 20 Ă· 22
Semirapid 7.0 MJ 6.3 MJ 16 Ă· 18
Auxiliary 4.0 MJ 3.6 MJ 10 Ă· 14
WARNINGS:
- burners with flame failure device may only be ignited
when the relative knob has been set to the Full on
position (large flame fig. 1).
- Matches can be used to ignite the burners in a
blackout.
- Never leave the appliance unattended when the
burners are being used. Make sure there are no
children in the near vicinity. Particularly make sure
that the pan handles are correctly positioned and
keep a check on foods requiring oil and grease to
cook since these products can easily catch fire.
- Never use aerosols in the vicinity of this appliance
while it is in operation.
- If the built-in hot plate has a lid, any spilt food should
be immediately removed from this before it is
opened. If the appliance has a glass lid, this could
shatter when the hot plate becomes hot. Always
switch off all the burners before closing the lid.
- Do not store or use flammable liquids or items in the
vicinity of the hotplate.
- Not for use in marine craft, caravans or mobile
homes unless each burner is fitted with a flame
safeguard.
- For U - LPG appliances - where this appliance is
installed in marine craft or in caravans, it shall not be
used as a space heater.
- Do not modify this appliance.
- The machine must not be used by people (including
children) with impaired mental or physical
capacities, or without experience of using electrical
devices, unless supervised or instructed by an
expert adult responsible for their care and safety.
Children should not be allowed to play with the
equipment.
- Containers wider than the unit are not
recommended.
USE
FIG. 1 FIG. 2
In the event of the Burner flames being accidentally
extinguished, turn off the burner control and do not
attempt to re-ignite the burner for a least 1 minute.
