WS6620 Desktop Weather Station
Instruction Manual
Introduction
This desktop weather station comes with barometric weather prediction, clock, calendar,
indoor and outdoor temperature and humidity display. It is battery powered with AC
charger. It is recommended to use the AC charger at all times.

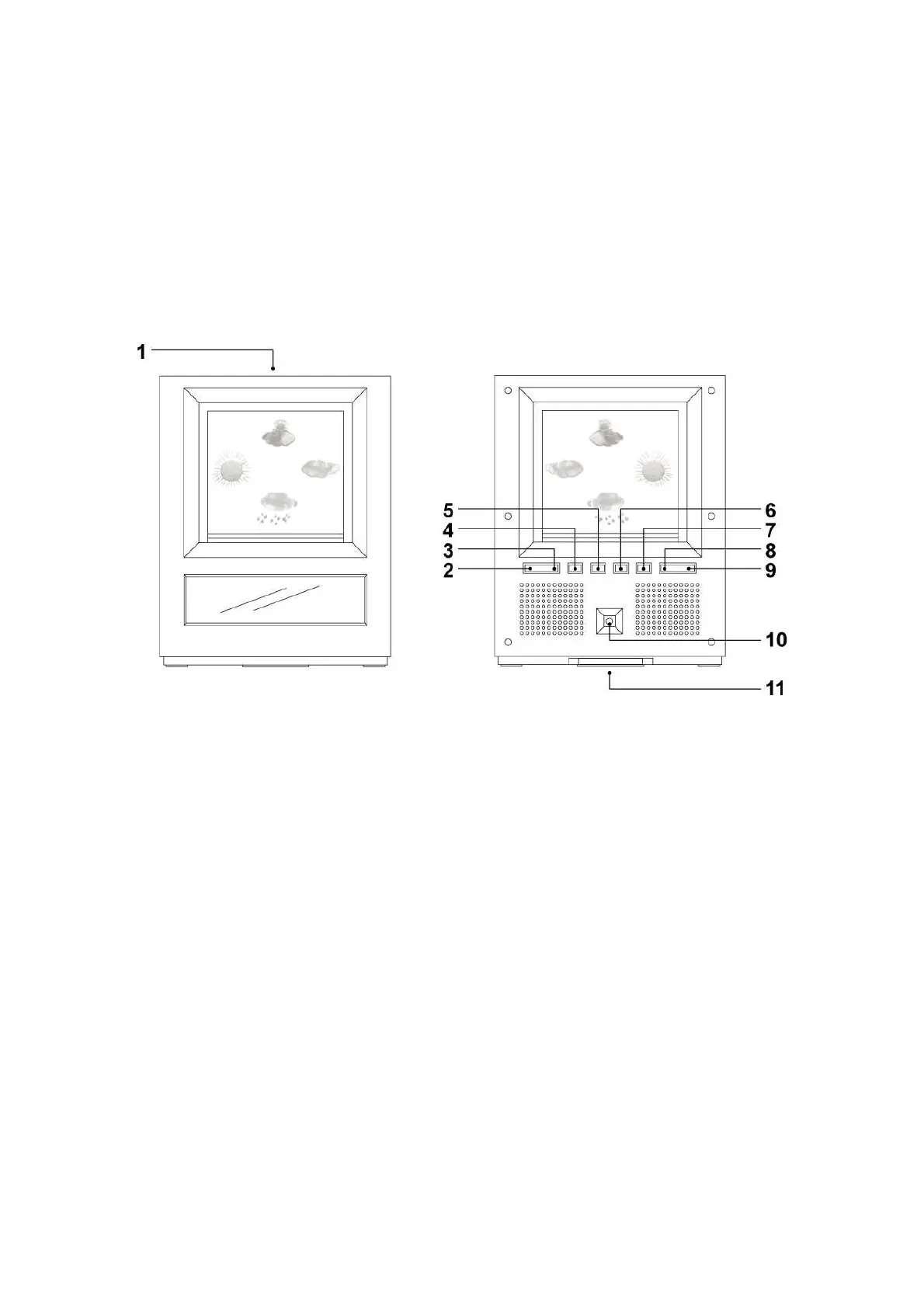

Fig. 1 Front view Fig. 2 Back view
1. ‘SNOOZE / LIGHT’ button
2. ‘MODE’ button
3. ‘SET/AL’ button
4. ‘HISTORY’ button
5. ‘+ / C / F’ button
6. ‘-/RCC’ button
7. ‘LIGHT’ button
8. ‘MAX/MIN’ button
9. ‘IN/CH’ button
10. DC line in jack
11. Battery compartment
General notes:
1. It is recommended to set up the remote temperature sensor before setting up the
weather station / clock. See “Configuring Remote Temperature Sensor(s)”
for more information. Batteries and AC adapter should be used together.
2. Please note all other clock / weather station settings seize to function when the
clock is in RCC synchronization mode. See “RCC Synchronization” for
additional information.
3. During initial installation, the temperature and humidity sensor may take up to an
hour or more to acclimatize to current conditions.
Getting started:
Installing A/C adapter
1. Plug in A/C D/C adapter at D/C input jack (10) (see figure 2). Use only approved
adapters.
Batteries installation
1. Open battery compartment (11) on the back of the unit.
2. Install / replace with 4x “AAA” size batteries in the compartment. It is
recommended that only alkaline batteries are used.
3. Replace the battery compartment (11) on the back of the unit.
4. A short beep will be heard to confirm proper installation of batteries.
5. It will take approximately 3 seconds for the screen to light up.
Batteries safety warnings:
1. Please read all instructions carefully before use.
2. Install batteries correctly by matching the polarities (+/-).
3. Always replace a complete set of batteries.
4. Never mix used and new batteries.
5. Remove exhausted batteries immediately.
6. Remove batteries when not in use.
7. Do not recharge and do not dispose of batteries in fire as the batteries may
explode.
8. Ensure batteries are stored away from metal objects as contact may cause a
short circuit.
9. Avoid exposing batteries to temperature or humidity extremes or direct sunlight.
10. Keep all batteries out of reach from children. They are a choking hazard.
11. Please retain packaging for future reference.
Setting up the weather station:
The weather station will sound once batteries are installed or ac adapter is plugged in.
1. Press - / RCC button (6) or ‘+ / C / F’ button (5) to change the current ‘ ’
weather situation of your location. See figure 3 below for the weather pattern that
is resembles your immediate area.
Sunny Cloudy Slightly cloudy Rainy
Figure 3.
2. Press “HISTORY” button (4) to confirm weather pattern.
Interpreting the weather forecast symbols
The weather station requires at least 24 hours on acclimatizing to local weather
conditions. The weather station process and analyze the weather patterns for the past
24 hours in order to determine the future weather. Until that time has elapsed, the
predicted weather forecast may not accurately reflect the actual weather for your
immediate area.
The weather station will display the symbols (see figure 3) to indicate the predicted
weather forecast for the next 12 to 24 hours for an area within a radius of approximately
30-50 km.
Note:
1. Accuracy rate might be lower in extreme weather conditions. The weather
forecast is only for reference only and it is only for domestic use only. Do NOT
rely on the weather station for weather forecast if any serious matter replies on it
including but not limited to: personal health, life and death situation, any business
or financial decisions, and/or agricultural planning.
2. The weather forecast does not display the current weather. It displays the
weather for the future.
Lit Weather Icons
The lit crystal weather icons can be switched on or off by pressing ‘LIGHT’ button (7).
Adjusting the weather station:
1. Press “HISTORY” button (4) for 3 seconds until a beep sound is heard.
2. Press - / RCC button (6) or ‘+ / C / F’ button (5) to toggle between ‘ ’
atmospheric pressure units of Pascal (hPamb) to inch of mercury (inHg)
3. Press “HISTORY” button (4) to confirm.
4. Press - / RCC button (6) or ‘+ / C / F’ button (5) to change the sea level ‘ ’
closest to your location. The sea level units are in meters (1 meter equals
approximately 3.28 feet). Contact your local weather bureaus or authorities for
more information.
5. Press “HISTORY” button (4) to confirm sea level.
6. Press - / RCC button (6) or ‘+ / C / F’ button (5) to change the current ‘ ’
weather situation of your location. See figure 3 above for the weather pattern that
is resembles your immediate area.
7. Press “HISTORY” button (4) to confirm.
Reading Pressure trend:
1. Recorded memory of the barometric pressure changes are displayed with 3
arrows to show pressure trend.
Note: It is only possible to measure the barometric pressure trend properly when
the unit remains at the same altitude. When moving around at different
