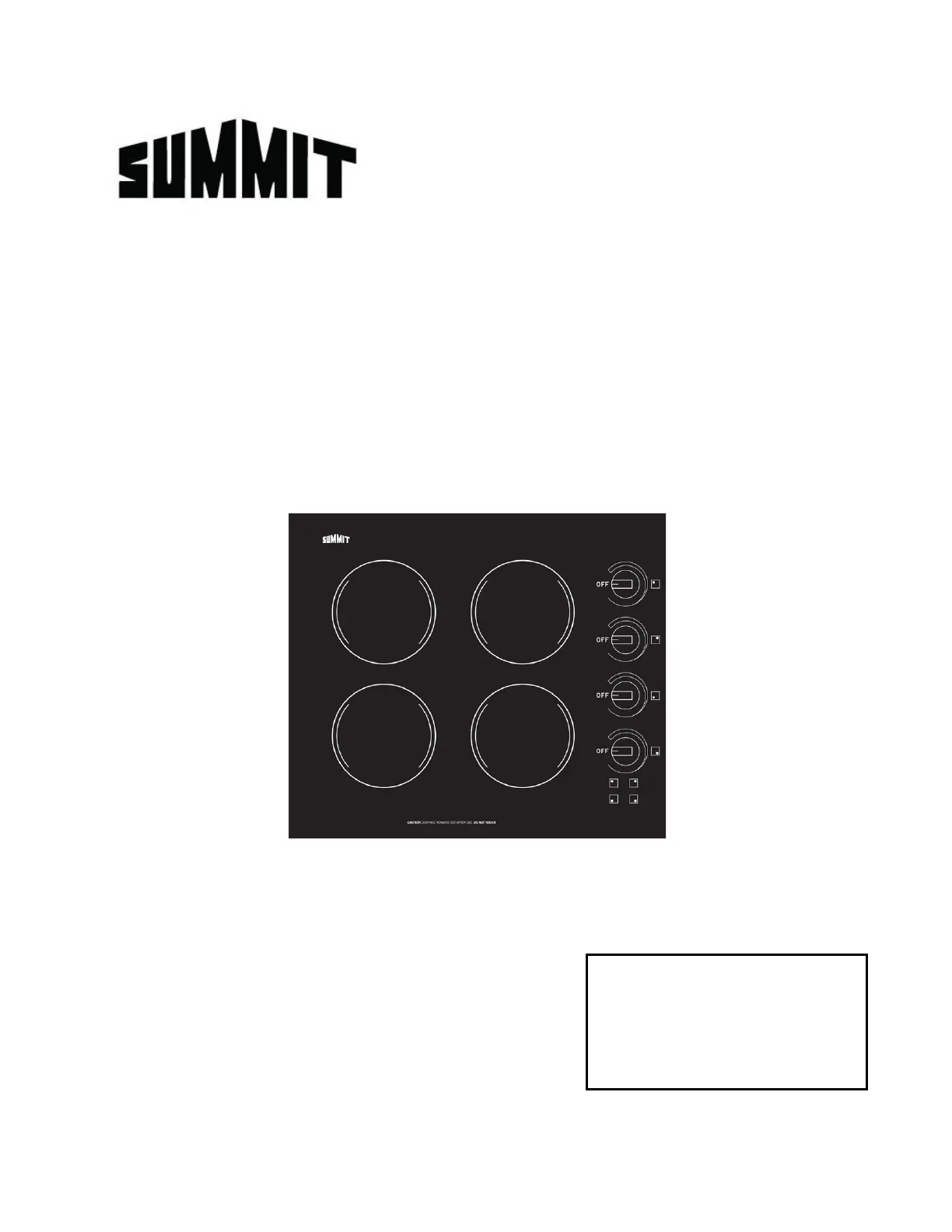

INSTRUCTION MANUAL
MODE D’EMPLOI
4- Burner Electric Cooktop
Table de cuisson Ă©lectrique Ă
4 brûleurs
Model/ Modèle CR424
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance .com
Page 1
Please read these instructions in their entirety before installation and use of your
cooktop. SAVE THIS MANUAL FOR FUTURE REFERENCE.
Table of Contents
Technical Information ........................................................................................ 1
Safety Instructions ......................................................................................... 2 - 3
Installation Instructions 4 - 9 ................................................................................
Unpacking the Cooktop ............................................................................. 4
Checking the Electrical Supply Requirements ........................................... 4
Preparing the Countertop ..................................................................... 5 - 6
Installing the Cooktop ................................................................................ 7
Electrical Connection and Wiring Diagram ................................................ 8
Final Preparations Prior to Use ................................................................. 9
Operation ...................................................................................................... 9 - 10
Cookware ................................................................................................... 9
Heating Elements ................................................................................ 9 10-
Controls & Indicators ................................................................................ 10
Cleaning ................................................................................................... 10
Warranty ............................................................................................................ 11
Technical Information
Model Number
CR424
Description
4-burner ceramic glass electric cooktop
Electrical Requirements
230 21A, 60HzV AC,
Power Rating of Burners
4 @ 1200W: Total of 4800W
Diameters B s of urner
4 burners @ 6 " .5
Overall Dimensions
24 "W x 20½"D x 3¾"H
(not including knobs)
Cutout Dimensions
22â…›" x 18â…ť" with ÂĽ" radius
For future reference, please record the Serial Number
of your cooktop here:
________________________________________
Page 2
SAFETY INSTRUCTIONS
Read this section BEFORE operating the cooktop.
This cooktop, like all appliances, has the potential to create safety
problems through careless and improper use. Please observe all of
the following safety precautions.
• Proper Installation
Be sure your appliance is properly installed and grounded by a qualified
technician.
• Never use your appliance for warming or heating the room.
• Do not leave children alone.
Children should never be left alone or unattended in the area where the
appliance is in use. They should never be allowed to sit or stand on any part
of the appliance.
• CAUTION: Do not store items of interest to a child in cabinets above
cooktop.
Children climbing on the cooktop to reach such items could be seriously
injured.
• Wear proper clothing/apparel.
Loose-fitting or hanging garments should never be worn while using the
appliance.
• U Sser ervicing
Do not repair or replace any part of the appliance. If service ever becomes
necessary, this appliance should be serviced by AUTHORIZED
PERSONNEL ONLY 1- - - . or call SUMMIT Customer Service at 800 932 4267
• Keep flammable materials away from . the cooktop
• Do not store plastic material (such as plastic utensils) in storage areas
beneath cooktop.
Plastic items with low melting temperatures should not be stored under, over
or near the cooktop.
• Do not soak removable heating elements.
Heating elements should never be immersed in water.
• Do not use water on grease fires.
Smother fire or flame or use dry chemical or foam-type extinguisher.
• Use only dry potholders.
Damp potholders on hot surfaces may result in burns from steam. Do not let
