Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: December 9, 2019 12:12 PM

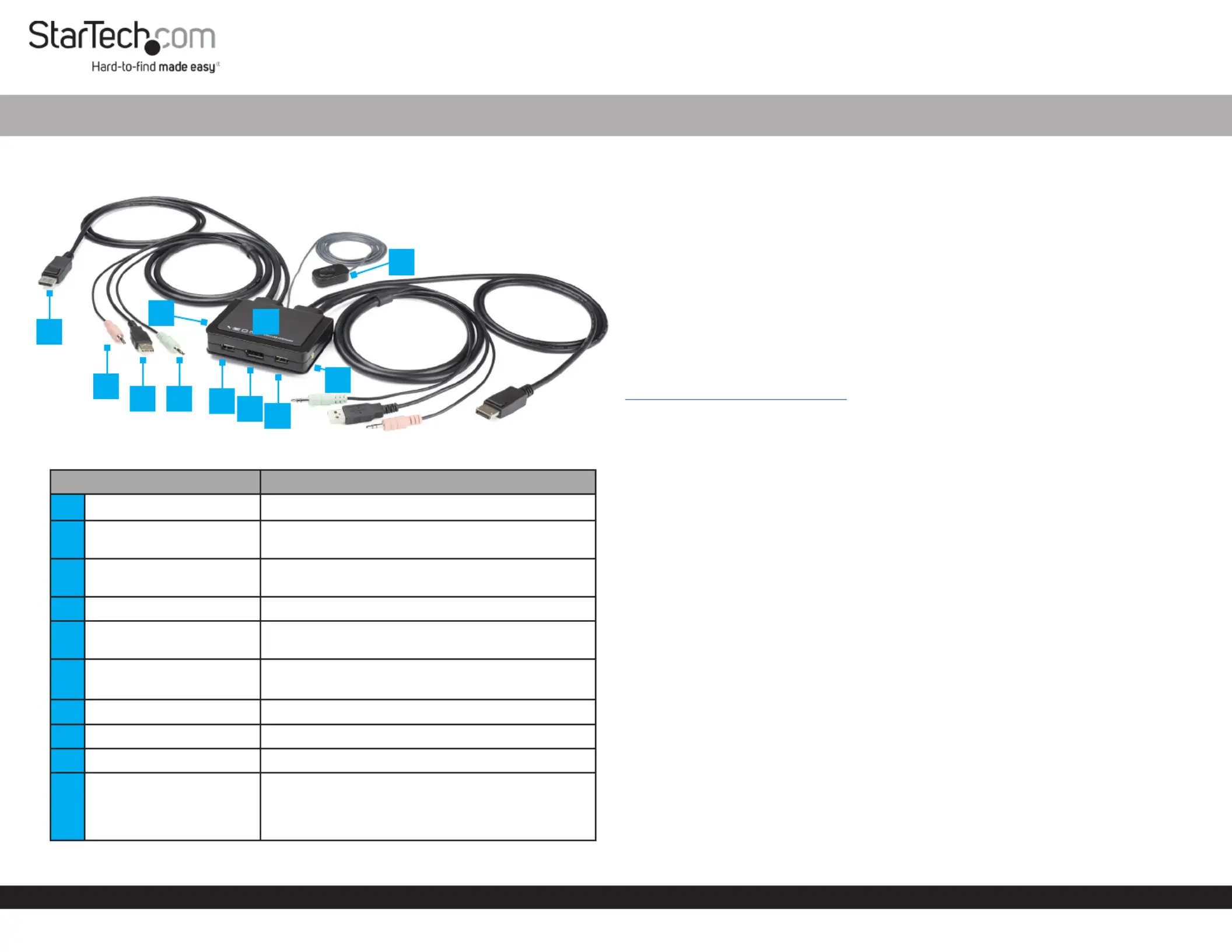

Product Diagram (SV211DPUA4K)
Component Function
1DisplayPort Connector • Connect a DisplayPort Enabled Computer
2Microphone Audio
Connector • Connect the to the Microphone Audio
Computer
3USB-A Connector • Transmit the signal of a and Keyboard Mouse
from the to the KVM Switch Computer
4Microphone Audio Port • Connect a Microphone
5Stereo Audio Connector • Connect the from the Speaker Audio
Computer
6USB HID Ports • Connect a and Keyboard Mouse
• (Optional) Connect USB Peripherals
7DisplayPort Port • Connect a DisplayPort Display
8LED Indicators • Indicates selection and activityComputer
9Stereo Audio Port • Connect Stereo Speakers
10 Remote Switch
• A wired button used to switch between
Computer 1 2 and
• Press Release Remote Switch and the to
switch between and Computer 1 2
2-Port USB DisplayPort™ Cable KVM Switch w/ Audio and Remote Switch - 4K 60Hz
Requirements
• DisplayPort Enabled Computers x 2
• DisplayPort Display x 1
• USB HID Devices (Keyboard and Mouse) x 2
• (Optional) USB Peripherals x 2
• (Optional) Microphone x 1
• (Optional) Stereo Speakers or Headphones x1
• (Optional) Headset x 1
Note: A Headset may require the use of a Headset Adapter. Check with the
manufacturer of the Headset for more details.
• (Optional) 3.5 mm Audio Cables x 2
For the latest requirements and to view the full User Manual, please visit
www.startech.com/SV211DPUA4K.
Installation
Connect the Computers
1. Connect the built-in to the Computer 1 DisplayPort Connector DisplayPort Port
on .Computer 1
2. Connect the built-in to the on Computer 1 USB-A Connector USB-A Port
Computer 1.
3. (Optional) Connect the built-in (green) to the Computer 1 Stereo Audio Connector
3.5 mm Stereo Audio Port Computer 1 on .
4. (Optional) Connect the built-in (pink) Computer 1 Microphone Audio Connector
to the on .3.5 mm Microphone Audio Port Computer 1
5. Repeat steps 1-4 to install .Computer 2
Connect the Console
1. Connect the to the USB-A Devices (Keyboard, Mouse, or USB Peripherals) USB-A
Ports KVM Switch Keyboard Mouse USB Cables on the using the built-in and or
USB-A Cables (sold separately).
2. (Optional) Connect a from the or 3.5 mm Audio Cable Stereo Speakers
Headphones Speaker Audio Port KVM Switch to the (pink) on the .
3. (Optional) Connect a from the to the 3.5 mm Audio Cable Microphone
Microphone Audio Port KVM Switch (pink) on the .
1
23 5 676
4
9
10
8
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com could
void the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-
party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which
this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the
property of their respective holders.
Warranty Information
This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to .
www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents)
for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of
business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
Safety Measures
• If product has an exposed circuit board, do not touch the product under power.
Mesures de sécurité
• Si l’un des circuits imprimés du produit est visible, ne pas touchez le produit lorsqu’il est sous tension.
安全対策
• 製品に露出した状態の回路基盤が含まれる場合、電源が入っている状態で製品に触らないでください。
Misure di sicurezza
• Se il prodotto ha un circuito stampato visibile, non toccare il prodotto quando è acceso.
Säkerhetsåtgärder
• Rör aldrig vid enheter med oskyddade kretskort när strömmen är påslagen.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com Ltd.
45 Artisans Cres
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Rd,
Brackmills
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
2500 Creekside
Parkwy
Lockbourne, Ohio
43137
U.S.A.
Operation
About the LED Indicators
LED Behavior Signicance
LED is illuminated
orange A is selected and a link has been establishedComputer
LED is ashing orange A is selected but not detectedComputer
Hotkey Reference Guide
• Windows® Keyboard Computers Scroll Lock: To switch the hotkey combination is +
Scroll Lock
• Mac Keyboard Windows Keyboard Scroll Lock (or a with no ): Use the Included
Software to dene the new hotkey sequence.
Note: Each hotkey sequence keystroke should be pressed within two seconds.
