Quick-start guide

Manual Revision: 11/18/2016

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/SATSASDUPE11.

Package contents

• 1 x SATA/SAS duplicator and eraser

• 1 x universal power adapter (NA/JP, UK, EU, AU)

• 2 x drive-connector cables

• 2 x drive pads

• 1 x quick-start guide

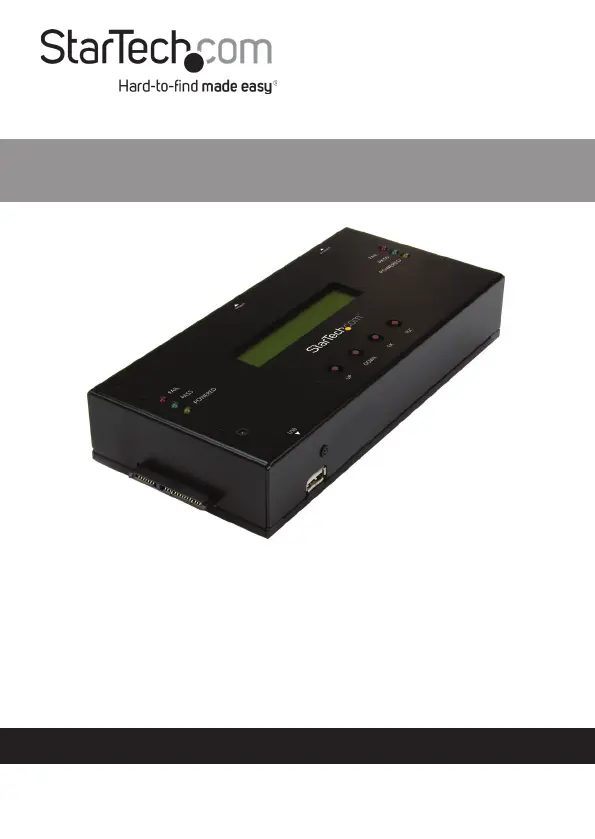

SATSASDUPE11

1:1 Standalone Hard Drive Duplicator and Eraser for 2.5”/3.5” SATA and SAS Drives

*actual product may vary from photos

Read and understand the entire manual before Important:

you use this product, and follow the instructions as they are

outlined in the manual.

Failure to do so might result in property damage or device

failure.

Product diagram

HDD port 1

Menu navigation

buttons

HDD port 1 LEDs

HDD port 2

HDD port 2 LEDs

USB port

USB port LED

LCD display

USB port

USB port LED

Side view

Power switch

Power jack

RS232 serial-based

printer port

System requirements

This converter is OS independent and doesn’t require any additional

drivers or software.

System requirements are subject to change. For the latest

requirements, please visit www.StarTech.com/SATSASDUPE11.

Erase and copy modes

The SATSASDUPE11 supports six erase modes and four copy modes.

Mode Denition

Erase modes

Quick erase The partition table is quickly erased

Full erase The entire HDD is erased.

3-Pass (DoD 5220.22-M) A multi-pass overwrite based on

DoD 5220.22-M specications

is completed.

DoD erase and compare

(DoD 5220.22-M)

The HDD is erased three times and

compared one time based on

DoD 5220.22-M standards.

Secure erase The HDD is erased according to secure

erase standards.

7-Pass erase

(DoD 5220.22-M)

A multi-pass overwrite based on DoD

5220.22-M is completed.

Copy modes

Copy system and les Only the data area of the source HDD

is copied and the empty space isn’t

copied.

Copy all partitions The partition areas of the HDD are

copied and the non-partition, empty

space isn’t copied.

Copy the whole HDD The entire HDD is copied, including

empty space.

Copy a percentage A specied percentage range of the

HDD is copied.

Enter button

Exit button

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

o and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation. Changes or

modications not expressly approved by StarTech.com could void the user’s authority to operate

the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit www.startech.com/

support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Use of Trademarks, Registered Trademarks, and other Protected Names

and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of their

respective holders.

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods

noted, following the initial date of purchase. During this period, the products may be returned for

repair, or replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers,

directors, employees or agents) for any damages (whether direct or indirect, special, punitive,

incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss,

arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If

such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Copy a drive

Note: You should avoid plugging drives directly into the

SATSASDUPE11, as it puts undue strain on the device connectors.

1. Connect the universal power adapter to the Power jack on the

back of the SATSASDUPE11, and to a power source.

2. Use the Power switch on the back of the device to turn it on.

3. Connect one of the drive connector cables to and to HDD port 1

your source drive.

4. Connect the other drive connector cable to and to HDD port 2

your destination drive.

5. Place the drives on the included drive pads. Avoid placing drives

directly on a metal surface.

6. Use the on the device to navigate to Menu navigation buttons

the menu, and press the button.Setup Enter

7. Navigate to the Copy Area Enter menu, and press the button.

8. Select a copy mode, and press the Enter button.

9. Use the buttons on the device to navigate Menu navigation

back to the menu, and press the Utility Enter button.

10. Select , and press the button.Copy Enter

Warning! After you begin copying a drive, don’t disconnect either

drive or interrupt the process before it has nished. Doing so might

result in damage to the drive or lost data.

When both of the yellow port LED indicators are no longer

illuminated, the copying process is complete.

Erase a drive

Warning! Before you erase a drive, make sure that you back up any

important data from the drive.

1. Connect the universal power adapter to the Power jack on the

back of the SATSASDUPE11, and to a power source.

2. Use the Power switch on the back of the device to turn it on.

3. Connect one of the drive connector cables to and to HDD port 1

the drive that you want to erase.

4. Place the drives on the included drive pads. Avoid placing drives

directly on a metal surface.

About the LED indicators

The SATSASDUPE11 features seven LED indicators. Consult the table

below for more information about the LEDs.

LED behavior Signicance

USB port LED is illuminated Data is being transferred to or from

the USB port.

HDD port LEDs

Red LED is illuminated An error is occurring. Check the LCD

display for more information.

Green LED is illuminated The operation is complete.

Green LED is ashing The connected drive is currently

being accessed.

Yellow LED is illuminated The connected drive is receiving

power.

5. Use the Menu navigation buttons on the device to navigate to an

erase mode, and press the button.Enter

Warning! After you press the button, don’t disconnect the Enter

drive until the process is complete. Removing the drive before it is

done being erased might result in damage to the drive.

When the yellow port LED indicator is no longer illuminated, the

drive has been erased.

Produktspezifikationen

Marke:	StarTech.com
Kategorie:	Externe Festplatte
Modell:	SATSASDUPE11
Gewicht:	695 g
AC-Netzadapter:	Ja
Produkttyp:	HDD-Duplikator
Produktfarbe:	Schwarz
AC Eingangsspannung:	110 - 240 V
Betriebstemperatur:	5 - 45 °C
Relative Luftfeuchtigkeit in Betrieb:	20 - 80 %
Verpackungsbreite:	192 mm
Verpackungstiefe:	382 mm
Verpackungshöhe:	91 mm
Paketgewicht:	2400 g
Zertifizierung:	CE, FCC, REACH, TAA
Stromverbrauch (Standardbetrieb):	90 W
Betriebsanleitung:	Ja
Gehäusematerial:	Stahl
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-20 - 85 °C
Stromstecker-Typ:	Typ N
Anzahl Produkte pro Versandkarton:	7 Stück(e)
Länge des Versandkartons:	474 mm
Breite des Versandkartons:	395 mm
Höhe des Versandkartons:	301 mm
Schnittstelle:	USB 3.2 Gen 1 (3.1 Gen 1)
Abmessungen (BxTxH):	90 x 194 x 35 mm
Ausgangsstrom:	7 A
Ausgangsspannung:	12 V
Nachhaltigkeitszertifikate:	RoHS
Eingangsstrom:	1.2 A
Transferrate:	13 GB/min
Anzahl Lüfter:	0 Lüfter
Verpackungslänge:	382 mm
Chipsatz:	Xilinx - SPARTAN-6
Steckertypen enthalten:	AU, EU, NA, UK, US
Unterstützte Hard-Disk Drive Größen:	2.5, 3.5 "
HDD Schnittstellen:	SAS, SAS-2, Serial ATA, Serial ATA II, Serial ATA III
Anzahl der simultanen Kopien:	2 Kopien
Duplizierende Operationsmodelle:	Copy, Erase
Port-Multiplier:	Nein
Anzahl an enthaltenen Pads:	2
