Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support

Manual Revision: June 1, 2023

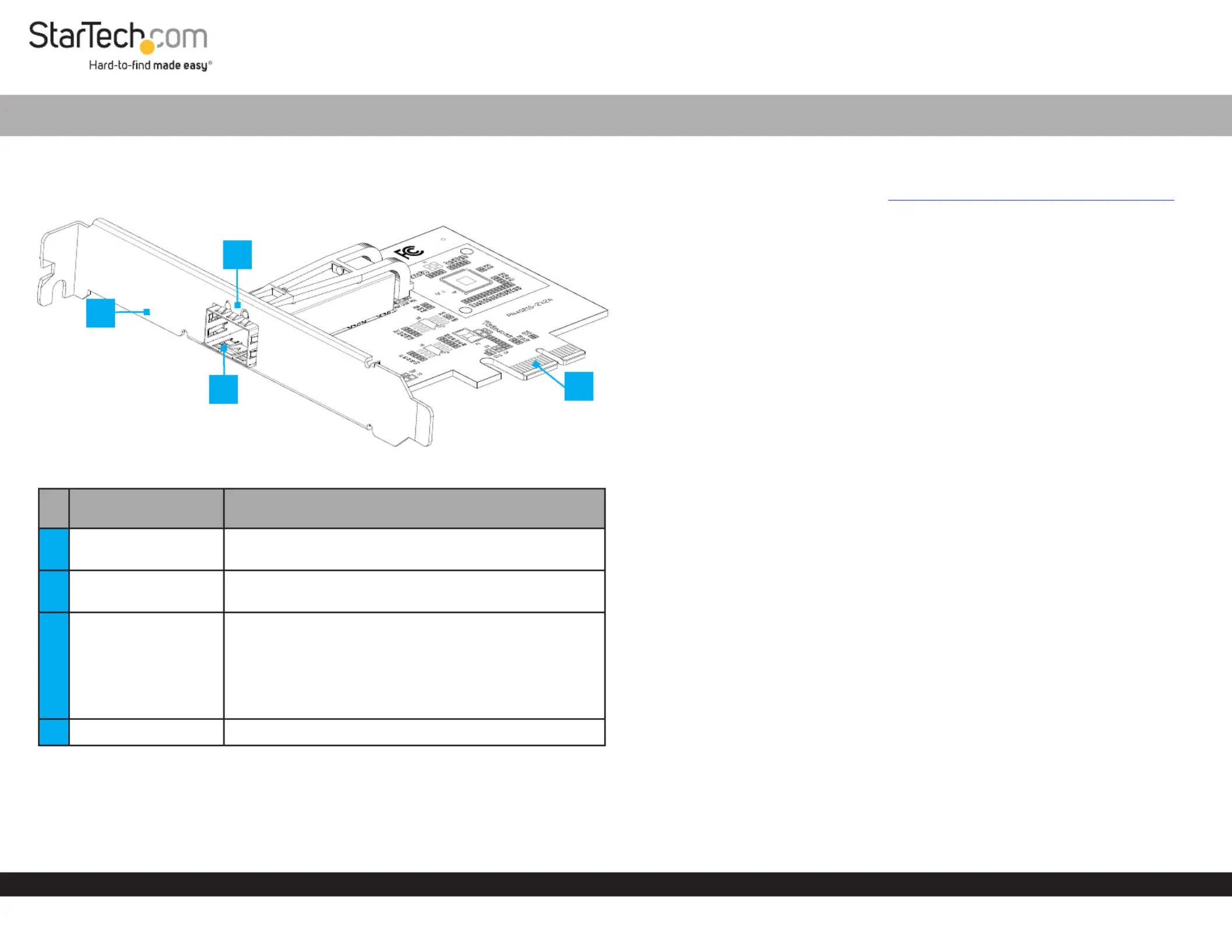

Product Diagram

P011GI-NETWORK-CARD

Port/LED/Connector Function

1Bracket • Secures the card to the Host Computer Case

• The comes pre-installedFull Prole Bracket

2Open SFP Slot • Add a MSA-Compliant SFP Transceiver Module

• Supports or Fiber Ethernet 1 Gbps SFPs

3LED Indicators

• Left LED Indicator Link Speed is

• Solid Green: 1 Gbps

• Right LED Indicator Link Status is

• Solid Green: Active link

• Flashing Green: Activity

4PCIe 2.1 p1-x1 Connector • Insert into a on the PCI Express Slot Host Computer

Package Contents

• Open SFP Network Card x 1

• Low-Prole Bracket x 1

• Quick-Start Guide x 1

1-Port Open SFP Gigabit Network Card

Requirements

For the latest requirements, please visit www.startech.com/P011GI-NETWORK-CARD

• Host computer with an available PCI Express 2.0 or greater slot (x1, x2, x4, x8, or x16)

Installation

Install the PCI Express Card

WARNING!

Static Electricity PCI Express Cardscan severely damage . Ensure that you are

adequately before you open your or touch the Grounded Host Computer Case PCI

Express Card Anti-Static Strap Anti-Static Mat . You should wear an or use an when

installing any Host Computer component. If an isn’t available, Anti-Static Strap

discharge any built-up static electricity by touching a large Grounded Metal Surface

for several seconds. Only handle the by its edges and don’t touch PCI Express Card

the gold connectors.

1. Turn o the and any that are connected to it Host Computer Peripheral Devices

(e.g. printers, external hard drives, etc.).

2. Unplug the from the back of the .Power Cable Host Computer

3. Disconnect any that are connected to the .Peripheral Devices Host Computer

4. Remove the from the . Consult the documentation that Cover Host Computer Case

came with the for details about doing this safely.Host Computer

5. Locate an open and remove the corresponding PCI Express Slot Slot Cover Plate

from the back of the . Host Computer Case

Note: Consult the documentation that came with the for details Host Computer

about doing this safely. This card works in PCI Express x1, x2, x4, x8, or x16 Slots.

6. Gently insert the into the open and fasten the PCI Express Card PCI Express Slot

Bracket Host Computer Case to the back of the .

Note: If you install the into a or a PCI Express Card Small Form Factor Low Prole

Desktop System, it may be necessary to replace the pre-installed standard

Full Prole Bracket Low Prole Bracketwith the included .

7. Return the onto the .Cover Host Computer Case

8. Insert a compatible 1G SFP Transceiver Module SFP Slot PCI , into the onto the

Express Card.

9. Reconnect the to the back of the .Power Cable Host Computer

*Product may vary from image

Regulatory Compliance

FCC - Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com

could void the user’s authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) This device may not cause interference, and (2) This device must accept any interference, including interference that

may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes:

(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Warranty Information

This product is backed by a two year warranty.

For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or

agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of

prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price

paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such

laws apply, the limitations or exclusions contained in this statement may not apply to you.

Safety Measures

• Read the entire manual and ensure the instructions are fully understood before assembling and/or using this product.

Mesures de Sécurité

• Lisez tout le manuel et assurez-vous que vous comprenez les instructions avant de commencer à assembler et utiliser

ce produit.

安全対策

• 最初に取扱説明書を最後まで読み、本製品の組み立て方をすべて理解してから組み立て作業を始めて下さい。

Misure di Sicurezza

• Leggere l’intero manuale e assicurarsi di aver compreso tutte le istruzioni prima di iniziare ad assemblare e a utilizzare

questo prodotto.

Säkerhetsåtgärder

• Läs hela manualen och se till att du förstår instruktionerna innan du börjar montera och använda produkten.

Medidas de Seguridad

• Lea todo el manual y asegúrese de haber comprendido bien las instrucciones antes de proceder con el ensamblaje y el

uso de este producto.

FR: startech.com/fr

DE: startech.com/de

ES: startech.com/es

NL: startech.com/nl

IT: startech.com/it

JP: startech.com/jp

StarTech.com Ltd.

45 Artisans Crescent

London, Ontario

N5V 5E9

Canada

StarTech.com Ltd.

Unit B, Pinnacle 15

Gowerton Road

Brackmills,

Northampton

NN4 7BW

United Kingdom

StarTech.com LLP

4490 South Hamilton

Road

Groveport, Ohio

43125

U.S.A.

StarTech.com Ltd.

Siriusdreef 17-27

2132 WT Hoofddorp

The Netherlands

À DÉPOSER

EN MAGASIN À DÉPOSER

EN DÉCHÈTERIE

Cet appareil,

ses accessoires

et piles

se recyclent

Quick-Start Guide

10. Reconnect all of the disconnected in .Peripheral Devices Step 3

11. Connect a or Fiber Ethernet Network Cable depending on the SFP Transceiver

Module Network Deviceused. Connect the other end of the cable to a .

12. Turn on the and .Host Computer Peripheral Devices

Download the Driver

1. Navigate to www.startech.com/P011GI-NETWORK-CARD

2. Click the tab.Drivers & Downloads

3. Under , download the .Driver(s) Driver Package

Install the Driver

Windows

1. Right-click the zipped that was downloaded. Click Follow Driver Package Extract All.

the on-screen instructions to extract the les.

Note: Windows usually saves the les to the Downloads folder associated with the user

account (e.g. C:\Users\useraccount\Downloads.

2. Follow the instructions on the accompanying le for further Intel_Windows_DIG

Installation Instructions.

Linux

1. Extract the contents of the . Driver Package

2. Follow the instructions on the accompanying le for further README Installation

Instructions.

Verify the Driver Installation

Windows

1. Navigate to the .Device Manager

2. Under , right-click Network Adapters Intel(R) I210 Gigabit Fiber Network

Connection and click the option.Properties

3. Conrm that the is installed and working as expected.Driver

Linux

Note: Ensure Linux kernel 2.4 (LTS) or higher is being used. Execute the following

command from the terminal prompt to check the kernel version, uname -r.

1. Open a and type the command to Terminal Window sudo dmesg | grep Intel

check the .Intel Driver Integration

2. You should see the following response if the drivers are present, Intel(R) Gigabit

Network Driver.
