Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Manual Revision: September 14, 2023

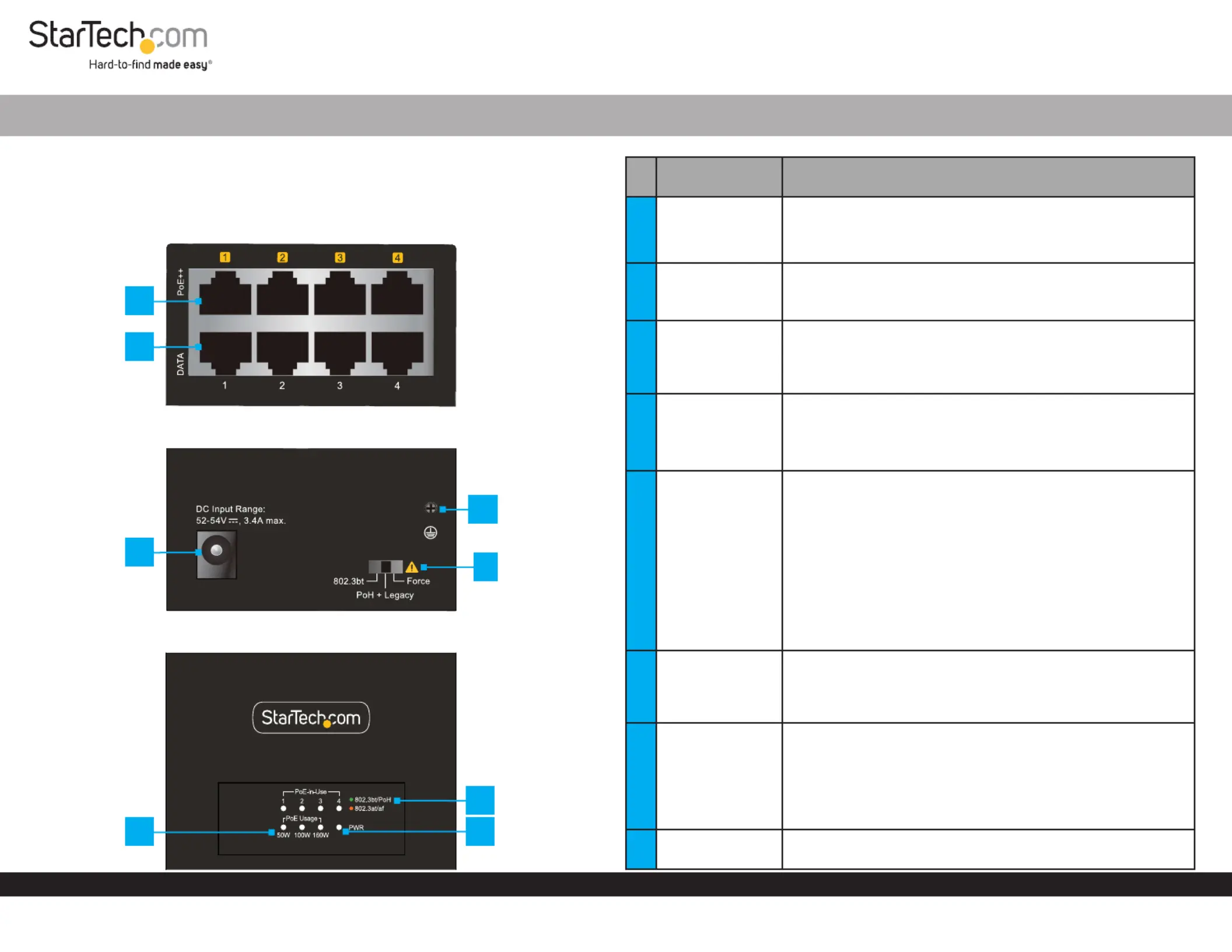

Product Diagram
AS445C-POE-INJECTOR
Front View
Back View
Top View
4-Port 802.3bt 90W 5Gbps PoE Injector
Port/LED/
Connector Function
1PoE++ Ports x 4
(Data + Power)
• Connect a to a (Powered Device)Network Cable PD
Note: 160W shared power allocation across all PoE ports.
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
2Data Ports x 4
(Data Input)
• Connect a to a Network Cable Network Device
• Supports 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps, and 10 Mbps
3DC Power Port
• Connect to a using the included Power Source Power
Adapter
• Recommended 54 V and 3.3 A. Type M barrel plug,
Ø 5.5x2.1x9.5mm
4Grounding Point
• Attach a to the and to an Grounding Wire PoE Injector
Earth Ground Connection
Note: A Grounding Wire is typically green or green with a
yellow stripe and should be at least 18 AWG.
5PoE Operation
Mode Switch
• Three positions are available:
• . Operates as a 90W 802.3bt (default)
802.3bt PoE++ type 4 (Power Source Equipment)PSE
• . Operates as a 95W (Power over HD-PoH + Legacy PoH
BASE-T) PSE with Legacy function
• . Operates as a non-negotiating 4-pair 60W Force
PoE PSE. Useful for PoE devices that lack a proper
handshake.
Warning! Force Mode is intended for PoE PDs only.
6PoE Usage LEDs
• . Indicates that the system is consuming Steady Amber
over the indicated PoE power budget
• . Indicates that the system is consuming Blinking Amber
under the indicated PoE power budget
7PoE-in-Use LEDs
• Steady Green . Indicates that the port is providing 802.3bt
PoE++/PoH/Force power to the remote powered device
• Steady Amber . Indicates that the port is providing 802.3af/
at PoE/PoE+ power to the remote powered device
• . Indicates that no power is being provided to the O
remote device
8Power LED • . Indicates that power is being supplied to Steady Green
the PoE Injector
*Product may vary from image
1
2
35
4
7
6 8
Regulatory Compliance
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of
third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative
purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that
all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual
and related documents are the property of their respective holders.
PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.
FCC - Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modications not expressly approved by StarTech.com
could void the user’s authority to operate the equipment.
Industry Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [A] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (A)/NMB-3(A)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference, and (2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Warranty Information
This product is backed by a two-year warranty.
For further information on product warranty terms and conditions, please refer to .www.startech.com/warranty
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or
agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots,
loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the
product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply,
the limitations or exclusions contained in this statement may not apply to you.
FR: startech.com/fr
DE: startech.com/de
ES: startech.com/es
NL: startech.com/nl
IT: startech.com/it
JP: startech.com/jp
StarTech.com Ltd.
45 Artisans Crescent
London, Ontario
N5V 5E9
Canada
StarTech.com Ltd.
Unit B, Pinnacle 15
Gowerton Road
Brackmills,
Northampton
NN4 7BW
United Kingdom
StarTech.com LLP
4490 South Hamilton
Road
Groveport, Ohio
43125
U.S.A.
StarTech.com Ltd.
Siriusdreef 17-27
2132 WT Hoofddorp
The Netherlands
À DÉPOSER
EN MAGASIN À DÉPOSER
EN DÉCHÈTERIE
OU
Points de collecte sur www.quefairedemesdechets.fr
Privilégiez la répara�on ou le don de votre appareil !
FR
Cet appareil,
ses accessoires
et cordons
se recyclent
FR
1. Connect an from the (i.e., router, modem, Ethernet Cable Source Network Device
or non-PoE switch) to the (s) on the . Data Port PoE Injector
2. Connect an to the (s) on the Ethernet cable Corresponding PoE++ Port PoE
Injector.
3. Connect the other end of the used in to either a Ethernet Cable Step 2 Powered
Device PoE Splitter Data Power (PD), or to a to separate and .
4. Plug the included to an and connect it into the Power Adapter AC Outlet DC
Power Port Power LED. Ensure the is illuminated.
DIN Rail Installation
1. Insert a through the and into the . Mounting Screw Mounting Plate PoE Injector
Using a , tighten the just enough to Phillips Head Screwdriver Mounting Screw
catch the thread. (Figure 1)
2. Re-align the with the and insert the second Mounting Plate Mounting Holes
Mounting Screw Mounting Screw . Alternate between gently driving each until
both are tight.
3. Select the desired before mounting onto the .PoE Operation Mode DIN Rail
4. Mount the by inserting the at an angle starting from PoE Injector Mounting Plate
the then against the . (Figure 2) Top Push DIN Rail
Figure 1 Figure 2
Package Contents
• 4-Port PoE Injector x1
• DIN Rail Mounting Kit x 1
• Universal Power Adapter x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specications, and declarations of
conformance, please visit: www.startech.com/AS445C-POE-INJECTOR
• Phillips head screwdriver
Installation
Warnings!
Force Mode: Prior to connecting the PSE to a PD, ensure the PD supports 60W PoE
through pin 1/2 ( - ), 3/6 ( +), pin 4/5 ( +), and 7/8 ( - ). Otherwise, the PD may be
damaged as power is injected without handshaking.
Prior to powering on the PSE, ensure that a Grounding Wire is connected to the PSE. A
Grounding Wire should typically be green or green with a yellow stripe and should be at
least 18 AWG.
Prior to connecting the PSE to a PD ensure that the PD supports the corresponding PoE
setting on the PoE Operation Mode Switch to prevent potential damage.
Power OFF the PoE Injector before adjusting the PoE Operation Mode Switch, and then
power it back ON.
The legacy detection feature identies the PDs that do not fully follow the
IEEE 802.3af/at/bt standards and their unique electrical handshakes. This allows the
PoE Injector to provide power to those PDs.
Quick-Start Guide
1
2
Produktspezifikationen
| Marke: | StarTech.com |
| Kategorie: | Netzwerkkarte/Adapter |
| Modell: | AS445C-POE-INJECTOR |
