Seite 1/165
N
Operating Instructions - Hardware Guide
Personal Computer
VPCF11 Series
2
n N
Contents
Before Use.......................................................................... 4
Finding More about Your VAIO Computer .................... 5
Ergonomic Considerations ............................................ 7
Getting Started.................................................................... 9
Locating Controls and Ports........................................ 10
About the Indicator Lights ........................................... 15
Connecting a Power Source ....................................... 16
Using the Battery Pack................................................ 18
Shutting Down Your Computer Safely ........................ 25
Using the Power Saving Modes .................................. 26
Updating Your Computer ............................................ 29
Using Your VAIO Computer.............................................. 30
Using the Keyboard..................................................... 31
Using the Touch Pad................................................... 33
Using Special-function Buttons ................................... 34
Using the Built-in Camera ........................................... 35
Using the Optical Disc Drive ....................................... 36
Using "Memory Stick".................................................. 44
Using Other Modules / Memory Cards........................ 50
Using the Internet........................................................ 56
Using the Network (LAN) ............................................ 57
Using the Wireless LAN .............................................. 58
Using the Bluetooth Function ...................................... 63
Using Peripheral Devices..................................................69
Connecting External Speakers or Headphones ..........70
Connecting an External Display ..................................71
Selecting Display Modes .............................................76
Using the Multiple Monitors Function ..........................77
Connecting an External Microphone ...........................79
Connecting a USB Device ...........................................80
Connecting an i.LINK Device.......................................82
Customizing Your VAIO Computer....................................84
Setting the Password...................................................85
Using Intel(R) VT .........................................................92
Using the VAIO Control Center ...................................93
Using the VAIO Power Management...........................94
Changing the Display Language .................................95
Upgrading Your VAIO Computer.......................................96
Adding and Removing Memory ...................................97
3
n N
Precautions..................................................................... 103
Safety Information ..................................................... 104
Care and Maintenance Information........................... 107
Handling Your Computer........................................... 108
Handling the LCD Screen ......................................... 110
Using the Power Source ........................................... 111
Handling the Built-in Camera .................................... 112
Handling Discs .......................................................... 113
Using the Battery Pack.............................................. 114
Handling "Memory Stick"........................................... 115
Handling the Built-in Storage Device ........................ 116
Troubleshooting .............................................................. 117
Computer Operations................................................ 119
System Update / Security.......................................... 125
Recovery ................................................................... 127
Battery Pack.............................................................. 129
Built-in Camera ......................................................... 131
Networking (LAN/Wireless LAN) ............................... 133
Bluetooth Technology ............................................... 137
Optical Discs ............................................................. 141
Display ...................................................................... 146
Printing ...................................................................... 150
Microphone ............................................................... 151
Speakers ................................................................... 152
Touch Pad .................................................................154
Keyboard ...................................................................155
Floppy Disks ..............................................................156
Audio/Video ...............................................................157
"Memory Stick" ..........................................................160
Peripherals ................................................................161
Trademarks .....................................................................162
Notice ..............................................................................164
4
n N
Before Use >
Before Use
Congratulations on your purchase of this Sony VAIO® computer and welcome to the on-screen Hardware Guide. Sony has
combined leading-edge technology in audio, video, computing, and communications to provide you with a state-of-the-art
computing experience.
!
External views illustrated in this manual may look slightly different from those of your computer.
How to find specifications
Some features, options, and supplied items may not be available on your computer.
To find out about the configuration of your computer, see the Specifications (supplied with your computer).
6
n N
Before Use >
Finding More about Your VAIO Computer
3. Support Web Sites
❑Sony online support web site
The Sony online support web site provides instant access to information on commonly encountered problems:
http://www.sony-asia.com/support/vaio/onlinesupport
❑Online registration
You can register your computer online at the following URL:
http://www.sony-asia.com/support/vaio/registration
❑Contact information
You can find how to contact us at the following URL:
http://www.sony-asia.com/support/vaio/contactus
Before contacting VAIO Helpdesk by telephone, try to solve the problem by reading the supplied documentation and visiting
other Sony web sites.
❑For other Sony products, visit the web site at http://www.sony.net .
❑For available optional accessories, visit the following web sites:
❑http://vaio-online.sony.com/ (English)
❑http://vaio-online.sony.co.kr/ (Korean)
❑http://www.sonystyle.com.tw/vaio/ (Traditional Chinese)
7
n N
Before Use >
Ergonomic Considerations
Ergonomic Considerations
You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt
to take account of the following ergonomic considerations for both stationary and portable environments:
❑Position of your computer – Place the computer directly in front of you. Keep your forearms horizontal, with your wrists
in a neutral, comfortable position while using the keyboard or the pointing device. Let your upper arms hang naturally at
your sides. Take frequent breaks while using your computer. Excessive use of the computer may strain eyes, muscles, or
tendons.
❑Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the
floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning
far backwards.
8
n N
Before Use >
Ergonomic Considerations
❑Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye
strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display
as well.
❑Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect
lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.
❑Positioning an external display – When using an external display, set the display at a comfortable viewing distance.
Make sure the display screen is at or slightly below eye level when you are sitting in front of the monitor.
9
n N
Getting Started >
Getting Started
This section describes how to get started using your VAIO computer.
❑Locating Controls and Ports (page 10)
❑About the Indicator Lights (page 15)
❑Connecting a Power Source (page 16)
❑Using the Battery Pack (page 18)
❑Shutting Down Your Computer Safely (page 25)
❑Using the Power Saving Modes (page 26)
❑Updating Your Computer (page 29)
10
n N
Getting Started >
Locating Controls and Ports
Locating Controls and Ports
Take a moment to identify the controls and ports shown on the following pages.
!
The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some
countries or areas.
Front
AAmbient light sensor (page 148)
Measures ambient light intensity for automatically adjusting the
LCD brightness to the optimum level.
BNum lock indicator (page 15)
CCaps lock indicator (page 15)
DScroll lock indicator (page 15)
EBuilt-in microphone (monaural)
FBuilt-in MOTION EYE camera indicator (page 15)
GBuilt-in MOTION EYE camera (page 35)
HLCD screen (page 110)
IBuilt-in speakers (stereo)
JNumeric keypad
Use the numeric keypad to type numbers or to perform basic
math calculations.
KKeyboard (page 31)
LTouch pad (page 33)
MRight button(page 33)
NLeft button (page 33)
12
n N
Getting Started >
Locating Controls and Ports
Right
AHeadphones/OPTICAL OUT jack (page 70)
(Optical Output Sampling Rate: 44.1 KHz/48.0 KHz/96.0 KHz)
BMicrophone jack (page 79)
CUSB ports * (page 80)
DOptical disc drive (page 36)
EDrive eject button (page 36)
FManual eject hole (page 141)
GPower button/Power indicator (page 15)
* Compliant with the USB 2.0 standard and support high-/full-/low- speeds.
13
n N
Getting Started >
Locating Controls and Ports
Left
ADC IN port (page 16)
BSecurity slot
CAir vent
DNetwork (LAN) port (page 57)
EMonitor port (page 72)
FHDMI output port *1 (page 74)
GeSATA/USB port *2
Connect an external device compatible with eSATA or USB.
HExpressCard/34 slot (page 50)
Ii.LINK 4-pin (S400) port (page 82)
*1 There may be no sound from an output device connected to the HDMI
output port for the first few seconds after playback starts. This is not a
malfunction.
*2 Compliant with the USB 2.0 standard and supports high-/full-/low- speeds.
!
Notes on using the eSATA/USB port:
- An eSATA device and a USB device cannot be connected to the port
simultaneously.
- The computer may not be able to recognize your USB device depending on the
plug shape of the device. In this case, use one of the USB dedicated ports.
- When disconnecting an eSATA device, click the Safely Remove
Hardware beforeand Eject Media icon on the taskbar and select the device
removal.
- The port does not support an eSATA port multiplier.
14
n N
Getting Started >
Locating Controls and Ports
Back/Bottom
AAir vents
BMemory module compartment cover (page 97)
CBattery connector (page 18)
16
n N
Getting Started >
Connecting a Power Source
Connecting a Power Source
You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer.
Using the AC Adapter
While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the
AC outlet.
✍
Use only the supplied AC adapter for your computer.

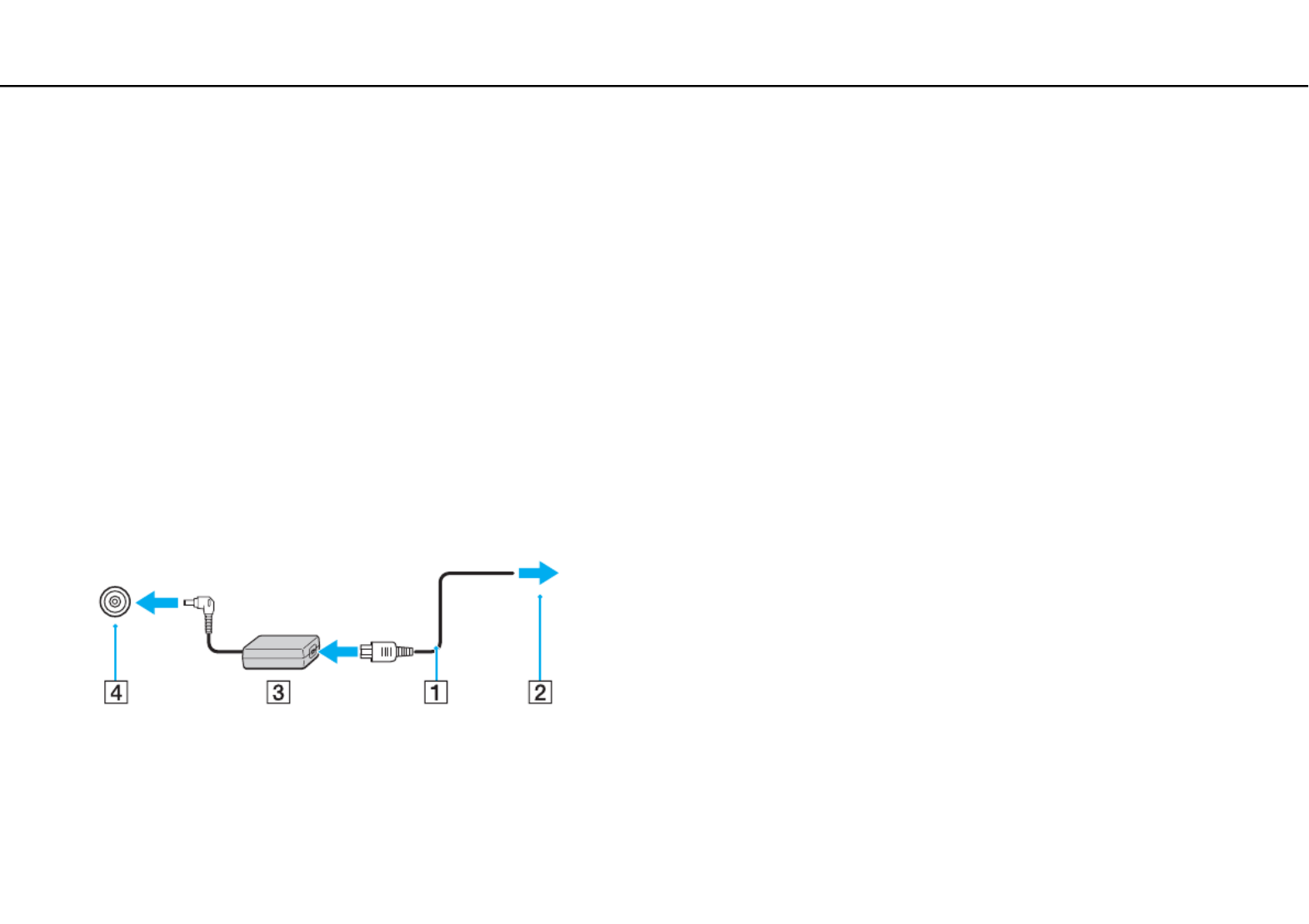

To use the AC adapter
1Plug one end of the power cord (1) into the AC adapter (3).
2Plug the other end of the power cord into an AC outlet (2).
3Plug the cable from the AC adapter (3) into the DC IN port (4) on the computer.
!
The shape of the DC In plug varies depending on the AC adapter.
19
n N
Getting Started >
Using the Battery Pack
3Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery
compartment fits into the U-shaped cut (3) on either side of the battery pack.
4Push the battery pack down into the compartment until it clicks into place.
5Slide the battery LOCK switch outward to secure the battery pack on the computer.
Produktspezifikationen
| Marke: | Sony |
| Kategorie: | Laptop |
| Modell: | Vaio VPCF116FG |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Sony Vaio VPCF116FG benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Laptop Sony
15 Oktober 2024
7 Oktober 2024
28 September 2024
22 September 2024
20 September 2024
16 September 2024
15 September 2024
9 September 2024
9 September 2024
7 September 2024
Bedienungsanleitung Laptop
- Laptop Samsung
- Laptop Acer
- Laptop Apple
- Laptop Asus
- Laptop Gigabyte
- Laptop HP
- Laptop Lexibook
- Laptop Medion
- Laptop Microsoft
- Laptop SilverCrest
- Laptop Panasonic
- Laptop LG
- Laptop Denver
- Laptop Thomson
- Laptop BEKO
- Laptop Schneider
- Laptop Pyle
- Laptop Haier
- Laptop Coby
- Laptop Mpman
- Laptop ODYS
- Laptop Jay-Tech
- Laptop PEAQ
- Laptop Xiaomi
- Laptop Hannspree
- Laptop Hyundai
- Laptop Toshiba
- Laptop GOCLEVER
- Laptop Prixton
- Laptop ViewSonic
- Laptop Dell
- Laptop Lenovo
- Laptop MSI
- Laptop Tripp Lite
- Laptop Razer
- Laptop Targa
- Laptop Zebra
- Laptop Honor
- Laptop ADATA
- Laptop NEC
- Laptop Hercules
- Laptop Fellowes
- Laptop Airis
- Laptop Fujitsu
- Laptop Huawei
- Laptop Maxdata
- Laptop Packard Bell
- Laptop Aplic
- Laptop Kogan
- Laptop Sylvania
- Laptop SPC
- Laptop Asrock
- Laptop ECS
- Laptop Hähnel
- Laptop Oregon Scientific
- Laptop Emachines
- Laptop Ematic
- Laptop Evga
- Laptop Ibm
- Laptop Micromax
- Laptop Olidata
- Laptop Vizio
- Laptop Alienware
- Laptop Siig
- Laptop Inovia
- Laptop Getac
- Laptop XPG
- Laptop Atdec
- Laptop Vulcan
- Laptop System76
- Laptop Averatec
- Laptop Hamilton Buhl
- Laptop AORUS
- Laptop CTL
- Laptop Humanscale
- Laptop Compaq
- Laptop General Dynamics Itronix
- Laptop Everex
- Laptop Dynabook
- Laptop TechBite
- Laptop Schenker
Neueste Bedienungsanleitung für -Kategorien-
1 Dezember 2024
1 Dezember 2024
1 Dezember 2024
1 Dezember 2024
30 November 2024
16 Oktober 2024
16 Oktober 2024
14 Oktober 2024
13 Oktober 2024
13 Oktober 2024
