5-049-955- (1)11
KD-55X77L / 50X77L / 43X77L

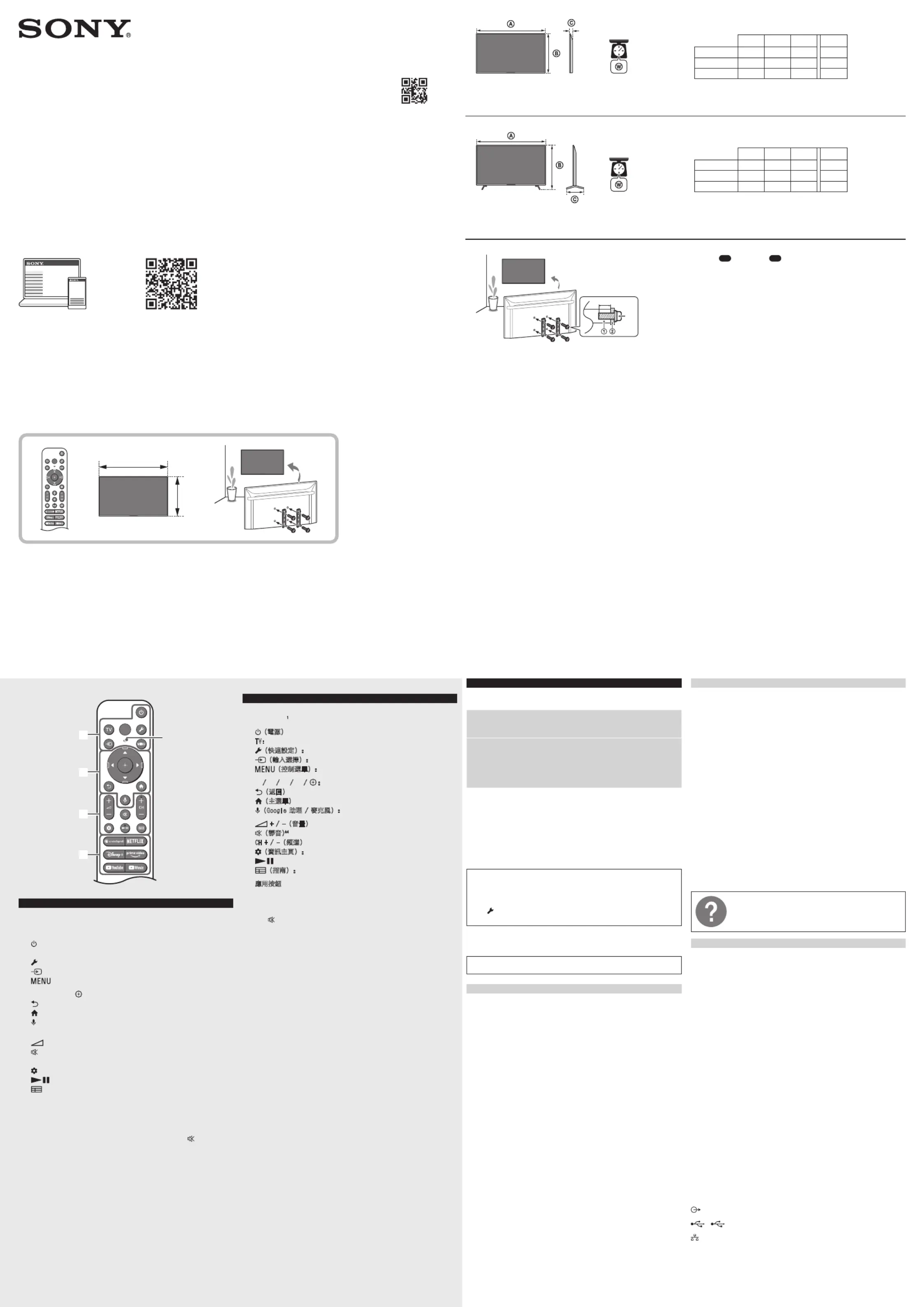

Reference Guide
參考指南
Television
© 2023 Sony Corporation Printed in Vietnam
(mm/ )毫米 *1
(kg/
千克)*1
  
KD-55X77L 1243 721 15.371
KD-50X77L 1126 12.1653 70
KD-43X77L 972 567 70 9.3 *1 (Approx. / 大約)
(mm/ )毫米 *1(kg/
千克)*1
  
KD-55X77L 1243 789 334 15.6
KD-50X77L 1126 718 12.3267
KD-43X77L 266972 632 9.5 *1 (Approx. / 大約)
https://rd1.sony.net/help/tv/kgar1/h_ga/
MIC
EN
The remote control shape, layout, availability and function of remote
control buttons may vary depending on your region/country/TV model/
TV settings.*1
(Power)
TV: Display TV channel list or switch to input.
(Quick settings): Display Quick Settings.
(Input select): Display and select the input source, etc.
(Control menu): Display the Control menu.
    / / / / : On screen menu navigation and selection.
(Back)
(Home)
(Google Assistant / Microphone): Use Google Assistant*
2*3 or voice
search*3.
 + / – (Volume)
(Mute)*4
CH + / (Channel)
(Dashboard): Display Dashboard.
(Guide): Display the digital programme guide.
App buttons
*1 For other remote control models, refer to the online Help Guide for details.
*2 Only for limited region/country/model/language.
*3 Google Assistant or voice search requires an Internet connection.
*4 Accessibility shortcut is available by pressing and holding (Mute).
CT
遙控器外形、按鈕的佈局、可用性與功能視您的國家/區域/電視機型號或設定而
可能略有不同。*1
(電源)
TV:顯示電視機頻道清單或切換為輸入。
(快速設定):顯示快速設定。
(輸入選擇):顯示並選擇輸入來源等。
(控制選單):顯示控制選單。
   / / / / :在螢幕選單導航和選擇上。
(返回)
(主選單)
(Google助理/麥克風):使用Google助理
*2*3或語音搜尋*3
 +/(音量)
(靜音) *4
CH+/(頻道)
(資訊主頁):顯示資訊主頁。
(指南):顯示數位節目指南。
應用按鈕
*1有關其他遙控器型號,請參閱線上說明指南以獲取詳情
*2僅限用於有限區域/國家/型號/語言。
*3使用Google助理或語音搜尋需要網際網路連線。
*4按住 (靜音)可使用輔助使用快捷鍵。
EN
About Manuals
Please retain the manuals for future reference.
Paper manual
Setup Guide (on top of the product) / Reference Guide (this manual) /
Safety and Other Information.
Help Guide (On screen Manual)
•To open it, select [Settings] [Help and feedback] [Help] or select t t
[Help] in the Home Menu, if [Help] does not exist, select [See all] t
[Help].
•You can refer to the Help Guide with your smartphone (visit website
provided on the front cover of Reference Guide).
Read and understand the contents of this manual before operating this
product.
Note
•Instructions about “Installing the TV to the Wall” are included within this TV’s
instruction manual.
•Read the supplied safety documentation for additional safety information.
•Images and illustrations used in the supplied manuals are for reference and
may differ from the actual product.
•Setting menus are subject to change without notice due to software
updates. For latest information, visit Sony support website.
IMPORTANT - Read the End User Software Licence Agreement before
using your Sony product. Using your product indicates your acceptance
of the End User Software Licence Agreement. The software licence
agreement between you and Sony is available online at Sony website
(https://www.sony.net/tv-software-licenses2/) or on your product screen.
Press (Quick Settings) on the remote control and select [Settings] t
[System] t t t [About] [Legal information] [Notices and licences].
Location of the identification label
Labels for the TV Model No. and Power Supply rating are located on the rear of
the TV.
This television is designed for use in Hong Kong and ensured the usage in
Hong Kong only.
Installing the TV to the Wall
Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)
To Customers:
For product protection and safety reasons, Sony strongly recommends that
installation of your TV be performed by Sony dealers or licensed contractors.
Do not attempt to install it yourself.
To Sony Dealers and Contractors:
Provide full attention to safety during the installation, periodic maintenance
and examination of this product.
Wall-Mount Bracket Installation Information
For instructions on Wall-Mount Bracket installation, see the Installation
Information (Wall-Mount Bracket) on the product page for your TV model.
https://www.sony-asia.com/support
•Follow the instruction guide provided with the Wall-Mount Bracket for your
model. Sufficient expertise is required in installing this TV, especially to
determine the strength of the wall for withstanding the TVs weight.
•Sony is not liable for any damage or injury caused by mishandling or
improper installation.
•Only qualified service personnel should carry out wall-mount installations.
•For safety reasons, it is strongly recommended that you use Sony
accessories, including:
Wall-Mount Bracket SU-WL850
Wall-Mount Bracket SU-WL450
•Be sure to use the screws supplied with the Wall-Mount Bracket when
attaching the Wall-Mount Bracket to the TV set. The supplied screws are
designed as indicated by illustration when measured from the attaching
surface of the Wall-Mount Bracket.
The diameter and length of the screws differ depending on the Wall-Mount
Bracket model.
Use of screws other than those supplied may result in internal damage to the
TV set or cause it to fall, etc.
•Be sure to store the unused screws and Table-Top Stand in a safe place until
you are ready to attach the Table-Top Stand. Keep the screws away from
small children.
* Only for limited region/country/model.
Troubleshooting
General troubleshooting for issues like: black screen, no sound, frozen picture,
TV does not respond, or network is lost, do the following steps.
1 Restart your TV by pressing the power button on the remote control for
about five seconds. Select [Restart] and TV will restart. If the TV does not
recover, try unplugging the AC power cord (mains lead) then press the
power button on the TV and release it. Wait for two minutes, and plug in the
AC power cord (mains lead).
Or, press the power button on the TV for about 40seconds until the TV
turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and perform a software update. Sony
recommends you to keep your TV software updated. Software updates
provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of the
supplied safety documentation).
When you plug in the TV, the TV may not be able to turn on for a
while even if you press the power button on the remote control or
the TV.
It takes time to initialize the system. Wait for about one minute, then operate it
again.
The remote control does not function.
•Replace the batteries.
The parental lock password has been forgotten.
•Enter 4357 for the PIN and enter the new PIN.
For more information, refer to the Help Guide.
To open it, select [Settings] [Help and feedback] [Help] t t
or select [Help] in the Home Menu, if [Help] does not exist,
select [See all] [Help].t
Specifications
System
Panel system
LCD (Liquid Crystal Display) Panel, LED Backlight
TV system
Analogue: I, D/K, B/G, M
Digital: DTMB
Colour system
PAL/SECAM/NTSC3.58/NTSC4.43
Channel coverage
Analogue: UHF/VHF/Cable
Digital: UHF
Sound output (W)
10 + 10
Wireless technology
Protocol IEEE 802.11a/b/g/n/ac
Bluetooth® Version 5.0
Input/Output jacks
Antenna (aerial)/cable
75 ohm external terminal for VHF/UHF
HDMI IN 1/2/3 (HDCP 2.3-compatible)
Video:
4096 × 2160p (50, 60 Hz)*1, 4096 × 2160p (24 Hz), 3840 × 2160p (50, 60 Hz)*1,
3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50,
60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i 480p, 480i, PC Formats*2
Audio:
In eARC (Enhanced Audio Return Channel) mode
Refer to the online Help Guide for details.
Except eARC mode
Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio
eARC/ARC (Enhanced Audio Return Channel/Audio Return Channel)
(HDMI IN 3 only)*
3
In eARC mode
Refer to the online Help Guide for details.
In ARC mode
Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, Dolby Atmos
DIGITAL AUDIO OUT (OPTICAL)
Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio)
1, 2
USB port 1 and 2 supports High Speed USB (USB 2.0)
LAN
10BASE-T/100BASE-TX connector (Depending on the operating environment
of the network, connection speed may differ. The communication rate and
quality are not guaranteed.)
10 – 12 (mm)
M6
Wall-Mount Attachment
VS
/ 壁掛連接件
VS
Wall-Mount Bracket / 壁掛式支架
(mm) / (毫米)
Power and others
Power requirements
220 V − 240 V AC, 50 Hz
Screen size (measured diagonally) (Approx.) (inches/cm)
KD-55X77L: 55 / 138.8
KD-50X77L: 50 / 125.7
KD-43X77L: 43 / 108.0
Power consumption
Indicated on the rear of the TV
Standby power consumption*4*5 (W)
0.5
Display resolution (horizontal × vertical) (pixels)
3840 × 2160
Output rating
500 mA (for USB 1/2)
Others
Optional accessories
Wall-Mount Bracket: SU-WL850 (KD-55X77L only), SU-WL450
Operating temperature
0 ºC 40 ºC
Operating humidity
10 % 80 % RH (non-condensing)
*1 Refer to the on screen menu to set [HDMI signal format].
*2 Refer to the online Help Guide for details.
*3 Connect your audio system to the HDMI IN 3 to route TV audio to your audio
system.
*4 Specified standby power is reached after the TV finishes necessary internal
processes.
*5 Standby power consumption will increase when your TV is connected to
the network.
Note
•Optional accessories availability depends on countries/region/TV model/
stock.
•Design and specifications are subject to change without notice.
•Subscriptions for services and applications may be required and additional
terms, conditions and/or charges may apply when using Google Assistant.
•Power consumption will increase when the built-in MIC is enabled as it is
always listening.
•Visit Sony website for more information on product specifications.
Trademark Information
•Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
CT
關於說明
請保管好這些說明書,以供日後參考。
紙質說明
安裝指南(產品上方)/參考指南(本說明書)/安全與其他資訊。
說明指南(電子說明書
•想要打開說明指南,請選擇[設定]t[說明與意見反映]t[說明]或在
主選單中選擇[說明],如果[說明]不存在,請選擇[查看全部]t
[說明]。
•您可以使用您的智能手機來查閱說明指南(請訪問參考指南封面提供的網
站)。
操作本產品之前,請先閱讀並理解本說明書的內容。
•有關“將電視機安裝在牆上”的指示已包含在這台電視機的使用說明書。
•有關其他安全資訊,請閱讀隨附的安全檔案。
•隨附的說明書中使用的影像和插圖供參考之用並可能與實際產品不同。
•由於軟件更新,設定選單可能變更恕不另行通知。有關最新資訊,請造訪Sony
支援網站。
重要-在使用Sony產品之前,請先閱讀終端使用者軟體授權合約。若使用
您的產品,則表示您接受終端使用者軟體授權合約。您與Sony之間的軟體授
權合約可在Sony網站(https://www.sony.net/tv-software-licenses2/)
上線上獲取,也可在您產品的螢幕上獲取。按遙控器上的 (快速設定),
選擇[設定]t[系統]t[關於]t[法律資訊]t[注意事項和
授權]。
識別標籤的位置
電視機型號和電源等級的標籤位於電視機背面。
本電視設計在香港使用,只保證能在香港使用。
將電視機安裝在牆上
使用選購的壁掛式支架(SU-WL850或SU-WL450)
*(非附帶)
致客戶:
出於產品保護及安全原因,Sony強烈建議由Sony經銷商或授權的承包商安裝電
視機。請勿嘗試自行安裝電視機。
致Sony經銷商和承包商:
安裝、定期維護及檢查本產品時,請充分注意安全。
壁掛式支架安裝資訊
有關壁掛式支架安裝的說明,請參閱您的電視機型號的產品頁上的安裝訊息(壁
掛式支架)。
https://www.sony-asia.com/support
•請遵循適合您的型號的壁掛式支架隨附的使用說明手冊。安裝本電視機須具備
充足的專業知識,確定牆壁是否能夠承受電視重量時尤為如此
•對於因錯誤操作或安裝不當引致的任何損害,Sony概不負責。
•僅可由合格的維修人員執行掛壁安裝。
•為了安全起見,強烈建議您使用Sony配件,包括:
壁掛式支架SU-WL850
壁掛式支架SU-WL450
•將壁掛式支架安裝於電視機上時,務必要使用隨附於壁掛式支架的螺絲。隨附
螺絲如插圖所示設計從壁掛式支架安裝表面量起。
螺絲的直徑和長度會因為壁掛式支架的型號而有所不同。
使用隨附螺絲以外的螺絲可能會造成電視機內部損壞或者掉落等等。
•務必將未使用的螺絲及桌面底座存放於安全位置,直到您已準備好連接桌面底
座。請將螺絲存放在兒童接觸不到的位置。
*僅限用於有限區域/國家/型號
故障排除
以下問題的一般故障排除:黑螢幕、沒有聲音、凍結畫面、電視機沒有反應或網
絡丟失,請依照以下步驟操作
1 按遙控器上的電源按鈕大約五秒重新啟動電視機。選擇[重新啟動],電視將
重新啟動。如果電視機未恢復正常,請嘗試拔下AC電源線,然後按電視機上
的電源按鈕再鬆開此按鈕。等候兩分鐘,隨後插入AC電源線。
或者按電視機上的電源按鈕約四十秒,直到電視機關閉。
2 請參閱如下所示的說明選單。
3 將電視機連接至網路,然後執行軟件更新。Sony建議您不斷更新您的電視機
軟件。軟件更新將提供新功能和效能改善。
4 訪Sony支援網站(提供的資訊在隨附安全文檔末尾)。
在插入電視機時,即使按遙控器或電視機上的電源按鈕,電視機也可能在
一定時間不能開啟。
系統初始化需要一定時間。等待大約一分鐘,然後再次操作。
遙控器無效。
•更換電池。
忘記家長鎖定的密碼。
•PIN碼輸入4357,然後輸入新的PIN碼。
有關更多資訊,請參閱說明指南。
想要打開說明指南,請選擇[設定]t[說明與意見反映]t
[說明]或在主選單中選擇[說明],如果[說明]不存在,請
選擇[查看全部]t[說明].
規格
系統
面板系統
LCD(液晶顯示)面板,LED背光源
電視系統
模擬:I,D/K,B/G,M
數位:DTMB
彩色系統
PAL/SECAM/NTSC3.58/NTSC4.43
頻道涵蓋範圍
模擬:UHF/VHF/纜線
數位:UHF
聲音輸出(瓦)
10+10
無線技術
IEEE802.11a/b/g/n/ac協議
藍牙 版本5.0®
輸入/輸出插孔
天線/纜線
VHF/UHF的75歐姆外接端子
HDMIIN1/2/3(HDCP2.3容)
視訊:
4096×2160p(50,60Hz)
*1,4096×2160p(24Hz),3840×2160p(50,
60Hz)*1,3840×2160p(24,25,30Hz),1080p(30,50,60Hz),
1080/24p,1080i(50,60Hz),720p(30,50,60Hz),720/24p,576p,
576i480p,480i,PC
*2
音訊:
在eARC(EnhancedAudioReturnChannel)模式下
有關詳情,請參閱線上說明指南。
eARC模式除外
兩聲道線性PCM:32/44.1/48kHz16/20/24位元,DolbyAudio
eARC/ARC(EnhancedAudioReturnChannel/AudioReturnChannel)(僅限HDMI
IN3)*3
在eARC模式下
有關詳情,請參閱線上說明指南。
在ARC模式下
兩聲道線性PCM:48kHz16位元,DolbyAudio,DolbyAtmos
DIGITALAUDIOOUT(OPTICAL)
數位光纖插孔(兩聲道線性PCM:48kHz16位元,DolbyAudio)
1, 2
USB連接埠1和2支援高速USB(USB2.0)
LAN
10BASE-T/100BASE-TX接頭(視網絡的作業環境而定,連線速度可能不同。不
保證通訊率和通訊品質。)
電源和其他規格
電源需求
220V240VAC,50Hz
螢幕尺寸(對角測量)(大約)(英寸/厘米)
KD-55X77L:55/138.8
KD-50X77L:50/125.7
KD-43X77L:43/108.0
耗電量
見電視機背面
待機耗電量*4*5
(瓦)
0.5
顯示解析度(水平×垂直)(畫素)
3840×2160
輸出率
500mA(對於USB1/2)
其他
選用的配件
壁掛式支架:SU-WL850(僅限KD-55X77L),SU-WL450
作業溫度
0 Cº −40 Cº
操作濕度
10%80%相對濕度(非冷凝)
*1請參閱螢幕選單設定[HDMI訊號格式]。
*2有關詳情,請參閱線上說明指南
*3將音訊系統連接至HDMIIN3以傳送電視機音訊至音訊系統。
*4電視機完成所需的內部處理后,達到規定的待機功率。
*5當您的電視機連接至網絡時,待機耗電量將有所增加。
•選購配件的供應視國家/區域/電視機型號/存貨而定。
•設計與規格可能變更而不事先通知。
•使用Google助理時,可能需要訂購服務和應用程式,並可能新增適用的條
款、條件和/或費用。
•內建麥克風啟用,一直在聆聽時,耗電量會增加。
•請造訪Sony網站以獲取更多有關產品規格的更多資訊。
商標資訊
•本產品經過杜比實驗室的許可而製造。
Dolby、杜比、DolbyAudio、和雙D符號是杜比實驗室特許公司的商標。


Produktspezifikationen

Marke: Sony
Kategorie: Fernsehen
Modell: KD-43X77L

Brauchst du Hilfe?

Wenn Sie Hilfe mit Sony KD-43X77L benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten




Bedienungsanleitung Fernsehen Sony

Bedienungsanleitung Fernsehen

Neueste Bedienungsanleitung für -Kategorien-
