Enabling auto-zeroing
Disabling auto-zeroing

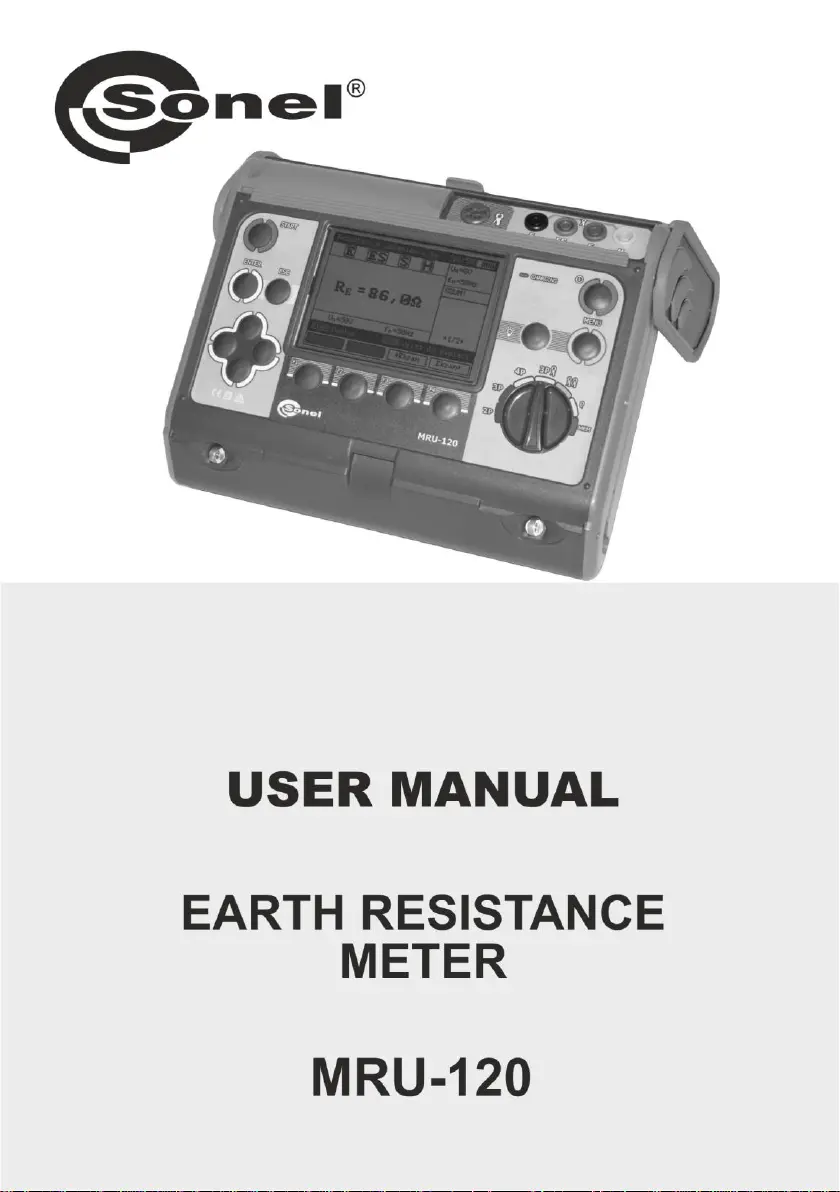

Sonel MRU-120
Earth Resistance Meter QuickStart
v1.00 | 26.05.2020
Connect the meter to the measured wire.
Run the measurement using START button.
2P
In order to eliminate the inuence of the resistance of the test leads
over the result of the measurement, its compensation (auto-zeroing)
has to be done.
Press START.
Using button enable mode.F1 AUTOZERO
Short-circuit the test leads.
Press START.
Using button enable mode.F1 AUTOZERO
Separate the test leads.
It is sufcient to realize compensation once for the given test leads.
It is also remembered once the meter has been turned off, until the
next successful auto-reset procedure.
First steps
Turn on the meter
Select the method and connect
Congure
Obtain the result
Measurements
The meter is designed for measurements at interference voltages which do not exceed 24 V
for RE measurements and 3 V for RCONT measurements. The voltage is measured up to 100 V,
but above 40 V is indicated as dangerous. The meter must not be connected to voltages ex-
ceeding 100 V.
UN>24V!
The voltage on the mea-
surement points exceeds
24 V but is lower than
40 V. The measurement
is blocked.
NOISE!
The value of the interfering
signal is too high. The result
may be distorted by additional
uncertainty.
LIMIT!
The uncertainty of the
electrode resistance
>30%. Uncertainties
calculated on the basis of
the measured values.
UN>40V!
and a contin-
uous
sonic signal
The voltage on the
measurement points
exceeds 40 V. The mea-
surement is blocked.
R>19,99
RE>19,99kΩ
RS>19,9kΩ
RH>19,9kΩ
ρ>999kΩm
Measurement range
exceeded. I
L>max
Excessive interfering
current, the measurement
error may exceed the
basic error.
Wire continuity measurement
MRU-120
ERP-1
Saving a result to the memory
After the measurement press ENTER.
Select memory cell using buttons ▲▼.
Select memory bank using buttons ◄►.
Connect the meter to the leg of the measured pole.
Select method 3P . Connect the exible clamp to
ERP-1 adapter. Wrap the clamp around the object's
leg and it's earthing tape. Select measuring voltage.
Press START.
Earth resistivity measurement
Connect the meter to the measured earth.
Enter settings
F1 measuring voltage
Using button run the measurement.ENTER
Press START.
Using buttons ▼enter the distance between electrodes.
Earth resistance measurement RE
Measurement of RE of poles using ERP-1 adapter
Target cell empty Target cell occupied
Press to save the result.ENTER
Find more information
in the user manual
and on our website
www. .comsonel
Enter settings
voltage/pulse shapeF1
Using button START run the measurement.
Conguration and RE measurement
UN ........voltage on the measurement points
fN ..........interference frequency
IL ..........interfering current
RH ........resistance of current electrode
RS .........resistance of voltage electrode
δ ..........additional uncertainty caused by the resistance
of the electrodes
Similarly, connect the next legs of the object. Having
the results of each leg measurement, you can calculate
the resultant resistance of the entire object from the
formula:
RE = 1
1+ ... + 1
R1Rn
3P
3P
3P
4P
4P
Main result
Additional
results
Using FLEX button select the type of exible clamps
connected to the device.
Using TURNS button select the number of exible
clamp wraps around the pole leg.
Main result
Additional
results
