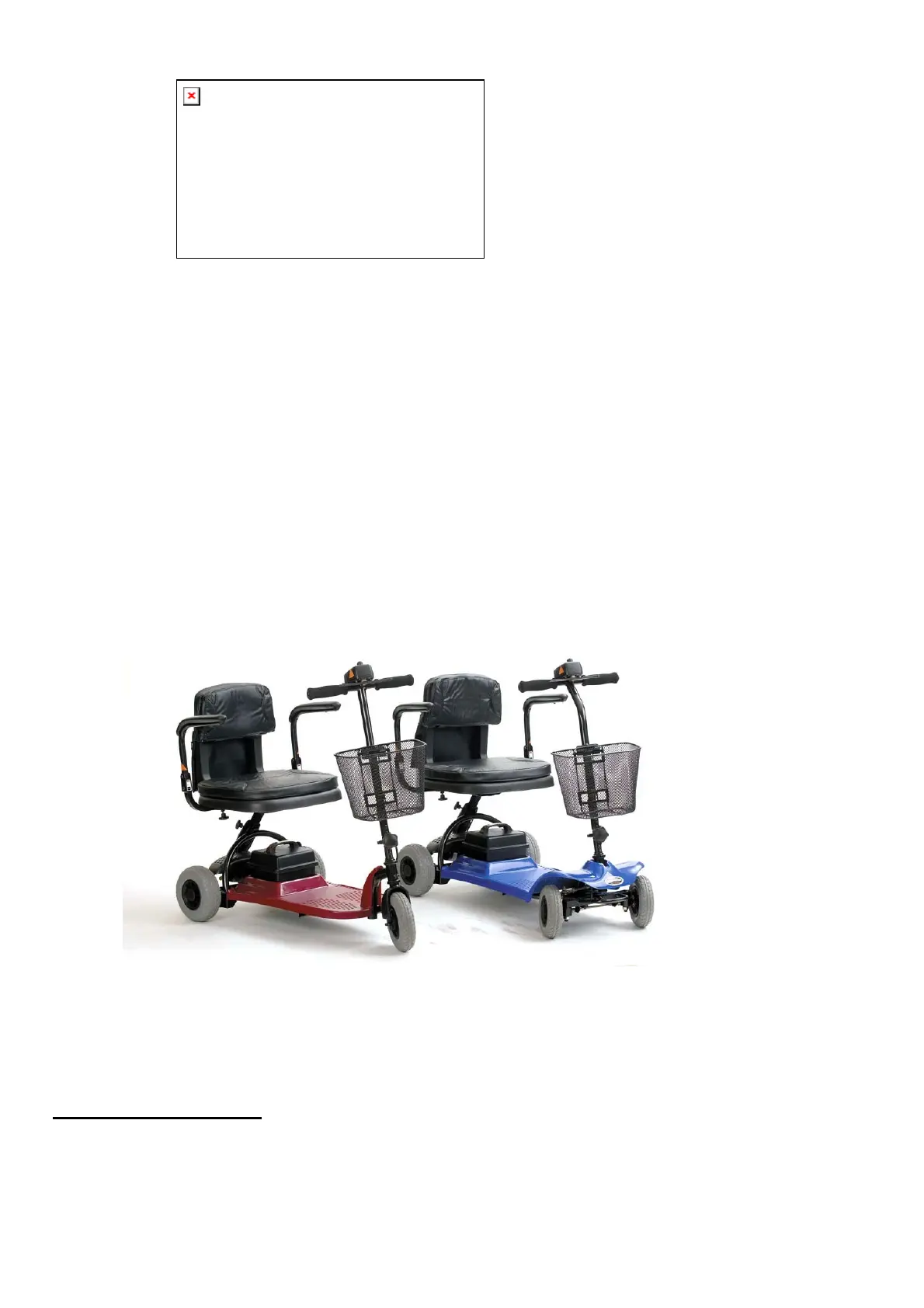

OWNERS MANUAL
OWNERS MANUAL
OWNERS MANUAL
OWNERS MANUAL OWNERS MANUAL
MODEL No
SL3 & SL4
For The Gecko
For The Gecko
For The Gecko
For The Gecko For The Gecko
IMPORTANT NOTE; This scooter has been designed to climb angles up to 8 degrees.
When driving the Gecko scooter as with all scooters the driver should lean forward with feet
placed on the foot plate when going up an incline. This practice will ensure maximum
stability.
Mounting
Make sure your Gecko Scooter is on level ground.
Seat yourself in the Scooter.
Turn the speed dial to slow. (Turn the dial to the left).
Turn the on/off switch to the ON position –Battery charge meter will be in the green.
Dismounting
Ensure that your Gecko Scooter has fully stopped.
Turn the on/off switch to the OFF position
You can now dismount from the seat.
Basic Driving
Make sure you have completed the details described under “mounting”.
For the standard unit pull on the accelerator lever with your RIGHT index finger to start
moving forward.
To STOP gently release the accelerator lever and the scooter will come to a stop.
Practise these two basic functions until you are proficient in their use.
Steering the Gecko scooter is easy and logical. Just be sure to remember to give a clearance
when turning so that the rear wheels clear any obstacles.
When turning always turn your Gecko scooter to a LOW speed.
If it is a tight turn (entering a doorway or going around a blind corner) STOP your Gecko
scooter. Turn your steering column in the direction you wish to proceed whilst still in the
stationary position. Then apply the power gently to move forward The Gecko scooter will
move gently and with complete stability.
REVERSING requires your attention
Always turn your Speed dial to SLOW before reversing.
Pull the accelerator lever with your left index finger.
Remember, when you reverse steer you turn in the OPPOSITE direction to the way you want
to go. Always take your time.
The Gecko scooters are not designed for use in loose gravel, sand or soft grass. Your scooter
is also not designed to be used in wet weather or rain.
Ramps
The stability of your scooter is governed by several factors such as the seating position of the
occupant, the angle of the slope, your height and weight. When approaching an incline, do so
directly, avoid driving up on an angle. Where ever possible avoid making turns on any incline
or decline. When going down a slope set the speed setting to SLOW, this will ensure there is
a safe controlled decent. When the finger levers are released the scooter will slow to a stop.
Do not turn off the control switch whilst the unit is in motion.
Please follow all the guidelines and your scooter will perform admirably over many surfaces.
Doors
Always ensure your speed is set at the SLOWEST setting.
Think in terms of using the power of the Gecko scooter to do the work for you. For doors that
open outward, hold the door knob with your right hand and reverse the Gecko scooter as
described earlier. Where the door opens inwards hold the door knob with your left hand and
push your accelerator lever with your RIGHT thumb.
Transporting Your Scooter
Always ensure your scooter is turned OFF on the steering column.
Remove your basket by pulling it up gently.
Remove your seat by loosening the seat knob and pulling forward on the seat gently and
lifting off. (As indicated in figure #1)
Remove the battery pack by gently pulling out the power cable and pulling up on the battery
pack handle to release the Velcro tabs holding the battery pack in place. (As indicated in
figure #2)
Fold the front tiller down onto the scooter after turning the tiller knob anti clockwise until the
small locking tab is disengaged. Now lay the tiller down. (As indicated in figure #3)
The scooter is now ready to be placed in the car.
Once the Scooter has been placed in the car the basket and battery pack can be placed loosely
around the main components. (As indicated in figure #4)
CHARGING
The battery pack can be charged as an independent unit. It does not have to be connected to
the scooter (See Figure #5)
The battery charge level indicator will be in the RED section when the battery is very low.
Place the MALE socket of the battery charger into the female socket on the battery pack
where the power cable connects taking care to ensure that the pins line up correctly.
