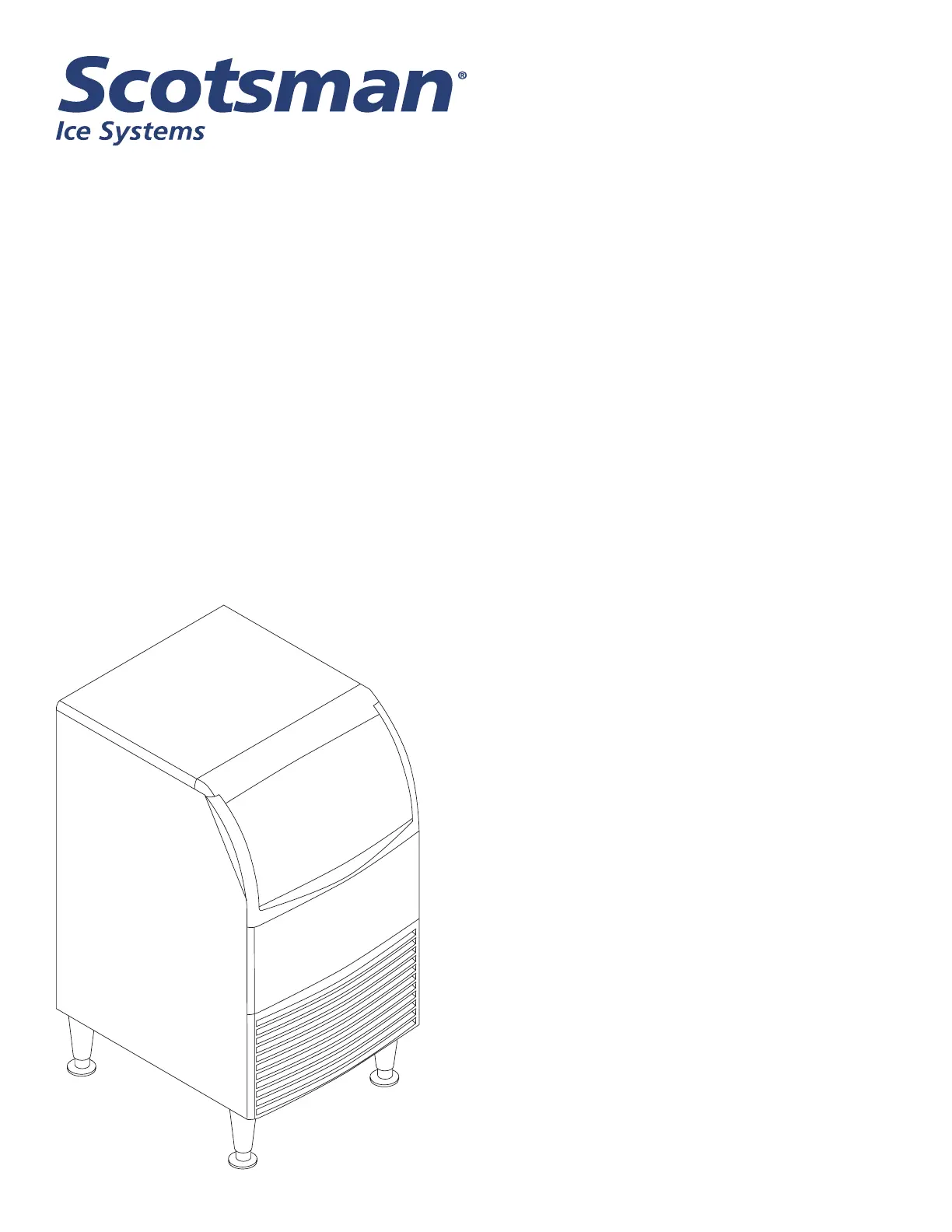

Service Manual
for
Cube Ice Machine with storage
models CU0415, CU0715 and CU0920
August 2013
Page 1
Service Manual for Models CU0415, CU0715 and CU0920
Introduction
The design of this product is the result of years
of experience in developing commercial ice cube
machines. It has been designed for simple operation
in a wide range of locations. Please follow the
instructions for installation and maintenance to get the
most use from this ice machine.
Observe the Caution and Warning notices. They are
indicators of important safety information. Keep this
manual for future reference.
Table of Contents
Important Details . . . . . . . . . . . . . . . . . . . . .2
Pre-Installation. . . . . . . . . . . . . . . . . . . . . . .3
Cabinet Layout, CU0415 and CU0715 . . . .4
Cabinet Layout, CU0920 . . . . . . . . . . . . . . .5
Component Location . . . . . . . . . . . . . . . . . .6
Connect the water supply . . . . . . . . . . . . . .7
Connect the power . . . . . . . . . . . . . . . . . . .8
Control Panel and Adjustments . . . . . . . . . .9
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . .10
Use and Operational Notes . . . . . . . . . . . . .11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . .12
Electrical Sequence . . . . . . . . . . . . . . . . . . .14
Components . . . . . . . . . . . . . . . . . . . . . . . .15
Performance . . . . . . . . . . . . . . . . . . . . . . . .16
Thermistor Values . . . . . . . . . . . . . . . . . . . .17
Controller Use . . . . . . . . . . . . . . . . . . . . . . .18
Anti-Slush ..........................19
Service Diagnosis . . . . . . . . . . . . . . . . . . . .21
Service Diagnosis . . . . . . . . . . . . . . . . . . . .22
Service Diagnosis . . . . . . . . . . . . . . . . . . . .23
Removal and Replacement . . . . . . . . . . . . .24
Removal and Replacement . . . . . . . . . . . . .25
Removal and Replacement . . . . . . . . . . . . .26
Controller ...........................27
Cabinet Removal for Service . . . . . . . . . . . .28
115/60/1 Wiring Diagram . . . . . . . . . . . . . . .29
Service Manual for Models CU0415, CU0715 and CU0920
August 2013
Page 2
Important Details
The machine is designed for use indoors in a
controlled environment. It must be kept dry, not
overheated or subjected to excessive cold. The water
and power supply must be maintained or the machine
will stop making ice.
There are limits to how hot or cold the room it’s in can
be.
• Minimum air temperature: 50oF or 10oC
• Maximum air temperature: 100oF or 38oC.
There are also limits to how hot or cold the water
supply can be:
• Minimum water temperature: 40oF or 4.5oC
• Maximum water temperature: 100oF or 38oC.
There are limits to the voltage supply to the unit,
voltages vary by model:
Voltage
115 (-1)
Minimum 104
Maximum 126
Water supply must be potable by the localities
denition.
There are limits to the water pressure supplied to the
unit:
• Maximum pressure. static: 80 psi or 5.5 bar
• Minimum pressure, dynamic: 15 psi or 1 bar
A drain will be needed for melted ice and rinse water.
Warranty:
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material or workmanship. It does not cover
maintenance, corrections to installations, or situations
when the machine is operated in circumstances that
exceed the limitations printed above.
This is a commercial model, if installed in a residence
some commercial service companies may not be able
to service it on site.
The manufacturer has designed and produced this
machinewiththenestinmaterials.Themanufacturer
assumes no liability for units that have been altered in
any way. Alterations or part substitutions will void the
warranty.Specicationsanddesignsaresubjectto
change without notice.
Options:
Therearetwooormountingkitsavailable:
• KUFM15: for 15” models
• KUFM20: for 20” model
Bottom of Cabinet, showing bumper. Cabinet height
includes bumper.
