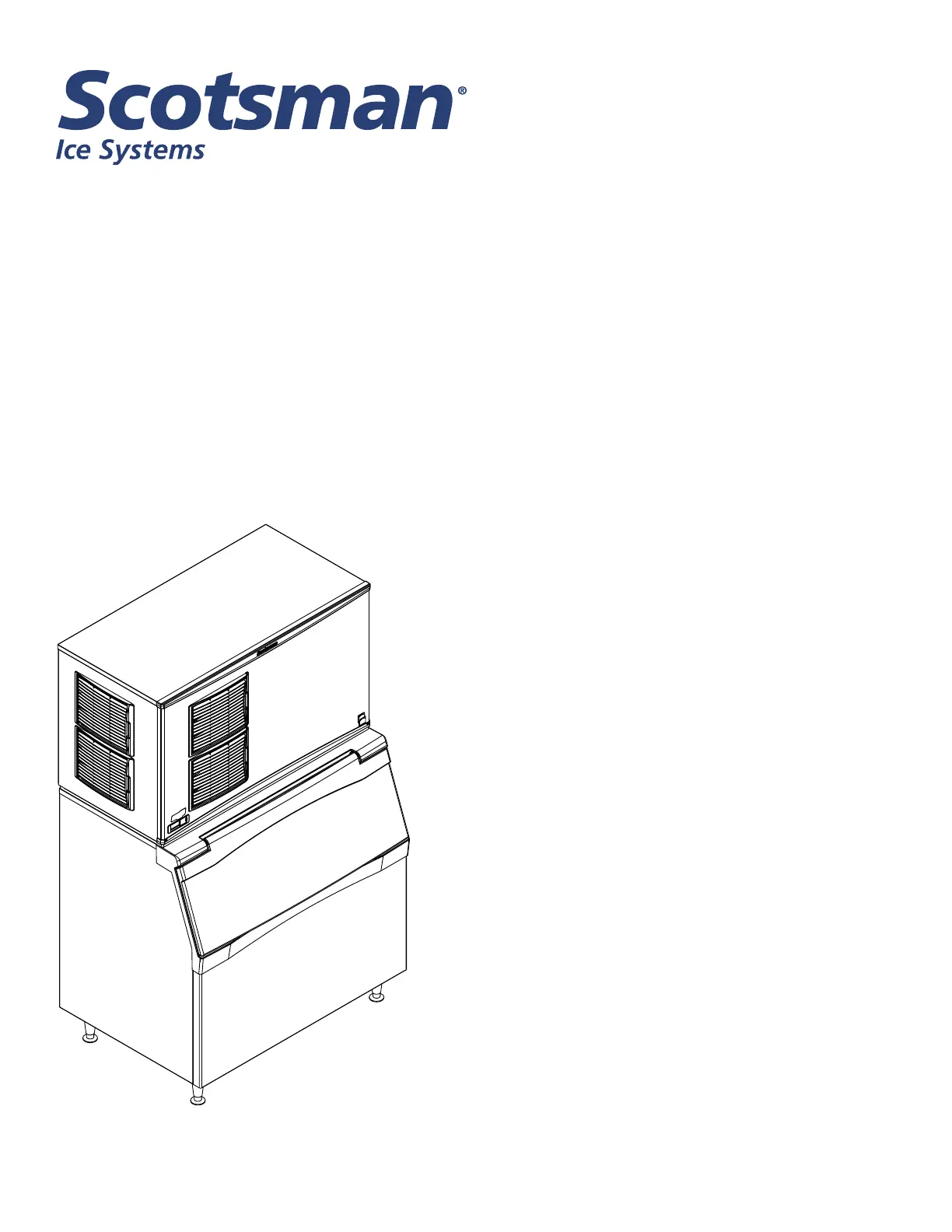

Seite 1/22
Installation and User’s Manual for
Modular Cuber
Prodigy Plus D Series Models C1448, C1848
C1448, C1848 D
Air and Water Cooled User Manual
December 2014
Page 1
The design of this modular cuber is the result of years
of experience and testing. Standard features include
front accessible indicator lights and on-off switches
that provide the user with fast access to critical
information and easy operational control.
When desired, optional controls can add features
like ultrasonic bin ice level sensing, seven day
programmable bin ice level setting, remote lock out
and more.
This installation and user manual is divided into
three main sections: Installation, which provides
the trade person with the information needed to
set up and install this product; Use and Operation,
which provides the user with the information to use
the product; and Maintenance, which provides the
user with the information needed keep it operating
efîš¿ciently.
Introduction
Contents
Installation: Product Speciîš¿cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Product Description & Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Cabinet Layout, Air and Water Cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Panel Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Uncrate and Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Plumbing Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Initial Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Water ush setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Use and Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Cleaning, Sanitation and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
Air cooled condenser îš¿lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
What to do before calling for service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
C1448, C1848 D
Air and Water Cooled User Manual
December 2014
Page 2
Installation: Product Speciîš¿cations
Location Limitations: The product is designed to be
installed indoors, in a controlled environment. Air
cooled models discharge very warm air into the room
out the back. Space must be allowed at the left side
and back for air intake and discharge.
Water cooled models discharge warm water into the
building’s drain. Space needs to be provided on both
sides and above for service access.
Space Limitations - Affects Ice Making Capacity
Note: Although the machine will function, ice capacity
of air cooled machines will be signiîš¿cantly reduced
with minimal clearance at the sides, back and
top. Some space is recommended for service and
maintenance purposes on all models.
6" of space at the sides and back are required for
adequate operation. To get the most capacity, locate
the machine away from heat producing appliances
and heating ducts. Provide several feet of space to
the left for maximum ice capacity.
Walls or other large machines near to the ice machine
might also cause a reduction in ice capacity. One foot
behind and two feet above will be required to make
rated capacity.
Airow is in the front, in the left side, out the back (as
viewed from the front).
Environmental Limitations
Minimum Maximum
Air temperature 50oF. 100oF.
Water
temperature
40oF. 100oF.
Water pressure 20 psi 80 psi
Power supply – acceptable voltage ranges
Minimum Maximum
208-230 volt
model
198 volts 253 volts
Warranty Information
The warranty statement for this product is provided
separately from this manual. Refer to it for applicable
coverage. In general warranty covers defects
in material or workmanship. It does not cover
maintenance, corrections to installations, or situations
when the machine is operated in circumstances that
exceed the limitations printed above
Airow
