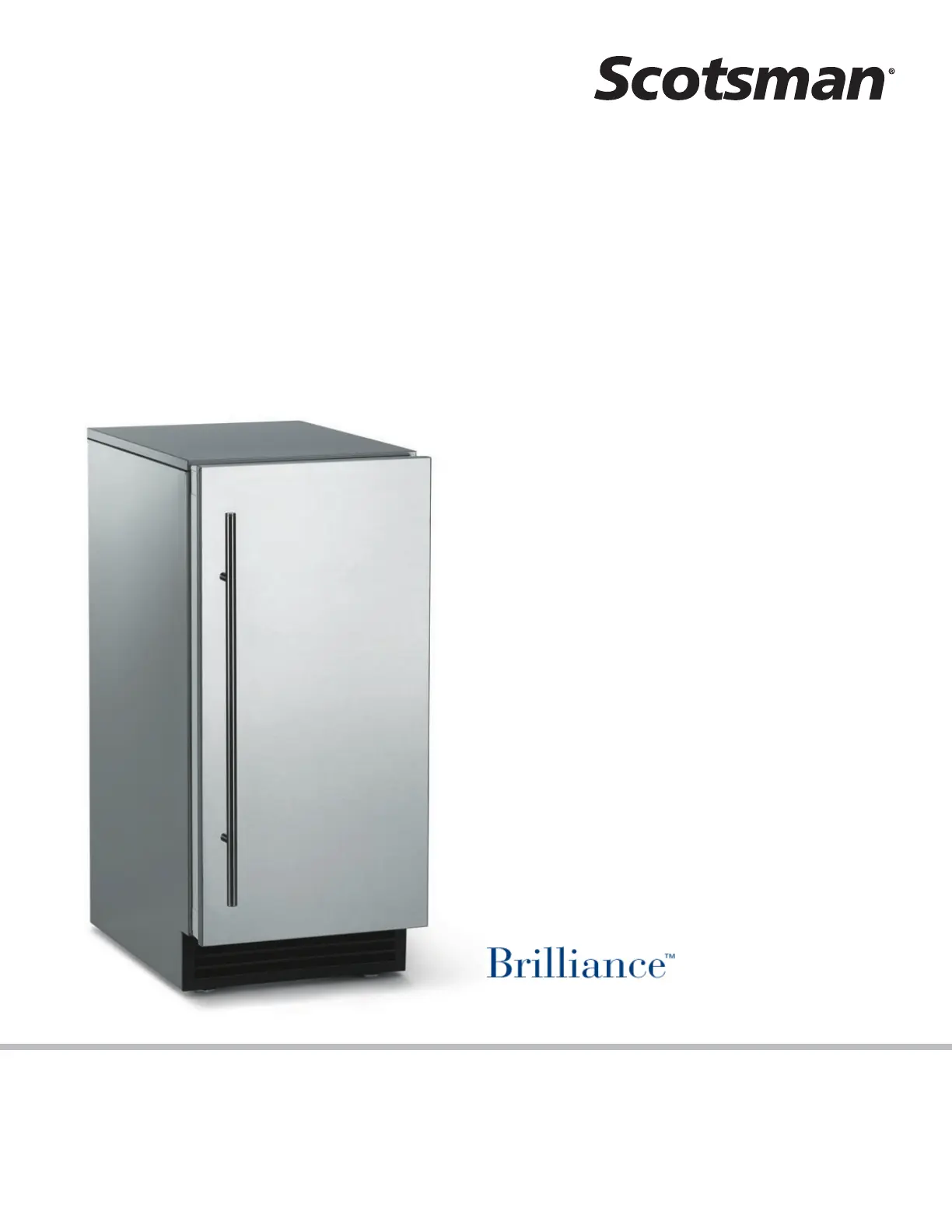

Service Manual for
Residential Ice Machine
Models SCCG50 and SCCP50
SCCG50 & SCCP50
Service Manual
June 2008
Page 1
Introduction:
This ice machine is the result of Scotsman’s
decades of experience as an industry leader in the
design and manufacture of both commercial and
residential ice machines.
This manual includes the information needed to
install, start up and maintain the ice machine. Note
any Caution or Warning indicators, as they provide
notice of potential hazards. Keep this manual for
future reference.
Table of Contents
Speciîš¿cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Cabinet Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
Air ow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Water Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Door Covering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 6
Door Panel Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Custom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
Door swing change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 9
Installation: Water & Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 10
Gravity Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 12
Cube Size Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
Harvest Time Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 15
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
How to clean the condenser and winterize . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 17
How to remove scale from the ice making system . . . . . . . . . . . . . . . . . . . . . . . . Page 18
System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
Water System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 20
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 22
Performance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23
Refrigeration System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 24
Thermistor Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25
Service Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 26
Service Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27
Removal and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 28
Removal and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29
Removal and Repair - Cabinet Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 30
Refrigeration Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 32
SCCG50 & SCCP50
Service Manual
November 2014
Page 2
Speciîš¿cations
This ice machine is designed to be used indoors,
in a controlled environment. It can be used in a
wide variety of environmental conditions, but there
are limits. Use outside of the listed limitations is
misuse and will void the warranty.
Air temperature limits:
The ice machine will operate adequately within the
limits, but functions best in temperatures between
70 and 80 degrees F.
• Minimum – 50 degrees F. (10°C)
• Maximum – 100 degrees F. (38°C)
Water temperature limits:
• Minimum – 40 degrees F. (4.5°C)
• Maximum – 100 degrees F. (38°C)
Water pressure limits:
• Minimum – 20 psi (1.4 bar)
• Maximum – 80 psi (5.5 bar)
Because the ice machine is making a food product,
the water supply to the ice machine must be
potable, or îš¿t for human consumption.
Electrical
• 115 volt, 60 Hz. Plug into dedicated 15 amp
circuit.
• Power consumption: 275 - 400 Watts. Varies
during Freeze and Harvest cycles.
Voltage limits:
• Minimum - 104 volts
• Maximum – 126 volts
Options:
Door Panel kits: Finished door panels are available
from Scotsman for attachment to the machine,
or a custom panel can be made.
Kit Number Panel Finish Handle Finish
KDFW White White
KDFWS White Stainless Steel
KDFB Black Black
KDFBS Stainless SteelBlack
KDFS Stainless Steel Stainless Steel
Kickplate Extension: In some situations the leg
levelers will be extended enough to become visible.
A kit to extend the kickplate over the legs is KKPF.
Cabinet Stability: In some free standing
installations it may be prudent to add a bracket that
secures the back of the cabinet to a wall. That kit
number is KATB.
Drain Conversion:
A gravity drain model can be converted to a drain
pump model by installing a drain pump kit. The
drain pump kit consists of a drain pump, wiring
harness and associated tubing. The kit number is
A39462-021.
Warranty Information
Warranty information is supplied separately from
this manual. Refer to it for coverage. In general,
the warranty covers defects in materials or
workmanship and does not cover corrections of
installation errors or maintenance.
Models: All are air cooled (A series began 8/09):
• SCCP50MA-1WU – Pump model, white cabinet - discontinued 2013
• SCCG50MA-1WU – Gravity drain model, white cabinet - discontinued 2013
• SCCP50MA-1BU – Pump model, black cabinet - discontinued 2013
• SCCG50MA-1BU – Gravity drain model, black cabinet - discontinued 2013
• SCCP50MA-1SU – Pump model, stainless cabinet, unnished door
• SCCG50MA-1SU – Gravity drain model, stainless cabinet, unnished door
• SCCP50MA-1SS – Pump model, stainless cabinet and door
• SCCG50MA-1SS – Gravity drain model, stainless cabinet and door
