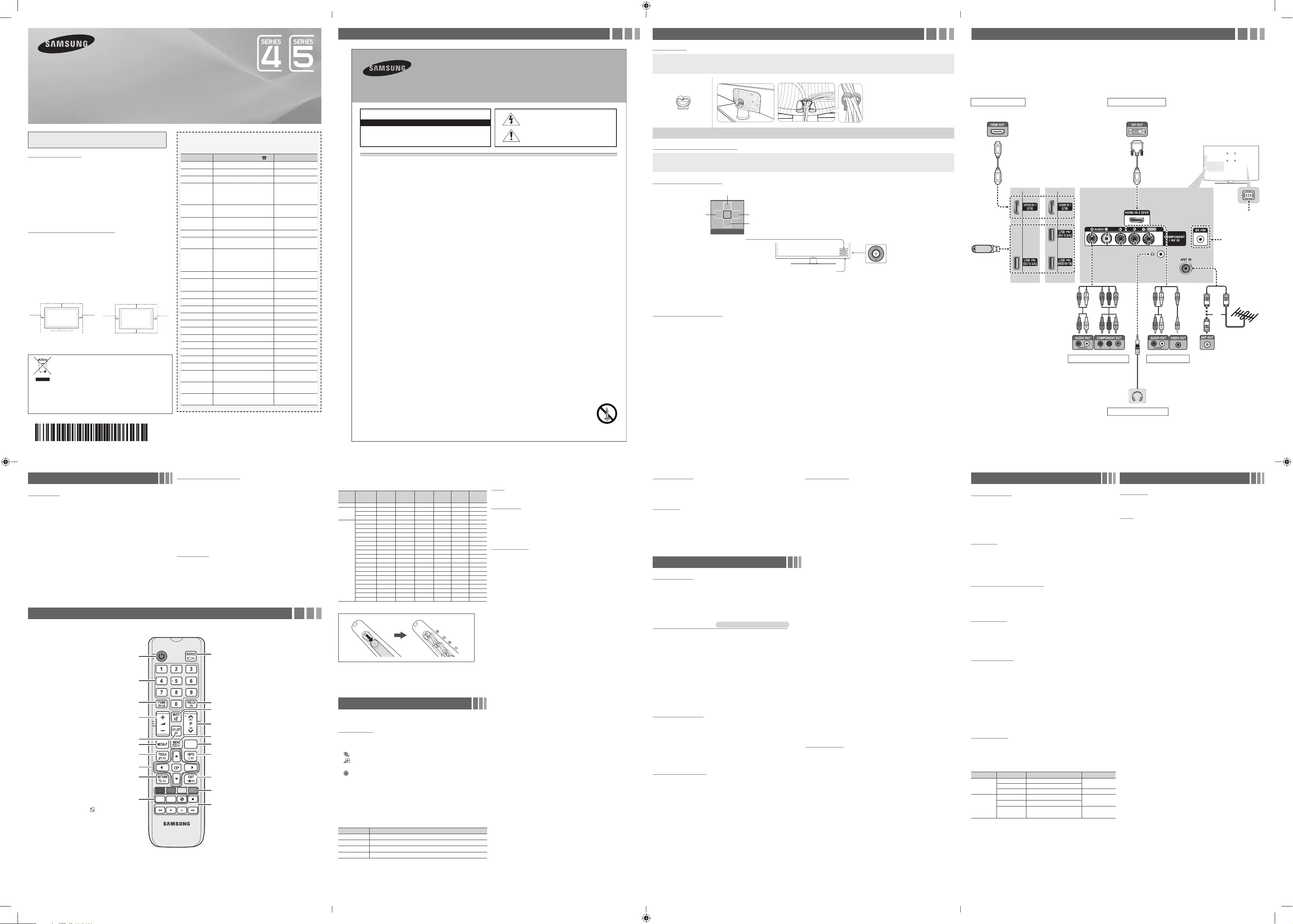

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and speciﬁ cations

may be changed without notice.

Still image warning

Avoid displaying still images (like jpeg picture ﬁ les) or still image element (like TV

programme logo, panorama or 4:3 image format, stock or news bar at screen bottom

etc.) on the screen. Constant displaying of still picture can cause ghosting of LED

screen, which will affect image quality. To reduce risk of this effect, please follow

below recommendations:

 Avoid displaying the same TV channel for long periods.

 Always try to display any image on full screen, use TV set picture format menu for

best possible match.

 Reduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

 Frequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to

ensure proper ventilation.

Failing to do so may result in ﬁ re or a problem with the product due to an increase in

the internal temperature of the product.

✎ When using a stand or wall-mount, use parts provided by Samsung Electronics

only.

 If you use parts provided by another manufacturer, it may result in a problem with

the product or an injury due to the product falling.

✎ The appearance may differ depending on the product.

✎ Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm 10 cm

10 cm

LED TV

user manual

• Theslots and openings in the    cabinet and in the   back or bottom provided for   are  necessary ventilation. ensure reliable operation of  To    this apparatus, 

and to protect it fromoverheating, these slots and openings must never be blocked or covered.

-Do not cover the slots and openings with acloth or other materials.

-Do not block the slots and openings by placing this apparatus on abed, sofa, rug or other similar surface.

-Do not place this apparatus in aconned space, such as abookcase or built-in cabinet, unless proper ventilation is provided.

• Donot place this apparatus near or overa radiator or heat register, or where it is    exposed to directsunlight.

• Donot place avessel containing water (vases etc.) on this apparatus, as this can result in  arisk of reorelectric shock.

• Do not expose this apparatus to rain or place it near water (near bathtub, washbowl, kitchen sink, or laundry tub, in wet basement, or near            a        a    a

swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately.

• Makesureto pull out the power cord fromthe outlet beforecleaning.

• This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the                      

environment.Please contact your  local authorities for disposal or recycling information. 

• Donot overload wall outlets, extension cords, or  adaptors beyond their capacity, since this can result in or re electric shock.

• Power-supply cords should be routed so that they not likely to be walked on or pinched by items placed upon or against them. Pay particular        are                 

attention to cords at the plug end, where connected  to adaptors, and at the point wherethey exit from the apparatus.

• protect this apparatus from lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet andTo    a                      

disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local                       

electrical supply. (depending on the model)

• Neverinsert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• avoidTo electric shock, never touch the inside of this apparatus. Only aqualied technician should open this apparatus.

• Make sure to plug the power cord in until it is rmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not                             

touch the power cord with wet hands.

• If this appratus does not operate normally      - in particular, if there any unusual sounds or   are    smells coming from it unplug it immediately   -   and contact 

an authorized dealer or service center.

• Besure to pull  the power plug out   of the outlet if   the TV is to   remain unused or if you to leave the   are   house for an extended   period of time  (especially

when children, elderly or   disabled people will be left alone in the house).

-Accumulated dust can  cause an electric shock, an  electric leakage, orare   by causing the power cord to generate sparks and heat,  or cause the

insulation to deteriorate.

• Be sure to contact an authorized service center, when installing your set in location with heavy dust, high or low temperatures, high humidity,            a          

chemical substances or where   it will operate for 24 hours     a     day such as in an airport, traina station, etc. Failure to   do so may cause serious damage     

to your set.

• Useonlyaproperly grounded plug and receptacle.

-An improper groundmay cause electric shock or equipment damage. (Class lEquipment only.)

• turn the apparatus completely, you mustTo  off     pull the power plug   out of the wall socket.    Consequently, the power plug   should be readily  accessible

at all times.

• Donot allow childrento hang onto the product.

• Store the accessories (batteries, etc.) in alocation safely out of the reach of children.

• Donot install the product in  an unstable location such asa shaky self,a slanted oor,ora location exposed to vibration.

• Donot drop or  imparta shock to the product. If the product is  damaged, disconnect the power cordand contact aservice center.

• clean the product, unplug the power cord from the power outlet and wipe the product using soft, dry cloth. Do not use any chemicals suchTo                a         

as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the                     

product.

• Donot expose the apparatus todripping or splashing.

• Donot dispose of batteries inare.

• Donot short circuit,disassemble, or overheat the batteries.

• notshort circuit, disassemble,  or overheat the batteries.

• There is adanger of explosion if you replace the batteries with the wrongtype of battery. Replace only with the same or equivalent type.

• WARNING- TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES FROM THIS AWAY  PRODUCT ALL TIMES. AT 

Warning! Important Safety Instructions

(Please read the safety instructions below before installing and using the product.)

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE          

COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. RE          -

FER ALL SERVICING TO QUALIFIED  PERSONNEL.

RISK OF ELECTRIC SHOCK. DO NOT OPEN

This symbol indicates that high voltage is present inside. It         

is dangerous to make any kind of contact with any internal          

part of this  product.

This symbol indicates that important literature concerning      

operation and maintenance has been included with this       

product

Important Safety Instructions

Getting Started

Accessories

 Remote Control & Batteries (AAA x 2)

 Owner’s Instructions

 Warranty Card / Regulatory Guide (Not available in some locations)

 Power Cord

 AC/DC Adapter (UA19F4000, UA22F5000, UA22F5100)

Cable manager Assembling the Cable manager

Input Cables (Sold Separately)

 Composite (AV)

 Component

 Coaxial (RF)

 HDMI

 HDMI-DVI

TV Controller (Panel Key)

Function menu

MEDIA.P

m R s

Return

Selecting the Media Play

Selecting a Source

Power off

Selecting the Menu

Remote control sensor TV Controller

The image is drawn by facing

the front side of the TV.

✎ To close the , List, or List, press the Controller for more than 1 second.Menu Media Play Source

✎ When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you

cannot operate it to move the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the ﬁ rst time, a sequence of screens and on-screen prompts will assist you in conﬁ guring the TV’s basic settings. Plug the

power cord into a wall outlet, and then press the button to turn on the TV. Set the initial setup following instructions that the TV guides.POWER

✎ If you are not using a cable box or satellite box, make you sure have connected the TV to an Aerial or cable connection before you turn on the TV.

✎ Connecting the power cord and antenna. (refer to ‘Connections’)

Connections

 For better picture and audio quality, connect to a digital device using an HDMI

cable.

 The picture may not display normally (if at all) or the audio may not work if an

external device that uses an older version of HDMI mode is connected to the TV.

If such a problem occurs, ask the manufacturer of the external device about the

HDMI version and, if out of date, request an upgrade.

 Be sure to purchase a certiﬁ ed HDMI cable. Otherwise, the picture may not

display or a connection error may occur.

 PC/DVI AUDIO IN input is not supported.

 For HDMI/DVI cable connection, you must use the port. HDMI IN 2 (DVI)

 Connecting through the HDMI cable may not be supported depending on the

PC.

 If an HDMI to DVI cable is connected to the port, the audio HDMI IN 2 (DVI)

does not work.

 For Set-top box connection using HDMI cable, we highly recommend you to

connect the port.HDMI IN 1 (STB)

Changing the Input Source

Source List

Use to select TV or other external input sources such as DVD / Blu-ray

players / cable box / STB satellite receiver connected to the TV.

1. Press the button.SOURCE

2. Select a desired external input source.

■

TV / AV / Component / HDMI1 / HDMI2/DVI

✎ You can only choose external devices that are connected to the TV.

In the , connected inputs will be highlighted.Source List

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access , press the button in . Name the Edit Name TOOLS Source List

device connected to the input jacks to make your input source selection

easier.

✎ When connecting a PC to the port with HDMI HDMI IN 2 (DVI)

cable, you should set the TV to mode under .PC Edit Name

✎ When connecting a PC to the port with HDMI HDMI IN 2 (DVI)

to DVI cable, you should set the TV to mode under DVI PC Edit

Name.

✎ When connecting an AV devices to the port with HDMI IN 2 (DVI)

HDMI to DVI cable, you should set the TV to mode under DVI Edit

Name.

Information

You can see detailed information about the selected external device.

✎ Information only available for the current connected source.

Remote Control

✎ This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a speciﬁ c feature.

P.MODE: Selects the picture mode.

P.SIZE: Selects the picture size.

: on or off.Sports Mode

Cuts off the sound temporarily.

Selects the HDMI mode directly.

Displays the channel list on the screen.

Displays information on the TV screen. Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction

on screen.

Changes channels.

Displays the main on-screen menu.

Views the Media Play.

Adjusts the volume.

A B C D

HDMI

P.SIZE

P.MODE

SPORTS

Display Modes (HDMI/DVI Input)

Optimal resolution

4 series:1366 x 768@60Hz / 5 series: 1920 x 1080@60Hz

Mode Resolution

Horizontal

Frequency

(KHz)

Vertical

Frequency

(Hz)

Pixel Clock

Frequency

(MHz)

Sync

Polarity

(H / V)

1366 x 768 1920 x 1080

IBM 720 x 400 31.469 70.087 28.322 -/+

c c

MAC

640 x 480 35.000 66.667 30.240 -/-

c c

832 x 624 49.726 74.551 57.284 -/-

c c

1152 x 870 68.681 75.062 100.000 -/-

VESA DMT

640 x 480 31.469 59.940 25.175 -/-

c c

640 x 480 37.861 72.809 31.500 -/-

c c

640 x 480 37.500 75.000 31.500 -/-

c c

800 x 600 37.879 60.317 40.000 +/+

c c

800 x 600 48.077 72.188 50.000 +/+

c c

800 x 600 46.875 75.000 49.500 +/+

c c

1024 x 768 48.363 60.004 65.000 -/-

c c

1024 x 768 56.476 70.069 75.000 -/-

c c

1024 x 768 60.023 75.029 78.750 +/+

c c

1152 x 864 67.500 75.000 108.000 +/+

1280 x 720 45.000 60.000 74.250 +/+

c c

1280 x 800 49.702 59.810 83.500 -/+

1280 x 1024 63.981 60.020 108.000 +/+

1280 x 1024 79.976 75.025 135.000 +/+

1366 x 768 47.712 59.790 85.500 +/+

c c

1440 x 900 55.935 59.887 106.500 -/+

1600 x 900RB 60.000 60.000 108.000 +/+

1680 x 1050 65.290 59.954 146.250 -/+

1920 x 1080 67.500 60.000 148.500 +/+

Installing batteries (Battery size: AAA)

✎ NOTE

 Use the remote control within 23 feet from TV.

 Bright light may affect the performance of the remote control. Avoid

using nearby special fluorescent light or neon signs.

 The Colour and shape may vary depending on the model.

Channel Menu

Seeing Channels

Channel List

Select a channel in the , , or All Channels Added Channels Favourites

Programmed screen by pressing the buttons, and pressing the ▲/▼

ENTER

button. Then you can watch the selected channel.

■

All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.

■ *

Favourites: Shows all favourite channels.

■

Programmed: Shows all currently reserved Programmes.

✎ Using the remote control buttons with the Channel List

 Green (Zoom): Enlarges or shrinks a channel number.

 Yellow (Select): Selects multiple channel lists. Select desired channels

and press the Yellow button to set all the selected channels at the same

time. The

mark appears to the left of the selected channels.



(Tools Channel List): Displays the option menu. (The Options menus

may differ depending on the situation.)

Channel Status Display icons

Icons Operations

A channel selected.

A channel set as a favourites.

A locked channel.

)

A reserved programme.

Retuning Channels

Area

You can change the desired area.

Auto Store

(depending on the country)

Scans for a channel automatically and stores in the TV.

✎ Automatically allocated programme numbers may not correspond to

actual or desired programme numbers. If a channel is locked, the PIN

input window appears.

Manual Store

Scans for a channel manually and stores in the TV.

✎ If a channel is locked, the PIN input window appears.

✎ According to channel source, Manual Store may be supported.

✎ Programme, , , , , Colour System Sound System Channel Search

Store: If there is abnormal sound or no sound, reselect the sound

standard required.

✎ Channel mode

 P (Programme): When tuning is complete, the broadcasting stations

in your area have been assigned to position numbers from P0 to

P99. You can select a channel by entering the position number in

this mode.

 C (aerial channel mode) / (cable channel mode): These two modes S

allow you to select a channel by entering the assigned number for

each aerial broadcasting station or cable channel.

Channel List Option Menu

Set each channel using the menu options ( , Channel List Add / Delete

Add to Favourite / Delete from Favourite Timer Viewing Lock / , ,

Unlock Edit Channel Name Sort Select All / Deselect All Auto , , , ,

Store). Option menu items may differ depending on the channel status.

Set each channel using the menu options. Option menu Channel List

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎ All deleted channels will be shown on the menu.All Channels

✎ A gray-Coloured channel indicates the channel has been deleted.

✎ The Add menu only appears for deleted channels.

✎ Delete a channel from the or menu in Added Channels Favourites

the same manner.

■

Add to Favourite / Delete from Favourite

: Set channels you

watch frequently as favourites

■

Timer Viewing: You can set a desired channel to be displayed

automatically at the set time; even when you are watching another

channel. Set the current time ﬁ rst to use this function.

■

Edit Channel Name: Assign your own channel name.

■

Sort: This operation allows you to change the programme numbers of

the stored channels. This operation may be necessary after using the

auto store.

■

Lock / Unlock: Lock a channel so that the channel cannot be selected

and viewed.

✎ This function is available only when the is set to .Channel Lock On

✎ The PIN input screen appears. Enter your 4-digit PIN, the default of

which is “0-0-0-0”. Change the PIN using the option.Change PIN

■

Select All / Deselect All: You can select or deselect all channels in the

channel list.

■

Auto Store: Scans for a channel automatically and stores in the TV.

Channel Mode

Channels will be switched within the favourite or memorised channel list.

■

Added Channels: Shows all added channels.

■

Favourite Ch.: Shows all favourite channels.

Fine Tune

If the reception is clear, you do not have to ﬁ ne tune the channel, as this is

done automatically during the search and store operation. If the signal is

weak or distorted, ﬁ ne tune the channel manually.

✎ Fine tuned channels that have been saved are marked with an asterisk

“*” on the right-hand side of the channel number in the channel

banner.

✎ To reset the fine-tuning, select .Reset

Picture Menu

Mode

Select your preferred picture type.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

■

Entertain: Suitable for watching movies and games.

✎ It is only available when connecting a PC.

Samsung MagicAngle UA19F4000, UA22F5000, UA22F5100

Adjust screen viewing Angle to optimise screen quality according to your

viewing position.

■

Samsung MagicAngle: When viewing the screen at an angle from

below or above by setting the appropriate mode for each position you

can obtain a similar picture quality as viewing the screen directly from

the front.

Off: Select when viewing from the front position.

Lean Back Mode: Select when viewing from a slightly lower position.

Standing Mode: Select when viewing from the upper position.

■

Mode: Adjust screen viewing angle.

✎ When Samsung MagicAngle Lean Back Mode Standing is set to or

Mode Gamma, is not available.

Backlight / Contrast / Brightness / Sharpness /

Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎ In analogue TV, AV modes of the PAL system, the Tint (G/R)

function is not available.

✎ When connecting a PC, you can only make changes to , Backlight

Contrast Brightness Sharpness, and .

✎ Settings can be adjusted and stored for each external device

connected to the TV.

✎ Lowering picture brightness reduces power consumption.

Advanced Settings

(available in Standard / Movie mode)

Compared to previous models, new Samsung TVs have a more precise

picture.

■

Dynamic Contrast: Adjusts the screen contrast.

■

Black Tone: Select the black level to adjust the screen depth.

■

Flesh Tone: Emphasize pink “Flesh Tone”.

■

Colour Space: Adjusts the range of colours available to create the

image.

■

White Balance: Adjust the colour temperature for a more natural

picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue)

darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue)

brightness.

Reset: Resets the to its default settings.White Balance

■

Gamma: Adjusts the primary colour intensity.

■

Motion Lighting: Reduce power consumption by brightness control

adapted motion.

✎ Only available in mode.Standard

Picture Options

■

Colour Tone

✎ Warm1 or Warm2 will be deactivated when the picture mode is

Dynamic.

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode most

of the time.

16:9: Sets the picture to 16:9 wide mode.

Wide Zoom: Magniﬁ es the picture size more than 4:3.

✎ Adjusts the Position by using , buttons.▲ ▼

Zoom: Magniﬁ es the 16:9 wide pictures vertically to ﬁ t the screen size.

4:3: Sets the picture to basic (4:3) mode.

✎ Do not watch in 4:3 format for a long time. Traces of borders

displayed on the left, right and centre of the screen may cause

image retention (screen burn) which are not covered by the

warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p

/ 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

✎ NOTE

 After selecting Screen Fit in HDMI (1080i / 1080p) or Component

(1080i / 1080p) mode: Adjusts the or by using , , Position Size ▲ ▼

◄ ►, button.

 Depending on the input source, the picture size options may vary.

 The available items may differ depending on the selected mode.

 Settings can be adjusted and stored for each external device

connected to an input on the TV.

 If you use the function with HDMI 720p input, 1 line will Screen Fit

be cut at the top, bottom, left and right as in the overscan function.

■

Digital Clean View: If the broadcast signal received by your TV is weak,

you can activate the feature to reduce any static and Digital Clean View

ghosting that may appear on the screen.

✎ When the signal is weak, try other options until the best picture is

displayed.

■

MPEG Noise Filter: Reduces MPEG noise to provide improved picture

quality.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎ Available only in mode (RGB signals).HDMI

■

Film Mode: Sets the TV to automatically sense and process ﬁ lm signals

from all sources and adjust the picture for optimum quality.

✎ Available in TV mode, AV, COMPONENT (480i / 1080i) and HDMI

(480i / 1080i).

■

LED Clear Motion: Removes drag from fast scenes with a lot of

movement to provide a clear picture.

■

Analogue Clean View: Reduces diagonal noise in picture caused by

the crosstalk of signals.

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently selected

mode to the default settings.

Sound Menu

Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

■

Amplify: Increase the intensity of high-frequency sound to allow a

better listening experience for the hearing impaired.

Equalizer

(standard sound mode only)

■

Balance: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):

Adjusts the level of speciﬁ c bandwidth frequencies.

■

Reset: Resets the Equalizer to its default settings.

DTS TruSurround

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience

through a pair of speakers using HRTF (Head Related Transfer Function)

technology.

Auto Volume

Because each broadcasting station has its own signal conditions, the

volume may ﬂ uctuate each time channel is changed. This feature lets

you automatically adjust the volume of the desired channel by lowering

the sound output when the modulation signal is high or by raising the

sound output when the modulation signal is low.

Speaker Select

A sound echo may occur due to a difference in decoding speed between

the main speaker and the audio receiver. In this case, set the TV to

External Speaker.

✎ When you set to , the TV’s Speaker Select External Speaker

speakers are turned off. You will hear sound through the external

speakers only. When you set to both Speaker Select TV Speaker

the TV’s speakers and the external speakers are on. You will hear

sound through both.

✎ When Speaker Select External Speaker is set to , the volume

and buttons will not operate and the sound settings will be MUTE

limited.

✎ If there is no video signal, both speakers will be mute.

Sound Reset

■

Reset All: Reset all sound settings to the factory defaults.

Selecting the Sound Mode

When you set to , the current sound mode is displayed on the Dual I-II

screen.

Audio Type Dual I-II Default

A2 Stereo

Mono Mono Automatic

change

Stereo Stereo Mono ↔

Dual Dual I Dual II ↔ Dual I

NICAM

Stereo

Mono Mono Automatic

change

Stereo Mono Stereo ↔

Dual Mono ↔Dual I

  Dual II Dual I

✎ If the stereo signal is weak and an automatic switching, occurs, then

switch to the mono.

✎ Only activated in stereo sound signal.

✎ This function is available for all input sources.

Setup Menu

Language

Set the menu language.

✎ Select Language and press the ENTER

button.

Time

✎ The current time will appear every time you press the button.INFO

■

Clock Set: Set the , , Day Month Year Hour Minute, , .

■

Sleep Timer

Automatically shuts off the TV after a preset period of time. (30, 60,

90, 120, 150 and 180 minutes)

✎ To cancel Sleep Timer, select Off.

■

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the

clock ﬁ rst.

On Time / Off Time: Set the hour, minute and Activate / Inactivate.

(To activate the timer with the setting you have chosen, set to

Activate.)

Volume: Set the desired volume level.

Contents: When the is activated, you can turn on a speciﬁ c On Time

channel or play back contents such as photo or audio ﬁ les.

− TV/USB: Select or . (Make sure that an USB device is TV USB

connected to your TV.)

− Antenna: Displays the current antenna source.

− Channel: Select the desired channel.

− Music/Photo: Select the folder containing MP3/JPEG ﬁ les on the

USB device.

✎ The maximum displayed number of files, including sub folders, in

one folder of USB storage device is 2000.

✎ The media may not be playing smoothly when using the device

lower than USB 2.0.

Repeat: Select , , , , or Once Everyday Mon~Fri Mon~Sat Sat~Sun

Manual Manual to set at your convenience. If you select , you can set

up the day you want to activate the timer.

For India Only

This product is RoHS compliant.

This marking on the product, accessories or literature indicates

that the product and its electronic accessories should not be

disposed of with other household waste at the end of their

working life. To prevent possible harm to the environment

or human health from uncontrolled waste disposal, please

separate these items from other types of waste and recycle

them responsibly to promote the sustainable reuse of material

resources.

For more information on safe disposal and recycling visit our website

www.samsung.com/in or contact our Helpline numbers - 18002668282,

180030008282.

BN68-04789A-06

 The rear panel may differ

depending on the model.

Power Input

(UA19F4000 /

UA22F5000 /

UA22F5100)

Power Input

(UA28F4000 /

UA28F4001 /

UA28F4100 /

UA28F4105)

TV Rear Panel

TV Side Panel

VHF/UHF Antenna

Cable

USB

Component connection

Headphones connection

HDMI connection PC connection

AV connection

Set-top box / Blu-ray player

/ DVD

Blu-ray player / DVD VCR

(UA19F4000 /

UA22F5000 /

UA28F4000 /

UA28F4001)

(UA22F5100 /

UA28F4100 /

UA28F4105)

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care Centre.

Country Customer Care Centre Web Site

AUSTRALIA 1300 362 603 www.samsung.com/au

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz

CHINA 400-810-5858 www.samsung.com

HONG KONG (852) 3698 4698 www.samsung.com/hk

(Chinese)

www.samsung.com/

hk_en (English)

INDIA 1800 3000 8282

1800 266 8282

www.samsung.com/in

INDONESIA 0800-112-8888 (Toll Free)

(021) 56997777

www.samsung.com/id

JAPAN 0120-327-527 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.

com/my

PHILIPPINES 1-800-10-7267864 [PLDT]

1-800-8-7267864 [Globe landline

and Mobile]

02-4222111 [Other landline]

www.samsung.com/ph

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg

THAILAND 0-2689-3232,

1800-29-3232

www.samsung.com/th

TAIWAN 0800-32-9999 www.samsung.com/tw

VIETNAM 1 800 588 889 www.samsung.com

GEORGIA 0-800-555-555 www.samsung.com

ARMENIA 0-800-05-555 www.samsung.com

AZERBAIJAN 088-55-55-555 www.samsung.com

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com

KYRGYZSTAN 00-800-500-55-500 www.samsung.com

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com

MONGOLIA +7-800-555-55-55 www.samsung.com

BELARUS 810-800-500-55-500 www.samsung.com

MOLDOVA 0-800-614-40 www.samsung.com

ALGERIA 0800 100 100 www.samsung.

com/n_africa

PAKISTAN 0800-Samsung (72678) www.samsung.

com/pk/

TUNISIA 80-1000-12 www.samsung.

com/n_africa

- 2 - - 1 -

- 6 - - 5 -

- 3 -

- 7 -

- 4 -

- 8 -

[UF4000-5000-AR]BN68-04789A-06ENG.indd 1 2014-03-12  4:23:56

Security

✎ The PIN input screen appears before the setup screen.

✎ Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the

PIN using the option.Change PIN

 Channel Lock: Lock channels in , to prevent Channel List

unauthorized users, such as children, from watching unsuitable

programme.

✎ Only available when the Input source is set to .TV

 Change PIN: Change your password required to set up the TV.

✎ If you forget the PIN code, press the remote control buttons in

the following sequence in Standby mode, which resets the PIN to

“0-0-0-0”: (on).MUTE →8→2→4→POWER

Eco Solution

■

Energy Saving

: This adjusts the brightness of the TV in order

to reduce power consumption. If you select Picture Off, the screen is

turned off, but the sound remains on. Press any button except volume

button to turn on the screen.

■

No Signal Power Off: To avoid unnecessary energy consumption, set

how long you want the TV to remain on if it’s not receiving a signal.

✎ Disabled when the PC is in power saving mode.

■

Auto Power Off: The TV will be automatically turned off when no user

operation is received for 4 hours.

Auto Protection Time

■

Auto Protection Time: If the screen remains idle with a still image

for a certain period of time deﬁ ned by the user, the screen saver is

activated to prevent the formation of ghost images on the screen.

General

■

Game Mode: When connecting to a game console such as

PlayStation™ or Xbox™, you can enjoy a more realistic gaming

experience by selecting the game mode.

 Precautions and limitations for game mode

− To disconnect the game console and connect another external

device, set to in the setup menu.Game Mode Off

− If you display the TV menu in , the screen shakes Game Mode

slightly.

 Game Mode is not available in mode.TV

 After connecting the game console, set to Game Mode On

to prevent poor picture quality. Unfortunately, you may notice

reduced picture quality.

■

Melody: Set so that a melody plays when the TV is turned Off, , Low

Medium High and .

✎ The Melody does not play.

− When no sound is output from the TV because the MUTE

button has been pressed.

− When no sound is output from the TV because the volume has

been reduced to minimum with the button.VOL –

− When the TV is turned off by function.Sleep Timer

Application Menu

Using the Media Play

Enjoy photos, music and/or movie ﬁ les saved on a

USB Mass Storage Class (MSC) device.

MEDIA.P

Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁ les to

the jack on the side of the TV.USB

3. When USB is connected to the TV, you can select . Media Play

Using the Media Play Menu

1. Press the button. Press the or button to select MENU ▲ ▼

Application, then press the ENTER

button.

2. Press the or button to select , then press the ▲ ▼ Media Play (USB)

ENTER

button.

3. Press the or button to select an icon (◄ ► Videos, Music, Photos,

Settings), then press the ENTER

button.

✎ It might not work properly with unlicenced multimedia files.

✎ If you want to view detailed information of the file or connected

device, press button in the file list, and then select TOOLS Detailed

Information Device Information or .

✎ Need-to-Know List before using Media Play (USB)

• Supported ﬁ le systems are FAT and NTFS.

• Certain types of USB Digital camera and audio devices may not

be compatible with this TV.

• Media Play only supports USB Mass Storage Class (MSC)

devices. MSC is a Mass Storage Class Bulk-Only Transport

device. Examples of MSC are Thumb drives and Flash Card

Readers. Devices should be connected directly to the TV’s USB

port. (LED UA19F4000, UA22F5000, UA28F4000, UA28F4001 :

USB HDD is not supported.)

• Before connecting your device to the TV, please back up your ﬁ les

to prevent them from damage or loss of data. SAMSUNG is not

responsible for any data ﬁ le damage or data loss.

• A USB device that requires high power may not be supported.

(LED UA19F4000, UA22F5000, UA28F4000, UA28F4001 : 0.5A)

(LED UA22F5100, UA28F4100, UA28F4105: 1A)

• Do not disconnect the USB device while it is loading.

• The higher the resolution of the image, the longer it takes to

display on the screen.

• The maximum supported JPEG resolution is 15360 x 8640 pixels.

• If a ﬁ le is corrupted or the TV does not support the ﬁ le type, the

“Not Supported File Format” message appears.

• If a USB extension cable is used, the USB device may not be

recognized or the ﬁ les on the device may not be read.

• The TV cannot play MP3 ﬁ les with DRM that have been

downloaded from a for-pay site. Digital Rights Management

(DRM) is a technology that supports the creation, distribution,

and management of digital content in an integrated and

comprehensive way, including protecting the rights and interests

of content providers, preventing illegal copying of contents, and

managing billings and settlements.

• PTP device is not supported.

• If an over-power warning message is displayed while you are

connecting or using a USB device, the device may not be

recognized or may malfunction.

• If the TV has no input during the time set in , Auto Protection Time

the Screensaver will run.

• The power-saving mode of some external hard disk drives may be

released automatically when your connect them to the TV.

• If a USB device connected to the TV is not recognized, the list of

ﬁ les on the device is corrupted, or a ﬁ le in the list is not played,

connect the USB device to a PC, format the device, and check the

connection.

• If a ﬁ le you deleted from the PC is still found when you run Media

Play, use the “Empty the Recycle Bin” function on the PC to

permanently delete the ﬁ le.

• Photos only supports sequential jpeg format.

• The scene search and thumbnail functions are not supported in the

Videos.

• If the number of ﬁ les and folders saved on a USB storage device is

approximately over 4000, the ﬁ les and folders may not appear and

some folders may not be opened.

• The maximum displayed number of ﬁ les, including sub folders, in

one folder of USB storage device is 2000.

• The media may not be playing smoothly when using the device

lower than USB 2.0.

• The ﬁ le name only works in supported menu language. The other

language is not displayed properly.

■

Videos

1. Press the or button to select , then press the ◄ ► Videos ENTER

button in the menu.Media Play

2. Press the buttons to select the desired video in the ﬁ le list.◄/►/▲/▼

3. Press the ENTER

button or (Play) button.

- The selected file is displayed on the top with its playing time.

- If video time information is unknown, playing time and the progress

bar are not displayed.

- During video playback, you can search using the and button.◄ ►

- You can use ( ) (REW) and ( ) (FF) buttons during playback.

✎ In this mode, you can play movie clips contained in a game, but you

cannot play the game itself.

 Supported Subtitle Formats

- External

Name File extension

MPEG-4 timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

- Internal

Name Container Format

Xsub Picture Format AVI

SubStation Alpha MKV Text Format

Advanced SubStation Alpha MKV Text Format

SubRip MKV Text Format

MPEG-4 Timed text MP4 Text Format

 Supported Video Formats

File

Extension Container Video Codec Resolution Frame

rate(fps) Bit rate(Mbps) Audio Codec

*.mp4 MP4

DivX 3.11/4.x/5.1/6.0 1920x1080 6~30 30Mbps

MP3 / ADPCM

/ AAC

H264 1920x1080 6~30 30Mbps

AVC 1920x1080 6~30 30Mbps

MJPEG 640x480 6~30 10Mbps

*.avi

*.mkv"

"AVI

MKV"

DivX 3.11/4.x/5.1/6.0 1920x1080 6~30 30Mbps MP3 / AC3 /

LPCM / ADPCM

/ DTS Core

MPEG4 SP / ASP 1920x1080 6~30 30Mbps

H264 1920x1080 6~30 30Mbps

MJPEG 640x480 6~30 10Mbps

*.asf

*.wmv ASF

DivX 3.11 / 4.x /5.1 / 6.0 1920x1080 6~30 30Mbps MP3 / AC3 /

LPCM /ADPCM /

WMA / WMA Pro

MPEG4 SP / ASP 1920x1080 6~30 30Mbps

H.264 1920x1080 6~30 30Mbps

*.ts

*.trp

*.tp

*.m2ts

MPEG2 1920x1080 6~30 30Mbps AC3 / AAC /

MP3 / DD+ /

HE-AAC H. 264 BP / MP / HP 1920x1080 6~30 30Mbps

*.dat

*.mpg

*.mpeg

*.vob

MPEG1 1920x1080 24/25/30 30Mbps

AC3 / MPEG /

LPCM / AAC

MPEG2 1920x1080 24/25/30 30Mbps

H. 264 BP / MP / HP 1920x1080 6~30 30Mbps

*.3gp 3GPP MPEG4 SP / ASP 1920x1080 6~30 30Mbps MP3

H.264 1920x1080 6~30 30Mbps

*.ﬂ v ﬂ ash

formats

H.264 1920x1080 6~30 30Mbps MP3

Sorenson H.263 1920x1080 6~30 30Mbps

Other Restrictions

 Video content will not play, or not play correctly, if there is an error in the

content or the container.

 Sound or video may not work if the contents have a standard bit rate/

frame rate above the compatible Frame/sec listed in the table above.

 If the Index Table is in error, the Seek (Jump) function is not supported.

 The menu may take longer to appear if the video’s bit rate exceeds

10Mbps.

 Video content can not be played, if there are many contents in one ﬁ le.

Video Decoder

Supports up to H.264, Level 4.1

H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

MPEG4 SP, ASP :

– Below 1280 x 720: 60 frame max

– Above 1280 x 720: 30 frame max

H.263 is not supported.

GMC is not support.

Audio Decoder

Supports up to WMA7, 8, 9 STD, 9 PRO, 10 PRO

WMA 9 PRO and WMA 10 PRO support 5.1 channel. (LBR mode of WMA Pro is not

supported)

WMA Lossless is not supported.

■

Music

1. Press the or button to select , then press the ◄ ► Music ENTER

button in the menu.Media Play

2. Press the buttons to select the desired Music in the ﬁ le list.◄/►/▲/▼

3. Press the ENTER

button or (Play) button.

✎ During music playback, you can search using the and button.◄ ►

✎

(REW) and (FF) buttons do not function during play.

✎ Only displays the files with MP3 file extension. Other file extensions are

not displayed, even if they are saved on the same USB device.

✎ If the sound is abnormal when playing MP3 files, adjust the Equalizer

in the menu. (An over-modulated MP3 file may cause a sound Sound

problem.)

■

Photos

1. Press the or button to select , then press the ◄ ► Photos ENTER

button in the menu.Media Play

2. Press the buttons to select the desired photo in the ﬁ le list.◄/►/▲/▼

3. Press the ENTER

button or (Play) button.

✎ NOTE

 While a photo list is displayed, press the (Play) / ENTER

button

on the remote control to start the slide show.

 All files in the file list section will be displayed in the slide show.

 During the slide show, files are displayed in order.

 During the slide show, you can adjust the slide show speed using ( )

(REW) or ( ) (FF) button.

 You can move to other file using or button.◄ ►

✎ Music files can be automatically played during the Slide Show if the

Background Music On is set to .

✎ The Mode Background Music in cannot be changed until the BGM

has finished loading.

 Supported Photo Formats

Image Photo Resolution

JPEG Base-line 15360 x 8704

Progressive 1024 x 768

■

Other Restrictions

CMYK, YCCK Colour space JPEG are not supported.

■

Playing Multiple Files

Playing selected video/music/photo ﬁ les

1. Press the Yellow button in the ﬁ le list to select the desired ﬁ le.

2. Repeat the above operation to select multiple ﬁ les.

✎ NOTE

 The

mark appears to the left of the selected files.

 To cancel a selection, press the Yellow button again.

 To deselect all selected files, press the button and select TOOLS

Deselect All.

3. Press the button, and then select .TOOLS Play Selected Contents

■

Playing the video/music/photo ﬁ le group

While a ﬁ le list is displayed, move to any ﬁ le in desired group.

■

Copying the ﬁ les to the other USB device

For 4100 / 4105 / 5100 models

1. Press the Yellow button in the ﬁ le list to select the desired ﬁ le.

2. When you press the green button, the selected ﬁ les copy to the other

USB device.

✎ Available only when both USB devices are connected to the TV.

✎ The FAT32 file system cannot copy the file which size is more than

4GB.

USB Support File System

Play (Read) NTFS, FAT, FAT32

Copy & Delete FAT, FAT32

Format FAT32 Only

■

Media Play - Additional Functions

Videos/Music/Photos Play Option menus

When playing a ﬁ le, press the button.TOOLS

Category Operation Videos Music Photos

Title You can move the other ﬁ le directly.

Repeat Mode You can play movie and music ﬁ les

repeatedly.

c c

Picture Size You can adjust the picture size to your

preference.

Picture Mode You can adjust the picture setting.

c c

Sound Mode You can adjust the sound setting.

c c c

Subtitle Setting

You can play the video with Subtitles. This

function only works if the subtitles are the

same ﬁ le name as the video.

Audio Format You can select the digital audio output

format.

Audio Language You can change the audio language if the

video has more than one language.

Category Operation Videos Music Photos

Stop Slide Show

/ Start Slide

Show

You can start or stop a Slide Show.

Slide Show

Speed

You can select the slide show speed

during the slide show.

Background

Music

You can set and select background music

when watching a Slide Show.

Zoom You can zoom into images in full screen

mode.

Rotate You can rotate images in full screen mode.

Information You can see detailed information about

the played ﬁ le.

c c c

■

Settings

Using the Setup Menu

 DivX® Video On Demand: Shows the registration code authorized for

the TV. If you connect to the DivX web site and register with 10-digit

registration code, you can download the VOD activation ﬁ le. Once you

play it using , the registration is completed.Media Play

✎ For more information on DivX® VOD, visit http://vod.divx.com.

 Device Format For 4100 / 4105 / 5100 models

: Format the Storage Media.

 Information: Select to view information on the connected device.

Using the Sports Mode

Sports Mode

This mode provides optimised condition for watching sports games.

✎ When Sports Mode On is , the picture and sound modes are set to

Stadium automatically.

✎ If you turn the TV off while watching , the Sports Mode Sports Mode

will be disable.

Support Menu

Self Diagnosis

■

Picture Test: Use to check for picture problems. If the problem

continues to occur, check the colour pattern.

■

Sound Test: Use the built-in melody sound to check for sound

problems.

■

Reset: Reset all settings to the factory defaults.

✎ The PIN input screen appears before the setup screen.

✎ Enter your 4-digit PIN. Change the PIN using the Change PIN

option.

Software Upgrade

Software Upgrade can be performed by downloading the latest ﬁ rmware

from “www.samsung.com” to a USB memory device.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you

want to upgrade the software. You can ﬁ nd information regarding our call

centres, and how to download products and software.

Other Information

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on

the wall. For detailed information on installing the wall mount, see the

instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product

or injury to yourself or others if you elect to install the TV on your own.

Wall Mount Kit Speciﬁ cations (VESA)

✎ The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the ﬂ oor. When

attaching to other building materials, please contact your nearest dealer.

If you install the TV on a ceiling or slanted wall, it may fall and result in

severe personal injury.

✎ NOTE

• Standard dimensions for wall mount kits are shown in the table

below.

• When purchasing our wall mount kit, a detailed installation manual

and all parts necessary for assembly are provided.

• Do not use screws that do not comply with the VESA standard

screw speciﬁ cations.

• Do not use screws longer than the standard dimension, as they

may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw

speciﬁ cations, the length of the screws may differ depending on

the wall mount speciﬁ cations.

• Do not fasten the screws too ﬁ rmly. This may damage the product

or cause the product to fall, leading to personal injury. Samsung is

not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when

a non-VESA or non-speciﬁ ed wall mount is used or the consumer

fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

• Always have two people mount the TV on a wall.

Product

Family Models VESA scew hole specs

(A * B) in millimeters

Standard

Screw Quantity

LED-TV

UA19F4000 / UA22F5000 /

UA22F5100 75 X 75

M4 4

UA28F4000 / UA28F4001 /

UA28F4100 / UA28F4105 100 X 100

Do not install your Wall Mount

Kit while your TV is turned on.

It may result in personal injury

due to electric shock.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause

the TV to fall. In particular, ensure that your children do not hang

over or destabilize the TV; doing so may cause the TV to tip over,

resulting in serious injuries or death. Follow all safety precautions

provided on the included Safety Flyer. For added stability, install

the anti-fall device for safety purposes, as follows.

To prevent the TV from falling

✎ Since the necessary clamps, screws, and string are not supplied,

please purchase these additionally.

1. Put the screws into the clamps and ﬁ rmly fasten them onto the wall.

Conﬁ rm that the screws have been ﬁ rmly installed onto the wall.

✎ You may need additional material such as an anchor depending on

the type of wall.

✎ Since the necessary clamps, screws, and string are not supplied,

please purchase these additionally.

2. Remove the screws from the back Centre of the TV, put the screws

into the clamps, and then fasten the screws onto the TV again.

✎ Screws may not be supplied with the product. In this case, please

purchase the screws of the following specifications.

3. Connect the clamps ﬁ xed onto the TV and the clamps ﬁ xed onto the

wall with a strong cable and then tie the string tightly.

✎ Note

 Install the TV near to the wall so that it does not fall backwards.

 It is safe to connect the string so that the clamps fixed on the wall

are equal to or lower than the clamps fixed on the TV.

 Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check

connections for any sign of fatigue for failure. If you have any doubt

about the security of your connections, contact a professional

installer.

Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used

to physically ﬁ x the system when using it in a public place. Refer to the

manual provided with the Kensington Lock for additional information on

proper use.

✎ Please find a “

” icon on the rear of the TV. The Kensington slot is

beside the “

” icon.

✎ The position and colour may differ depending on the model.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object

such as desk or chair.

2. Slide the end of the cable with the lock attached through the looped

end of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product.

4. Lock the lock.

✎ These are general instructions. For exact instructions, see the User

manual supplied with the locking device.

✎ The locking device has to be purchased separately.

✎ The location of the Kensington slot may be different depending on

the TV model.

Caution of the cover-jack

Caution

Caution: The cover-jack is for use by qualiﬁ ed service personnel

only. To reduce the risk of electric shock or ﬁ re hazard, do not

use the cover jack, unless you are qualiﬁ ed to do so.

TV Rear Panel

Cover-jack

✎ The rear panel may differ depending on the model.

Troubleshooting

If you have any questions about the TV, ﬁ rst refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click

on Support, or contact the call centre listed on the back-cover of this manual.

Problem Possible Solution

Picture Quality

The TV image does not look as good as it

did in the store.

 If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD

(high deﬁ nition) picture quality.

 Cable/Satellite subscribers: Try HD stations from the channel line up.

 Antenna connection: Try HD stations after performing Auto tuning.

✎ Many HD channels are up scaled from SD(Standard Definition) contents.

 Adjust the Cable/Set top box video output resolution to 1080i or 720p.

 Make sure you are watching the TV at the minimum recommended distance based on the size and deﬁ nition of the signal.

The picture is distorted: macroblock error,

small block, dots, pixelization

 Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action

movies.

 Low signal level or bad quality can cause picture distortion. This is not a TV issue.

 Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.

Colour is wrong or missing.  If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or

loose connections may cause colour problems or a blank screen.

There is poor colour or brightness.  Adjust the Picture Picture mode / Colour / Brightness / Sharpness options in the TV menu. (go to )

 Adjust Energy Saving Setup Eco Solution Energy Saving option in the TV menu. (go to MENU - - - )

 Try resetting the picture to view the default picture settings. (go to )MENU - Picture - Picture Reset

There is a dotted line on the edge of the

screen.

 If the picture size is set to , change it to .Screen Fit 16:9

 Change cable/satellite box resolution.

The picture is black and white.  If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.

When changing channels, the picture

freezes or is distorted or delayed.

 If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box

reboots. It may take up to 20 minutes.

 Set the output resolution of the cable box to 1080i or 720p.

Sound Quality

There is no sound or the sound is too low at

maximum volume.

 Please check the volume the of external device connected to your TV.

The picture is good but there is no sound.  Set the Speaker Select TV Speaker option to in the sound menu.

 If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

 If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s

audio option to HDMI when you have a HDMI connected to your TV).

 If you are using a HDMI cable, a separate audio cable is required.

 If your TV has a headphone jack, make sure there is nothing plugged into it.

The speakers are making an inappropriate

noise.

 Check the cable connections. Make sure a video cable is not connected to an audio input.

 For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.

No Picture, No Video

The TV will not turn on.  Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

 Make sure the wall outlet is working.

 Try pressing the button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The POWER

remote control does not work” below.

The TV turns off automatically.  Ensure the Sleep Timer Time is set to Off in the menu.

 If your PC is connected to the TV, check your PC power settings.

 Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

 When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

There is no picture/video.  Check cable connections (remove and reconnect all cables connected to the TV and external devices).

 Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input.

For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

 Make sure your connected devices are powered on.

 Be sure to select the TV’s correct source by pressing the button on the TV remote.SOURCE

Problem Possible Solution

RF(Cable/Antenna) Connection

The TV is not receiving all channels.  Make sure the Antenna cable is connected securely.

 Please try Setup - System - Setup (Initial setup) to add available channels to the channel list. Go to MENU (Initial setup) and

wait for all available channels to be stored.

 Verify the Antenna is positioned correctly.

The picture is distorted: macroblock error,

small block, dots, pixelization

 Compression of video contents may cause picture distortion, especially on fast moving pictures such as sports and action

movies.

 A low signal can cause picture distortion. This is not a TV issue.

PC Connection

A “Mode Not Supported” message

appears.

 Set your PC’s output resolution so it matches the resolutions supported by the TV.

The video is OK but there is no audio.  If you are using a HDMI connection, check the audio output setting on your PC.

Others

The picture will not display in full screen.  HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents.

 Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.

 Adjust the picture size options on your external device or TV to full screen.

The remote control does not work.  Replace the remote control batteries with the poles (+/–) in the right direction.

 Clean the transmission window located on the top of the remote control.

 Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control

does not turn the TV on or off, or adjust

the volume.

 Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for the

SAMSUNG TV code.

A “Mode Not Supported” message

appears.

 Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to resolution

settings in this manual.

There is a plastic smell from the TV.  This smell is normal and will dissipate over time.

TV is tilted to the right or left side.  Remove the stand base from the TV and reassemble it.

There are difﬁ culties assembling the stand

base.

 Make sure the TV is placed on a ﬂ at surface. It is necessary to use magnetized screw driver if you cannot remove the screws

from the TV.

The Broadcasting menu is grey out

(unavailable).

 The Broadcasting menu is only available when the TV source is selected.

Your settings are lost after 30 minutes or

every time the TV is turned off.

 If the TV is in the mode, it will reset audio and picture settings every 30 minutes. If you want to change the settings Store Demo

from mode to , press the button to select TV mode, and go to Store Demo Home Use SOURCE MENU →Support →Use

Mode.

You have intermittent loss of audio or video.  Check the cable connections and reconnect them.

 Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are ﬂ exible enough for long

term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

You see small particles when you look

closely at the edge of the frame of the TV.

 This is part of the product’s design and is not a defect.

There are recurrent picture/sound issues.  Check and change the signal/source.

A reaction may occur between the rubber

cushion pads on the base stand and the

top ﬁ nish of some furniture.

 To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

✎ This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or

dark pixels on the screen. These pixels will have no impact on the performance of the product.

✎ You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com Support Downloads) by USB.→ →

Storage and Maintenance

✎ If you remove the attached sticker on the TV screen, clean the residues and then watch TV.

Do not spray water directly onto the product. Any liquid that goes into the

product may cause a failure, ﬁ re, or electric shock.

Clean the product with a soft cloth dampened with in a small amount of water.

Do not use a ﬂ ammable liquid (e.g. benzene, thinners) or a cleaning agent.

License

DivX Certiﬁ ed® to play DivX® video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofﬁ cial DivX Certiﬁ ed® device that plays DivX video. Visit

divx. com for more information and software tools to convert your ﬁ les into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁ ed® device must be registered in

order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com

for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274 DivX®, DivX

Certiﬁ ed® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under a license from U.S. Patent No’s: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567,

7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS

Manufactured under a license from U.S. Patent No’s: 6,285,767, 8,027,477, 5,319,713, 5,333,201, 5,638,452, 5,771,295, 5,970,152, 5,912,976,

7,200,236, 7,492,907, 8,050,434, 7,720,240, 7,031,474, 7,907,736 and 7,764,802. DTS, the Symbol, and DTS and the Symbol together are

The terms HDMI and HDMI High-Deﬁ nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC

in the United States and other countries.

Open Source License Notice

In the case of using open source software, Open Source Licenses are available on the product menu. Open Source License Notice is written only English.

Speciﬁ cations

Environmental

Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Model Name
